Old 04-07-2012, 05:52 PM   #461
Senior Member
iTrader: (20)

yellowihss's Avatar

Join Date: Dec 2008
Location: Austin, TX
Posts: 738
Total Cats: 7
Default

At least we can see both ways to do it.
yellowihss is offline   Reply With Quote
Old 04-07-2012, 05:54 PM   #462
I'm Miserable!

Join Date: Dec 2011
Posts: 346
Total Cats: -223
Default

I'm running the b16 Edlebrock Victor X. Ports were identical.
Boost Joose is offline   Reply With Quote
Old 04-07-2012, 09:30 PM   #463
Senior Member
iTrader: (4)

Join Date: Aug 2010
Location: Farmington Hills, MI
Posts: 510
Total Cats: 15
Default

Skunk2 had some problems with the set screws coming out of those throttle bodies. Might want to tack them while you're doing other stuff.
njn63 is offline   Reply With Quote
Old 06-01-2012, 06:17 PM   #464
Senior Member
iTrader: (20)

yellowihss's Avatar

Join Date: Dec 2008
Location: Austin, TX
Posts: 738
Total Cats: 7
Default

Quote:

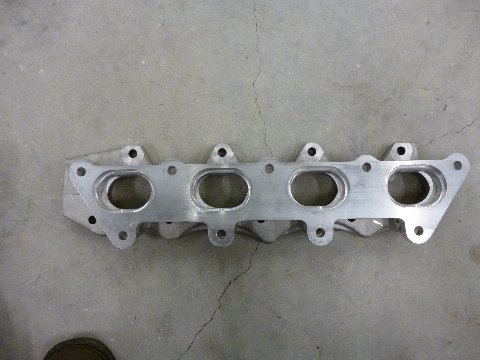

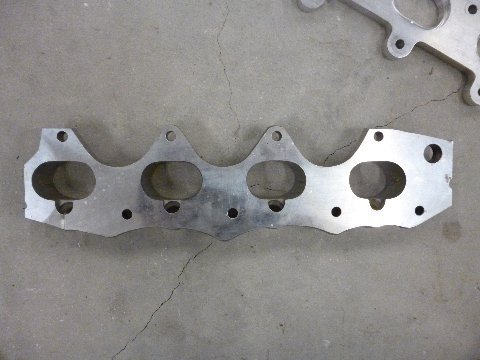

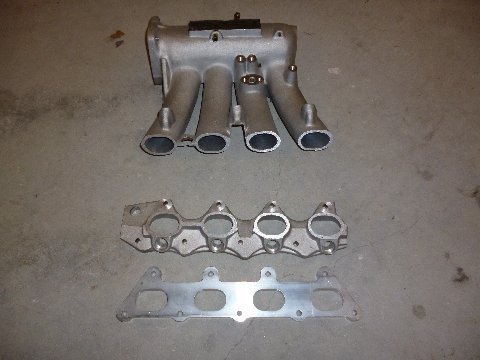

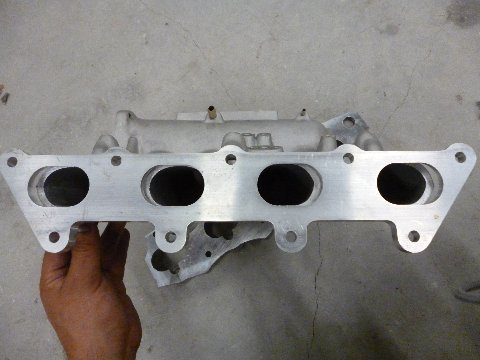

I also started on the manifold and found out there's really no easy way to mate a BP flange on the skunk manifold (BTW, just for reference, this was a b-series IM, right?). It's not as simple as cutting the flange off and welding the Miata one in its place.

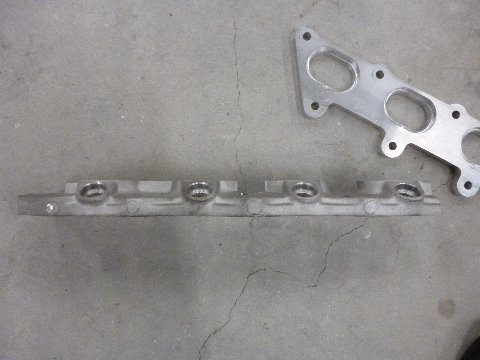

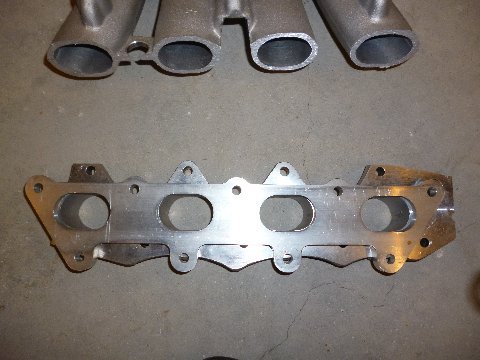

The head's port spacing is very close at the head, but I can't weld the Miata flange on top of the Honda manifold. I have to cut the flange and injector bosses off of it first; a total of about an inch. Since the runners don't run parallel to each other, this changed the port spacing at the cut. The middle runners need to move about a quarter inch, while the outers need about half an inch to line up with the Miata head/flange. The runners on an Edelbrock manifold are parallel, so that would only require cutting the honda flange off, and welding the Miata one on.

As for this Skunk2, I will need some tubing to extend/spread the runners out a bit.

Actually, since your flange is recessed, this is probably the better way of going about it anyway. There's no way I could have shaped the cast runners to fit into the recess. There would have been a step there. With the tubes, it'll be a smooth transition from flange to runner. Here are the pics:

Abe ARTech





Attached Thumbnails
Honda intake manifold-intake6.jpg   Honda intake manifold-intake5.jpg   Honda intake manifold-intake4.jpg   Honda intake manifold-intake3.jpg   Honda intake manifold-intake2.jpg

Honda intake manifold-intake1.jpg

Last edited by yellowihss; 06-01-2012 at 07:07 PM.
yellowihss is offline   Reply With Quote
Old 06-01-2012, 06:31 PM   #465
Junior Member
iTrader: (6)

Join Date: Dec 2008
Location: Boulder, CO
Posts: 291
Total Cats: 7
Default

Your pics are linked straight from your gmail account, so they will only work for you (if at all). You need to upload them somewhere else or attach them to the post. I want to see pics of my flange in action .

--Ferdi
ftjandra is offline   Reply With Quote
Old 06-01-2012, 06:33 PM   #466
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,765
Total Cats: 2,494
Default

very relevant to my interests.

Please post valid pics so I can take notes
18psi is offline   Reply With Quote
Old 06-01-2012, 07:07 PM   #467
Senior Member
iTrader: (20)

yellowihss's Avatar

Join Date: Dec 2008
Location: Austin, TX
Posts: 738
Total Cats: 7
Default

Fixed.
I should have know better, I was just in a hurry.
yellowihss is offline   Reply With Quote
Old 06-01-2012, 07:24 PM   #468
Junior Member
iTrader: (6)

Join Date: Dec 2008
Location: Boulder, CO
Posts: 291
Total Cats: 7
Default

BTW, the flange was designed to accept 2"OD x .120"wall tubing. Once ovaled, it matches up almost perfectly, requiring only minor smoothing between the flange and runner.

--Ferdi
ftjandra is offline   Reply With Quote
Old 06-02-2012, 02:35 AM   #469
Senior Member
iTrader: (6)

Join Date: Jun 2010
Location: San Rafael, CA
Posts: 1,088
Total Cats: 35
Default

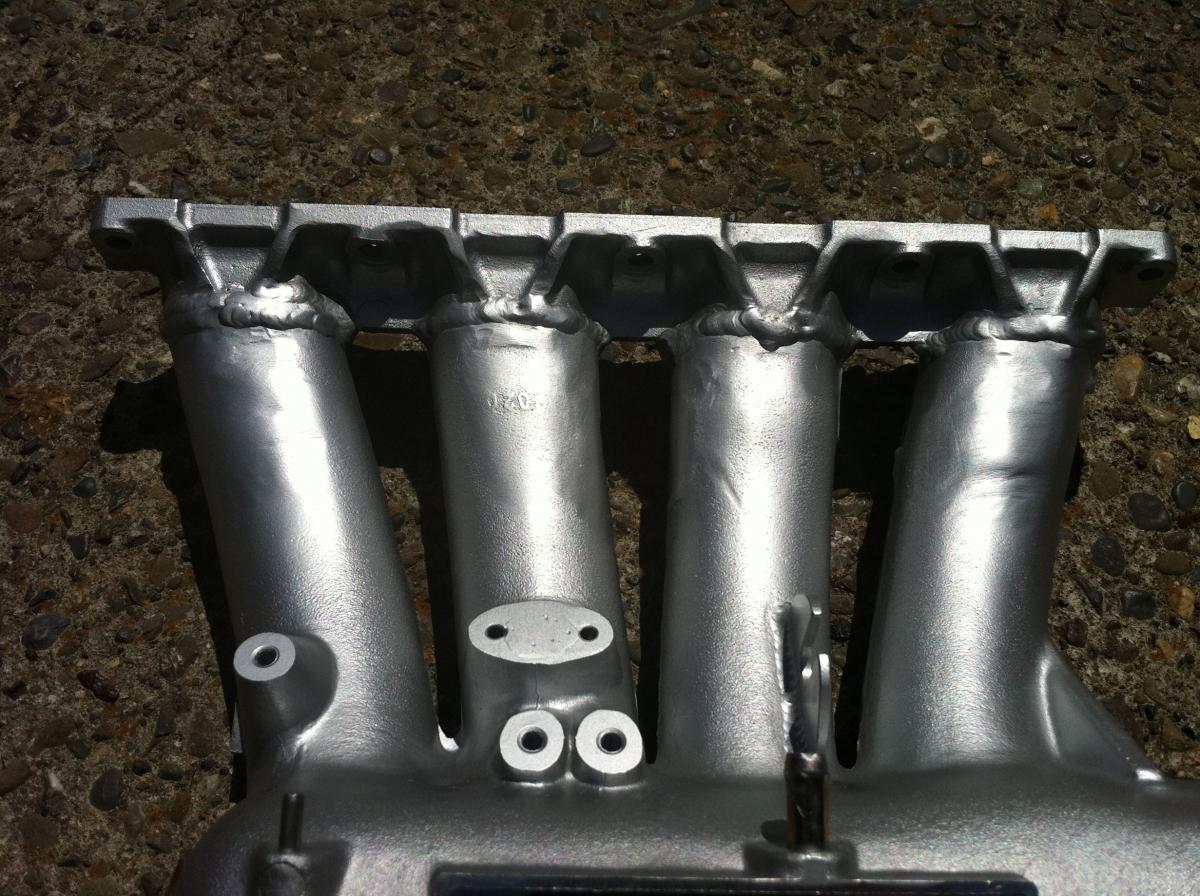

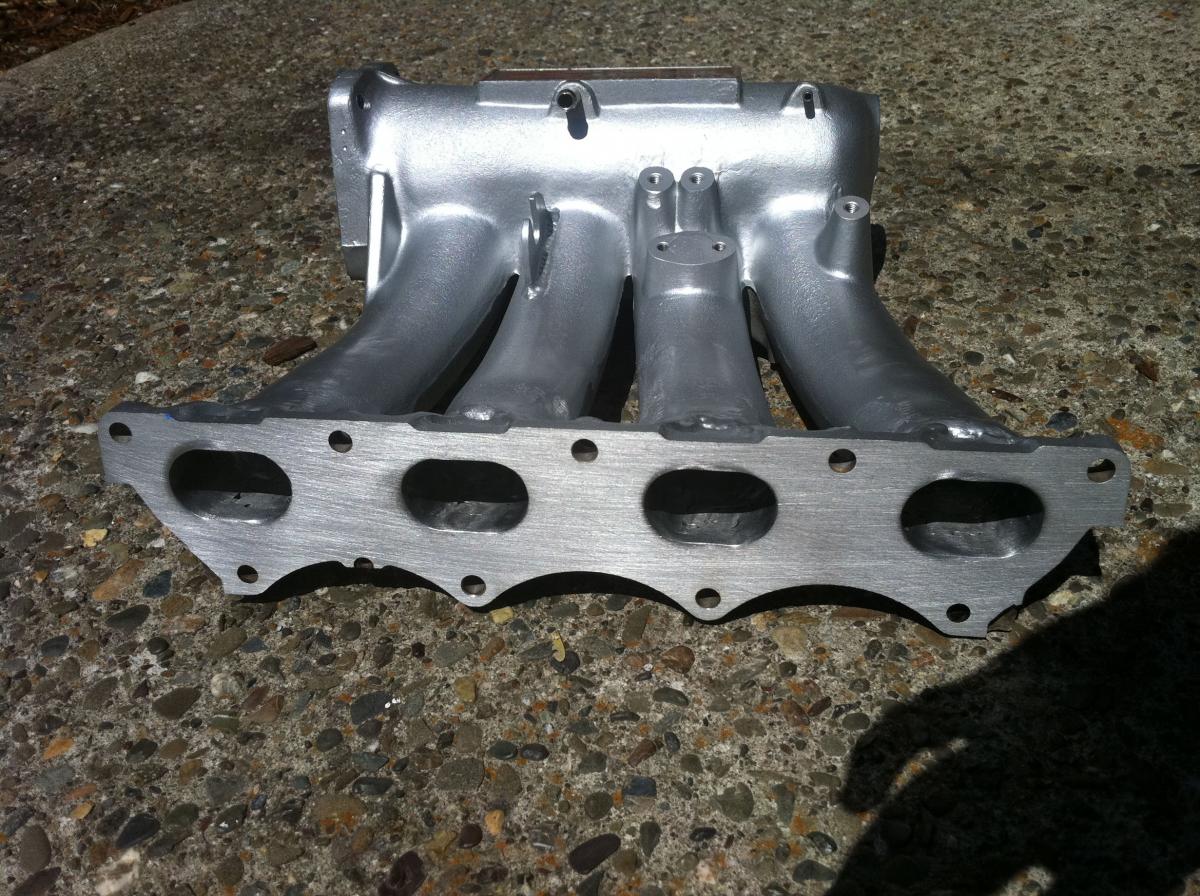

The welding part is tricky. No matter what you do the flange will warp from the heat. You have to find a machine shop that can resurface it flat. Then you also have to deal with the pin holes. No matter how clean there always seems to be some. Resurface again if your dumb like me cause you welded pin holes after the first resurfacing. If all that ain't bad enough blending the flange and runners to eliminate and flaws is impossible cause you can't get inside far enough to weld. Don't laugh I used this to smooth out the ports.

ftjandra your approach looks great. Port matching may work out better than mine. The flange warping maybe worse though.

Attached Thumbnails
Honda intake manifold-3-2.jpg   Honda intake manifold-2-2.jpg   Honda intake manifold-engine-pic1.jpg
k24madness is offline   Reply With Quote
Old 06-02-2012, 05:05 AM   #470
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,382
Total Cats: 43
Default



This is a sexy engine bay.. I'm jelly..
elesjuan is offline   Reply With Quote
Old 06-02-2012, 10:28 AM   #471
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

Ok, mind change #3412. I'm selling my manifold stuffs. Manifold, Skunk2 70mm TB, reducing (3'-2.5") 90* coupler, new TPS all for sale soon.

Got a daily to work on (blew the engine, longish story) and we need the money for moving expenses.

I'll have my wife send pics of the stuff and start a for sale thread.
kotomile is offline   Reply With Quote
Old 06-02-2012, 11:05 AM   #472
Senior Member
iTrader: (6)

Join Date: Jun 2010
Location: San Rafael, CA
Posts: 1,088
Total Cats: 35
Default

Quote:
Originally Posted by kotomile View Post
Ok, mind change #3412. I'm selling my manifold stuffs. Manifold, Skunk2 70mm TB, reducing (3'-2.5") 90* coupler, new TPS all for sale soon.

Got a daily to work on (blew the engine, longish story) and we need the money for moving expenses.

I'll have my wife send pics of the stuff and start a for sale thread.
Willing to sell the TB alone?
k24madness is offline   Reply With Quote
Old 06-02-2012, 11:16 AM   #473
Senior Member
iTrader: (20)

yellowihss's Avatar

Join Date: Dec 2008
Location: Austin, TX
Posts: 738
Total Cats: 7
Default

Quote:
reducing (3'-2.5") 90* coupler, new TPS
Ill take those 2
yellowihss is offline   Reply With Quote
Old 06-02-2012, 11:35 AM   #474
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

[email protected] guys, it wasn't my intention to clutter this thread with my for sale stuff. Thanks
kotomile is offline   Reply With Quote
Old 06-03-2012, 11:12 PM   #475
Senior Member
iTrader: (12)

absRTP's Avatar

Join Date: Sep 2009
Location: Montreal, Canada
Posts: 582
Total Cats: 0
Default

Quote:
Originally Posted by k24madness View Post


Would you really do an intake manifold with duraflix aluminium welding rods?
absRTP is offline   Reply With Quote
Old 06-05-2012, 11:43 AM   #476
Senior Member
iTrader: (6)

Join Date: Jun 2010
Location: San Rafael, CA
Posts: 1,088
Total Cats: 35
Default

Quote:
Originally Posted by absRTP View Post
Would you really do an intake manifold with duraflix aluminium welding rods?
Not to bond the flange to the runners. I only used it to smooth out the pits inside the port.
k24madness is offline   Reply With Quote
Old 06-05-2012, 11:50 AM   #477
Senior Member
iTrader: (12)

absRTP's Avatar

Join Date: Sep 2009
Location: Montreal, Canada
Posts: 582
Total Cats: 0
Default

thats what I thought
absRTP is offline   Reply With Quote
Old 06-06-2012, 02:07 PM   #478
Senior Member
iTrader: (34)

ARTech's Avatar

Join Date: Mar 2009
Location: Dallas
Posts: 530
Total Cats: 9
Default

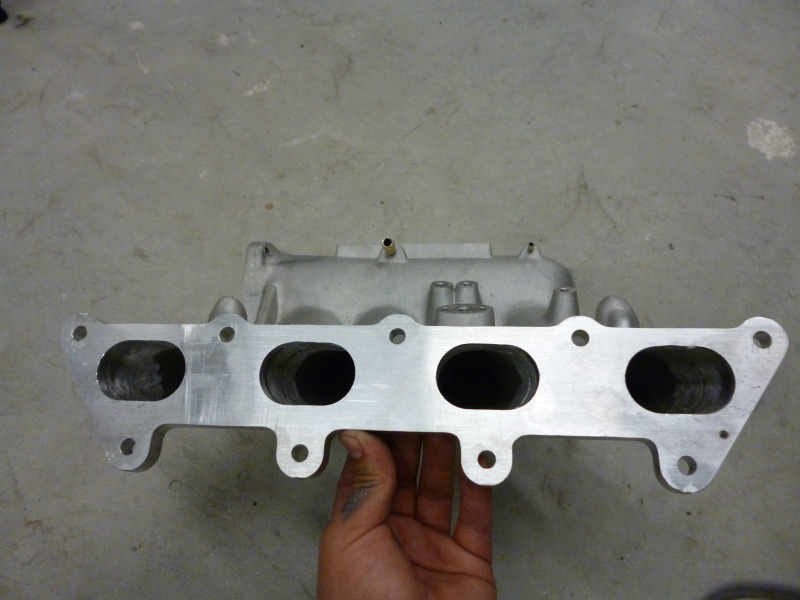

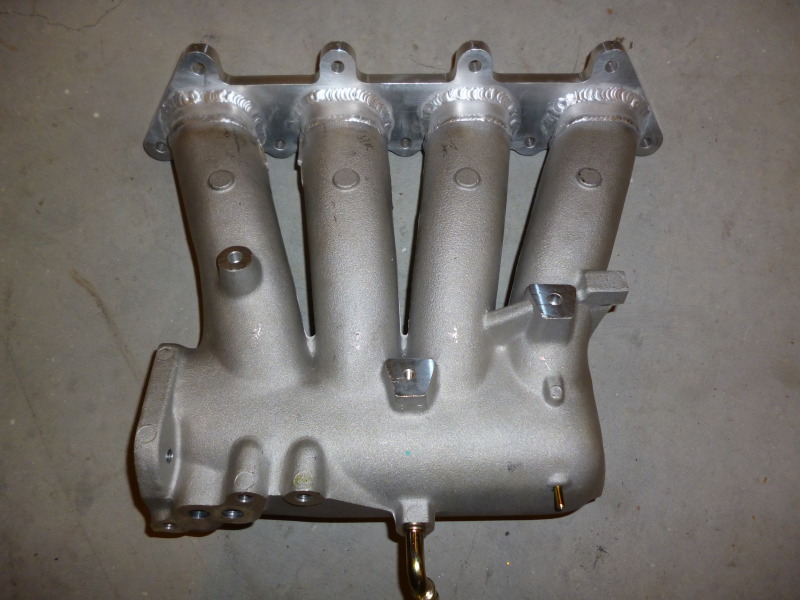

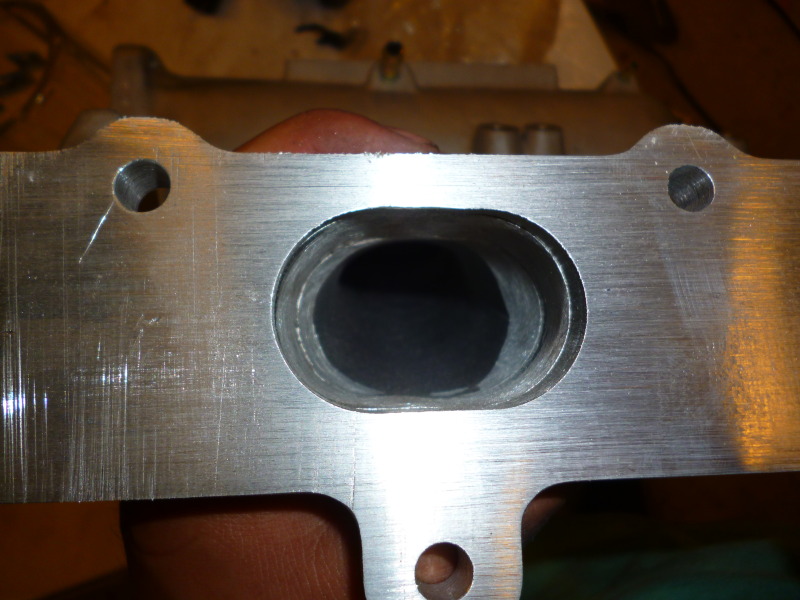

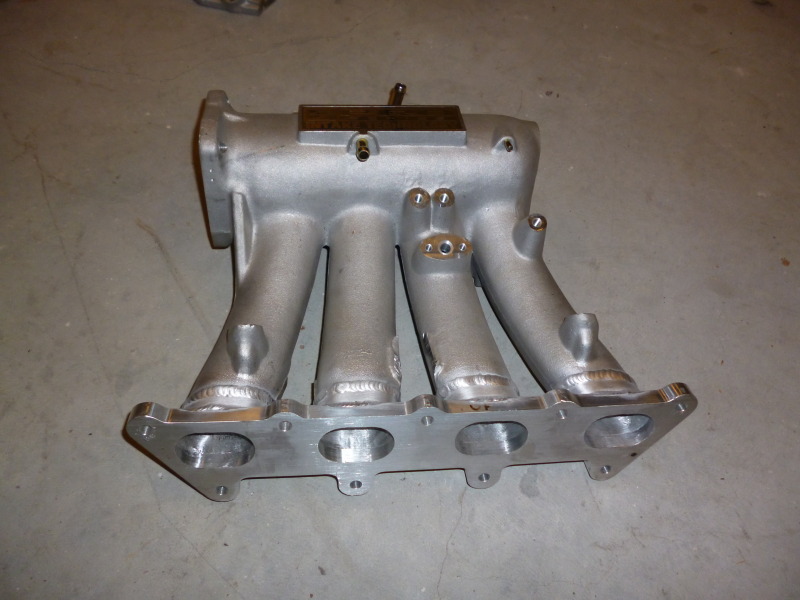

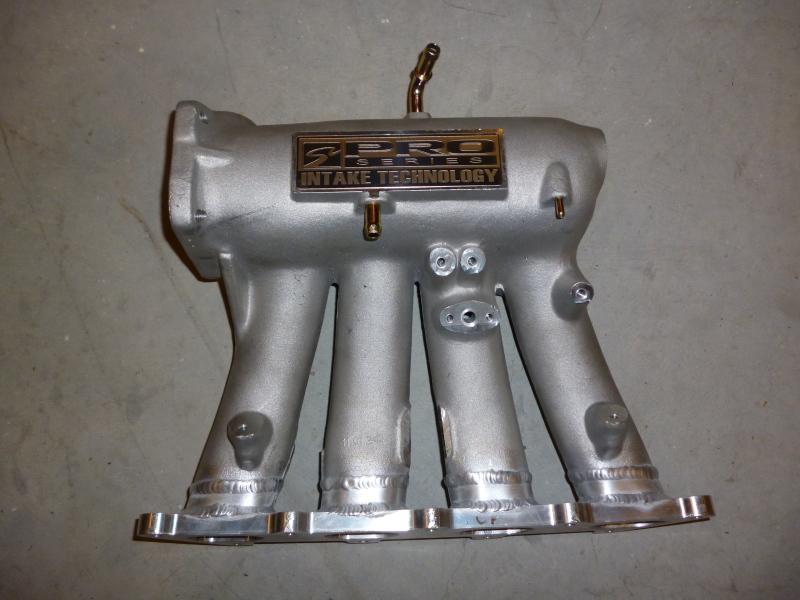

Yellowihss's Skunk2 hybrid:









Attached Thumbnails
Honda intake manifold-p1020793.jpg   Honda intake manifold-p1020794.jpg   Honda intake manifold-p1020795.jpg   Honda intake manifold-p1020798.jpg   Honda intake manifold-p1020801.jpg

ARTech is offline   Reply With Quote
Old 06-06-2012, 02:08 PM   #479
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,510
Total Cats: 1,710
Default

***** to the walls!
Braineack is offline   Reply With Quote
Old 06-06-2012, 02:46 PM   #480
Elite Member
iTrader: (10)

leatherface24's Avatar

Join Date: Dec 2006
Location: Pembroke Pines
Posts: 4,033
Total Cats: 2
Default

So much better than my bastardized hunk of diarrhea
leatherface24 is offline   Reply With Quote
