Old 12-20-2012, 05:54 PM   #561
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,208
Total Cats: 1,226
Default

Quote:
Originally Posted by BogusSVO View Post

Unless the intake engeneers for Edelbrock all these years have been wrong....
Short runner B18 Edelbrock manifold, for 7000-10000rpm:
Edelbrock Victor X Intake Manifolds - SummitRacing.com

Long runner B18 Edelbrock manifold, for 3000-7800rpm:
Edelbrock Performer X Intake Manifolds 4771 - SummitRacing.com
Savington is offline   Reply With Quote
Old 12-20-2012, 05:57 PM   #562
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,122
Total Cats: 589
Default

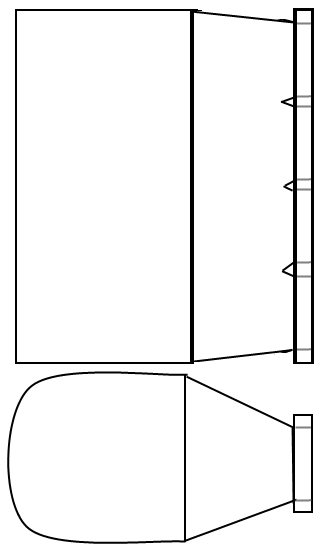

Hmm a design i'm thinking off is an extremely short runner that gets rid of the pulses completely, more so like a plenum bolted directly to the head? Something like this?

Attached Thumbnails
Honda intake manifold-plenum-intake.gif
triple88a is offline   Reply With Quote
Old 12-20-2012, 06:31 PM   #563
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,743
Total Cats: 2,482
Default

I have never, EVER, seen any information showing long runners = top end power.
In fact, everything I have ever seen about intake manifolds, supports the short = topend, and long = lowend general rule of thumb we have here.

Sorry BogusSVO

Last edited by 18psi; 12-20-2012 at 06:58 PM.
18psi is offline   Reply With Quote
Old 12-20-2012, 06:56 PM   #564
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,208
Total Cats: 1,226
Default

Quote:
Originally Posted by triple88a View Post
Hmm a design i'm thinking off is an extremely short runner that gets rid of the pulses completely
You say this like the pulses are a bad thing...
Savington is offline   Reply With Quote
Old 12-20-2012, 06:57 PM   #565
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,483
Total Cats: 1,701
Default

20K RPM motor IM build. I want to see this.
Braineack is offline   Reply With Quote
Old 12-20-2012, 07:08 PM   #566
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,122
Total Cats: 589
Default

Quote:
Originally Posted by Savington View Post
You say this like the pulses are a bad thing...
Correct because they are pulses that go back into the air going towards the runners.
triple88a is offline   Reply With Quote
Old 12-20-2012, 07:13 PM   #567
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,208
Total Cats: 1,226
Default

Quote:
Originally Posted by triple88a View Post
Correct because they are pulses that go back into the air going towards the runners.
I'll give you a hint: Pulses aren't a bad thing.
Savington is offline   Reply With Quote
Old 12-20-2012, 07:17 PM   #568
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,743
Total Cats: 2,482
Default

lol he hates torque
18psi is offline   Reply With Quote
Old 12-20-2012, 09:08 PM   #569
Junior Member

Join Date: Mar 2012
Posts: 111
Total Cats: 8
Default

Correct me if Im wrong:
The pulses are reflections OFF THE INSIDE OF THE PLENUM, not the runners themselves. So you will have tiny little reflections, so you will get the benefit of those reflections no where in your rpm range. I dont know if pulses are a disadvantage at any point, I dont recall reading that anywhere.

Has anyone done any research into how the resonance frequencies of the intake manifold effect the flow? Its probably minor compared to things like volume, length, etc.
Vilko is offline   Reply With Quote
Old 12-20-2012, 09:15 PM   #570
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,037
Total Cats: 99
Default

Lol the resonance frequencies is the most important part of designing a manifold. They greatly increase the amount of air entering the cylinders at the rpms where the high pressure wave is at the valve while the valve is open.
Leafy is offline   Reply With Quote
Old 12-20-2012, 09:47 PM   #571
Supporting Vendor
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,139
Total Cats: 1,137
Default

Quote:
Originally Posted by Vilko View Post
Has anyone done any research into how the resonance frequencies of the intake manifold effect the flow? Its probably minor compared to things like volume, length, etc.
Things like volume, length, cross section dictate resonant frequencies.
emilio700 is offline   Reply With Quote
Old 12-20-2012, 10:16 PM   #572
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,122
Total Cats: 589
Default

Its been a while since we talked about this but whatever happened with begis manifolds? Werent they designing some stuff? I wanted to see how the top tb mount manifold will perform
triple88a is offline   Reply With Quote
Old 01-21-2013, 11:16 AM   #573
Junior Member
iTrader: (1)

Join Date: Oct 2011
Location: Albuquerque, NM
Posts: 381
Total Cats: -13
Default

Sorry for resurrecting this thread but did anyone actually dyno this setup? After the 5th page I just started scrolling looking for results.
Dot3 is offline   Reply With Quote
Old 01-21-2013, 11:50 AM   #574
Junior Member

Join Date: May 2007
Location: Toronto Area, Ontario
Posts: 129
Total Cats: 25
Default

see post 546
oreo is offline   Reply With Quote
Old 01-22-2013, 01:53 AM   #575
Junior Member

Join Date: Mar 2012
Posts: 111
Total Cats: 8
Default

Quote:
Originally Posted by emilio700 View Post
Things like volume, length, cross section dictate resonant frequencies.
I mean resonance as in the note it would produce if you were to play it like a triangle. Not to be confused with the sound/pressure waves that reflect off the plenum and influence the power band.
All the things you listed would affect resonance frequency, but so would the material its made from and a whole lot of other factors. Its probably not a big enough influence on power to justify the effort.
Vilko is offline   Reply With Quote
Old 01-22-2013, 08:12 PM   #576
Senior Member
iTrader: (5)

Join Date: Jan 2008
Location: Central, TX / Bay area, CA
Posts: 1,272
Total Cats: 3
Default

I cant believe this thread is still going.
Gotpsi? is offline   Reply With Quote
Old 01-23-2013, 09:37 AM   #577
Elite Member
iTrader: (10)

leatherface24's Avatar

Join Date: Dec 2006
Location: Pembroke Pines
Posts: 4,033
Total Cats: 2
Default

Might as well just sticky the thread. Lots of good info in here.
leatherface24 is offline   Reply With Quote
Old 01-25-2013, 05:02 PM   #578
Senior Member
iTrader: (2)

Join Date: Nov 2007
Location: Saint Paul, MN
Posts: 1,293
Total Cats: 22
Default

Does that set of dyno sheets reflect begi's NEW manifold that will probably never happen?

Last I heard that thing was supposed to be getting tested LAST SPRING. Nothing on there website even mentions it anymore. I'd love to get a manifold, especially one that is proven (see post 546). If I can find one I'll do a back to back stock 99 intake vs new and add more data.
Der_Idiot is offline   Reply With Quote
Old 01-28-2013, 02:50 PM   #579
Senior Member

Join Date: Feb 2007
Location: Aliso Viejo, CA
Posts: 714
Total Cats: 132
Default

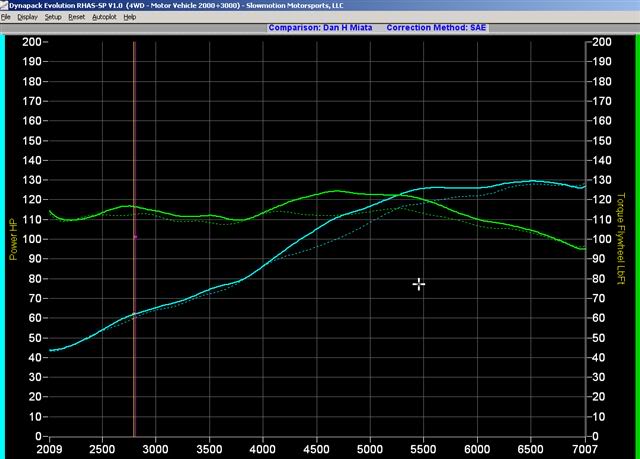

Just for data's sake..
This was the baseline before touching up the tune and revving higher. Sounds like most guys will stay at or near factory limit.
Refreshed N/A 94 block, stock 99 head. Solid line is 99 mani without vics wired, dotted is Blox skunk2 copy manifold.


Attached Thumbnails
Honda intake manifold-hondaimdyno-1.jpg
doward is offline   Reply With Quote
Old 01-31-2013, 01:28 PM   #580
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,516
Total Cats: 255
Default

Quote:
Originally Posted by Braineack View Post


this compares pauls to a 97 block with 99 head and the same components.
I don't get this graph. Is one just tuned worse than the other? if they have the same components....
soviet is offline   Reply With Quote
