Old 11-02-2011, 08:30 PM   #441
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,216
Total Cats: 1,231
Default

Lowers are different so you can't bolt an 01 UIM to a 99 LIM, but you can bolt an 01 LIM to a 99 head.
Savington is offline   Reply With Quote
Old 11-03-2011, 04:38 PM   #442
Junior Member
iTrader: (1)

Join Date: Mar 2010
Location: sacramento
Posts: 169
Total Cats: 1
Default

Quote:
Originally Posted by Savington View Post
but you can bolt an 01 LIM to a 99 head.
exactly wut i needed to hear. thanks a bunch! this will make trying to track a LIM wayyyy easier and prob cheaper.
blindboxx2334 is offline   Reply With Quote
Old 12-11-2011, 10:30 AM   #443
Newb

Join Date: Apr 2010
Location: Columbus, Ohio
Posts: 32
Total Cats: 0
Default

So what is the best intake manifold for a (350 whp turbo) with a 99 head?
Buzz is offline   Reply With Quote
Old 12-11-2011, 01:02 PM   #444
Senior Member
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 38
Default

blox or skunk2 manifold.....edelbrock victor x is probably 'best' of the honda ones for 400+ but below that you're probably just giving up a good bit of low end powa
aaronc7 is offline   Reply With Quote
Old 12-11-2011, 04:12 PM   #445
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,510
Total Cats: 1,710
Default

victor X is designed for 10,000RPM, it's not the ideal choice for our motors.

I'd choose the performer X over it.


IIRC blox is a rip of the skunk2, which is a rip of the ITR oem manifold.
Braineack is offline   Reply With Quote
Old 12-12-2011, 10:59 PM   #446
I'm Miserable!

Join Date: Feb 2010
Location: North Carolina
Posts: 14
Total Cats: -13
Default

im curious. why would you dare think of putting honda products on the prestigious miata?
It would be like a betrayal of the philosphy behind the mazda roadster. parumph.
illeniummx5 is offline   Reply With Quote
Old 12-13-2011, 07:43 AM   #447
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,458
Total Cats: 244
Default

I'm curious. What's a parumph?
TurboTim is offline   Reply With Quote
Old 12-13-2011, 08:10 AM   #448
Junior Member

Join Date: Sep 2009
Location: Bergen, Norway
Posts: 129
Total Cats: 12
Default

Quote:
Originally Posted by TurboTim View Post
I'm curious. What's a parumph?
Apparently;

Quote:
"a town in nevada. the sound an elephant makes when it farts."
lassi is offline   Reply With Quote
Old 12-13-2011, 09:09 AM   #449
Junior Member
iTrader: (3)

Join Date: Aug 2010
Location: Oklahoma City
Posts: 76
Total Cats: 1
Default

He's oh so close to 15 posts, though...
LowFlyin' is offline   Reply With Quote
Old 12-13-2011, 09:17 AM   #450
Elite Member
iTrader: (6)

Join Date: Nov 2007
Location: Southlake,Texas
Posts: 3,251
Total Cats: 18
Default

Miatas are not prestigious. They are a shell. It's the go-fast parts that make them fun. Otherwise, they are just a chick car with 90 horseys.
Bond is offline   Reply With Quote
Old 03-08-2012, 07:17 PM   #451
Senior Member
iTrader: (20)

yellowihss's Avatar

Join Date: Dec 2008
Location: Austin, TX
Posts: 738
Total Cats: 7
Default

I'm about to build one of these, but I need the flange.

I know I saw a CAD, or solidworks drawing on here a while back, but cant seem to find it.
Can somebody find it please. It would be greatly appreciated.
yellowihss is offline   Reply With Quote
Old 03-09-2012, 04:15 PM   #452
I'm Miserable!

Join Date: Dec 2011
Posts: 346
Total Cats: -223
Default

Yellow, which mani you going with?
Boost Joose is offline   Reply With Quote
Old 04-01-2012, 09:09 PM   #453
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

I'm chiming in again to say that I haven't completely forgotten about installing this bad boy, it just was moved to the back burner. Had a lot of other things going on. But today I ordered some more things I need to make this happen, which is good. Right?

I ordered a 3" --> 2.5" reducing coupler so I can use my existing 2.5" charge piping. Since I currently have an obsolete inside-mount WI nozzle drilled into the existing 2.5" elbow, I went to alcohol-injection.com and ordered 4 .75 GPH nozzles, line, new check valve, and 3 splitters... so I'm plumbing the WI into the mani now, for better or worse.

So now I need to determine the optimal distance up the runners for the nozzles. I also need to learn myself some timing theory.. because if this mani is going to necessitate a spark tune change I guess I need to budget for some dyno time. On top of that, I need to wire up the Honda MAP and change whatever needs changing inside the MS, and calibrate the MAP once in. Jeez...

This had better be worth it.
kotomile is offline   Reply With Quote
Old 04-02-2012, 01:51 AM   #454
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,679
Total Cats: 212
Default

If you went aware, the Honda map is only a 1.7 bar.
You can get bigger ones that fit in the stock Honda throttle, "Omni" MAP sensors are popular.
Full_Tilt_Boogie is offline   Reply With Quote
Old 04-02-2012, 04:36 AM   #455
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

I'm an idiot, I meant the TPS. Dunno why I typed MAP instead. Derp.
kotomile is offline   Reply With Quote
Old 04-06-2012, 11:56 PM   #456
Senior Member
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 38
Default

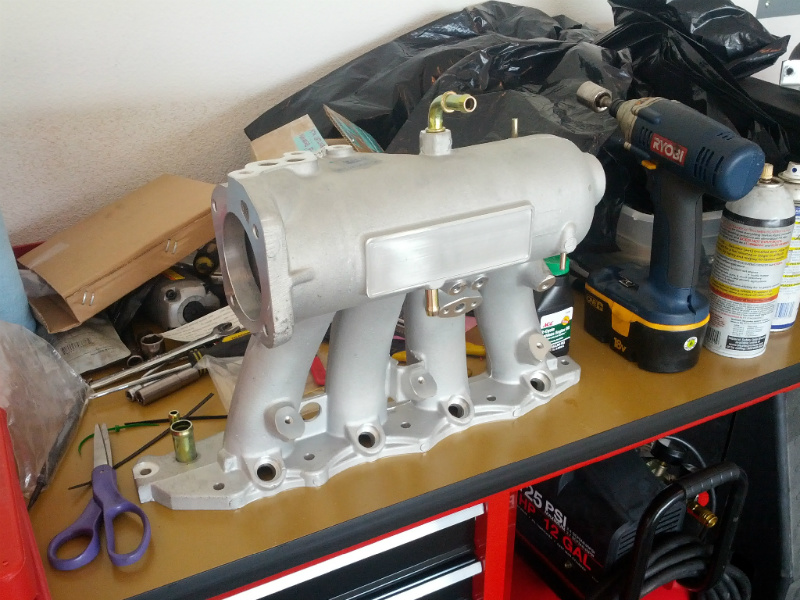

my turn

Attached Thumbnails
Honda intake manifold-img_20120406_144716.jpg
aaronc7 is offline   Reply With Quote
Old 04-07-2012, 12:04 AM   #457
Elite Member
iTrader: (6)

TorqueZombie's Avatar

Join Date: May 2011
Location: Lebanon, TN
Posts: 1,668
Total Cats: 63
Default

Please post a finished pic
TorqueZombie is offline   Reply With Quote
Old 04-07-2012, 07:43 AM   #458
Senior Member
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 38
Default

My motor is still at the shop getting rebuilt- that's my biggest hold up right now to getting everything finished, but I will definitely document the flange conversion and all that
aaronc7 is offline   Reply With Quote
Old 04-07-2012, 05:40 PM   #459
Senior Member
iTrader: (20)

yellowihss's Avatar

Join Date: Dec 2008
Location: Austin, TX
Posts: 738
Total Cats: 7
Default

I'm going to post a few more pics than I would otherwise normally do since there are a number of people wondering about this. Hopefully between aaronc7 and I this shoould be pretty well documented.

Here is the manifold I bought.It is a Skunk2 for a B18C1.

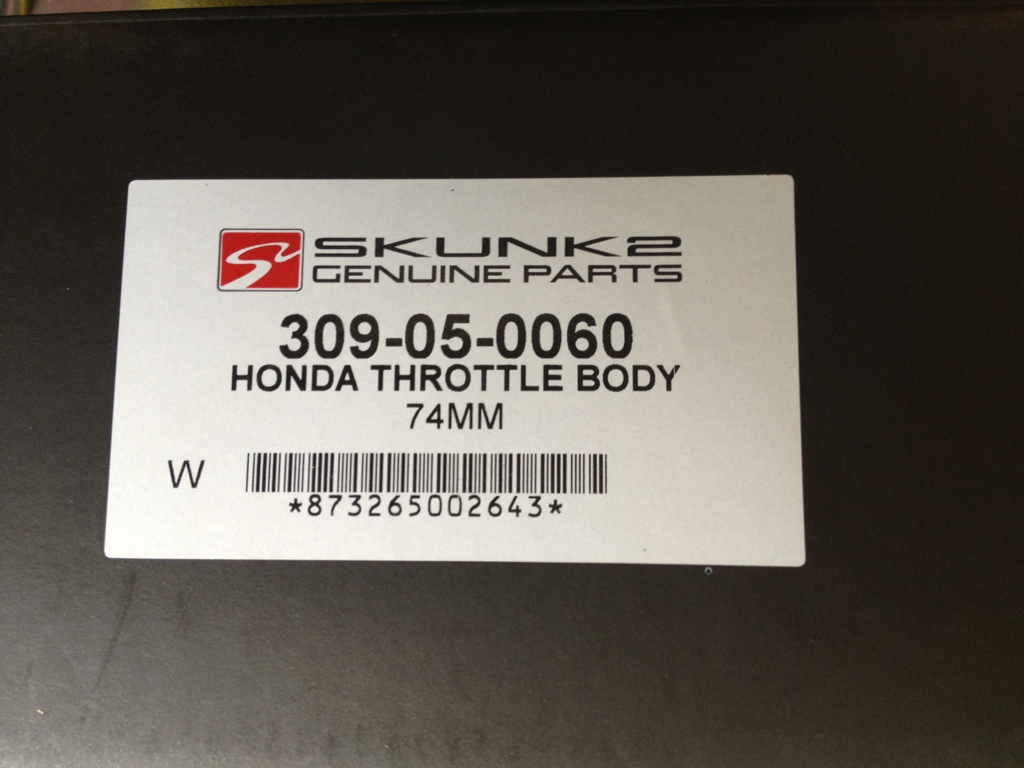

Here is the Throttle Body I bought to go with it since Skunk2 is running a sweet deal off their website.

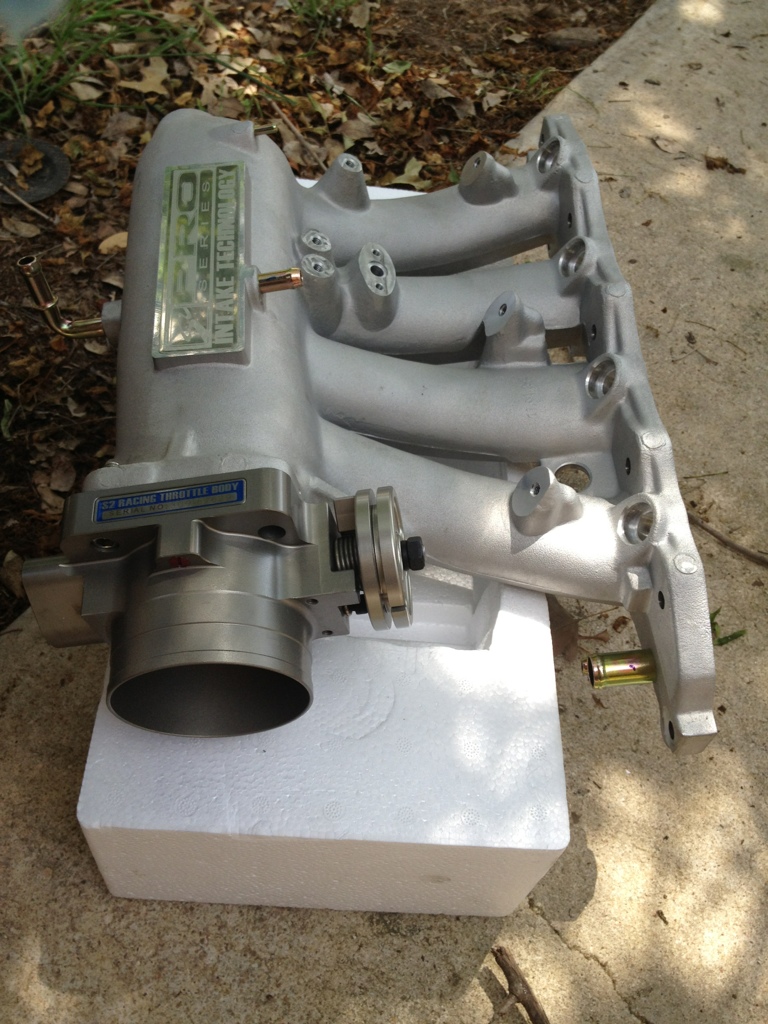

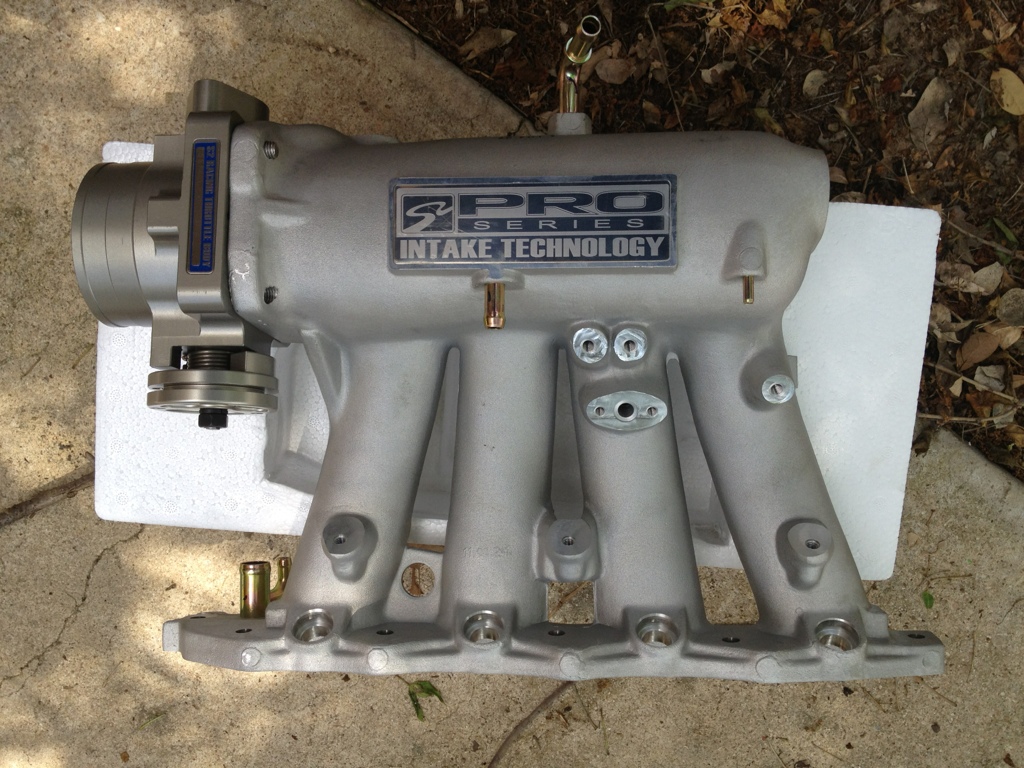

Here they are together.

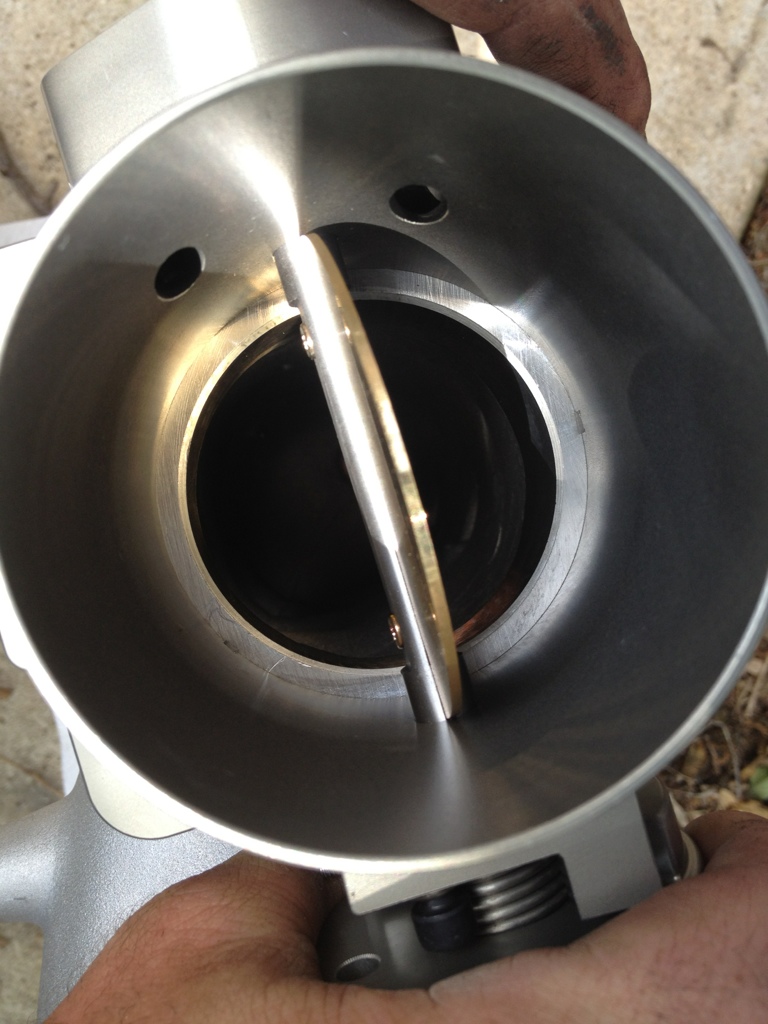

Since I got the 74mm TB I will have to do a little port work.

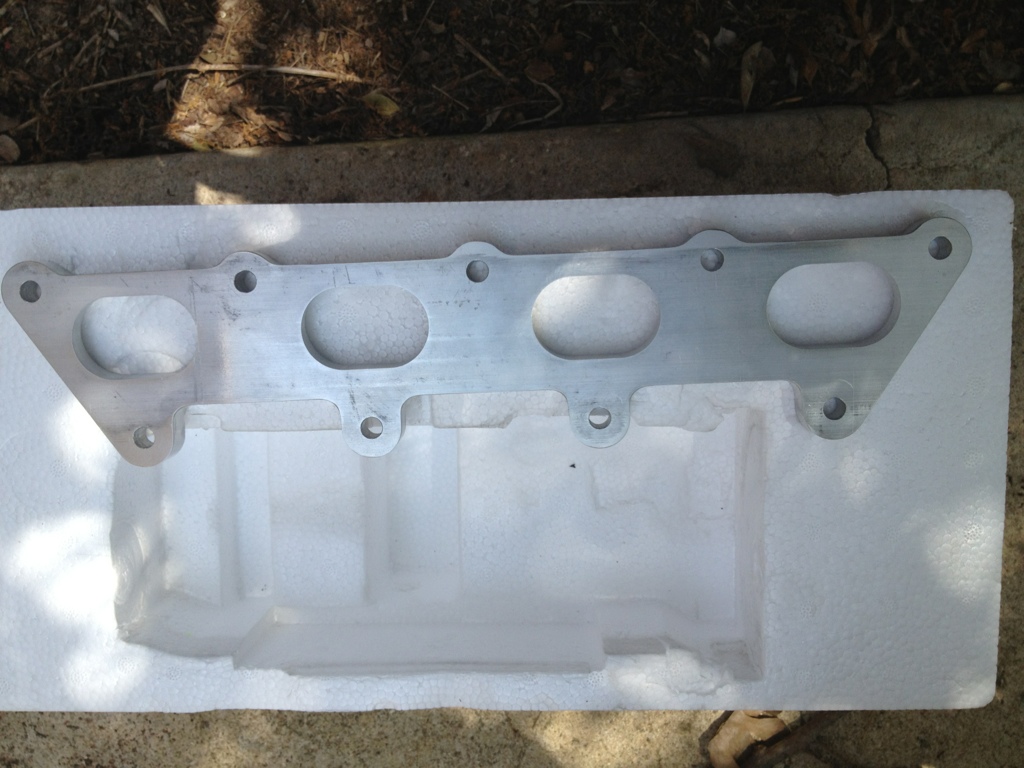

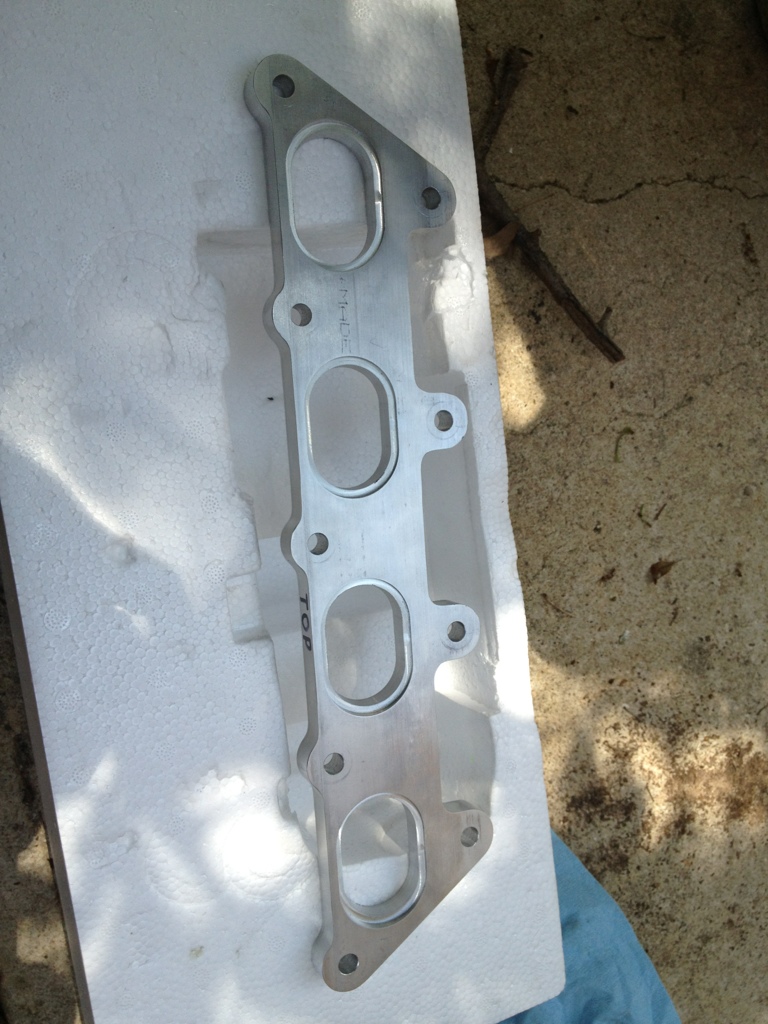

Here is the flange I bought from ftjandra (not sure if he has more or not.)

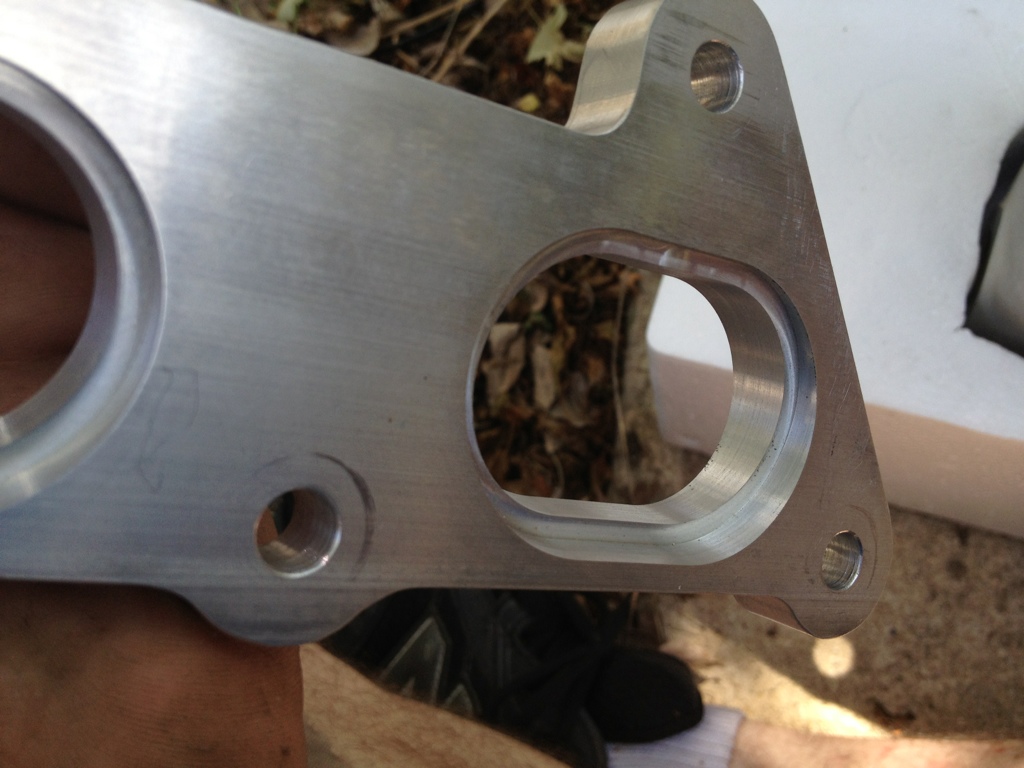

This thing is sweet, and looks like there is a lot of time spent on designing it.
It is made out of 6061 aluminum.

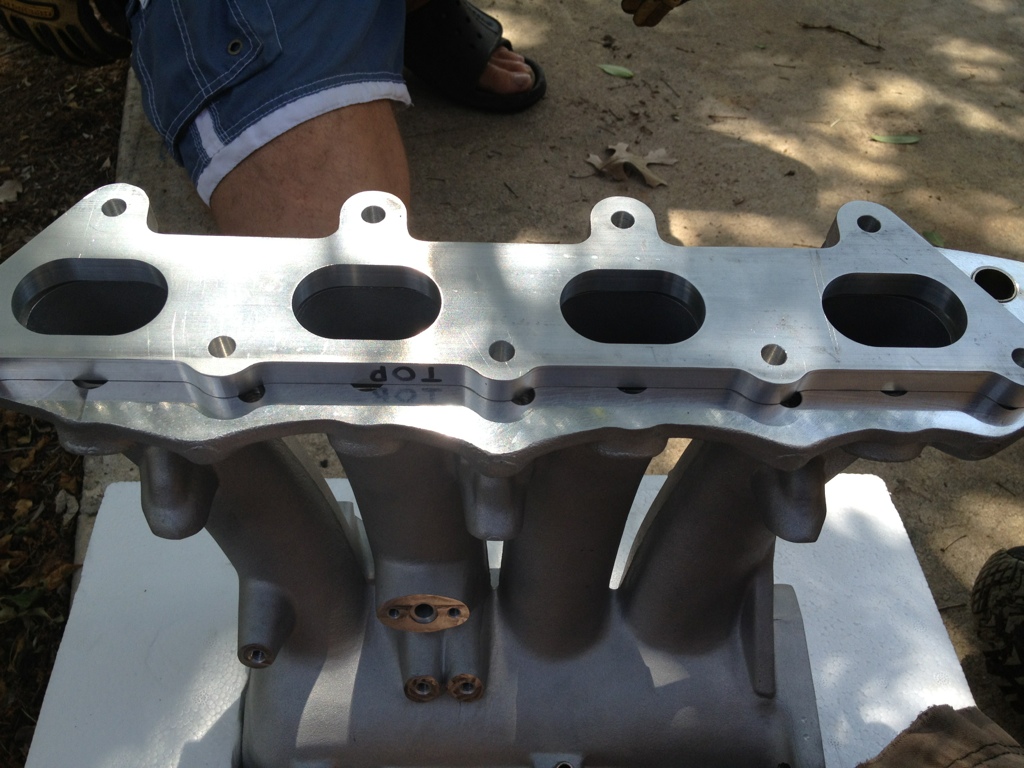

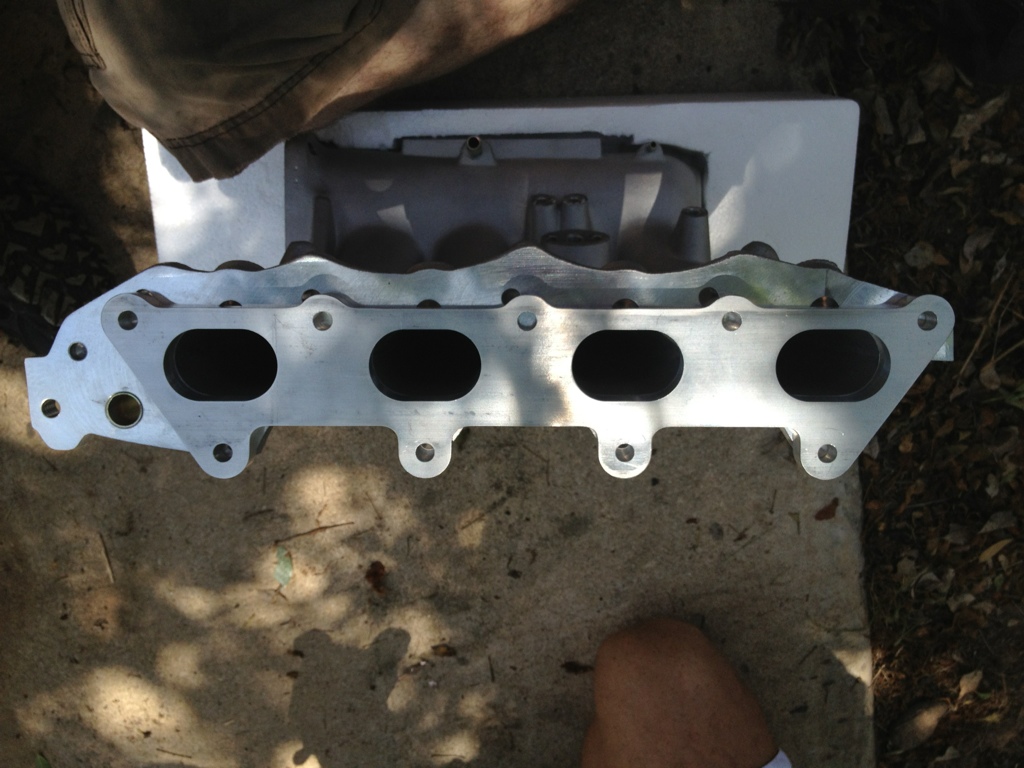

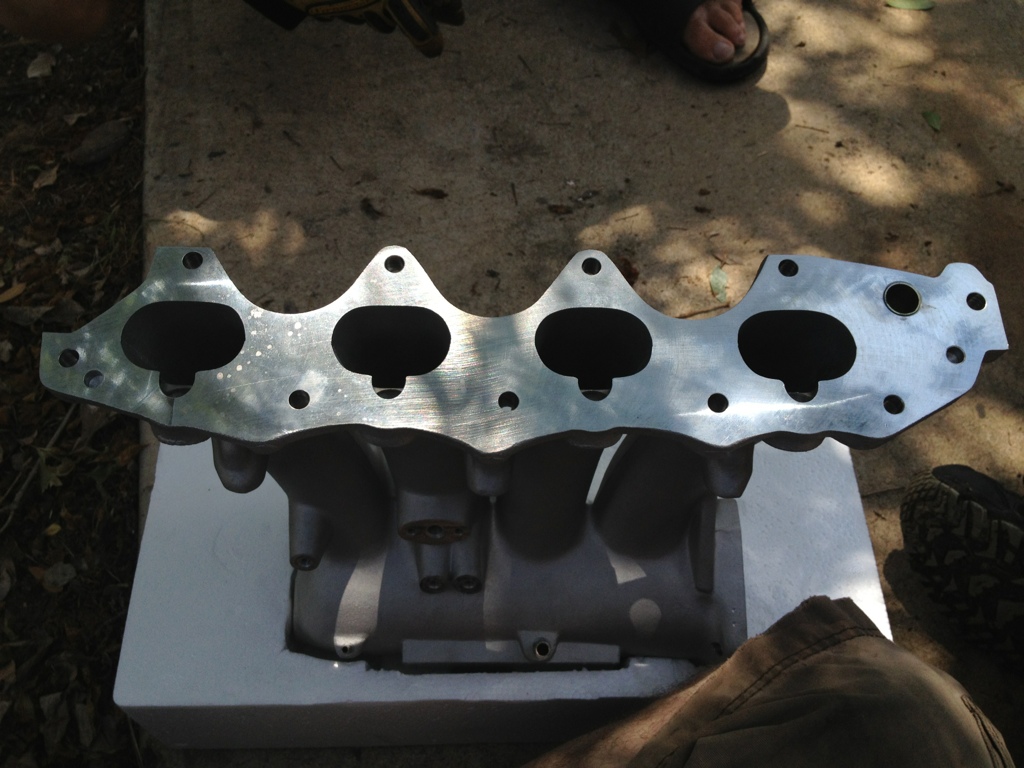

On the manifold.



Attached Thumbnails
Honda intake manifold-f4ce36c0.jpg   Honda intake manifold-a30547eb.jpg   Honda intake manifold-d1ef6f7d.jpg   Honda intake manifold-1da75e97.jpg   Honda intake manifold-71deacf5.jpg

Honda intake manifold-ab30402c.jpg   Honda intake manifold-f737a9a9.jpg   Honda intake manifold-e5302f4c.jpg   Honda intake manifold-14acc394.jpg   Honda intake manifold-c8d5e351.jpg

Honda intake manifold-869f2728.jpg
yellowihss is offline   Reply With Quote
Old 04-07-2012, 05:48 PM   #460
Senior Member
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 38
Default

Nice!!! If I can find a reasonably priced flange by itself, I will go that route, rather than dealing with hacking up my stocker...but they seem hard to come by and/or expensive.
aaronc7 is offline   Reply With Quote
