Old 03-02-2016, 11:08 AM   #301
Junior Member

Join Date: Jun 2013
Location: Milwaukee
Posts: 177
Total Cats: 5
Default

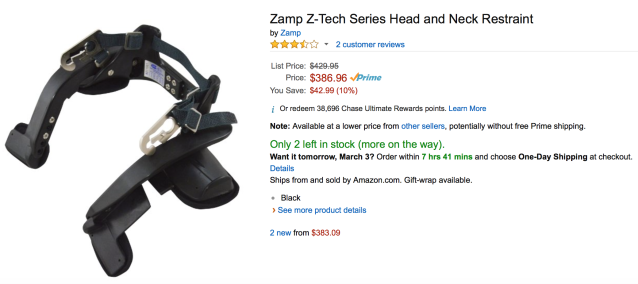

We talked earlier about head and neck restraints, one main comment was the higher the price the lighter the weight which translates to a more enjoyable experience. Has anyone seen anything on this restraint below? I assume its a bit heavier, but the entry level price point is quite nice compared to the competition. I'm sure this will be viewed similar to how this size views eBay parts, but if its safe to use, does the job correctly, and lets me save a bit to put towards another track day, that seems like a win win.




Attached Thumbnails
HPDE / track day safety gear flow chart !!-rubswh.png
Swanpuppy is offline   Reply With Quote
Old 03-02-2016, 11:44 AM   #302
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,366
Total Cats: 1,326
Default

It's got SFI 38.1 certification, so it's fine.
Savington is online now   Reply With Quote
Old 03-02-2016, 12:21 PM   #303
Junior Member

Join Date: Jun 2013
Location: Milwaukee
Posts: 177
Total Cats: 5
Default

So safe to use and affordable, Ill have to do some research on usability and comfort. Thanks Savington.
Swanpuppy is offline   Reply With Quote
Old 03-02-2016, 12:30 PM   #304
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,997
Total Cats: 1,463
Default

Its a zamp. So probably similar to their other stuff. Obviously not top of the line, but functional.
aidandj is offline   Reply With Quote
Old 03-02-2016, 01:08 PM   #305
Junior Member

Join Date: Jun 2013
Location: Milwaukee
Posts: 177
Total Cats: 5
Default

One other question perhaps people can chime in on. My car came with an aftermarket steering wheel, lots of people on here run aftermarket wheels as well. What is the preferred action for maximum safety on a street car that sometimes sees the track? (assuming ill be using stock seats and stock belt)

- Re install a 1990 stock steering wheel with air bag and hope it works after 25 years?
- Keep aftermarket wheel, cut out seat belt stitching so you hopefully don't slam into the wheel?
- Use my existing full race seat, 6pt belt, and hope my neck doesn't snap in a collision?
Swanpuppy is offline   Reply With Quote
Old 03-02-2016, 02:55 PM   #306
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 113
Default

I suggest you read the ******* thread.
deezums is offline   Reply With Quote
Old 03-02-2016, 02:55 PM   #307
Supporting Vendor
iTrader: (1)

OGRacing's Avatar

Join Date: May 2014
Posts: 1,764
Total Cats: 46
Default

We are planning on renting HANS devices soon.
OGRacing is offline   Reply With Quote
Old 03-02-2016, 03:16 PM   #308
Junior Member

Join Date: Jun 2013
Location: Milwaukee
Posts: 177
Total Cats: 5
Default

Deezums, I did "read the ******* thread", the thread goes all over the place. Aftermarket wheels allow your face to slam into the wheel. Race seat and full harness snap your neck so you must have neck bracing. Cutting the stiching on the OEM seat belts removes the slack so you don't hit the wheel, but now you're modifying OEM and tested equipment. And one person commented on the safety of using a 25 year old air bag.

So at this point OEM is the safest on the street, but you still have the issue of using a car with a quarter of a century old exploding gas bag in your face. Ideally I like the idea of putting a modern steering wheel with bag in, but most people say it can't be done due to the differences in computer and electrical systems. The question narrowed down to; is the original air bag considered something that will save you, or fail and do nothing or maim you.
Swanpuppy is offline   Reply With Quote
Old 03-02-2016, 04:15 PM   #309
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,320
Total Cats: 1,918
Default

Quote:
Originally Posted by Swanpuppy View Post
The question narrowed down to; is the original air bag considered something that will save you, or fail and do nothing or maim you.
Insofar as the design of the OEM single-stage airbag, there's nothing dangerous about it for an adult who is healthy enough to be driving a race car, seated in a normal position and wearing a functioning seat belt. First-gen airbags are "dangerous" principally to infants in rear-facing car seats, elderly women sitting four inches away from the steering wheel, and so on.

As for the reliability of old airbags, I did a fair bit of reading on this about a year ago during the original thread. Academic data is hard to come by, but I found several anecdotal reports from both automotive engineers and people who work at scrapyards who, in the course of their normal job, routinely detonate old airbags prior to disposal. The data can be summarized as this: an undamaged airbag has an essentially infinite lifespan. I couldn't find a single report where an airbag failed to detonate during the disposal process, and that's a sample set consisting almost entirely of very old airbags.

EDIT: I did find one article suggesting a failure rate of approximately 1% for a large sample of Takata-brand airbags, mostly due to rupture of the fabric rather than a failure to detonate. This study was focused on build and materials quality, and did not correlate failure rate with age.

The closest thing I found to an official report was this article, in which Douglas Campbell, president of the Automotive Safety Council and 25 veteran of the airbag industry, noted that "airbags from 1990s vehicles are operating correctly in today's accidents."

While the electronics inside the SRS module (principally the large electrolytic capacitors) may degrade after a few decades, there are self-diagnostics in the module to detect this. If the airbag light comes on when you start the vehicle, and then goes off, chances are very nearly 100% that the airbag will function correctly in an accident.
Joe Perez is online now   Reply With Quote
Old 03-02-2016, 04:19 PM   #310
Junior Member

Join Date: Jun 2013
Location: Milwaukee
Posts: 177
Total Cats: 5
Default

Perfect Joe, eBay looks to have quite a few old stock wheels available for around 50 bucks, or try to source one locally. That should give maximum street safety without breaking my face. I hate the OEM 1990 wheel, but I guess I'll live with it.
Swanpuppy is offline   Reply With Quote
Old 03-14-2016, 02:44 PM   #311
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,997
Total Cats: 1,463
Default

What is the ruling on the HANS 2" shoulder belts without a HANS. I'd like to put the matching set I got in drivers and passenger, but most of the time my passenger doesn't have a HANS.
aidandj is offline   Reply With Quote
Old 03-14-2016, 02:50 PM   #312
Supporting Vendor
iTrader: (1)

OGRacing's Avatar

Join Date: May 2014
Posts: 1,764
Total Cats: 46
Default

Quote:
Originally Posted by aidandj View Post
What is the ruling on the HANS 2" shoulder belts without a HANS. I'd like to put the matching set I got in drivers and passenger, but most of the time my passenger doesn't have a HANS.
The recommendation we get from belt manufactures is to not run a 2" belt without a hans. you have a larger risk of breaking your collar bones.

a 3" belt will work with a hans. i would recommend using a 3" belt.
OGRacing is offline   Reply With Quote
Old 03-14-2016, 02:51 PM   #313
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,997
Total Cats: 1,463
Default

Interesting thanks. I just picked up a couple sets of schroth HANS belts. And because I always wear a HANS when I wear my harness I figured I would move my current 3" belt to the passenger side and use the HANS belt on the drivers side.
aidandj is offline   Reply With Quote
Old 05-18-2016, 05:37 PM   #314
Mr Broke Pants
iTrader: (9)

thumpetto007's Avatar

Join Date: Sep 2010
Posts: 1,601
Total Cats: 28
Default

Quote:
Originally Posted by thumpetto007 View Post
Are miatas with hard tops required to have roll bars? I'm interested in open track and instructed track days.
Is there any way to get rid of this post? I have already bought M2 hardtop harddog rollbar, Novec fire suppression, hans... all the safeties. I keep getting negcats, and it gets me depressed.
thumpetto007 is offline   Reply With Quote
Old 05-18-2016, 05:39 PM   #315
Senior Member
iTrader: (8)

nigelt's Avatar

Join Date: Sep 2014
Location: Carmel Valley, CA
Posts: 659
Total Cats: 71
Default

Quote:
Originally Posted by thumpetto007 View Post
Is there any way to get rid of this post? I have already bought M2 hardtop harddog rollbar, Novec fire suppression, hans... all the safeties. I keep getting negcats, and it gets me depressed.
Have a poscat to balance it out
nigelt is offline   Reply With Quote
Old 05-18-2016, 05:57 PM   #316
Supporting Vendor
iTrader: (1)

OGRacing's Avatar

Join Date: May 2014
Posts: 1,764
Total Cats: 46
Default

there are no stupid questions. seriously, no joke at the end of that one.
OGRacing is offline   Reply With Quote
Old 05-18-2016, 08:14 PM   #317
Senior Member
iTrader: (8)

Join Date: Jan 2012
Location: Azusa, CA
Posts: 1,376
Total Cats: 80
Default

Quote:
Originally Posted by thumpetto007 View Post
Is there any way to get rid of this post? I have already bought M2 hardtop harddog rollbar, Novec fire suppression, hans... all the safeties. I keep getting negcats, and it gets me depressed.
poscat *****... I to help offset
cyotani is offline   Reply With Quote
Old 05-18-2016, 08:52 PM   #318
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,366
Total Cats: 1,326
Default

Quote:
Originally Posted by OGRacing View Post
The recommendation we get from belt manufactures is to not run a 2" belt without a hans. you have a larger risk of breaking your collar bones.

a 3" belt will work with a hans. i would recommend using a 3" belt.
Sort of an old post, but as a passenger, I'd rather wear 3-points than a 5/6-point without a HNRS. Unrestricted head motion during a big impact while wearing a harness is something to be avoided at all costs.

The answer that you really don't want to hear is that your passenger shouldn't be wearing a harness without a HNRS.
Savington is online now   Reply With Quote
Old 05-18-2016, 08:59 PM   #319
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,997
Total Cats: 1,463
Default

Hmmm. Thats a tough one. I do have my 3 points still installed. And without an airbag they should be okish. maybe. tough.
aidandj is offline   Reply With Quote
Old 05-18-2016, 09:08 PM   #320
Junior Member

Join Date: May 2012
Location: NYC
Posts: 251
Total Cats: 38
Default

Quote:
Originally Posted by Savington View Post
The answer that you really don't want to hear is that your passenger shouldn't be wearing a harness without a HNRS.
This is the correct answer, enough so that I've been considering buying a second HNRS because I like taking passengers a lot. Then I run into the problem that their helmets aren't prepped for use with it.

Even if they were, what system is it prepped for? I'd like to see the new sfi standard have attachment points from the factory and a standardized attachment so whether it's a Hans or other, it works. But that's never gonna happen.

I'll just hope that more people are getting HNRS themselves I guess. I'll probably buy a second one anyway on the rare chance that my wife comes out to the track so I don't have to borrow one.
dasting is offline   Reply With Quote
