Old 06-19-2012, 06:54 PM   #321
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,344
Total Cats: 214
Default

I have some air going over the intercooler. Both radiator and intercooler get fresh air. If there is too much going over, I will add a panel as a lip at the top of the intercooler to force more to go through.

This weekend will be my first real test. So far, I have had zero temp issues even with the AC on since installing the duct. I used to have temp issues during daily driving traffic without using the AC.
99mx5 is offline   Reply With Quote
Old 06-23-2012, 08:23 PM   #322
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,344
Total Cats: 214
Default

Today was a blast! The car ran flawlessly all day at Arroyo Seco Raceway in Deming. We ran counter clockwise. I beat on it like there was no tomorrow. I won both time attack events.

I ran a 59 sec on the short course and a 1:18 sec on the long course. A guy in a Corvette Z06 ran a 58 sec on the short course and 1:19 sec on the long course. In practice, he chased me down the straight and didn't catch me. After the session he told me "Damn! That miata is fcking fast! I was thinking, I'm gonna pass this guy and I couldn't catch you."

Pics and video to follow.
99mx5 is offline   Reply With Quote
Old 07-01-2012, 04:16 AM   #323
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,344
Total Cats: 214
Default

Here is a vid posted by one of the guys at the track. My timed laps start at 15:20. I got loose in the carousel in one of the laps.

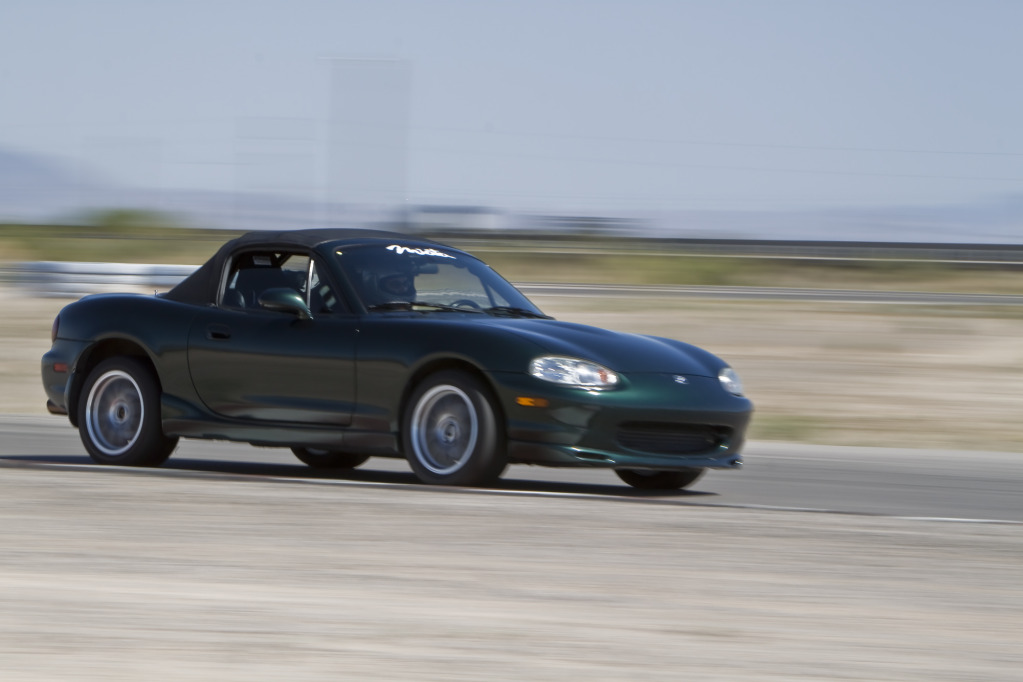

Some pics.







I have more video to post when I get it off the camera.
Attached Thumbnails
99mx5 EFR build-asrarimiata11.jpg   99mx5 EFR build-asrarimiata8.jpg   99mx5 EFR build-_mg_3671.jpg
99mx5 is offline   Reply With Quote
Old 07-22-2012, 01:30 PM   #324
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,344
Total Cats: 214
Default

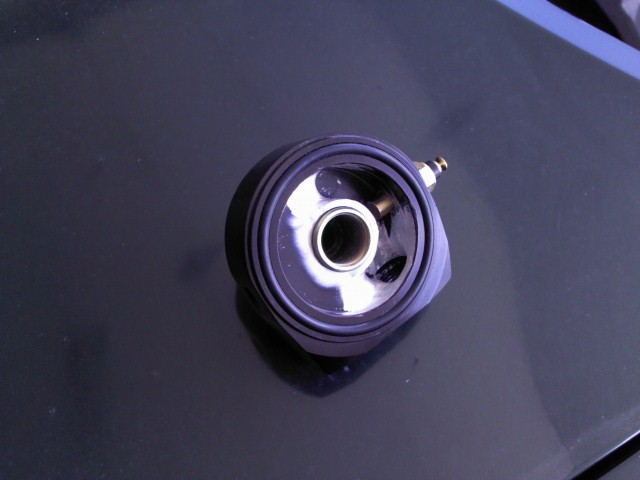

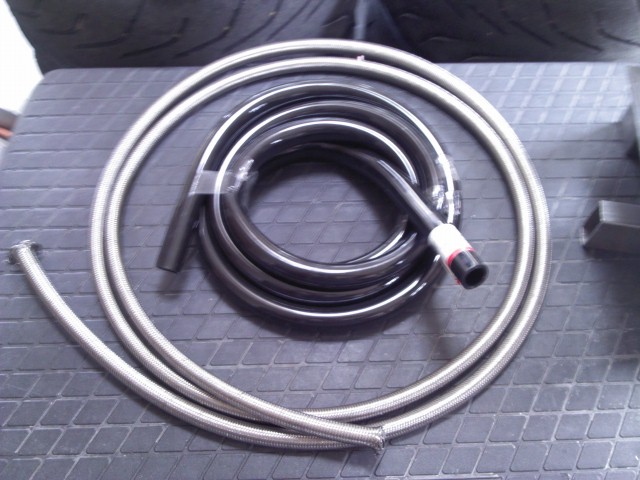

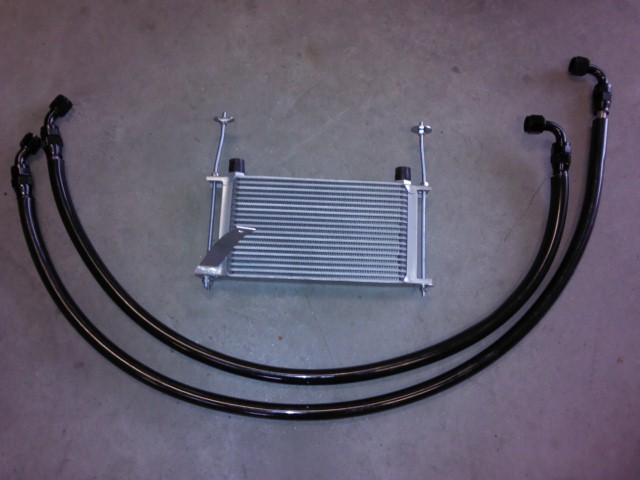

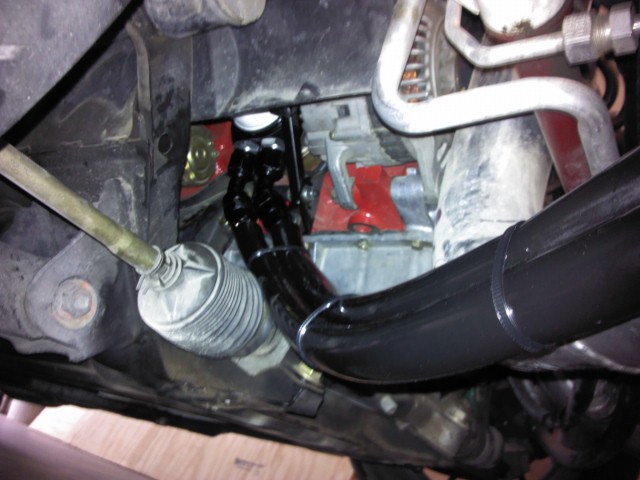

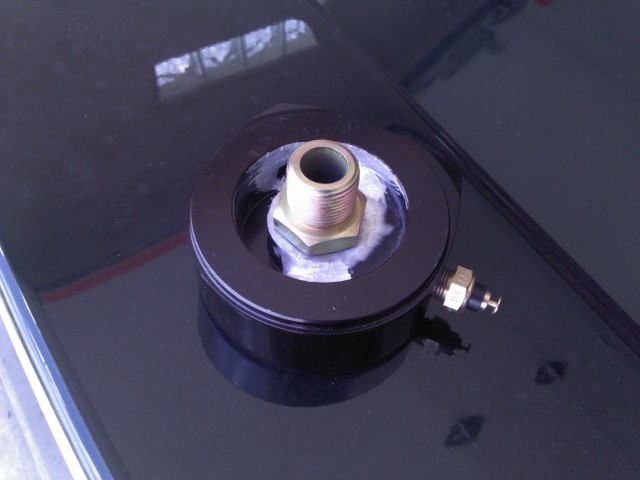

This weekend I installed an oil cooler. The cooler is a CXRacing 19 row unit. I found it on ebay for approx $53. The hoses are -10AN SS braided teflon and AN fittings from anfitingsdirect.com with vynil hose over them as sleeves. The sandwich plate is a generic one that I ported for better flow. I also added a VDO temp sender. I also have the VDO oil temp gauge but will install at a later time.

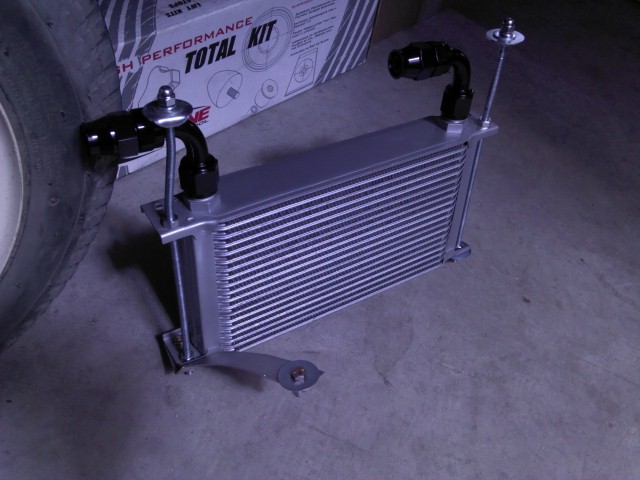

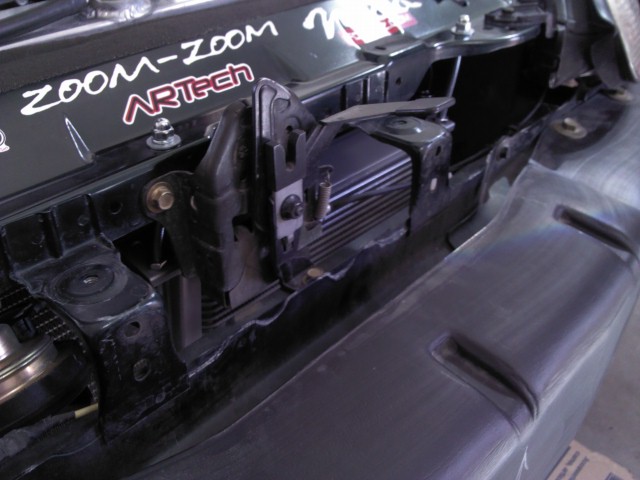

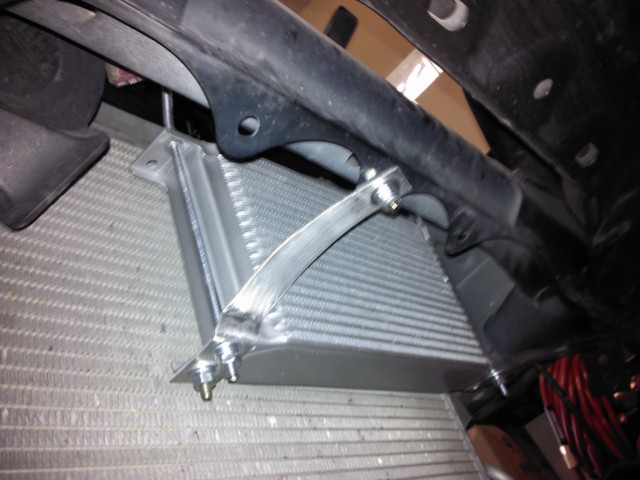

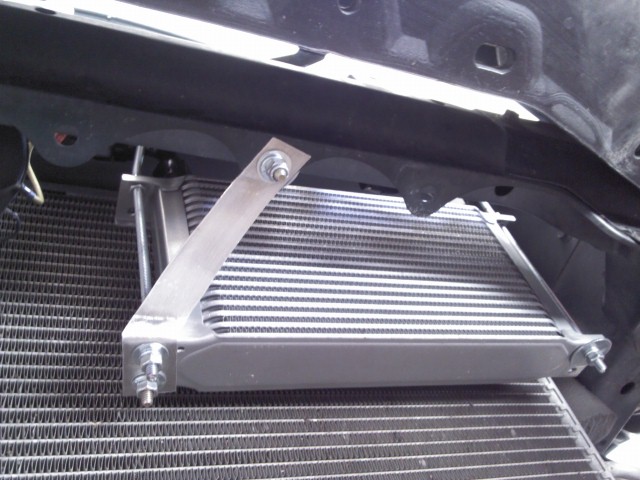

I placed the cooler in front of the radiator above the intercooler. The cooler is installed with 1/4" allthread rods with nuts to lock it in place. I also made a bracket to support the bottom.
Attached Thumbnails
99mx5 EFR build-img_20120721_145019.jpg   99mx5 EFR build-img_20120721_145003.jpg   99mx5 EFR build-img_20120721_154329.jpg   99mx5 EFR build-img_20120721_163948.jpg   99mx5 EFR build-img_20120721_184633.jpg

99mx5 EFR build-img_20120721_154651.jpg   99mx5 EFR build-img_20120721_154658.jpg   99mx5 EFR build-img_20120721_154726.jpg   99mx5 EFR build-img_20120721_192816.jpg   99mx5 EFR build-img_20120721_192833.jpg

99mx5 is offline   Reply With Quote
Old 07-22-2012, 01:32 PM   #325
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,049
Total Cats: 337
Default

Now "semi-duct" the oil cooler so it will work, right now air will just go around it.
hustler is offline   Reply With Quote
Old 07-22-2012, 01:37 PM   #326
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,344
Total Cats: 214
Default

I agree. I'm planning to wrap the cooler on 3 sides with the lower lip of the duct in the mouth of the bumper.
99mx5 is offline   Reply With Quote
Old 07-29-2012, 11:51 PM   #327
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,344
Total Cats: 214
Default

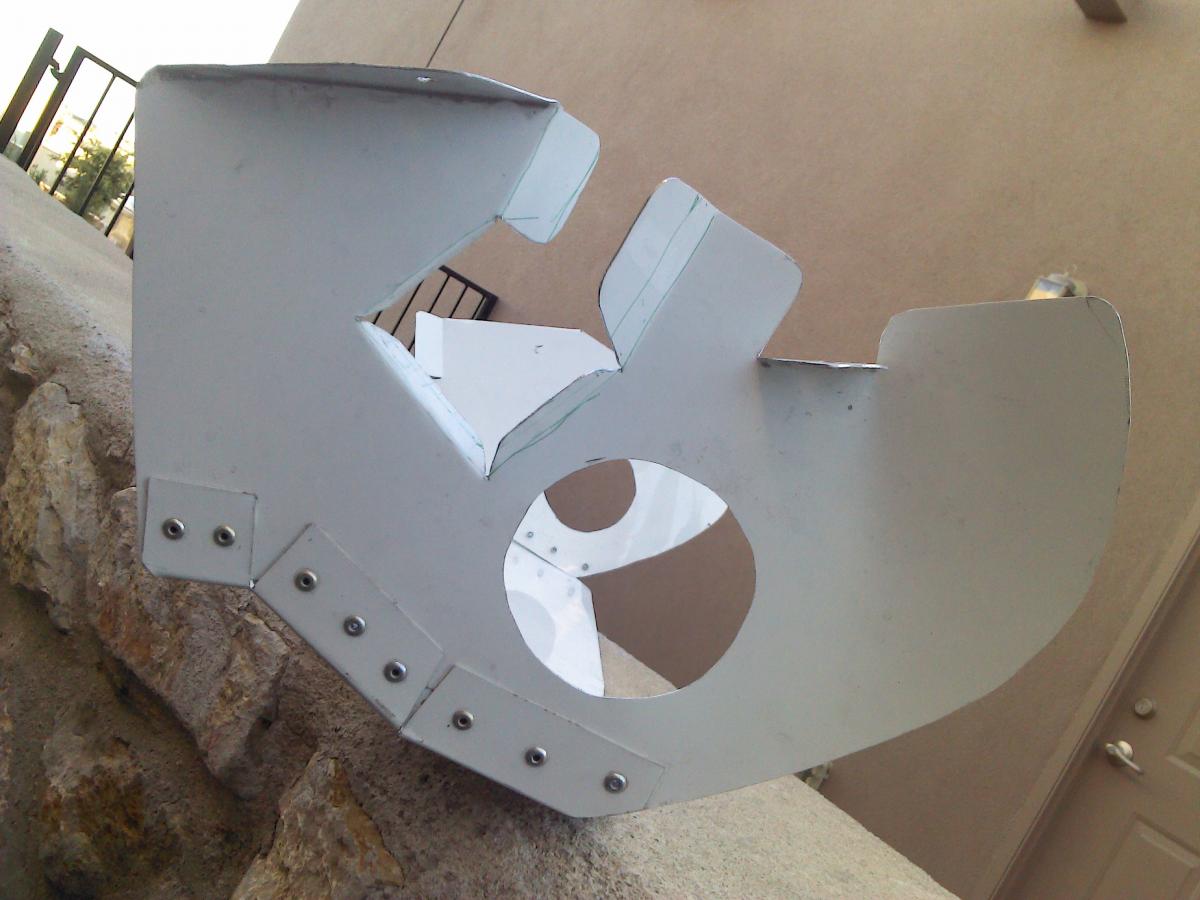

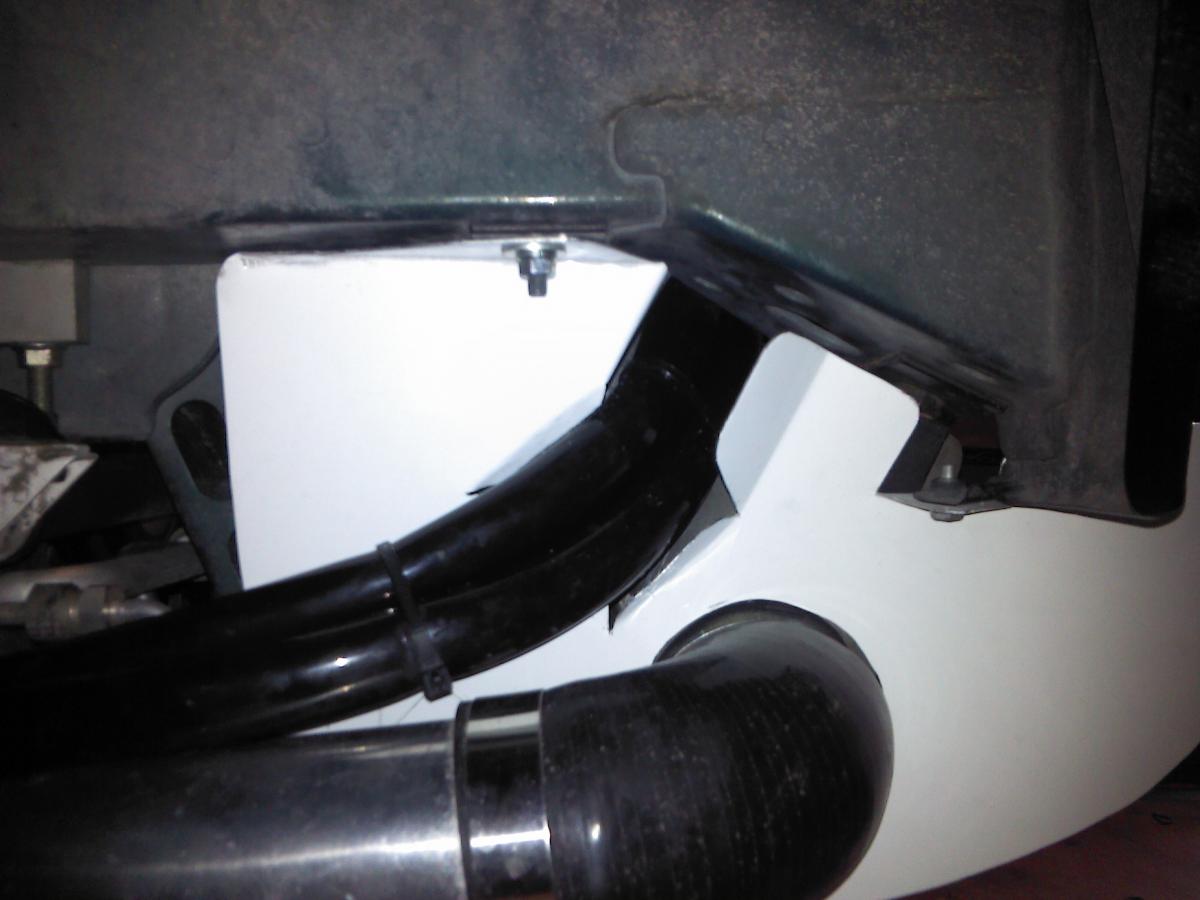

I finally finished the oil cooler install. I added the cutout to the duct for the oil cooler hoses and installed the intercooler/radiator duct and bumper cover.
Attached Thumbnails
99mx5 EFR build-img_20120729_191422.jpg   99mx5 EFR build-img_20120729_194922.jpg
99mx5 is offline   Reply With Quote
Old 08-23-2012, 02:43 PM   #328
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,344
Total Cats: 214
Default

The car ran great at the last race. Temps were much better than before with the oil cooler. This event was a night race. I added cornering lights to the car.









Artsy engine shot.



I have race video, but I'm not sure how it turned out. I'll check it tonight.
Attached Thumbnails
99mx5 EFR build-391189_3963582201593_2039186137_n.jpg
99mx5 is offline   Reply With Quote
Old 08-23-2012, 07:14 PM   #329
Junior Member
iTrader: (4)

Join Date: Jan 2009
Location: Fife, Scotland
Posts: 290
Total Cats: 3
Default

I just read the whole of this thread. I love your attention to detail and patience. I always end up rushing things just to get the car on the road and your car is an inspiration to do things RIGHT. Props to you.
GrahamC is offline   Reply With Quote
Old 08-23-2012, 11:32 PM   #330
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,344
Total Cats: 214
Default

Thanks! I appreciate it. I learned a lot from other build threads and when I created mine, I hoped to give ideas to others as well.
99mx5 is offline   Reply With Quote
Old 08-24-2012, 07:08 AM   #331
Newb

Join Date: Aug 2012
Posts: 4
Total Cats: 0
Default

nice looking car with good upgrades!
dimis is offline   Reply With Quote
Old 09-25-2012, 02:37 AM   #332
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,344
Total Cats: 214
Default

Thanks!
Here's a video from the last practice session at Arroyo Seco Raceway in Deming, NM. I got a chance to run on an empty open track and flog it for a while. My tires were almost toast.

99mx5 is offline   Reply With Quote
Old 02-20-2013, 04:00 PM   #333
Elite Member
iTrader: (2)

Join Date: Sep 2008
Location: Central Florida
Posts: 3,284
Total Cats: 178
Default

What's the latest on this bad boy? Everything still running swell with the upgraded internals?
Scrappy Jack is offline   Reply With Quote
Old 02-20-2013, 04:09 PM   #334
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,396
Total Cats: 189
Default

Ari also upgraded his 1st gen Enhanced DIYPNP to the latest spec Enhanced MS2. I'll let him follow up.
Reverant is offline   Reply With Quote
Old 02-20-2013, 06:18 PM   #335
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,344
Total Cats: 214
Default

W00t! Fortunately, the engine and turbo setup are still going strong!
I upgraded to the latest Enhanced-DIYPNP from Reverant at MSLabs. The car has been sitting while customs has been taking their sweet time during shipment of the ECU for the upgrade. Once Reverant got the ECU he was done with the upgrade in less than a day.

Reverant provides a base map for the ECU, but I used my old map for a starting point for timing, fueling and the idle valve and I recalibrated my AFR table to the wideband. Once I had a solid idle then I could move on to tuning the rest of the fuel map.

Last weekend I went to a test and tune at the track and it went very well. I started with my base settings from the old map. I was able to make datalogs of 4th gear pulls to redline and AFRs are stable. I disabled EGO and TPS enrichment to get a solid fuel map and it was very easy to do. Once the map was smoothed and logged, i re-enabled them. I even hit a new top speed of 140 whereas it used to be 130MPH.

After the track tune, I decided to address some minor issues with AFRs and the idle valve at idle. I now have PID controlled EGO at idle, which works great! I lowered my TPS enrichment and now AFRs are spot on and AC idle up is rock solid. AFRs are sweet from hrottle blips from fuel cut overrun to cruise. I also have no more idle dip issues with AC on! Kudos to Reverant. Thanks again! I'm loving the ECU upgrade!

Next steps for this car are:
- Poly bushings
- 6 speed
- Wilwood BBK

Last edited by 99mx5; 02-20-2013 at 06:34 PM.
99mx5 is offline   Reply With Quote
Old 02-24-2013, 11:26 AM   #336
Senior Member
iTrader: (1)

Join Date: Jun 2007
Posts: 660
Total Cats: 28
Default

Quote:
Originally Posted by 99mx5 View Post

Next steps for this car are:
- Poly bushings
- 6 speed
- Wilwood BBK
Good choices. Bushings are a pain in the *** to install but really freed up the suspension travel. Make sure to drill and install grease zerks while you're at it.
yank is offline   Reply With Quote
Old 02-24-2013, 11:35 AM   #337
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,344
Total Cats: 214
Default

Quote:
Originally Posted by yank View Post
Good choices. Bushings are a pain in the *** to install but really freed up the suspension travel. Make sure to drill and install grease zerks while you're at it.
Thanks! The sad thing is I already have all the parts, I can't install them due to a back injury. :(
99mx5 is offline   Reply With Quote
Old 02-24-2013, 12:23 PM   #338
Senior Member
iTrader: (2)

Join Date: Oct 2011
Location: SE NM
Posts: 1,303
Total Cats: 35
Default

Have you ever been up to NAPA Speedway in ABQ? I paid $50 yesterday and got 50+ laps in. Its a fun track.
Chilicharger665 is offline   Reply With Quote
Old 02-25-2013, 03:10 AM   #339
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,344
Total Cats: 214
Default

Quote:
Originally Posted by Chilicharger665 View Post
Have you ever been up to NAPA Speedway in ABQ? I paid $50 yesterday and got 50+ laps in. Its a fun track.
Nice! It looks like a fun track. I usually go to Arroyo Seco Raceway in Deming.
99mx5 is offline   Reply With Quote
Old 02-25-2013, 01:33 PM   #340
Senior Member
iTrader: (2)

Join Date: Oct 2011
Location: SE NM
Posts: 1,303
Total Cats: 35
Default

Do you have any details on the Superlap occuring there on March 23? The website really doesnt say much about car requirements or anything.
Chilicharger665 is offline   Reply With Quote
