Old 02-26-2013, 10:28 AM   #341
Senior Member
iTrader: (2)

Join Date: Oct 2011
Location: Hickory, NC
Posts: 683
Total Cats: 3
Default

99, I just read your whole thread....every word! I was excited before, but now F*CKME! I can't wait to get mine done.......EFR6258 should be here this week, then block head go to machine shop for some black voodoo magic and then I can finally start putting my **** together. Thanks for the carporn to keep me going.....
Amellrotts is offline   Reply With Quote
Old 02-26-2013, 12:31 PM   #342
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,385
Total Cats: 242
Default

Quote:
Originally Posted by Chilicharger665 View Post
Do you have any details on the Superlap occuring there on March 23? The website really doesnt say much about car requirements or anything.
There's a discussion thread in the local forum:
CrucesStreets.com - View topic - 2013 ASR Super Lap Mega thread: dates, rules, discussion etc

Basically, your car must be in good condition, good seatbelt or harness, good brakes, no missing lug nuts, good battery holder. No loose objects in the car. The car will be checked before getting onto the track. Loaner helmets are available if you don't have one.
99mx5 is offline   Reply With Quote
Old 02-26-2013, 12:33 PM   #343
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,385
Total Cats: 242
Default

Quote:
Originally Posted by Amellrotts View Post
99, I just read your whole thread....every word! I was excited before, but now F*CKME! I can't wait to get mine done.......EFR6258 should be here this week, then block head go to machine shop for some black voodoo magic and then I can finally start putting my **** together. Thanks for the carporn to keep me going.....
Thanks! You are going to love it!
99mx5 is offline   Reply With Quote
Old 03-08-2013, 02:20 AM   #344
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,385
Total Cats: 242
Default

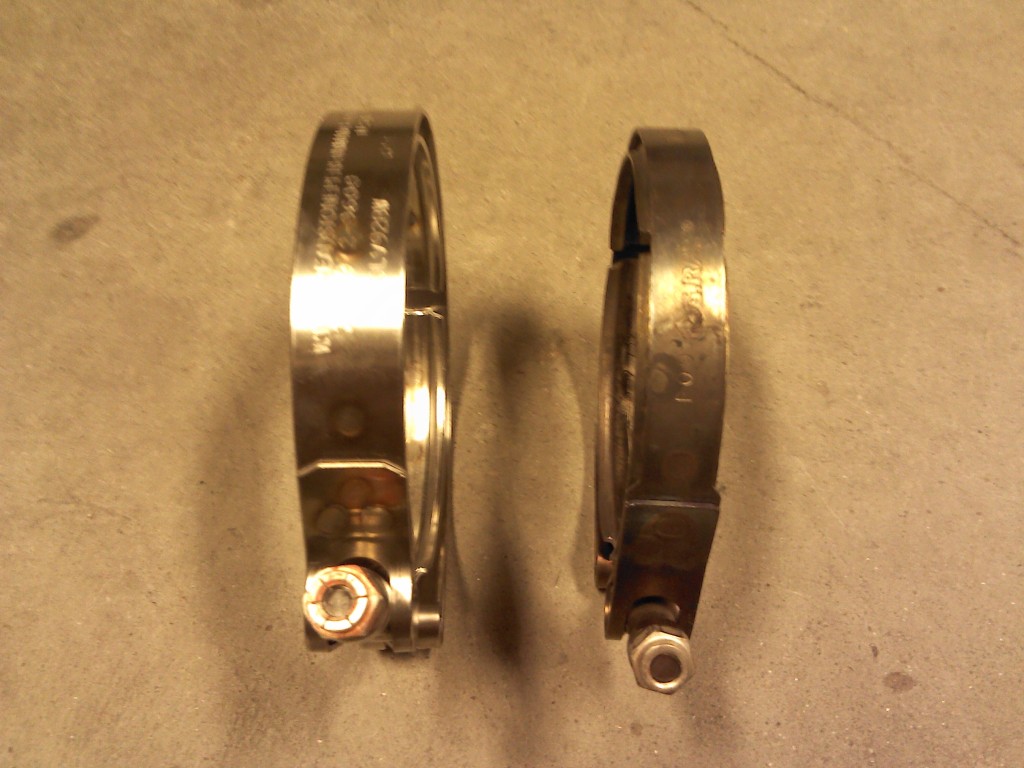

I'm planning to get the car back to the dyno with the new Enhanced-DIYPNP to check the tune for next season. This evening I decided to check things out first. I changed the EFR V-band clamp with the beefier one from Treadstone.



Attached Thumbnails
99mx5 EFR build-img_20130307_225429_zps0a9d101c.jpg   99mx5 EFR build-img_20130307_231005_zps91430744.jpg
99mx5 is offline   Reply With Quote
Old 03-08-2013, 03:24 PM   #345
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,516
Total Cats: 255
Default

How on earth is your car so clean? Mine is covered with **** already... but I do drive it often.
soviet is offline   Reply With Quote
Old 03-10-2013, 03:10 AM   #346
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,385
Total Cats: 242
Default

My car is dirty. We get mostly dust here in the desert. I hose off the engine bay every time I wash the car.
99mx5 is offline   Reply With Quote
Old 03-11-2013, 06:37 PM   #347
Elite Member
iTrader: (5)

Join Date: Dec 2010
Location: Raleigh, NC
Posts: 1,970
Total Cats: 50
Default

Quote:
Originally Posted by 99mx5 View Post
I finally finished the oil cooler install. I added the cutout to the duct for the oil cooler hoses and installed the intercooler/radiator duct and bumper cover.
What are you using for the ducting? Is that steel?
Seefo is offline   Reply With Quote
Old 03-11-2013, 07:35 PM   #348
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,385
Total Cats: 242
Default

I used aluminum sheet.

Tomorrow is dyno day for the new MSLabs Enhanced DIYPNP ECU, I'll post new numbers...
99mx5 is offline   Reply With Quote
Old 03-11-2013, 08:17 PM   #349
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,756
Total Cats: 2,493
Default

oh snap, can't wait for the glory

Please make sure its legible this time.
18psi is offline   Reply With Quote
Old 03-12-2013, 06:16 PM   #350
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,385
Total Cats: 242
Default

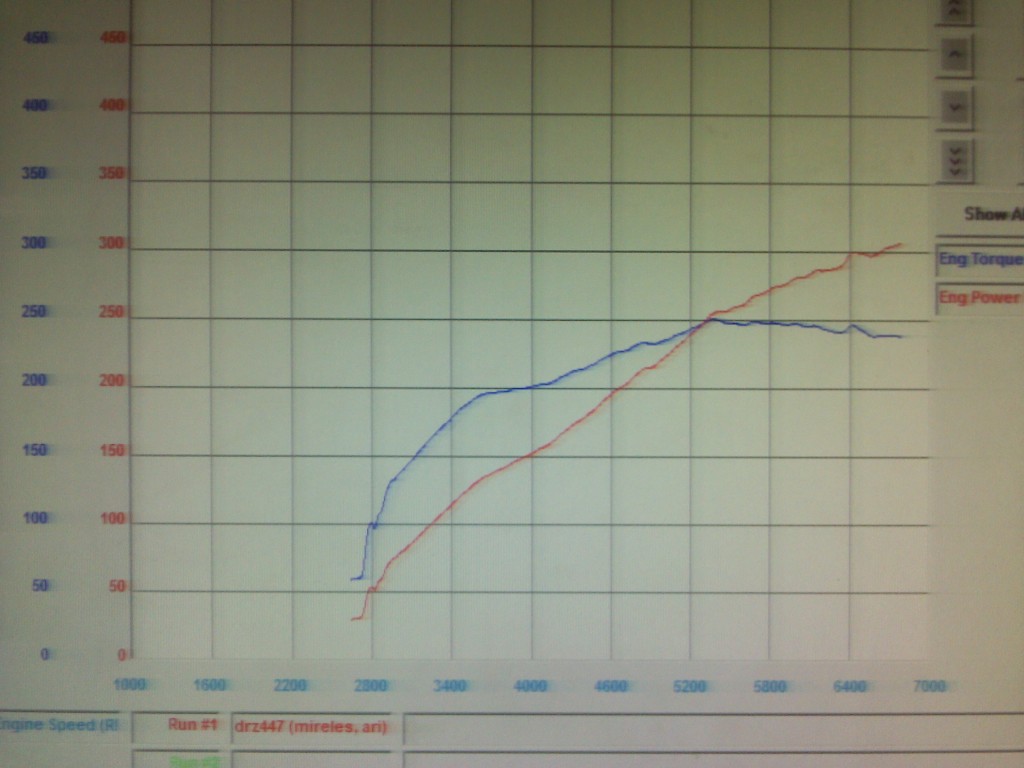

323WHP / 262WTQ @ 14 PSI

Attached Thumbnails
99mx5 EFR build-img_20130312_112538_zpsf01030ba.jpg
99mx5 is offline   Reply With Quote
Old 03-12-2013, 06:53 PM   #351
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,756
Total Cats: 2,493
Default

Those are GREAT numbers for such low pressure, 'GRATS MAN

Something kinda bugs me though: the area between 3600-5200. Looks like its either boost or spark limited to look that way, and could have been rounded to the left a little bit like the rest of the curve and other "normal" curves

Also any reason you didnt' wind it out to at least 7? Looks like it woulda kept making power
18psi is offline   Reply With Quote
Old 03-12-2013, 06:57 PM   #352
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

Is that wastegate only maybe? I am also confused, that turbo should have no problem making 250ft-lbs at 4000rpm and then holding it there.
thenuge26 is offline   Reply With Quote
Old 03-12-2013, 07:05 PM   #353
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,499
Total Cats: 1,709
Default

curious to see the boost log.
Braineack is offline   Reply With Quote
Old 03-12-2013, 08:04 PM   #354
A living god
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,032
Total Cats: 240
Default

Quote:
Originally Posted by Braineack View Post
curious to see the boost log.
Yeah something must be up. [email protected] and [email protected] seems low.

That top end looks amazing, though. Square top doin' work like a mug.
viperormiata is offline   Reply With Quote
Old 03-12-2013, 08:19 PM   #355
Senior Member
iTrader: (2)

Join Date: Oct 2011
Location: Hickory, NC
Posts: 683
Total Cats: 3
Default

I have read this all before, but to save me from doing so again, can you please recap what your engine specs are? I am building an EFR6258 very soon and want to know how my setup compares to yours. Great thread with lots of pictures, thank you. So, compression ratio? Head work? intake? The important stuff that determines those numbers? Thanks in advance!
-Chris
Amellrotts is offline   Reply With Quote
Old 03-12-2013, 08:41 PM   #356
Senior Member
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

Great numbers! Everyone is right about the mid torque and getting that torque up should help with perhaps more power up top!

Quote:
Originally Posted by Amellrotts View Post
I have read this all before, but to save me from doing so again, can you please recap what your engine specs are? I am building an EFR6258 very soon and want to know how my setup compares to yours. Great thread with lots of pictures, thank you. So, compression ratio? Head work? intake? The important stuff that determines those numbers? Thanks in advance!
-Chris
I believe it is in his signature!
bcrx7 is offline   Reply With Quote
Old 03-12-2013, 08:45 PM   #357
Senior Member
iTrader: (2)

Join Date: Oct 2011
Location: Hickory, NC
Posts: 683
Total Cats: 3
Default

Quote:
Originally Posted by bcrx7 View Post
Great numbers! Everyone is right about the mid torque and getting that torque up should help with perhaps more power up top!



I believe it is in his signature!
Yeah, I am a dumbass! I started reading at the beginning again and got to page three before I made my last post.....never looked at the sig....lol. Thanks 7!

But was there any head work? VVT head?
Amellrotts is offline   Reply With Quote
Old 03-12-2013, 09:16 PM   #358
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,385
Total Cats: 242
Default

Thanks all!
I mentioned to him while we were tuning that it seemed to have a flat spot in the middle. After viewing logs of the pulls he saw that some timing was being pulled. I'm not sure it its related to the flat spot. Reverant's new ECU has some sweet knock sensing settings. In the end, the tuner pulled some timing to avoid it. The summer will be worse so, the timing map will be a good starting point to let the ECU compensate.

The head is a 99 head that has the ports smoothed to remove casting flash, the valve ports were smoothed to have better transitions to the valves, the combustion chambers were smoothed out and valves were deshrouded.

I can send logs to you Scott. email OK? (I have it.)
99mx5 is offline   Reply With Quote
Old 03-12-2013, 09:22 PM   #359
Senior Member
iTrader: (2)

Join Date: Oct 2011
Location: Hickory, NC
Posts: 683
Total Cats: 3
Default

99MX5, is your head stock? What intake mani are you using?
Amellrotts is offline   Reply With Quote
Old 03-12-2013, 09:27 PM   #360
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,385
Total Cats: 242
Default

See above post about the head. The manifold is a Squaretop.
