Old 04-17-2012, 04:11 AM   #361
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Credit goes to Sav, he's the one that originally put the image in my head. Good metaphor though.
curly is offline   Reply With Quote
Old 04-25-2012, 11:23 AM   #362
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

Just recently I've been considering options to increase power. The car doesn't really need it but as men, who make calculations using a method deemed "Racers Math", we always want more.

My torque falls off a bit near the end of my power ban and it's just no fun. I've considered the Honda manifold solution but it's just a bit too messy and quite frankly, I'd like something that has been specifically tuned and developed for a forced induction BP motor..

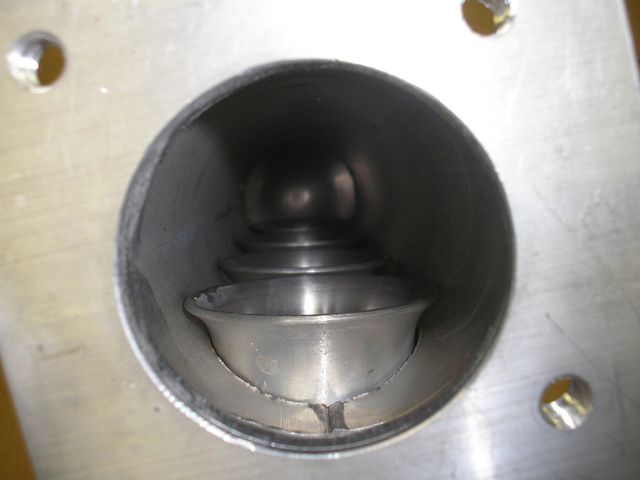

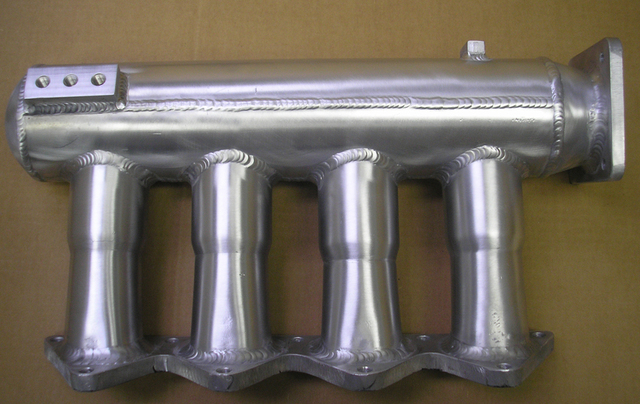

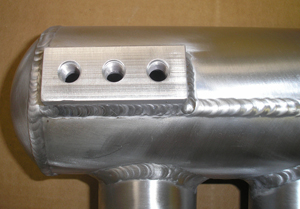

From what I've picked up, BEGi might be the only company that has done their homework on an intake manifold for the BP motors. So I'll be installing one of these:







On top of the performance gains, it's quite a bit lighter than the stocker. Should have this guy in the next couple of weeks.
Attached Thumbnails
Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-p2185701.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-p2185709.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-p2185702.jpg
miatauser123 is offline   Reply With Quote
Old 04-25-2012, 11:32 AM   #363
Junior Member

Join Date: Nov 2011
Location: Milwaukee, WI
Posts: 81
Total Cats: 0
Default

Interested in hearing pros and cons on that intake manifold!
Samakhan is offline   Reply With Quote
Old 04-25-2012, 03:13 PM   #364
Hear me Meow
iTrader: (3)

skidude's Avatar

Join Date: Apr 2008
Location: Outside Portland Maine
Posts: 1,993
Total Cats: 13
Default

Based on previous posts, we will get an update tomorrow where this is installed, somehow, magically and beautifully. It never takes this man "a couple weeks" to get anything.
skidude is offline   Reply With Quote
Old 04-25-2012, 05:58 PM   #365
Junior Member
iTrader: (4)

Join Date: Oct 2009
Location: College Station, TX
Posts: 281
Total Cats: 5
Default

Im excited for results.
palmtree is offline   Reply With Quote
Old 04-25-2012, 09:31 PM   #366
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,165
Total Cats: 2,573
Default

Interested in results.
I thought I saw a post by corky some time ago praising the miata engineers and claiming that they couldn't improve on the oem design too much and that their mani only gained a bit up top at the expense of lowend. Something to that effect. I hope they refined it since then........
Please try to do back to back logs and/or dyno's if possible.
I know that's asking a lot, but there are only a handful (maybe less) proven mani comparos on here and 80% of the people dunno wtf they're talking about with respect to intake manifolds.
18psi is offline   Reply With Quote
Old 04-26-2012, 10:56 AM   #367
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

I've seen the same post. The dilemma was, I believe Corky wanted to improve low mid and high end power. The problem is, with a power plant that makes all of it's power with a turbocharger you just can't do this without something adding velocity to the equation in the lower parts of the power ban. Maybe something could be done with cam's to help with this but he praised the engineers for a reason:

They did a good job on the low end without killing the high end... on a naturally aspirated engine!

I asked myself, when I'm trying to go fast what area of the power ban am I using? 5k and above. 5k and above is where their manifold is proven to show increases. From what I've seen the loss down low with their manifold is a bit less than most results I've seen.

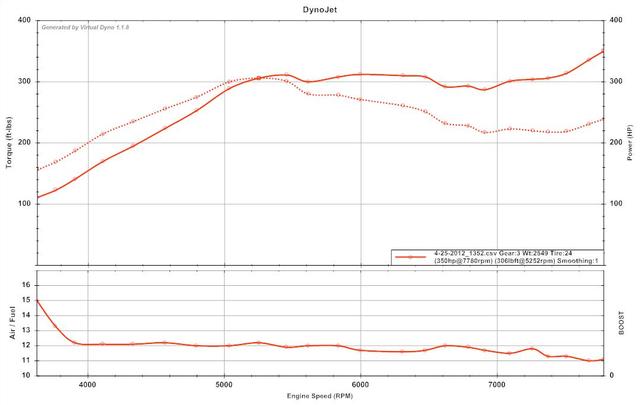

Ran this last night as a bench mark, I'll run it again before and just after the intake manifold installation but you can see my torque curve is a bit soft. My current manifold is also probably creating a lot of heat with it's restriction.

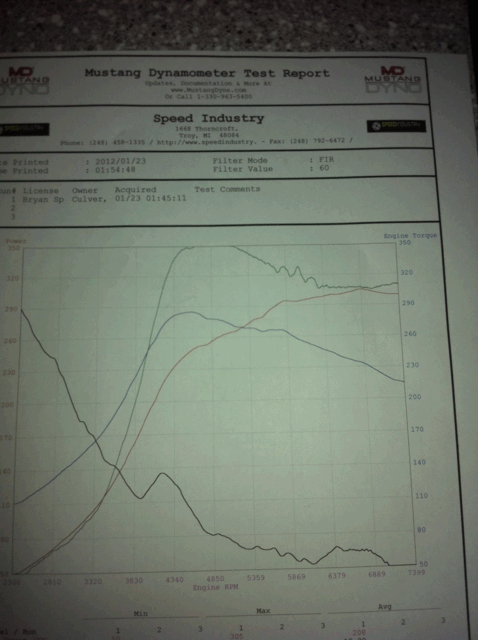

This was the Dyno without meth just after the build - This also paints a pretty clear picture. Restriction.


My daily driver is an awesome example of how velocity makes power down low. The VR6 motor has a chamber through all of the runners that directs air under different load conditions. It feels strong down low and up top. I'm actually surprised that we have not seen an aftermarket manifold with butterfly flaps like the VICS because it truly is an impressive design, just doesn't have the capacity to maintain up top.

Either way, I'm expecting good results with this manifold, the factory one is a weak point in all high horsepower BP builds, plain and simple. BEGi also spent a really good amount of time developing it, I believe the post you referenced from Corky was also prior to this manifold being a finished design.
Attached Thumbnails
Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-spears042512.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-img3206.gif
miatauser123 is offline   Reply With Quote
Old 04-27-2012, 10:50 AM   #368
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

Good morning kids.

miatauser123 is offline   Reply With Quote
Old 04-27-2012, 12:13 PM   #369
Junior Member
iTrader: (1)

Join Date: Apr 2010
Location: Deland, FL
Posts: 143
Total Cats: 6
Default

Awww....I was doing burnouts on a back road yesterday, that makes us twins....except for the color, the trim, nice wheels and tires, proper suspension, ecu, turbo, clutch, transmission, built motor...... ----. I give up.








OOH! I blacked out my headlight housings. check.
JoeTheZoe is online now   Reply With Quote
Old 04-27-2012, 12:36 PM   #370
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

So after running Virtual Dyno on my Adaptronic, I noticed that my boost levels were all over the place. I think I've got some vacuum issues because it now takes 100% on my waste gate map to create 19 PSI.

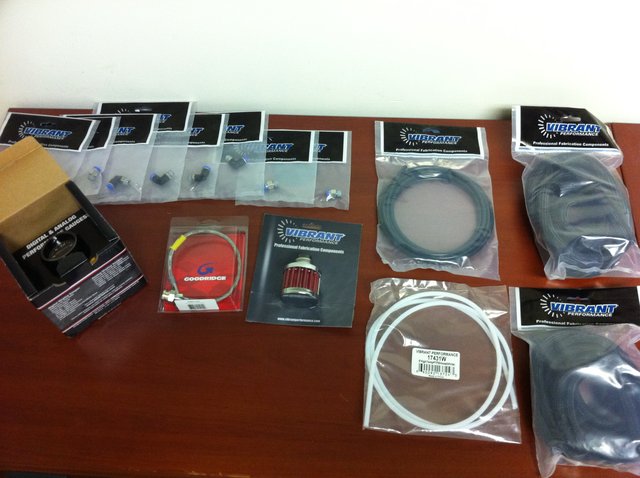

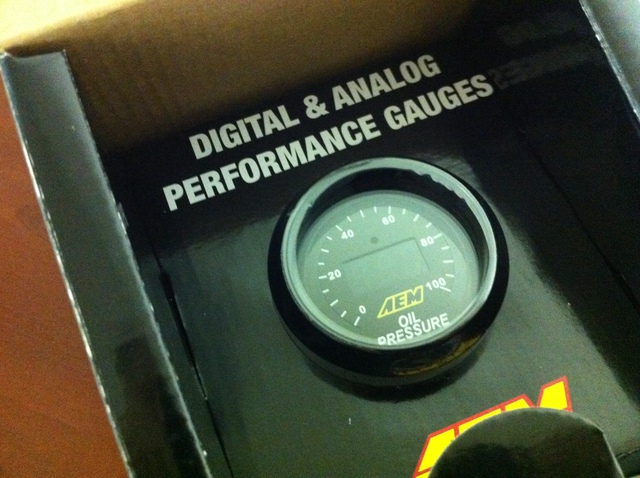

Also - In preparation for my new BEGi intake manifold, I've picked up some hard line and fittings. Also grabbed an oil pressure sensor from AEM. Digital baby A new breather was added to the order, because I blew the other one off!



Attached Thumbnails
Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-img4202v.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-img4203c.jpg
miatauser123 is offline   Reply With Quote
Old 04-27-2012, 12:39 PM   #371
Junior Member
iTrader: (13)

Join Date: Jul 2007
Location: San Antonio, TX
Posts: 498
Total Cats: 6
Default

GAH! You don't waste time! Curious to find out IM results.
lsc224 is offline   Reply With Quote
Old 04-27-2012, 12:40 PM   #372
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,165
Total Cats: 2,573
Default

Curious: will that sucker just thread right into the same place the stocker sits?
18psi is offline   Reply With Quote
Old 04-27-2012, 01:16 PM   #373
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

No. The factory sensor is 1/8 BNPT and the AEM is 1/8 NPT. Sadlife.

Autometer 2269 is the adapter.

Last edited by miatauser123; 04-27-2012 at 01:50 PM.
miatauser123 is offline   Reply With Quote
Old 04-27-2012, 01:54 PM   #374
Junior Member

Join Date: Dec 2010
Location: UK, in Cambridgeshire or wherever work takes me.
Posts: 376
Total Cats: 19
Default

Love the attention to detail in all this. Regular vids are much appreciated too
owenwilliams is offline   Reply With Quote
Old 04-27-2012, 02:32 PM   #375
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

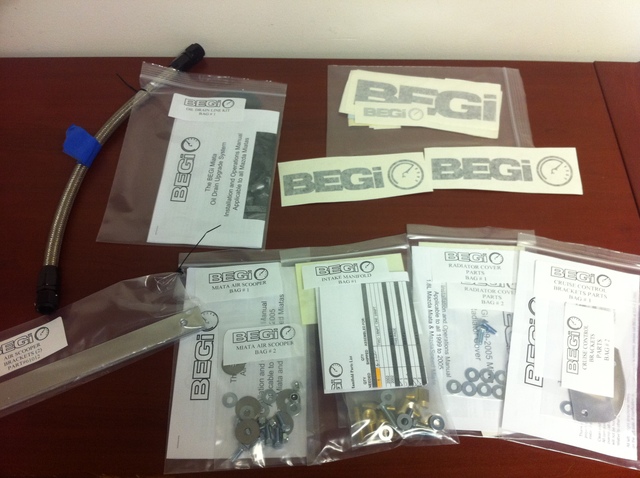

Some of my order came in from BEGi.. Yum. Stephanie ships with the quickness.
  1. Curise Relocation Bracket
  2. Oil Drain Line - Stainless
  3. Radiator Cover
  4. Air Scooper
  5. Random hardware for the Intake Manifold

Still waiting on a couple of pieces that are likely being produced right now (Intake Manifold).

Excited, and most of all impressed with the quality of these parts. Just the way it's packaged with literature and hardware says a lot. The individual bags give off a very "Motherly" vibe. But my Mom never made beautiful-forced-induction-Miata parts for lunch

Attached Thumbnails
Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-img4208y.jpg
miatauser123 is offline   Reply With Quote
Old 04-27-2012, 05:59 PM   #376
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

Took one of our tech support guys for a ride.. haha

miatauser123 is offline   Reply With Quote
Old 04-27-2012, 06:06 PM   #377
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,165
Total Cats: 2,573
Default

Loving your videos. Keep making moar
18psi is offline   Reply With Quote
Old 04-27-2012, 07:05 PM   #378
Senior Member
iTrader: (4)

2manyhobyz's Avatar

Join Date: Feb 2011
Location: Joliet, IL
Posts: 622
Total Cats: 16
Default

Looking out the rear window and seeing the tire smoke --
2manyhobyz is offline   Reply With Quote
Old 04-27-2012, 10:43 PM   #379
Senior Member
iTrader: (4)

Join Date: Nov 2009
Location: Toronto, ON
Posts: 1,479
Total Cats: 6
Default

Should have slammed on the brakes to teach him about seat belts.
dgmorr is offline   Reply With Quote
Old 04-27-2012, 10:49 PM   #380
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Hahaha about racers math.
Faeflora is offline   Reply With Quote
