Old 02-14-2013, 02:46 PM   #881
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

What would you do about this?
VVT engine, RB NA exhaust, OEM Mazda cat (for fitment purposes)

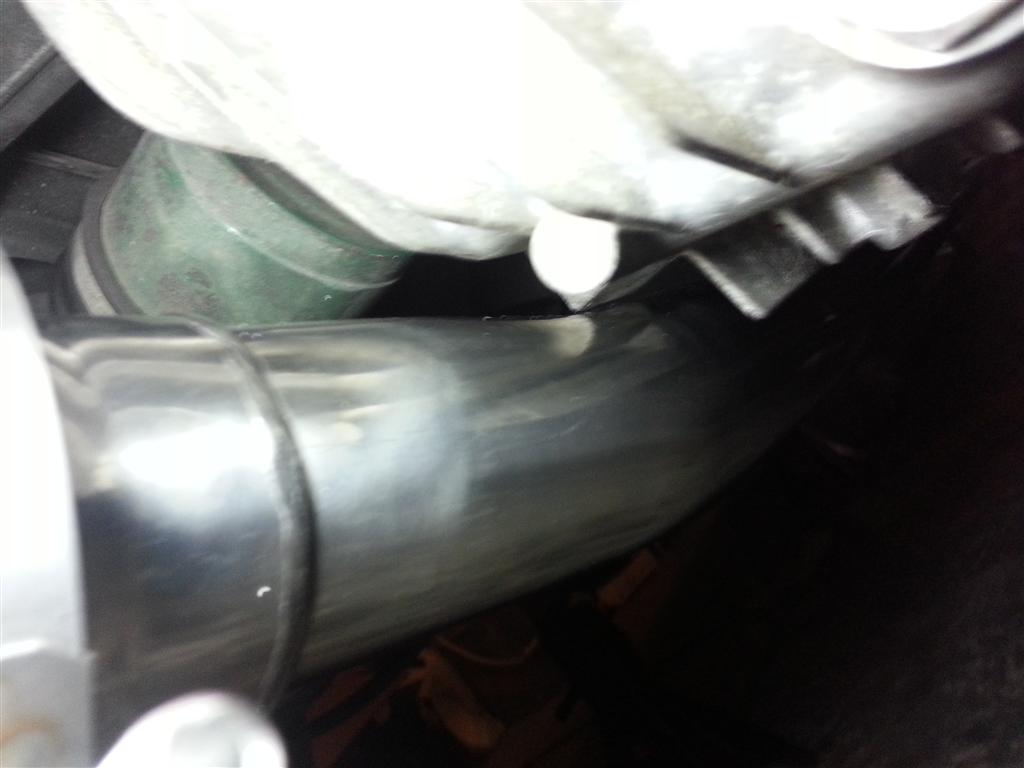

Hits the diff:

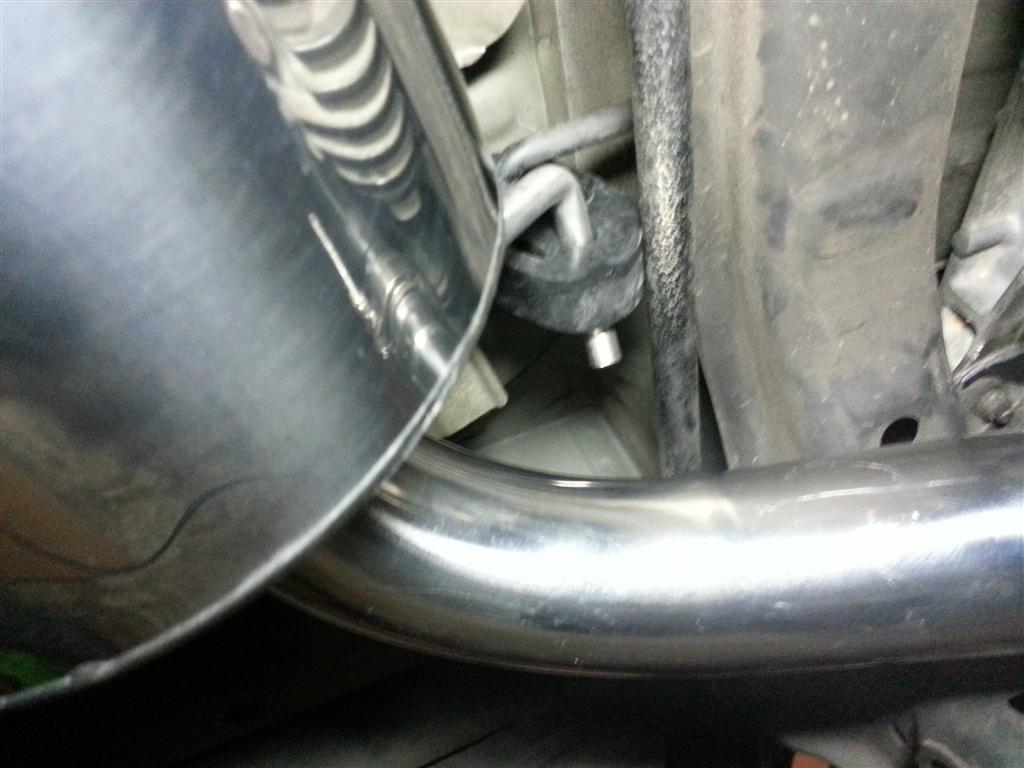

Hangers rub the sway bar and don't line-up with the body-hangers:

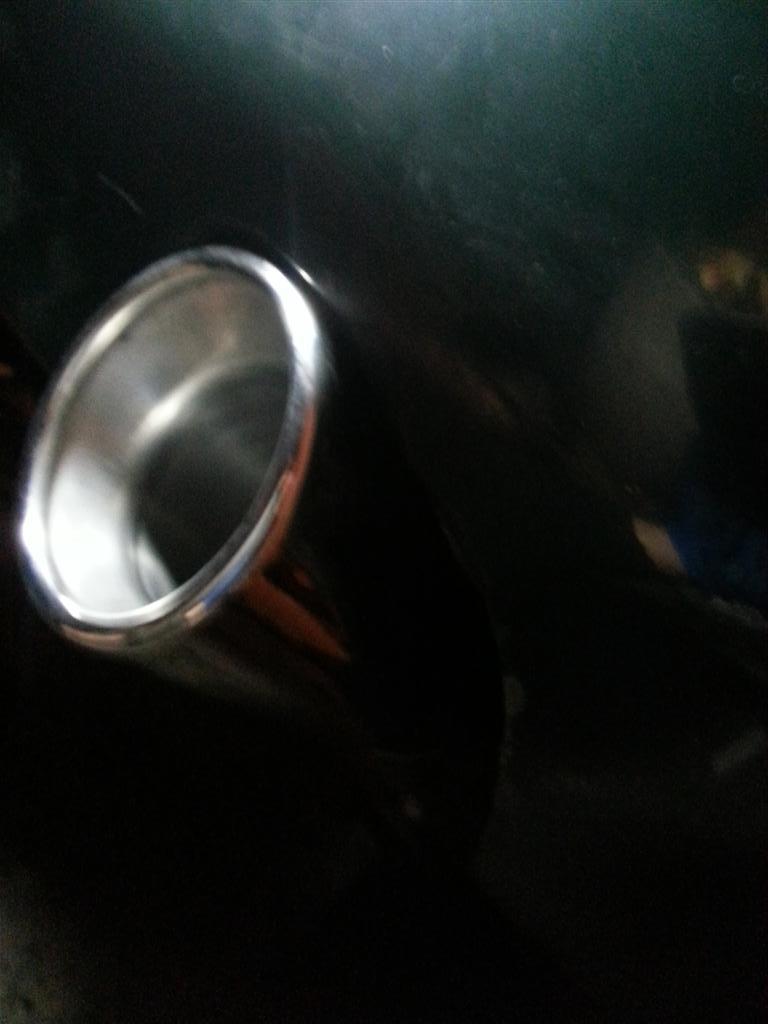

Rubs the bumper:

I bolted the cat, the midpipe, then used all the strength I had to get the v-band connection to line up. I had a similar problem on my daily, made the mid-pipe 2" longer, and it fits on both cars now.
Attached Thumbnails
Hustler's build thread 2.0, the natural aspiration connection-7meol5w.jpg   Hustler's build thread 2.0, the natural aspiration connection-tk7qzc5.jpg
hustler is offline   Reply With Quote
Old 02-14-2013, 02:53 PM   #882
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,849
Total Cats: 1,788
Default

when you unbolt the rear section from mid, does the muffler hang okay?
Braineack is online now   Reply With Quote
Old 02-14-2013, 02:55 PM   #883
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Braineack View Post
when you unbolt the rear section from mid, does the muffler hang okay?
"Okay" as in it won't hit anything but will still probably melt the bumper. The hangers are a little tweaked, but it's livable.
hustler is offline   Reply With Quote
Old 02-14-2013, 02:57 PM   #884
Elite Member

Join Date: Oct 2011
Location: OKC, OK
Posts: 2,644
Total Cats: 76
Default

Is that an NB "cat-back"?

It's my understanding, do to the differences in mounting angles on the headers up front, you either need to use all NA exhaust parts, or all NB exhaust parts.
z31maniac is offline   Reply With Quote
Old 02-14-2013, 03:06 PM   #885
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by z31maniac View Post
Is that an NB "cat-back"?

It's my understanding, do to the differences in mounting angles on the headers up front, you either need to use all NA exhaust parts, or all NB exhaust parts.
I believe it's NA. That's what I ordered at least.

Quan Item No. Description Price Extension
---- ----------- ------------------------------- -------------- ----------------
1 61-0171 COMPLETE Cat-Back $399.00 $399.00
RoadsterSport 3 Miata Polished
Stainless Steel Exhaust for
90-97 1990-1997
hustler is offline   Reply With Quote
Old 02-14-2013, 03:21 PM   #886
Elite Member

Join Date: Oct 2011
Location: OKC, OK
Posts: 2,644
Total Cats: 76
Default

Ahh ok, just throwing it out there. For some reason I was thinking your car was an NB.
z31maniac is offline   Reply With Quote
Old 02-14-2013, 03:49 PM   #887
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by z31maniac View Post
Ahh ok, just throwing it out there. For some reason I was thinking your car was an NB.
Price is wrong, female K9.
hustler is offline   Reply With Quote
Old 02-14-2013, 06:01 PM   #888
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

It almost looks like it's short somewhere, cause the rubber hanger is touching the sway bar, and it should be straight downish. If it was, it looks like you'd have enough room. What's the story on your cat/test pipe?
curly is offline   Reply With Quote
Old 02-15-2013, 12:03 AM   #889
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by curly View Post
It almost looks like it's short somewhere, cause the rubber hanger is touching the sway bar, and it should be straight downish. If it was, it looks like you'd have enough room. What's the story on your cat/test pipe?
Cat is OEM. It will be replaced with a resonated pipe when I get fitment figured-out.
hustler is offline   Reply With Quote
Old 02-15-2013, 12:59 AM   #890
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Un bolt it and throw a small piece of ply wood or something I between the flanges, see if it solves your issues.
curly is offline   Reply With Quote
Old 02-15-2013, 01:05 AM   #891
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by curly View Post
Un bolt it and throw a small piece of ply wood or something I between the flanges, see if it solves your issues.
Next week.

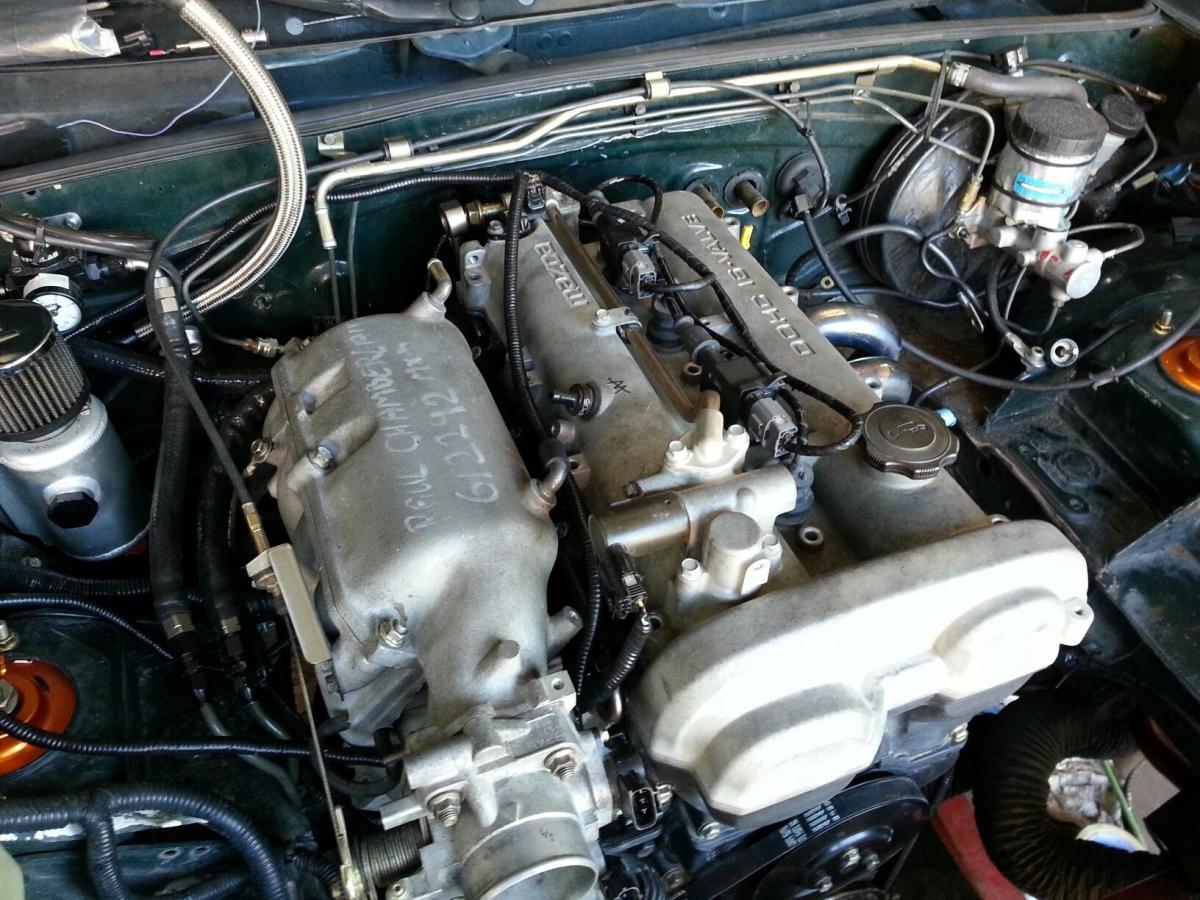

I wired-up everything aside from the tach and the oil temp sender and I still have to run the new speedo-cable, then the car can go on the ground.
Attached Thumbnails
Hustler's build thread 2.0, the natural aspiration connection-856342_10101412416463120_1829365592_o.jpg
hustler is offline   Reply With Quote
Old 02-15-2013, 02:11 AM   #892
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

I like that pcv.
triple88a is offline   Reply With Quote
Old 02-15-2013, 02:38 AM   #893
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by triple88a View Post
I like that pcv.
It's about to go bye bye.
hustler is offline   Reply With Quote
Old 02-15-2013, 08:26 AM   #894
Senior Member
iTrader: (2)

Join Date: Jan 2010
Location: Denver
Posts: 909
Total Cats: 14
Default

Quote:
Originally Posted by hustler View Post
I need to get this car on track, period. I need to race the **** out of it, park it, and relax. I don't know if this makes sense to anyone, but it makes-sense to me.
Makes perfect sense to me, if you really love racing, the addiction is worse than meth.
hingstonwm is offline   Reply With Quote
Old 02-15-2013, 11:00 AM   #895
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by hingstonwm View Post
Makes perfect sense to me, if you really love racing, the addiction is worse than meth.
It's not really about this car anymore, it's about the next one (PTE)
hustler is offline   Reply With Quote
Old 02-15-2013, 10:49 PM   #896
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 3,049
Total Cats: 4
Default

Quote:
Originally Posted by hustler View Post
I need to get this car on track, period. I need to race the **** out of it, park it, and relax. I don't know if this makes sense to anyone, but it makes-sense to me.
I totally understand.

Any intelligent person on this forum would...
Efini~FC3S is offline   Reply With Quote
Old 02-16-2013, 09:50 AM   #897
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,849
Total Cats: 1,788
Default

Quote:
Originally Posted by Efini~FC3S View Post
i...ntelligent person on this forum...

that's going to be an issue.
Braineack is online now   Reply With Quote
Old 02-16-2013, 01:18 PM   #898
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Probably would have fit if you had cut that window in the firewall.
triple88a is offline   Reply With Quote
Old 02-18-2013, 03:25 PM   #899
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Remaining tasks:
  1. Get valve cover welded and bolted on
  2. Get water pump inlet welded and bolted
  3. Purchase 99 lower rad hose
  4. Plug in Greek computer
  5. Corner balance
  6. Align
  7. Tune
  8. Buy SM6s and mount them
  9. Floss
  10. Worship Satan, prince of immortal darkness
Today I finished all wiring, put the radiator in, made a mount and installed cruise control, wired new tach/G2X wires. This weekend I'm putting the car on the ground and cleaning the garage so I can build ducting for ShaneM's ****-heap.
hustler is offline   Reply With Quote
Old 02-18-2013, 03:32 PM   #900
Junior Member
iTrader: (1)

Join Date: May 2012
Location: East Texas
Posts: 230
Total Cats: 11
Default

Quote:
Originally Posted by hustler View Post
Remaining tasks:
  1. Get valve cover welded and bolted on
  2. Get water pump inlet welded and bolted
  3. Purchase 99 lower rad hose
  4. Plug in Greek computer
  5. Corner balance
  6. Align
  7. Tune
  8. Buy SM6s and mount them
  9. Floss
  10. Worship Satan, prince of immortal darkness
Today I finished all wiring, put the radiator in, made a mount and installed cruise control, wired new tach/G2X wires. This weekend I'm putting the car on the ground and cleaning the garage so I can build ducting for ShaneM's ****-heap.
what he really means is he is cleaning the garage so I'll come up and bring his sim racing gear. Speaking of, i need that list of parts for the oil cooler ****.
shanem is offline   Reply With Quote
