Old 12-08-2011, 01:51 PM   #1381
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,110
Total Cats: 518
Default

Where's bob when you need him? I believe he took an aluminum NB heater core and welded AN fitting directly onto the core. Much easier than trying to flare the stock fail lines.
curly is offline   Reply With Quote
Old 12-08-2011, 02:02 PM   #1382
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by curly View Post
Where's bob when you need him? I believe he took an aluminum NB heater core and welded AN fitting directly onto the core. Much easier than trying to flare the stock fail lines.
That's more work than I'm trying to get into. I don't want to pull the dash, buy bulkheads and all that jazz

I don't this rubber hoses are the best idea nest to a turbonator.
hustler is offline   Reply With Quote
Old 12-08-2011, 02:03 PM   #1383
Elite Member
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

You're in Texas... what do you need a heater core for anyways?
falcon is offline   Reply With Quote
Old 12-08-2011, 09:18 PM   #1384
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,110
Total Cats: 518
Default

Quote:
Originally Posted by hustler View Post
That's more work than I'm trying to get into. I don't want to pull the dash, buy bulkheads and all that jazz

I don't this rubber hoses are the best idea nest to a turbonator.
First of all, the dash isn't that hard, man up. Secondly, who said anything about bulkheads and all that jazz? Just run lines straight through firewall. Thirdly, MAN THE **** UP.
curly is offline   Reply With Quote
Old 12-08-2011, 10:27 PM   #1385
Elite Member
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Quote:
Originally Posted by curly View Post
Where's bob when you need him? I believe he took an aluminum NB heater core and welded AN fitting directly onto the core. Much easier than trying to flare the stock fail lines.
Ya I was over at his house one night when he had his dash off and saw his heater lines. ******* baller *** **** but I think he said there were about 500 bucks in fittings. Having AN disconnect at the firewall for the heater hoses is so ******* awesome though.
wayne_curr is offline   Reply With Quote
Old 12-11-2011, 11:46 AM   #1386
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Some new stuff:

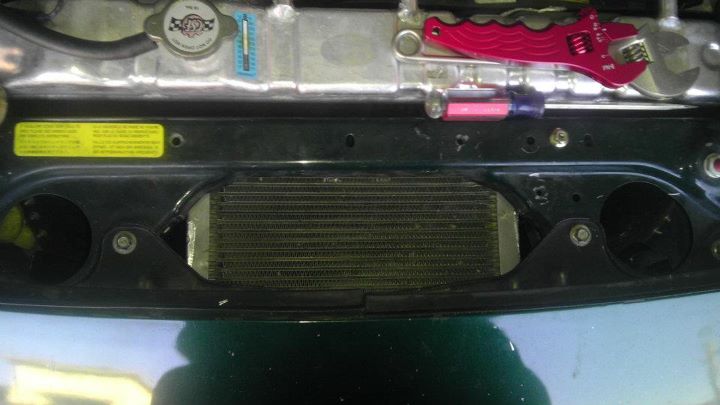

Securly affixed, ducted, finished...the way I always wanted it done:

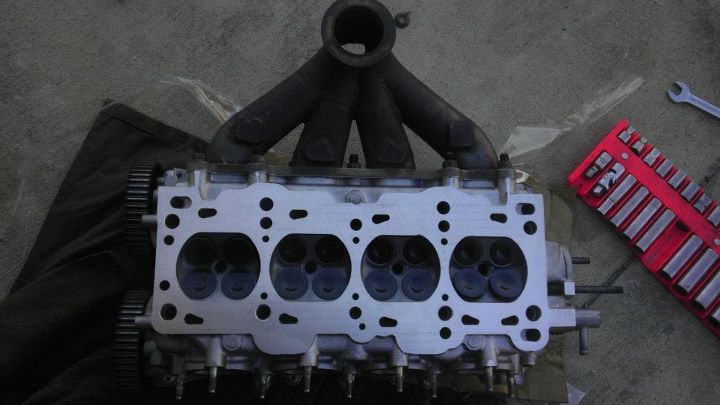

People always ask to see the back of my head:

Now that I've decked the head twice, any concerns with the deck-height considering the machinist cut into the exhaust stud bosses?

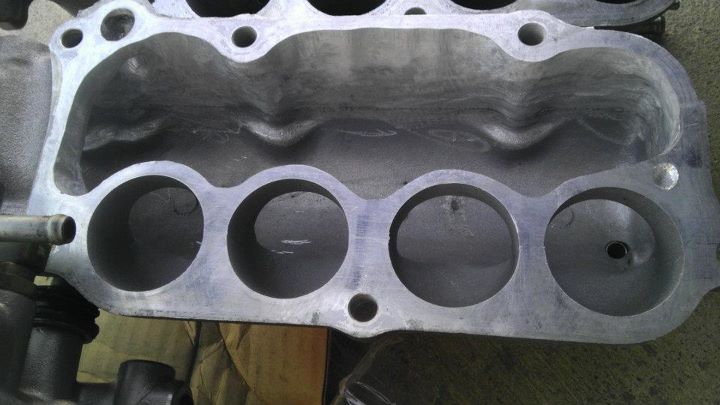

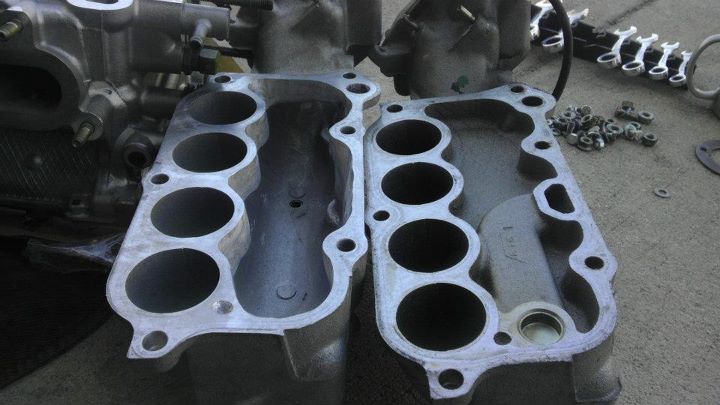

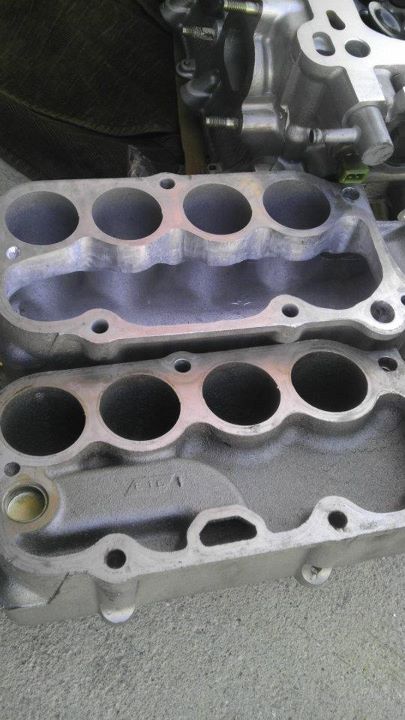

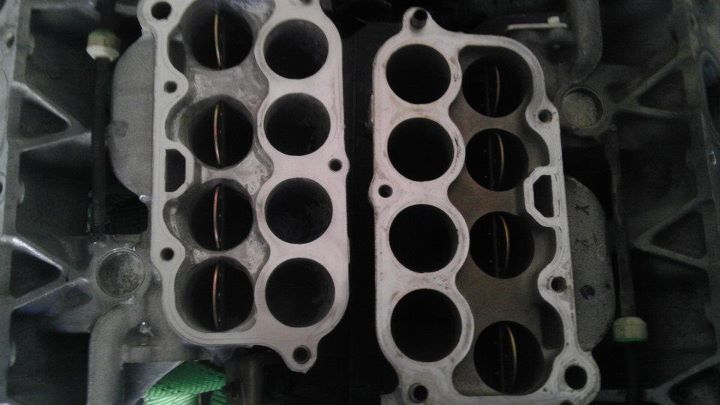

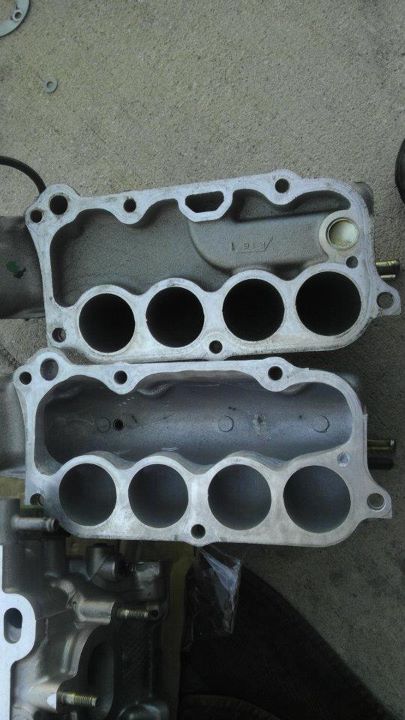

John gutted my 99 intake plenum, I have a spare we can exchange if you want yours done:






Attached Thumbnails
hustler's "driver shame" thread-387840_10100487705521260_23911356_50288522_995713614_n.jpg   hustler's "driver shame" thread-390855_10100487705416470_23911356_50288521_691179693_n.jpg   hustler's "driver shame" thread-385500_10100487704862580_23911356_50288513_468608865_n.jpg   hustler's "driver shame" thread-382583_10100487705152000_23911356_50288517_511155879_n.jpg   hustler's "driver shame" thread-390632_10100487705306690_23911356_50288519_1140663423_n.jpg

hustler's "driver shame" thread-387197_10100487705361580_23911356_50288520_568447773_n.jpg   hustler's "driver shame" thread-381186_10100487705196910_23911356_50288518_1112875507_n.jpg   hustler's "driver shame" thread-377340_10100487704977350_23911356_50288514_1246308901_n.jpg   hustler's "driver shame" thread-380847_10100487705007290_23911356_50288515_753610505_n.jpg   hustler's "driver shame" thread-387266_10100487705062180_23911356_50288516_1765535170_n.jpg

hustler is offline   Reply With Quote
Old 12-11-2011, 12:11 PM   #1387
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,110
Total Cats: 518
Default

What's the tolerance for the distance between the valve cover gasket mating surface and the head gasket surface?
curly is offline   Reply With Quote
Old 12-11-2011, 12:56 PM   #1388
Elite Member
iTrader: (3)

Join Date: Feb 2008
Location: Huntsville, AL
Posts: 1,882
Total Cats: 45
Default

You'd have to look at the service manual, but the ~1/2" round plugs that protrude from the casting adjacent to the edge of the deck between 2&3 on the exhaust side and between 1&2 and 3&4 on the intake side look like the service limit indicators to me. Since you haven't even gotten into them you should be fine.
vehicular is offline   Reply With Quote
Old 12-11-2011, 01:39 PM   #1389
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

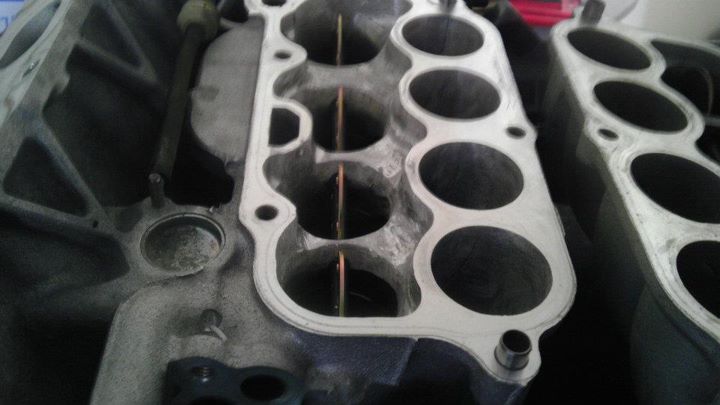

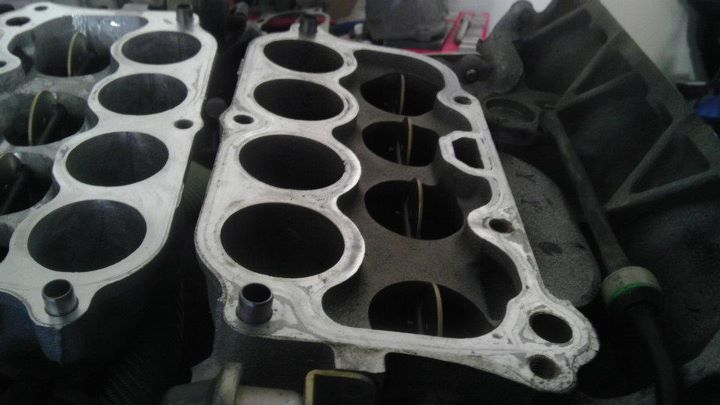

Have your machinist take out that stupid "brass knuckle" 4 porthole thing. And why are you keeping your VICS? VICS and brass knuckle is about .5L or more of plenum volume btw.
Faeflora is offline   Reply With Quote
Old 12-11-2011, 02:43 PM   #1390
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Faeflora View Post
Have your machinist take out that stupid "brass knuckle" 4 porthole thing. And why are you keeping your VICS? VICS and brass knuckle is about .5L or more of plenum volume btw.
I thought John was going to gut it too, I'm not sure why he kept it.
hustler is offline   Reply With Quote
Old 12-11-2011, 02:59 PM   #1391
Senior Member
iTrader: (3)

Join Date: Jan 2008
Location: Plano,TX
Posts: 674
Total Cats: 3
Default

Which brass knuckle are you referring to?
johnwag is offline   Reply With Quote
Old 12-11-2011, 10:12 PM   #1392
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,691
Total Cats: 1,562
Default

Quote:
Originally Posted by hustler View Post
People always ask to see the back of my head
Duh, they want you from behind.

Learn to take a hint, lol.
sixshooter is online now   Reply With Quote
Old 12-11-2011, 10:48 PM   #1393
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Quote:
Originally Posted by johnwag View Post
Which brass knuckle are you referring to?
This. and the vics

https://www.miataturbo.net/attachmen...ine=1323618364
Faeflora is offline   Reply With Quote
Old 12-12-2011, 12:32 AM   #1394
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Faeflora View Post
Is there any data showing suggesting I can get more power from gutting that ****?
hustler is offline   Reply With Quote
Old 12-12-2011, 12:35 AM   #1395
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,812
Total Cats: 187
Default

I was wondering this same thing. Won't VICS removal change the torque curve? Possibly not for the better?
thirdgen is offline   Reply With Quote
Old 12-12-2011, 12:56 AM   #1396
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by thirdgen View Post
I was wondering this same thing. Won't VICS removal change the torque curve? Possibly not for the better?
I don't have it hooked up, it stays open.
hustler is offline   Reply With Quote
Old 12-12-2011, 01:18 AM   #1397
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,812
Total Cats: 187
Default

If it stays open, then I say "get rid of it, as it has to be a restriction and is also causing turbulence."
thirdgen is offline   Reply With Quote
Old 12-12-2011, 10:51 AM   #1398
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,793
Default

Why remove it -- use it!

Now you have adjustable runner lengths, correct?
Braineack is offline   Reply With Quote
Old 12-12-2011, 10:58 AM   #1399
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Braineack View Post
Why remove it -- use it!

Now you have adjustable runner lengths, correct?
My JS2 circuit is controlling the fan, so I don't have an output that can run VICS. I've also never successfully made VICS work on any car for some reason. Feel free to post a screen shot of the VICS screen for my edification on friend's cars, because mine will never see it.
hustler is offline   Reply With Quote
Old 12-12-2011, 11:10 AM   #1400
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,793
Default

you have plenty of unused circuits that could do it.
Braineack is offline   Reply With Quote
