Old 11-10-2011, 01:35 PM   #1261
Elite Member
iTrader: (6)

Join Date: Nov 2007
Location: Southlake,Texas
Posts: 3,251
Total Cats: 17
Default

I would mount it in the vent hole. There is no a/c anyways.
Bond is offline   Reply With Quote
Old 11-10-2011, 01:51 PM   #1262
Senior Member
iTrader: (4)

Join Date: Jan 2008
Location: Falls Church, VA
Posts: 1,367
Total Cats: 16
Default

I'd put the EGT in the radio surround since it's not ultra critical once the car is tuned well. Maybe you can give it a quick glance on the straights but you won't need it all the time. Then get a single gauge pod for the A-pillar and run a dual oil & water temp gauge there, or a dual gauge pod if you keep separate gauges. Those numbers are important enough that they need to be seen more easily.

When I eventually get mine squared away Ill be running the WBO2 and the dual oil & water temp in a 2-gauge A-pillar pod, and anything else below the radio. On street-only cars, A-pillar gauge pods tend to look like ricer bullshit to me, but track cars have a legitimate need to put gauges up there.
ScottFW is offline   Reply With Quote
Old 11-10-2011, 01:59 PM   #1263
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Well, I can't find the ferrule so it looks like I won't hook up anything, lol. I'd really like to have this for cruise tuning and an idea of what it does on the track, but its almost a single use gauge.

On another note:
Attached Thumbnails

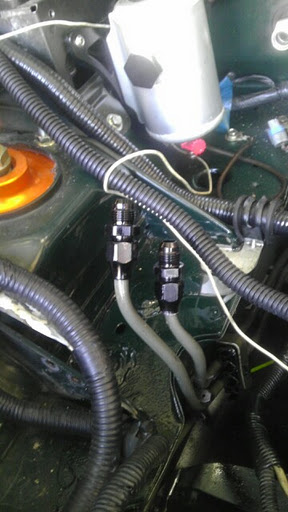

hustler's "driver shame" thread-tubez.jpg
hustler is offline   Reply With Quote
Old 11-10-2011, 02:18 PM   #1264
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Do I want -6 or -10 sized hoses for the heater core? Should I go lower instead of using a restrictor (not recirculated like the stock set-up). Right now I have it on a ball-valve and that is fail.

I almost, and I mean "almost" considered doing nylon/AN fittings for the radiator too, but that is probably over kill. I am still converting to harp-pipes with two rubber couplers on the water return. Operation Ultimate Reliability is about 75% complete.
hustler is offline   Reply With Quote
Old 11-10-2011, 03:44 PM   #1265
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Some say that any car he drives obtains an aura of indestructibility, and that the same aura protects his ********* from frequent self-inflicted blows to the groin. All we know is he's called The Hustler.
ZX-Tex is offline   Reply With Quote
Old 11-10-2011, 05:05 PM   #1266
Senior Member
iTrader: (2)

Join Date: Jan 2010
Location: Denver
Posts: 909
Total Cats: 14
Default

Was under the impression that he was running a full cage, my mistake. What about placing a gauge in the corner of the instrument cluster?
hingstonwm is offline   Reply With Quote
Old 11-12-2011, 08:36 PM   #1267
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

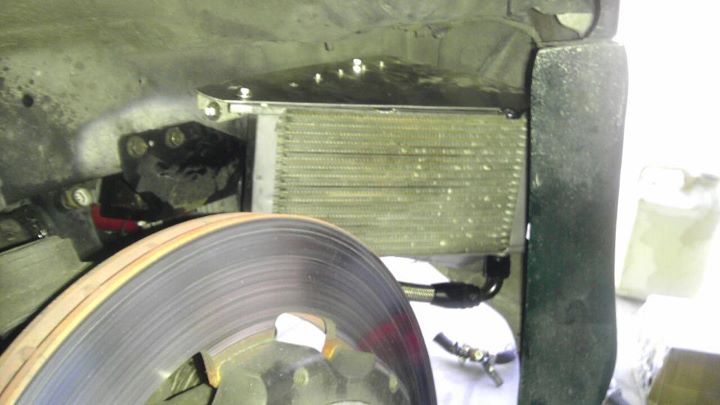

I installed Matt Andrews' old oil cooler duct today:


Tomorrow I'm going to take it apart again and cut grooves in the top so I can feed from the top. I hate this ****, I need a metal fab shop. I wish I had paid someone cash to build all this **** years ago.
Attached Thumbnails
hustler's "driver shame" thread-302378_10100420858902420_23911356_50037860_1418922315_n.jpg
hustler is offline   Reply With Quote
Old 11-12-2011, 08:40 PM   #1268
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Black ABS sheet stock is your friend. 1/8" 4' x 8' sheet for $75. Easy to cut, easy to form, no sharp edges.
No need for metal fabrication.
ZX-Tex is offline   Reply With Quote
Old 11-12-2011, 08:41 PM   #1269
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by ZX-Tex View Post
Black ABS sheet stock is your friend. 1/8" 4' x 8' sheet for $75. No need for metal fabrication.
I'm tired of looking at all that shitty black plastic crap in my car. I have some alumalite too. I don't like riveting all this **** together...but I still have that roll of plastic in the corner...
hustler is offline   Reply With Quote
Old 11-12-2011, 08:47 PM   #1270
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

I thought about mounting the cooler against the frame rail, then boxing the side you see the cooler on now...god I hate this ****.
hustler is offline   Reply With Quote
Old 11-12-2011, 08:52 PM   #1271
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Wish I had the ***** to cut (more) holes in my bumper for NACA ducts. Actually I wish I had $180 in expendable money for TSE's ducts and NACA ducts for the front. Who needs cold brakes and oil...

What's your worry about cutting the top? Anything can be done at home with an angle grinder and cut off wheel.
curly is offline   Reply With Quote
Old 11-12-2011, 08:55 PM   #1272
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Ok, I confinced myself. Tomorrow I'm going to hard-mount the oil cooler to the frame rail, the rivet together an ABS plastic box around it. This way I don't have to worry about tire-flung debris.
hustler is offline   Reply With Quote
Old 11-12-2011, 08:55 PM   #1273
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by curly View Post
Wish I had the ***** to cut (more) holes in my bumper for NACA ducts. Actually I wish I had $180 in expendable money for TSE's ducts and NACA ducts for the front. Who needs cold brakes and oil...

What's your worry about cutting the top? Anything can be done at home with an angle grinder and cut off wheel.
I don't have any of that **** now that JohnWag's shop space is gone.
hustler is offline   Reply With Quote
Old 11-12-2011, 09:21 PM   #1274
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Angle grinder = $10, cut off wheel = $3.
curly is offline   Reply With Quote
Old 11-13-2011, 09:41 AM   #1275
Elite Member
iTrader: (12)

GeneSplicer's Avatar

Join Date: Sep 2009
Location: Birmingham, AL
Posts: 2,006
Total Cats: 147
Default

Have you experience any overheating of brakes yet? Not fade, but loss of peddle pressure to overheating. I sure did this past weekend - wondering if I need larger ducts like on your RB front bumper.

You've seen my oil cooler setup - just used snips and rivets - and it's attached to a bracket that's bolted to the frame. Making sure you'll have clearance for those baller 275s you'll eventually be using? Post the pics when you're done!
GeneSplicer is offline   Reply With Quote
Old 11-13-2011, 10:25 AM   #1276
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by GeneSplicer View Post
Have you experience any overheating of brakes yet? Not fade, but loss of peddle pressure to overheating. I sure did this past weekend - wondering if I need larger ducts like on your RB front bumper.

You've seen my oil cooler setup - just used snips and rivets - and it's attached to a bracket that's bolted to the frame. Making sure you'll have clearance for those baller 275s you'll eventually be using? Post the pics when you're done!
Show me your brake duct set-up. I just ripped mine out of that side and planned on switching to NACA ducts in the belly pan. I hope I didn't make a mistake.

I can't find pics of your oil cooler set up in your build thread.

Last edited by hustler; 11-13-2011 at 10:54 AM.
hustler is offline   Reply With Quote
Old 11-13-2011, 01:14 PM   #1277
Elite Member
iTrader: (12)

GeneSplicer's Avatar

Join Date: Sep 2009
Location: Birmingham, AL
Posts: 2,006
Total Cats: 147
Default

They are buried in the 1st page, I used the oem holes in the clip for my brake ducts, but think they are too small for adequately cooling the TSE bbk - that, or I was overheating my rear sport brakes - had some heavy bias to the rear. Naca ducts seem the way to go
GeneSplicer is offline   Reply With Quote
Old 11-13-2011, 01:46 PM   #1278
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by GeneSplicer View Post
They are buried in the 1st page, I used the oem holes in the clip for my brake ducts, but think they are too small for adequately cooling the TSE bbk - that, or I was overheating my rear sport brakes - had some heavy bias to the rear. Naca ducts seem the way to go
You were overheating the rear. What pads are you running?

What are your thoughts on doing NACA ducts on the belly pan? This worked on Matt's car a couple years ago. What does NACA duct flow/pressure look like compared to a scoop like I had in the bumper?
hustler is offline   Reply With Quote
Old 11-13-2011, 02:29 PM   #1279
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Attached Thumbnails

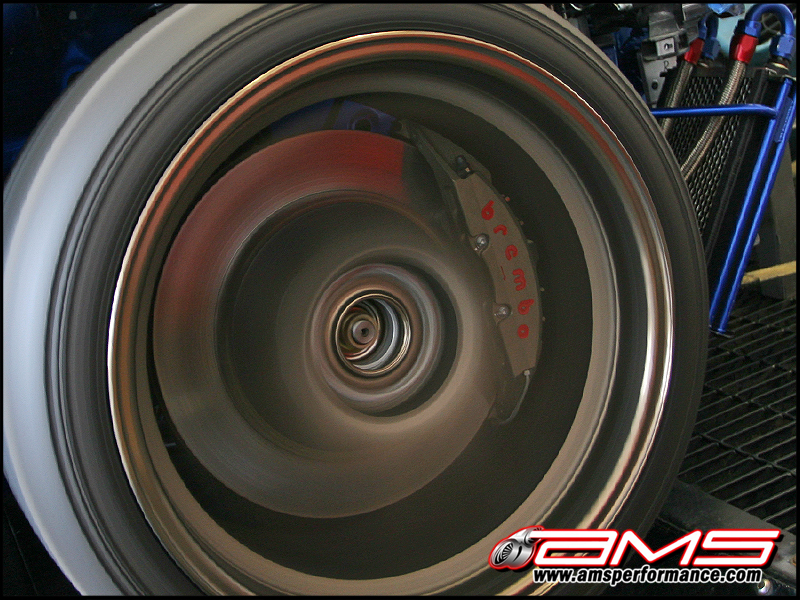

hustler's "driver shame" thread-bluedemon_070708_07.jpg
hustler is offline   Reply With Quote
Old 11-13-2011, 02:55 PM   #1280
Elite Member
iTrader: (12)

GeneSplicer's Avatar

Join Date: Sep 2009
Location: Birmingham, AL
Posts: 2,006
Total Cats: 147
Default

Quote:
Originally Posted by hustler View Post
You were overheating the rear. What pads are you running?
I was running DTC60s on the front AND rears (1.8 calipers on rear) - we seriously need vented rear rotors - but seems the V8 kit is the only way for now? Oh well.
As far as the ducting, I'd like to see some airflow comparisons in correlation to duct placement on the belly pan vs. front bumper. I would *assume* that front bumper placement is the way to go - where the pressure is the greatest - but I have assumed wrong many times before
GeneSplicer is offline   Reply With Quote
