Old 09-12-2014, 11:13 AM   #321
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by concealer404 View Post
Yes... but i'm afraid i'm not following what's going on there?

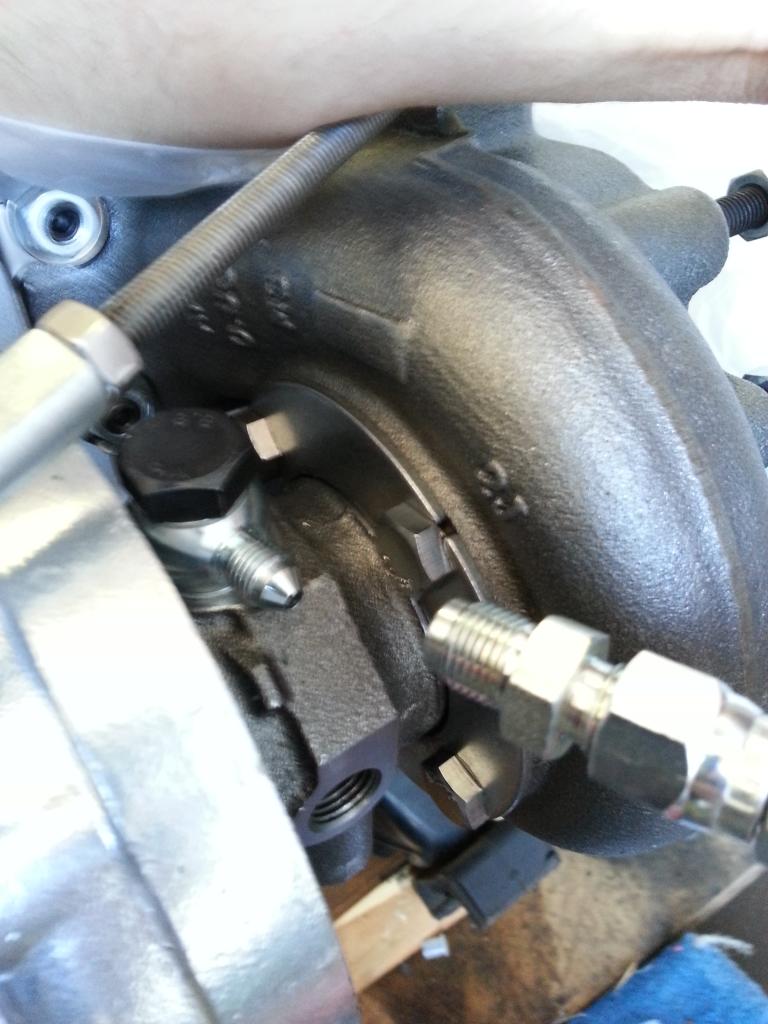

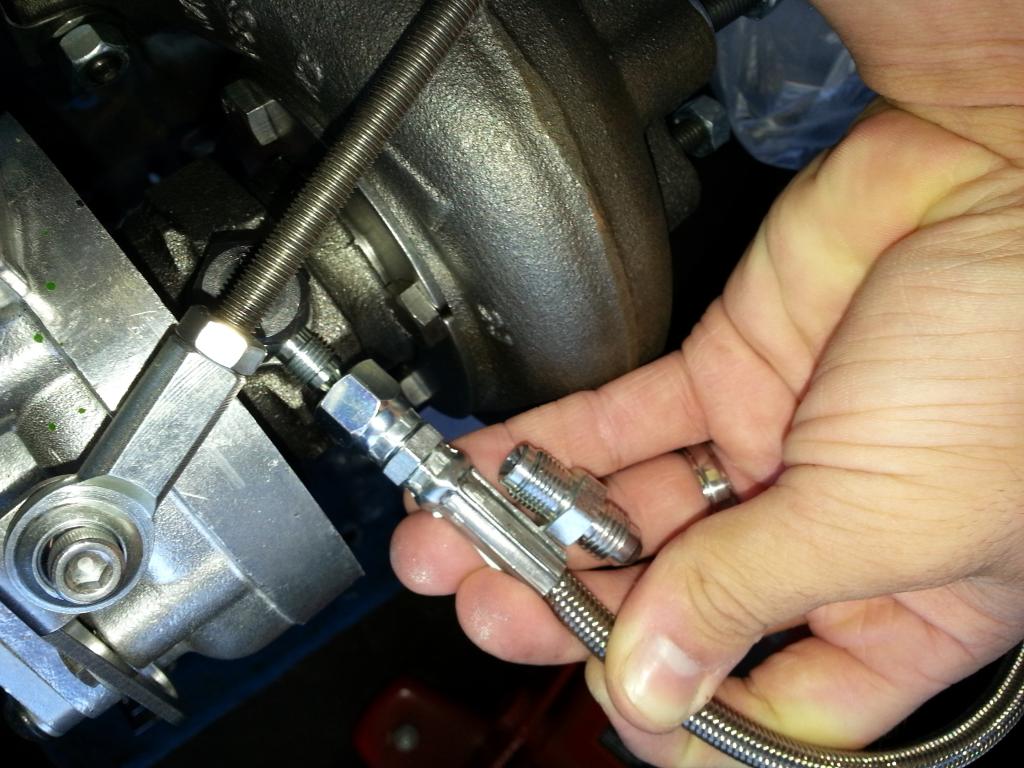

The turbo side of the Begi oil feed line is too large for the fitting currently on the turbo



Attached Thumbnails
Prepping for turbo build-20140912_101016_zpsscrbfdy7.jpg   Prepping for turbo build-20140912_101046_zpshu7daxmh.jpg
BTMiata is offline   Reply With Quote
Old 09-12-2014, 11:15 AM   #322
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 783
Default

Oh i get it. The banjo goes directly on turbo and is a -3AN, your Begi line is a -4AN.

Yeah, you can get an adapter. (And add yet another failure point to the obnoxious amount of fittings and joints in the Begi stuff)

Did you get all of this from Begi?
concealer404 is offline   Reply With Quote
Old 09-12-2014, 11:22 AM   #323
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by concealer404 View Post
Oh i get it. The banjo goes directly on turbo and is a -3AN, your Begi line is a -4AN.

Yeah, you can get an adapter. (And add yet another failure point to the obnoxious amount of fittings and joints in the Begi stuff)

Did you get all of this from Begi?
Yep ordered right from begi... Guess I should have ordered the correct fitting for the turbo... Probably my bad there. I didn't realize there was a drop down to select the fitting. I figured there was some magic wizardry that would select the appropriate fitting for me

I still need a 90deg fitting though since the grimmspeed wastegate holder thing is in the way... the line cant go straight in, the way it currently sits. I suppose I could clock the turbo a little but I dont know if I want to change where the intercooler hose will go
BTMiata is offline   Reply With Quote
Old 09-12-2014, 11:24 AM   #324
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

buy a new banjo fitting with the correct angle on it and the correct size.
Leafy is offline   Reply With Quote
Old 09-12-2014, 11:26 AM   #325
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 783
Default

Gotcha.

The whole thing looks convoluted as hell to me. (And on our own car as well.) Makes me twitch just looking at it. One day i'll get a hair up my *** and replace it all with lines that make sense and don't have double the failure points for double the fun.
concealer404 is offline   Reply With Quote
Old 09-12-2014, 11:27 AM   #326
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

BTMiata is offline   Reply With Quote
Old 09-12-2014, 11:31 AM   #327
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

No. you want something that looks like this in the correct size. http://www.summitracing.com/parts/ru...oZAaAho58P8HAQ
Leafy is offline   Reply With Quote
Old 09-12-2014, 11:43 AM   #328
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by Leafy View Post
No. you want something that looks like this in the correct size. http://www.summitracing.com/parts/ru...oZAaAho58P8HAQ
Perfect found some! Just have to take some measurements and figure out which size I need Lol
BTMiata is offline   Reply With Quote
Old 09-12-2014, 12:24 PM   #329
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

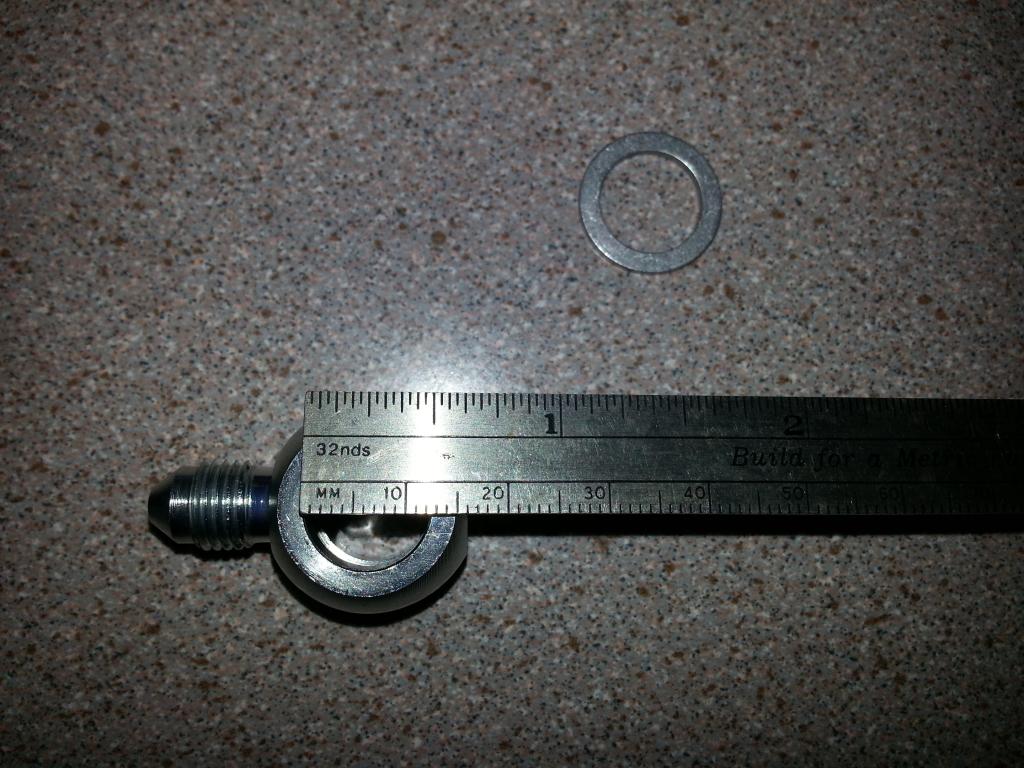

If I measured correctly... This is the one I need

-4AN 12mm

12mm Banjo to -4AN Fitting

Attached Thumbnails
Prepping for turbo build-20140912_112142_zpslrhdvznw.jpg
BTMiata is offline   Reply With Quote
Old 09-12-2014, 01:22 PM   #330
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,713
Total Cats: 320
Default

Sorry for delay, I'll send out fm tools and the adapter today. I've been hunting for ac parts and figuring out where I can do a head gasket job
psyber_0ptix is offline   Reply With Quote
Old 09-12-2014, 01:32 PM   #331
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by psyber_0ptix View Post
Sorry for delay, I'll send out fm tools and the adapter today. I've been hunting for ac parts and figuring out where I can do a head gasket job
Perfect thanks!
BTMiata is offline   Reply With Quote
Old 09-12-2014, 07:38 PM   #332
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Is there any problem with drilling and tapping my front coolant block off plate to pull coolant for the turbo? I have an Artech water lines that mount towards the front and I don't want to pull coolant from all the way at the back of the motor. Will pulling coolant from the front negatively affect the coolant flow since I have a coolant reroute?
BTMiata is offline   Reply With Quote
Old 09-12-2014, 07:42 PM   #333
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

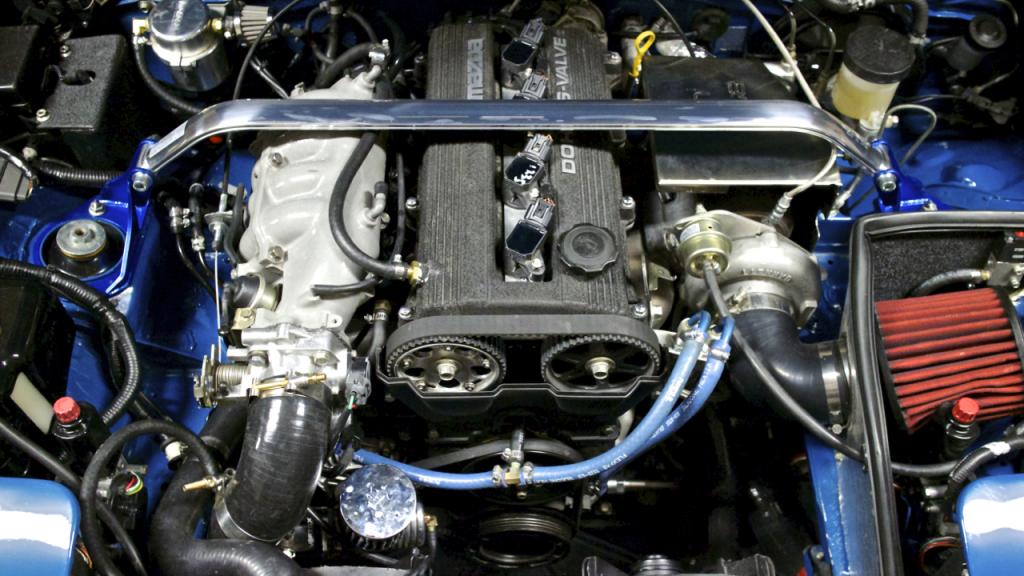

That is how mine is setup. ARTech lines as well.

Attached Thumbnails
Prepping for turbo build-img_2822.jpg
Jeffbucc is offline   Reply With Quote
Old 09-12-2014, 07:44 PM   #334
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by Jeffbucc View Post
That is how mine is setup. ARTech lines as well.

Perfect thank you sir! Where does the coolant go over to the left?
BTMiata is offline   Reply With Quote
Old 09-12-2014, 07:49 PM   #335
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

To the smaller coolant port on the back of the engine.

I think it is ugly personally, but I haven't had any issues with it.
Jeffbucc is offline   Reply With Quote
Old 09-12-2014, 09:03 PM   #336
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by Jeffbucc View Post
To the smaller coolant port on the back of the engine.

I think it is ugly personally, but I haven't had any issues with it.
Awesome thanks again! Is the line to the back really needed or will it draw eenough from the front alone?
BTMiata is offline   Reply With Quote
Old 09-12-2014, 09:30 PM   #337
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Well you want to loop the coolant return from the turbo into the back otherwise you wouldn't get fresh coolant to the turbo. I think at least, makes sense in my head. I honestly didn't do the coolant reroute on my car, so I'm not a reliable go to source on how correct it is or not.

All I know is my turbo hasn't coked up or overheated so it is working as intended. Hope that helps.
Jeffbucc is offline   Reply With Quote
Old 09-12-2014, 09:50 PM   #338
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by Jeffbucc View Post
Well you want to loop the coolant return from the turbo into the back otherwise you wouldn't get fresh coolant to the turbo. I think at least, makes sense in my head. I honestly didn't do the coolant reroute on my car, so I'm not a reliable go to source on how correct it is or not.

All I know is my turbo hasn't coked up or overheated so it is working as intended. Hope that helps.
That definitely makes sense... The other line from the Artech bracket goes down to the mixing manifold correct? So that would be the return unless I'm mistaken... The only reason to pull a line from the back of the motor would be to provide more coolant for the supply and like you said to bring fresh coolant into the turbo...

I'm just going to copy yours either was since I know it will work Hahaha
BTMiata is offline   Reply With Quote
Old 09-12-2014, 10:04 PM   #339
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

No you are right. It goes to the mixing manifold. Don't know why I said back of the motor. That would be dumb. I just had to look through some photos of my engine out of the car and it is indeed the mixing manifold.
Jeffbucc is offline   Reply With Quote
Old 09-12-2014, 10:07 PM   #340
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

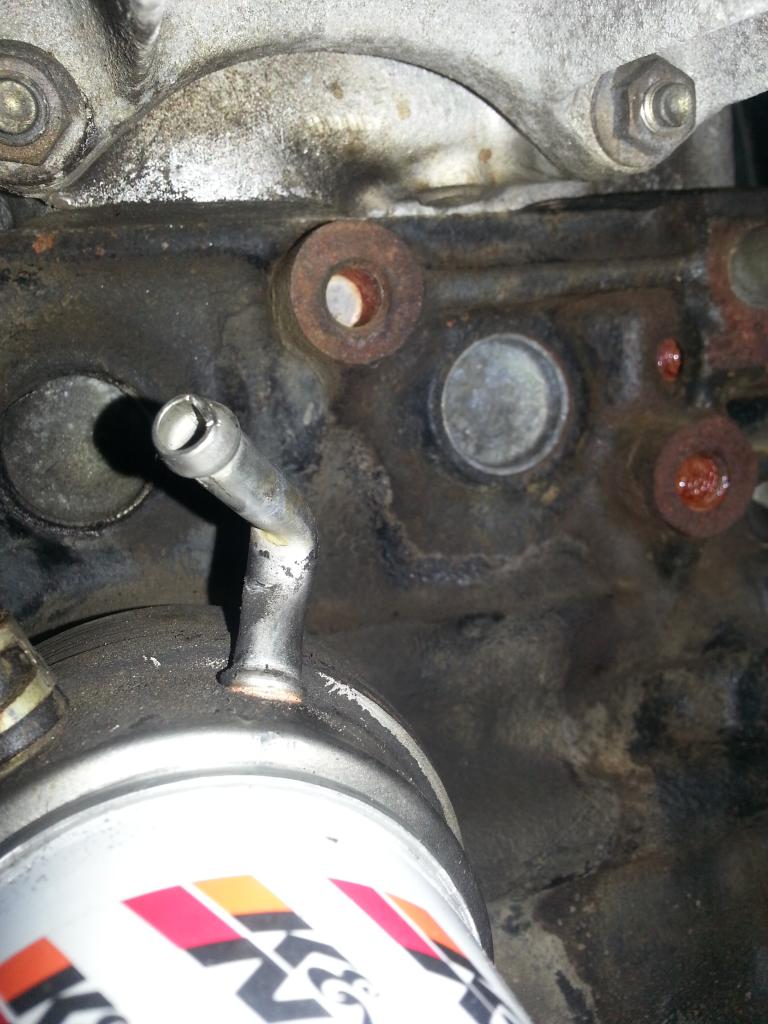

Oh wait! I bet the line to the left goes to the oil filter heat transfer thing...

(aka this thing, that happens to have a bent fitting on my motor)

Attached Thumbnails
Prepping for turbo build-20140828_121907_zpsbdw142ac.jpg
BTMiata is offline   Reply With Quote
