Prepping for turbo build

Thread Tools

Search this Thread

Old 10-13-2014, 07:33 PM
  #461
Elite Member
Thread Starter
iTrader: (5)

BTMiata's Avatar

Join Date: Aug 2011
Location: South Jersey
Posts: 1,512
Total Cats: 30
Default
Originally Posted by psyber_0ptix
Sorry for the delay, I found an extra ignitor and wired it up for batch operation. I left two strands connected if you ever decide to use sequential and want to shift wires later. If everything works out, just seal it up with quick epoxy. I left it open just in case. COPS should be plug and play now, just attach ground to the head (or extend from the ignitor). You'll see what I mean.
Cool no problem thanks! If I have any questions on getting it wired up I'll pm you hahaa
BTMiata is offline
Reply
Leave a poscat 0 Leave a negcat
Old 10-13-2014, 07:52 PM
  #462
Elite Member
Thread Starter
iTrader: (5)

BTMiata's Avatar

Join Date: Aug 2011
Location: South Jersey
Posts: 1,512
Total Cats: 30
Default
Do you guys think I'd have problems popping intercooler piping if I have to trim a couple pieces? The universal kit I have has pretty big pieces and I'm either going to have to trim some or buy new pieces. The negative to trimming is that I lose the flair end
BTMiata is offline
Reply
Leave a poscat 0 Leave a negcat
Old 10-13-2014, 08:42 PM
  #463
Junior Member

Claybay09's Avatar

Join Date: Aug 2014
Location: Pleasant grove, utah
Posts: 51
Total Cats: -3
Default
Just spray some hairspray on the pipe then put the coupler on.
Claybay09 is offline
Reply
Leave a poscat 0 Leave a negcat
Old 10-13-2014, 08:59 PM
  #464
Retired Mech Design Engr
iTrader: (3)

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 5,009
Total Cats: 856
Default
Cut two and weld together so that you have the roll back on each end. If your kit is like mine, you will have extra.
DNMakinson is offline
Reply
Leave a poscat 0 Leave a negcat
Old 10-13-2014, 09:30 PM
  #465
Elite Member
Thread Starter
iTrader: (5)

BTMiata's Avatar

Join Date: Aug 2011
Location: South Jersey
Posts: 1,512
Total Cats: 30
Default
Originally Posted by DNMakinson
Cut two and weld together so that you have the roll back on each end. If your kit is like mine, you when l have extra.
I can't weld aluminum :-/ I might just try the hairspray method to get me by temporarily and order the FM silicone cold side when I'm not poor in th spring lol
BTMiata is offline
Reply
Leave a poscat 0 Leave a negcat
Old 10-15-2014, 03:54 PM
  #466
Elite Member
Thread Starter
iTrader: (5)

BTMiata's Avatar

Join Date: Aug 2011
Location: South Jersey
Posts: 1,512
Total Cats: 30
Default
Should I have extra oil to compensate for the turbo/lines? Like an extra 1/2 Qt or something!?

Oh and got the coils today from psyber! Looks great thanks again sir!
BTMiata is offline
Reply
Leave a poscat 0 Leave a negcat
Old 10-15-2014, 03:57 PM
  #467
Senior Member

Mazdaspeeder's Avatar

Join Date: Feb 2009
Location: Philadelphia
Posts: 916
Total Cats: 70
Default
I use an extra half for my cooler. Just buy an extra big jug of rotella and use it to top off and such. I used a whole one for the change and then keep a spare around as well.
Mazdaspeeder is offline
Reply
Leave a poscat 0 Leave a negcat
Old 10-15-2014, 04:00 PM
  #468
Elite Member
Thread Starter
iTrader: (5)

BTMiata's Avatar

Join Date: Aug 2011
Location: South Jersey
Posts: 1,512
Total Cats: 30
Default
Yeah I bought jug of t6 the other day... Went to top the oil off before I attempt to start it this weekend and I started wondering how much I should use
BTMiata is offline
Reply
Leave a poscat 0 Leave a negcat
Old 10-15-2014, 04:01 PM
  #469
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,479
Total Cats: 104
Default
I wouldnt worry about the lack of flares under 20psi.
Leafy is offline
Reply
Leave a poscat 0 Leave a negcat
Old 10-15-2014, 04:08 PM
  #470
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 10,917
Total Cats: 2,201
Default
Originally Posted by Leafy
I wouldnt worry about the lack of flares under 20psi.
This. With a good coupler and clamp, it'll be fine.

MX6 took 25psi+ a few times with two connections lacking the bead roll.
concealer404 is offline
Reply
Leave a poscat 0 Leave a negcat
Old 10-15-2014, 04:34 PM
  #471
Elite Member
iTrader: (4)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 4,648
Total Cats: 544
Default
My hot side piping contains no bead. Held fine with t bolt clamps
psyber_0ptix is offline
Reply
Leave a poscat 0 Leave a negcat
Old 10-15-2014, 04:49 PM
  #472
Elite Member
Thread Starter
iTrader: (5)

BTMiata's Avatar

Join Date: Aug 2011
Location: South Jersey
Posts: 1,512
Total Cats: 30
Default
Nice thanks guys! Looks like I'll be hacking up some piping this weekend!
BTMiata is offline
Reply
Leave a poscat 0 Leave a negcat
Old 10-16-2014, 08:36 AM
  #473
Elite Member
Thread Starter
iTrader: (5)

BTMiata's Avatar

Join Date: Aug 2011
Location: South Jersey
Posts: 1,512
Total Cats: 30
Default

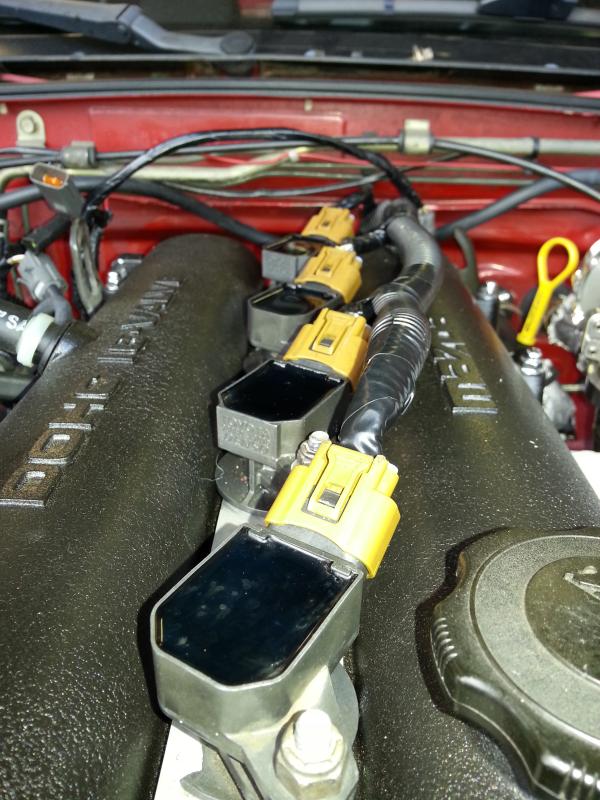

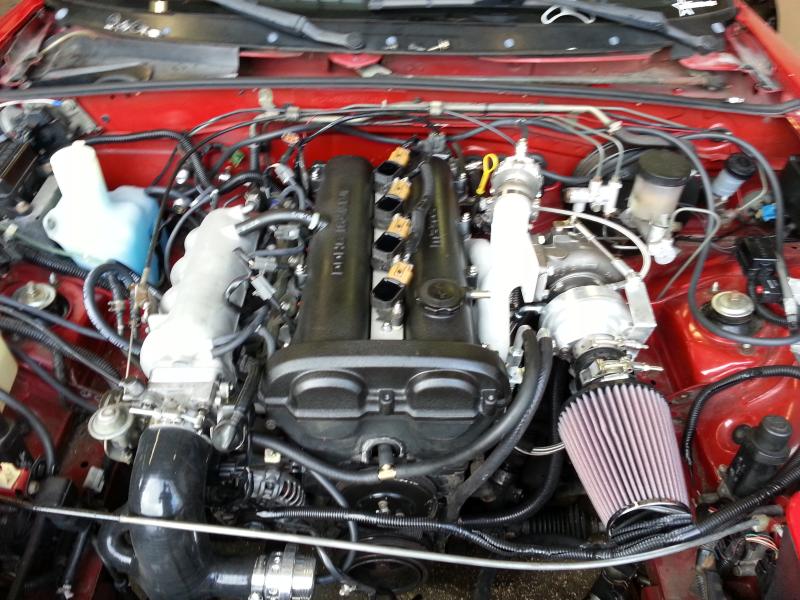

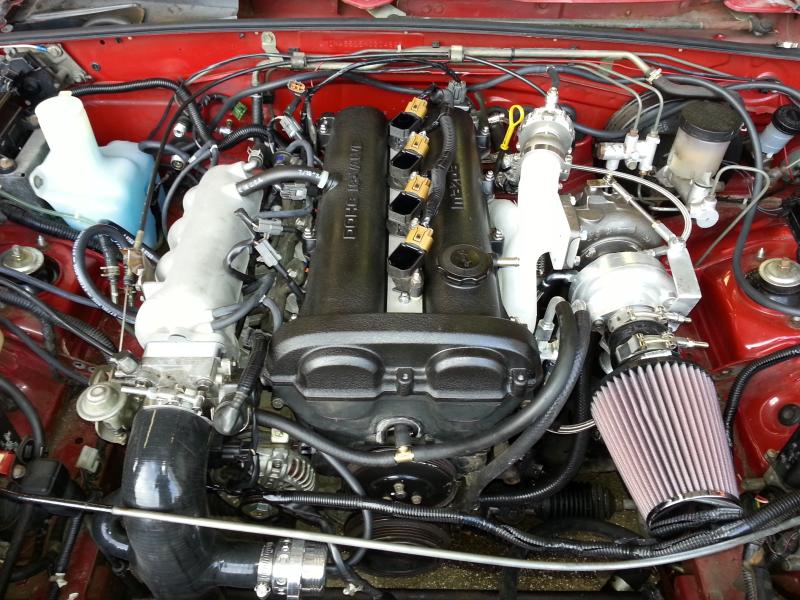

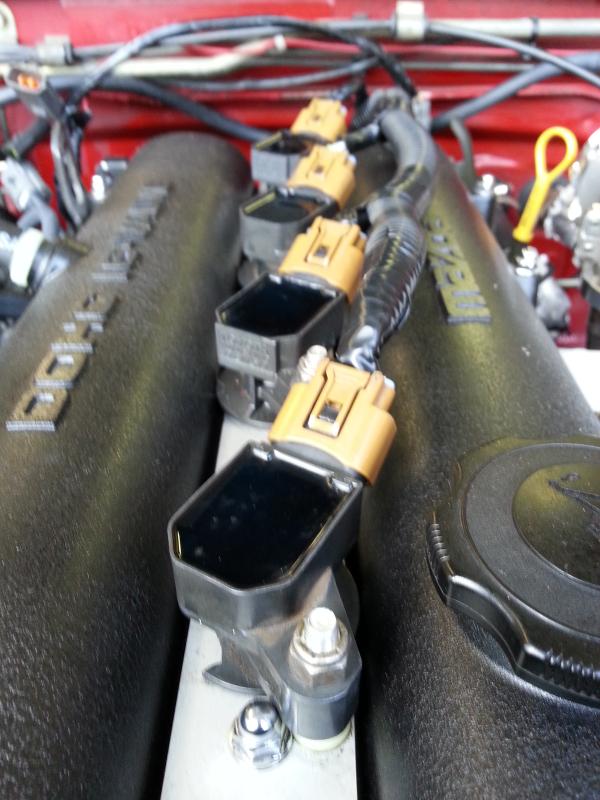

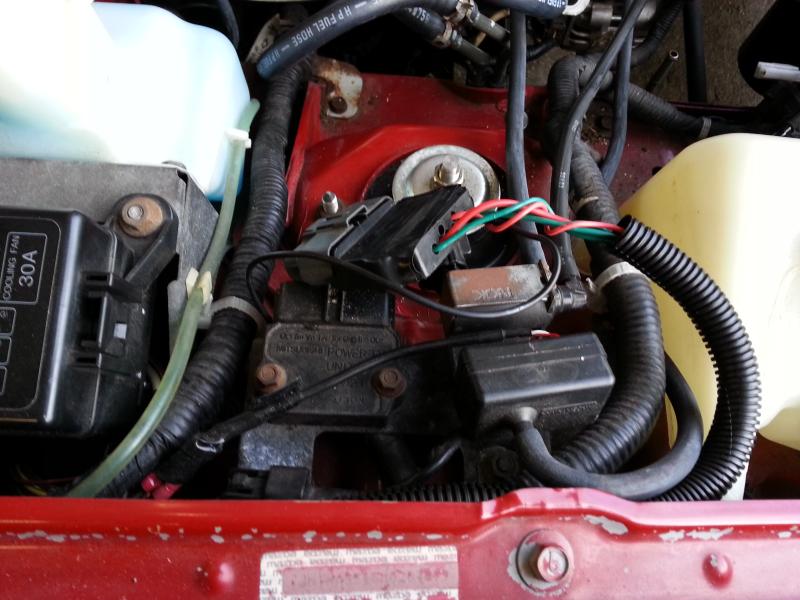

Couldn't help myself.... Installed the COP's first thing this morning when I got to work lol

Just have to ground the 2 wires





Attached Thumbnails Prepping for turbo build-20141016_082409_zpsjmvdgfbu.jpg   Prepping for turbo build-20141016_082418_zpsmycameev.jpg   Prepping for turbo build-20141016_082427_zps1trah8sj.jpg   Prepping for turbo build-20141016_083733_zpsgwvwszub.jpg   Prepping for turbo build-20141016_083742_zpslguyvhyi.jpg

BTMiata is offline
Reply
Leave a poscat 0 Leave a negcat
Old 10-16-2014, 08:44 AM
  #474
Elite Member
iTrader: (4)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 4,648
Total Cats: 544
Default
Should only really have to ground the one coming off the coils with ring terminals. I left some wires poking out in case you modify to sequential layer or want to run the ground through harness. Sorry it looks like *** lol.


Now you can sell your ignitor to some other person doing cops on an na6
psyber_0ptix is offline
Reply
Leave a poscat 0 Leave a negcat
Old 10-16-2014, 09:07 AM
  #475
Elite Member
Thread Starter
iTrader: (5)

BTMiata's Avatar

Join Date: Aug 2011
Location: South Jersey
Posts: 1,512
Total Cats: 30
Default
Originally Posted by psyber_0ptix
Should only really have to ground the one coming off the coils with ring terminals. I left some wires poking out in case you modify to sequential layer or want to run the ground through harness. Sorry it looks like *** lol.


Now you can sell your ignitor to some other person doing cops on an na6
Haha awesome I really appreciate you setting it up the way you did! I'm not worried about the way the harness looks right now. That can all be cleaned up over the winter. I just need it to run and drive right now lol
BTMiata is offline
Reply
Leave a poscat 0 Leave a negcat
Old 10-16-2014, 09:09 AM
  #476
Elite Member
Thread Starter
iTrader: (5)

BTMiata's Avatar

Join Date: Aug 2011
Location: South Jersey
Posts: 1,512
Total Cats: 30
Default
One other thing.... Do I just leave the OEM coil pack connector loose? There is no need for it anymore right? Maybe I will cut it off and electrical tape the wires into the harness to clean it up
BTMiata is offline
Reply
Leave a poscat 0 Leave a negcat
Old 10-16-2014, 09:14 AM
  #477
Elite Member
iTrader: (4)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 4,648
Total Cats: 544
Default
Originally Posted by BTMiata
One other thing.... Do I just leave the OEM coil pack connector loose? There is no need for it anymore right? Maybe I will cut it off and electrical tape the wires into the harness to clean it up
I left mine there with giant heat shrink wrap and tape over it. I thought if there are any wires that lead back to the ecu that I might harvest for reassigbment say...vvt or knock, it's already run in the factory harness. You can also just reassign maf wires.
psyber_0ptix is offline
Reply
Leave a poscat 0 Leave a negcat
Old 10-16-2014, 09:17 AM
  #478
Elite Member
Thread Starter
iTrader: (5)

BTMiata's Avatar

Join Date: Aug 2011
Location: South Jersey
Posts: 1,512
Total Cats: 30
Default
Originally Posted by psyber_0ptix
I left mine there with giant heat shrink wrap and tape over it. I thought if there are any wires that lead back to the ecu that I might harvest for reassigbment say...vvt or knock, it's already run in the factory harness. You can also just reassign maf wires.
Ok thanks I'll see if I have some large heat shrink or maybe just electrical tape it for the time being lol.
BTMiata is offline
Reply
Leave a poscat 0 Leave a negcat
Old 10-16-2014, 07:43 PM
  #479
Elite Member
Thread Starter
iTrader: (5)

BTMiata's Avatar

Join Date: Aug 2011
Location: South Jersey
Posts: 1,512
Total Cats: 30
Default

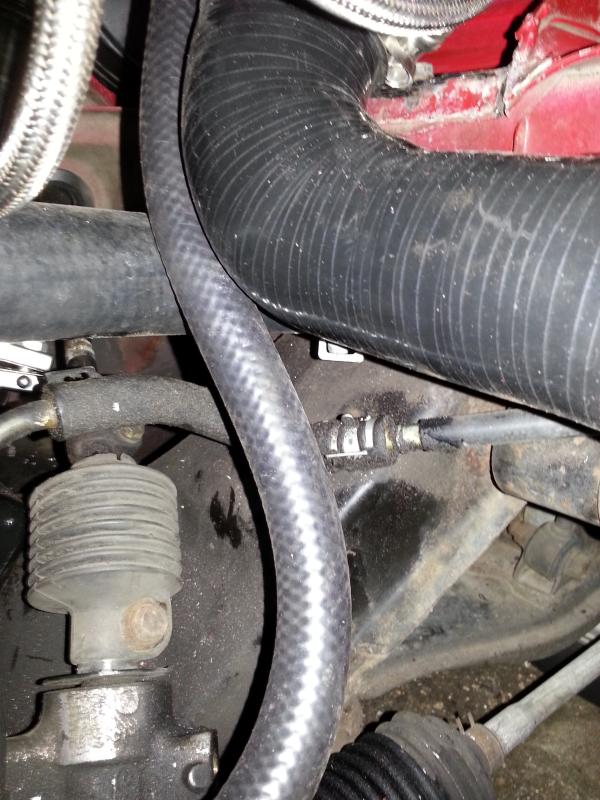

Not happy with the cluster-f*** of hoses here... The oil drain, 2-piece rad hose, and FM intercooler hose are all crammed together. I think the FM 1 piece rad hose would solve the problem


Attached Thumbnails Prepping for turbo build-20141016_174107_zpsfhkf2utc.jpg
BTMiata is offline
Reply
Leave a poscat 0 Leave a negcat
Old 10-16-2014, 08:37 PM
  #480
Elite Member
iTrader: (4)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 4,648
Total Cats: 544
Default
The fm rad hose is actually pretty useful...even if it's just to remove that mounted coupler
psyber_0ptix is offline
Reply
Leave a poscat 0 Leave a negcat
