Old 09-15-2014, 10:52 PM   #361
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 3,051
Total Cats: 7
Default

Or you could just throw it in the trash now because it's useless.

I mean, I hope you have better luck with it than I did!
Efini~FC3S is offline   Reply With Quote
Old 09-15-2014, 10:56 PM   #362
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by Efini~FC3S View Post
Or you could just throw it in the trash now because it's useless.

I mean, I hope you have better luck with it than I did!
Bahahaha I was reading that in another thread!

We'll see.... There is always the adjustable's w/ vice grip's!

Still happy to have the seal installer's to get perfect seal placement
BTMiata is offline   Reply With Quote
Old 09-16-2014, 11:55 AM   #363
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,708
Total Cats: 319
Default

Hmph. I never had any difficulty the 4 times I had to take the motor out and drop the oil pan to find a mystery oil leak

Get it locked in and zip tie it from falling out. Done.
psyber_0ptix is online now   Reply With Quote
Old 09-16-2014, 12:00 PM   #364
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,702
Total Cats: 237
Default

Ninja tool always worked great for me. So did the crank holder, and the front/rear main and cam seal drivers. Perfect installation every time, and well worth the $$ imo.

YMMV
Fireindc is offline   Reply With Quote
Old 09-16-2014, 01:25 PM   #365
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

I might have to make my own crank holder tool... I plan on doing my timing belt this weekend and im going to have to figure something out for holding the crank while the motor is on the ground. I guess I could bolt the flywheel on temporarily too and hold it somehow that way.
BTMiata is offline   Reply With Quote
Old 09-16-2014, 05:28 PM   #366
Junior Member
iTrader: (1)

Join Date: Jan 2012
Location: Ireland
Posts: 465
Total Cats: 16
Default

Quote:
Originally Posted by BTMiata View Post
I might have to make my own crank holder tool... I plan on doing my timing belt this weekend and im going to have to figure something out for holding the crank while the motor is on the ground. I guess I could bolt the flywheel on temporarily too and hold it somehow that way.
i got a bit flat bar and cut a slot in it to get a socket on and bolted it to the front of the crank
rhysmate is offline   Reply With Quote
Old 09-18-2014, 11:12 AM   #367
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by rhysmate View Post
i got a bit flat bar and cut a slot in it to get a socket on and bolted it to the front of the crank
Nice I will have to find a flat bar

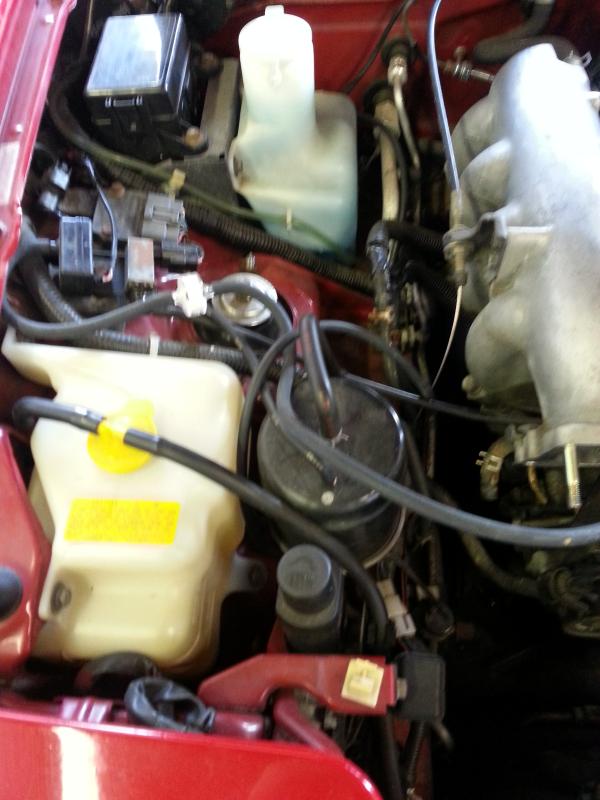

I'm going to pull the 1.6 out this weekend. Can I rip out and trash any of this 1.6 crap?



Got the throttle body mounted up with the 1.6 adapter from Psyber! Now I need a throttle cable re-locator from FM... Or I can fab up my own but I suck at fabbing metal and I would rather have something that looks nice on there, so i'll probably just pay the $10 and buy it from FM lol

Attached Thumbnails
Prepping for turbo build-20140918_093346_zps3kmd2bv1.jpg
BTMiata is offline   Reply With Quote
Old 09-18-2014, 04:41 PM   #368
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Soooo my Begi front block off plate is wayyy too big (I guess its designed to block off that ugly neck)

Which block off will cover the hole behind the cover?

I tried grinding down the block off I have on a bench grinder but it's not grinding down like I'd like it to
BTMiata is offline   Reply With Quote
Old 09-18-2014, 04:46 PM   #369
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,708
Total Cats: 319
Default

I just have a 30mm freeze plug there.



You could get this:

http://trackspeedengineering.com/product_info.php/products_id/157
psyber_0ptix is online now   Reply With Quote
Old 09-18-2014, 05:13 PM   #370
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by psyber_0ptix View Post
I just have a 30mm freeze plug there.



You could get this:

Trackspeed Engineering
That'll work... I need to tap it for a 3/8 barbed fitting so I can pull coolant for the turbo water feed. Found that a few mins before you posted it. Just sucks cause I have my timing belt all apart right now and I just wanted to get it back together before I messed anything up or lost something (Or someone at work loses something for me) Lol

Hopefully it gets here quick!
BTMiata is offline   Reply With Quote
Old 09-18-2014, 08:47 PM   #371
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,708
Total Cats: 319
Default

You can always tee it from the heater core line. It'd clean up the front end nice. No stray hoses.

If you need more braided hose and brackets, I'm not using half of my Artech lines
psyber_0ptix is online now   Reply With Quote
Old 09-18-2014, 09:21 PM   #372
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by psyber_0ptix View Post
You can always tee it from the heater core line. It'd clean up the front end nice. No stray hoses.

If you need more braided hose and brackets, I'm not using half of my Artech lines
Hmm I'll keep that in mind thanks! would tee'ing off the heater lines affect flow to the heater core at all?
BTMiata is offline   Reply With Quote
Old 09-19-2014, 08:27 AM   #373
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,708
Total Cats: 319
Default

It shouldn't hurt it terribly. It's under pressure, it's still going to flow. The relative size of the return barb is so small comparatively speaking, it doesn't matter too much.

Coolant is still going to be hot and pass through the heat exchanger even if it were an insignificantly slower flow rate.

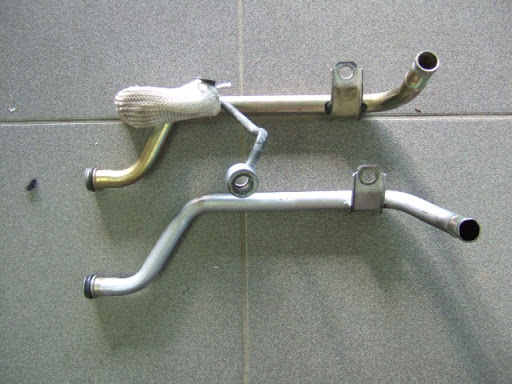

If you think about it, the MSM uses the metal return tube to the mixing manifold to source it's coolant. Choose your poison, before or after heat exchanger. It is all sourced post pump/pre-thermostat and gets returned pre pump.
psyber_0ptix is online now   Reply With Quote
Old 09-19-2014, 08:33 AM   #374
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,708
Total Cats: 319
Default

Attached Thumbnails
Prepping for turbo build-heater_return_lines.jpg
psyber_0ptix is online now   Reply With Quote
Old 09-19-2014, 08:48 AM   #375
Junior Member

Join Date: Jan 2014
Location: Finland
Posts: 79
Total Cats: -10
Default

Quote:
Originally Posted by psyber_0ptix View Post
It shouldn't hurt it terribly. It's under pressure, it's still going to flow. The relative size of the return barb is so small comparatively speaking, it doesn't matter too much.

Coolant is still going to be hot and pass through the heat exchanger even if it were an insignificantly slower flow rate.

If you think about it, the MSM uses the metal return tube to the mixing manifold to source it's coolant. Choose your poison, before or after heat exchanger. It is all sourced post pump/pre-thermostat and gets returned pre pump.
MSM takes the coolant from the block port and returns it to the heater return pipe. Thermal siphoning yo!
Vuti is offline   Reply With Quote
Old 09-19-2014, 08:55 AM   #376
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,708
Total Cats: 319
Default

Oh **** that's the return! My b
psyber_0ptix is online now   Reply With Quote
Old 09-19-2014, 10:54 AM   #377
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

I think I'm just going to leave it the way I was planning on .... Jeffbuc's looks pretty nice and I'm basically mimicking his lines haha
BTMiata is offline   Reply With Quote
Old 09-20-2014, 03:29 PM   #378
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

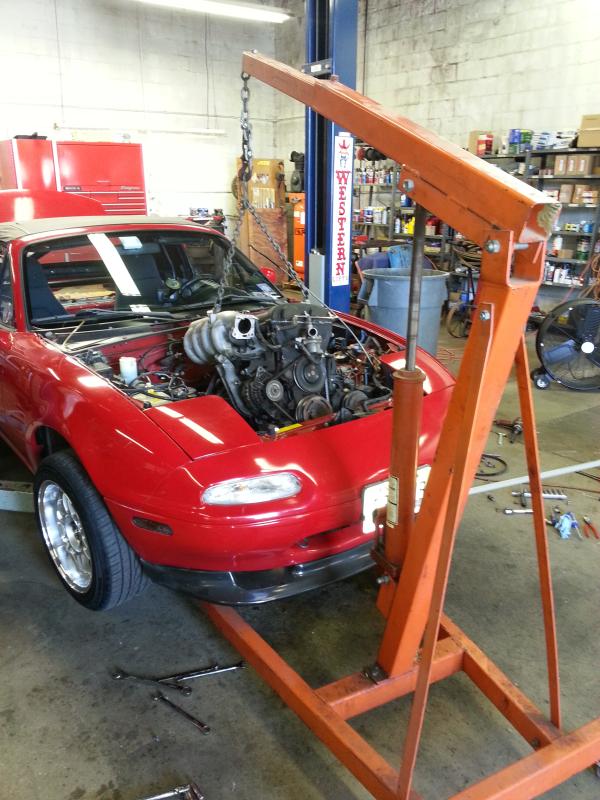

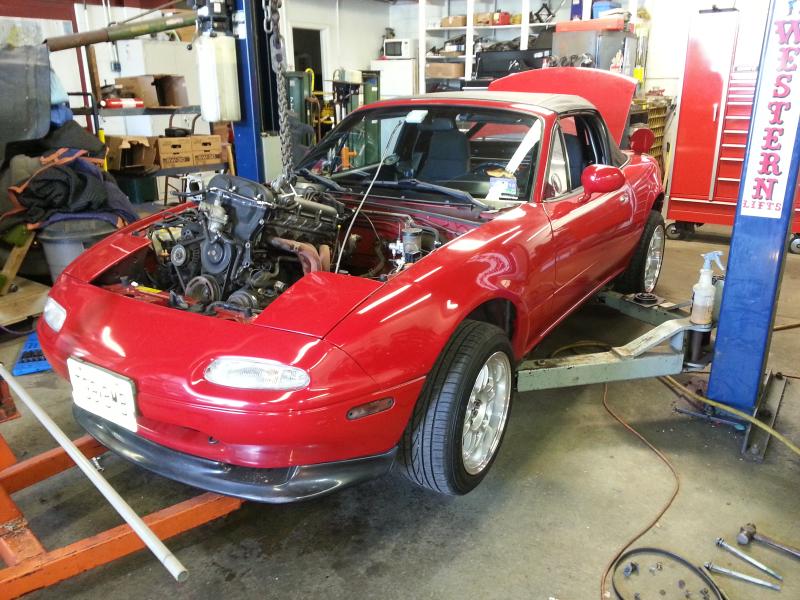

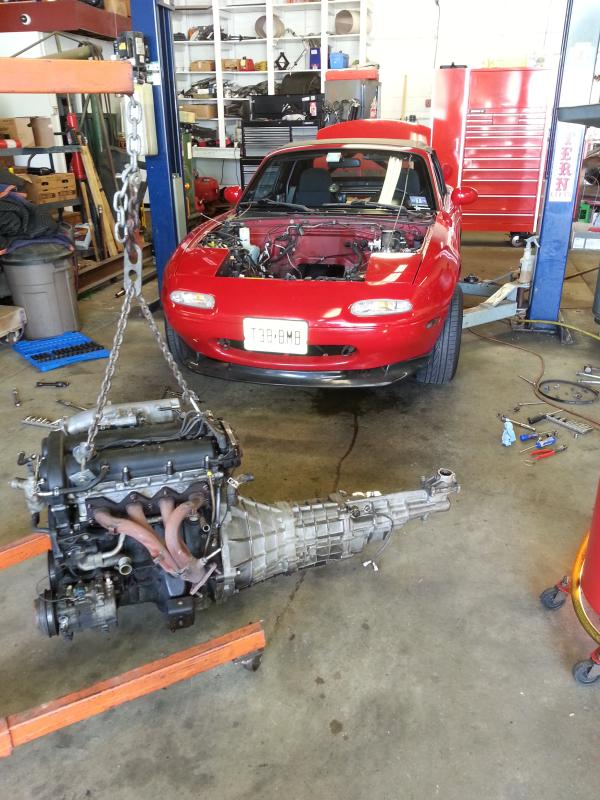

Here goes....

Came out in 3 hours (between answering calls and taking care of customers at work Lulz)





Attached Thumbnails
Prepping for turbo build-20140920_114140_zpsaxlowinj.jpg   Prepping for turbo build-20140920_114204_zpsgvxl75xd.jpg   Prepping for turbo build-20140920_115455_zps79eypkg8.jpg
BTMiata is offline   Reply With Quote
Old 09-20-2014, 07:49 PM   #379
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 3,051
Total Cats: 7
Default

And here I just wasted ~6 hours this week trying to disassemble an old FMII kit. From now on I'm pulling the engine...
Efini~FC3S is offline   Reply With Quote
Old 09-20-2014, 08:36 PM   #380
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by Efini~FC3S View Post
And here I just wasted ~6 hours this week trying to disassemble an old FMII kit. From now on I'm pulling the engine...
Haha definitely makes life easier! When you have a lift and engine hoist it's ridiculously easy lol
