Old 10-16-2014, 09:39 PM   #481
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by psyber_0ptix View Post
The fm rad hose is actually pretty useful...even if it's just to remove that mounted coupler
Yeah that mounted coupler is a pain in the ***... definitely right in the way. I might just leave it all as-is and throw the FM hose in there before I get it on the dyno in the spring
BTMiata is offline   Reply With Quote
Old 10-17-2014, 12:33 AM   #482
Newb

Join Date: Jun 2014
Location: Southern NH
Posts: 35
Total Cats: 0
Default

Quote:
Originally Posted by BTMiata View Post
Yeah that mounted coupler is a pain in the ***... definitely right in the way. I might just leave it all as-is and throw the FM hose in there before I get it on the dyno in the spring
The NB hose with some trimming does the same thing supposedly. I'll know for sure on Sunday when I swap mine out.
gpugliese is offline   Reply With Quote
Old 10-17-2014, 12:35 AM   #483
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Isnt the OEM NB hose practically the same as the 2 na hoses and the metal piece put together?
Leafy is offline   Reply With Quote
Old 10-17-2014, 10:32 AM   #484
Senior Member

Join Date: Feb 2009
Location: Philadelphia
Posts: 815
Total Cats: 47
Default

Are we talking about the radiator hose or the rubber tube into the TB?
Mazdaspeeder is offline   Reply With Quote
Old 10-17-2014, 10:45 AM   #485
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

This rad hose... It eliminates that hard mounted Junction pipe found on the NA's


Flyin' Miata : Engine/Drivetrain : Cooling : FM lower radiator hose
BTMiata is offline   Reply With Quote
Old 10-17-2014, 10:50 AM   #486
Senior Member

Join Date: Feb 2009
Location: Philadelphia
Posts: 815
Total Cats: 47
Default

Oh, mine just had a single hose there, but I'm NB also. I'll take a peek today
Mazdaspeeder is offline   Reply With Quote
Old 10-17-2014, 10:52 AM   #487
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Quote:
Originally Posted by Mazdaspeeder View Post
Oh, mine just had a single hose there, but I'm NB also. I'll take a peek today
correct, the NB has a single hose that more or less fits the NA. The NA has 2 hoses connected by a hardpipe and the hardpipe bolts to the chassis.
Leafy is offline   Reply With Quote
Old 10-17-2014, 10:54 AM   #488
Senior Member

Join Date: Feb 2009
Location: Philadelphia
Posts: 815
Total Cats: 47
Default

That sounds kinda shitty. Brian, since you work at a shop can't you call and have someone like AutoPartsWarehouse deliver you a basic NB coolant hose today? I doubt Mazda would have that stocked. I don't have a spare one of those, but I do have your new Radiator and Fans in my trunk
Mazdaspeeder is offline   Reply With Quote
Old 10-17-2014, 11:15 AM   #489
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by Mazdaspeeder View Post
That sounds kinda shitty. Brian, since you work at a shop can't you call and have someone like AutoPartsWarehouse deliver you a basic NB coolant hose today? I doubt Mazda would have that stocked. I don't have a spare one of those, but I do have your new Radiator and Fans in my trunk
Yeah I might have to grab a NB lower rad hose. Actually I bought brand new 2 piece hoses a couple weeks ago from our parts supplier... I wonder if they will let me return those and use the credit towards the 1 piece hose
BTMiata is offline   Reply With Quote
Old 10-17-2014, 11:22 AM   #490
Senior Member

Join Date: Feb 2009
Location: Philadelphia
Posts: 815
Total Cats: 47
Default

Quote:
Originally Posted by BTMiata View Post
Yeah I might have to grab a NB lower rad hose. Actually I bought brand new 2 piece hoses a couple weeks ago from our parts supplier... I wonder if they will let me return those and use the credit towards the 1 piece hose
See if you can get it today before we put the radiator in so you don't have to waste coolant, to do that lower rad hose you need to dump all the fluid. They should be able to take it back if its clean. If you've already installed it just clean it off and it will be good as new to return
Mazdaspeeder is offline   Reply With Quote
Old 10-17-2014, 11:27 AM   #491
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by Mazdaspeeder View Post
See if you can get it today before we put the radiator in so you don't have to waste coolant, to do that lower rad hose you need to dump all the fluid. They should be able to take it back if its clean. If you've already installed it just clean it off and it will be good as new to return
It's on it's way! Also picked up my drive belt lol
BTMiata is offline   Reply With Quote
Old 10-17-2014, 11:47 AM   #492
Senior Member

Join Date: Feb 2009
Location: Philadelphia
Posts: 815
Total Cats: 47
Default

Great news, hope it works better. That Swaintech keeps the heat down, I still use an OEM hose down there
Mazdaspeeder is offline   Reply With Quote
Old 10-18-2014, 04:17 PM   #493
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Water leaks galore! First the mixing manifold gasket poured water straight out... bolts were tight so not sure what happened. Took the gasket out and re-made one using the roll of paper gasket that I have lying around. That leak stopped.... But also exposed leaking water at the turbo hard lines... Right where the fittings thread into the turbo. Removed the lines (Water drained everywhere lol) And added blue loctite to both sides of the fitting threads. Hopefully that will dry over night and seal everything up.... Maybe try to start it tomorrow providing no more water leaks...
BTMiata is offline   Reply With Quote
Old 10-18-2014, 04:35 PM   #494
Senior Member

Join Date: Feb 2009
Location: Philadelphia
Posts: 815
Total Cats: 47
Default

Was fun to work on this a little. Glad I was able to contribute with a few things!
Mazdaspeeder is offline   Reply With Quote
Old 10-18-2014, 04:45 PM   #495
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by Mazdaspeeder View Post
Was fun to work on this a little. Glad I was able to contribute with a few things!
Yeah I was happy to have an outside view on a few things... Glad the intercooler piping is all set now! Hopefully you can make it back over this way again soon! Like I said if you ever have anything you need to put the car in the air for let me know and we can knock it out over here
BTMiata is offline   Reply With Quote
Old 10-18-2014, 05:08 PM   #496
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,713
Total Cats: 320
Default

We're these banjo bolts that were leaking? Maybe use a fatter softer metal for a crush washer like aluminum?

If it's a straight fitting, I don't know if locate is going to do the trick once it reaches full temp and pressures.
psyber_0ptix is offline   Reply With Quote
Old 10-18-2014, 05:15 PM   #497
Senior Member

Join Date: Feb 2009
Location: Philadelphia
Posts: 815
Total Cats: 47
Default

I used copper washers for my banjos. His go straight in (not banjo) and are leaking at the threads it seems like. I'd try some of the teflon tape, but I don't know how long it will hold up to turbo temps.

Did the bolts come with the turbo or you got them seperately? Are they tapered threads, narrow at the tip and getting wider towards the base?

I'm trying to hammer out some things with my tune remotely but might have to take a ride up to save the time of emailing back and forth. Depending on how that works out I may or may not be available Wednesday. Will keep ya posted.
Mazdaspeeder is offline   Reply With Quote
Old 10-18-2014, 05:18 PM   #498
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by Mazdaspeeder View Post
I used copper washers for my banjos. His go straight in and are leaking at the threads it seems like. I'd try some of the teflon tape, but I don't know how long it will hold up to turbo temps.

Did the bolts come with the turbo or you got them seperately? Are they tapered threads, narrow at the tip and getting wider towards the base?
Honestly I'm not sure if they are tapered... I didn't pay much attention to that.

These lines were supplied by Artech. I know Jeffbuc has these lines also I'm going to shoot him a PM and see if there is a trick to them
BTMiata is offline   Reply With Quote
Old 10-18-2014, 06:12 PM   #499
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,713
Total Cats: 320
Default

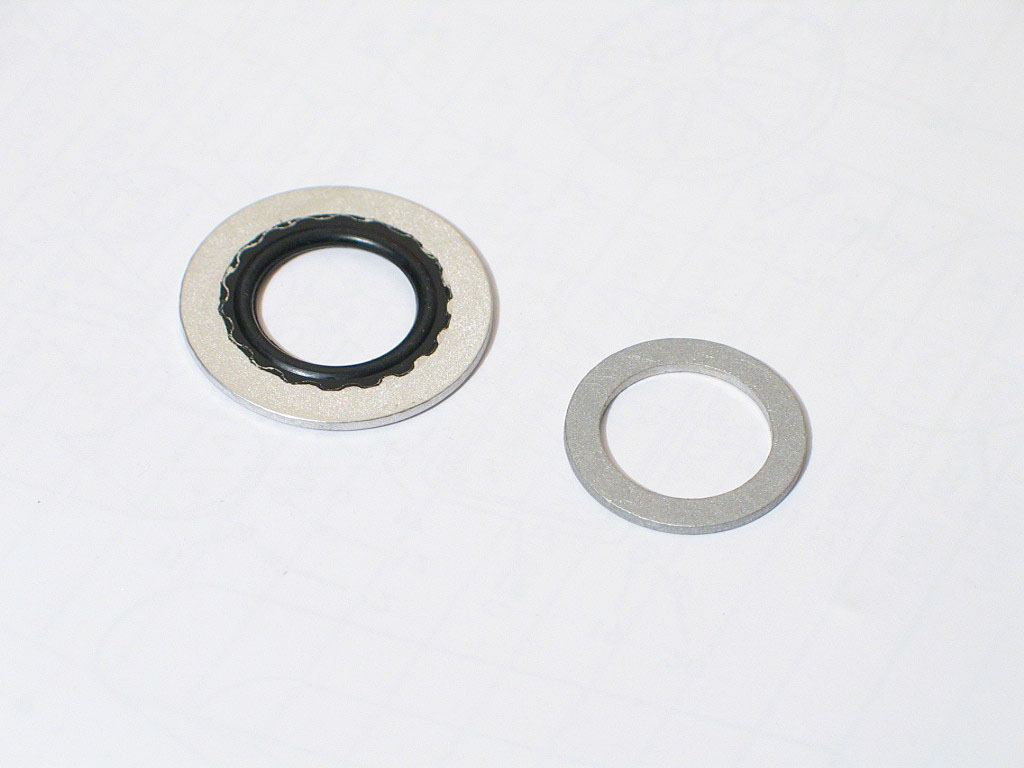

If it's a straight thread fitting and is able to bottom out, use a crush washer with or without a rubber inner. You shouldn't have to gum up the threads with junk

Attached Thumbnails
Prepping for turbo build-0004a_sealing_washers.jpg
psyber_0ptix is offline   Reply With Quote
Old 10-18-2014, 06:42 PM   #500
Senior Member

Join Date: Feb 2009
Location: Philadelphia
Posts: 815
Total Cats: 47
Default

From the pic you sent me it looks like there were a few threads left showing. If that's how it is when you fully tighten, you need a washer(s) there
Mazdaspeeder is offline   Reply With Quote
