Old 10-18-2014, 07:44 PM   #501
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,709
Total Cats: 319
Default

Might be the fitting is too long for the depth of the hole. Where is this said picture?
psyber_0ptix is offline   Reply With Quote
Old 10-18-2014, 11:00 PM   #502
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by psyber_0ptix View Post
Might be the fitting is too long for the depth of the hole. Where is this said picture?
Attached Thumbnails

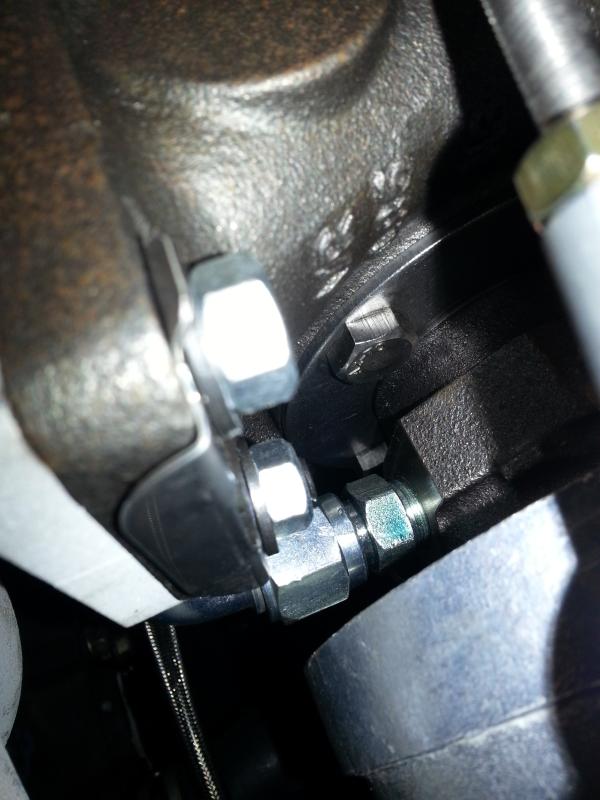

Prepping for turbo build-20141018_145451_zpsply4kj1k.jpg
BTMiata is offline   Reply With Quote
Old 10-18-2014, 11:08 PM   #503
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,709
Total Cats: 319
Default

what the poop? what is it bottoming against? how deep does the hole go?
psyber_0ptix is offline   Reply With Quote
Old 10-18-2014, 11:34 PM   #504
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by psyber_0ptix View Post
what the poop? what is it bottoming against? how deep does the hole go?
Not too sure... Lol

If it leaks again I'll pull the lines back off and snap a couple pictures
BTMiata is offline   Reply With Quote
Old 10-19-2014, 12:35 AM   #505
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,192
Total Cats: 2,583
Default

I have a set of fittings just like that laying around. brand new. perhaps they'll fit better or something? lmk if you end up needing a set or something
18psi is offline   Reply With Quote
Old 10-19-2014, 01:27 AM   #506
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,709
Total Cats: 319
Default

between the both of us, I want to see a car running within a month. yours is closer to that goal. what is the fitting type?

-6 AN to metric M10x1.25?
psyber_0ptix is offline   Reply With Quote
Old 10-19-2014, 09:03 AM   #507
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by psyber_0ptix View Post
between the both of us, I want to see a car running within a month. yours is closer to that goal. what is the fitting type?

-6 AN to metric M10x1.25?
Lol... I'm not cretain on the thread sizes but it does look to be a - 6an... The thread size is just the same as every other t25 though
BTMiata is offline   Reply With Quote
Old 10-19-2014, 11:31 AM   #508
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Found another whoopsie... I used the 1.8 coolant temp sensor in the rear thermostat housing... Is there any way to use a 1.8 connector and wire it to the harness that way? I REALLY dont want attempt to remove that sensor.. Its in the worst place possible

Also, I can still start the car without having that sensor plugged in right?
BTMiata is offline   Reply With Quote
Old 10-19-2014, 11:41 AM   #509
Senior Member

Join Date: Feb 2009
Location: Philadelphia
Posts: 815
Total Cats: 47
Default

Maybe the holes on the China Charger aren't as deep as others?
Mazdaspeeder is offline   Reply With Quote
Old 10-19-2014, 11:44 AM   #510
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by Mazdaspeeder View Post
Maybe the holes on the China Charger aren't as deep as others?
Maybe ... I topped off the water this morning and its holding.
BTMiata is offline   Reply With Quote
Old 10-19-2014, 12:08 PM   #511
Senior Member

Join Date: Feb 2009
Location: Philadelphia
Posts: 815
Total Cats: 47
Default

Good news. Just keep checking them when the car gets up to temperature to make sure they still hold.
Mazdaspeeder is offline   Reply With Quote
Old 10-19-2014, 12:55 PM   #512
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

IT STARTED!!! I have to finish up some MS wiring to the stock AFM harness and set up a few things in MS BUT.... damnit, it started!

BTMiata is offline   Reply With Quote
Old 10-19-2014, 01:06 PM   #513
Senior Member

Join Date: Feb 2009
Location: Philadelphia
Posts: 815
Total Cats: 47
Default

Sounds good man!
Mazdaspeeder is offline   Reply With Quote
Old 10-19-2014, 01:11 PM   #514
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by Mazdaspeeder View Post
Sounds good man!
Has some lifter tick but hopefully that'll clear up after putting a few miles on it. The motor was sitting around for god only knows how long so its understandable that it is a little loud I guess. Bottom end is quiet though so thats the most important thing haha
BTMiata is offline   Reply With Quote
Old 10-19-2014, 02:14 PM   #515
Senior Member

Join Date: Feb 2009
Location: Philadelphia
Posts: 815
Total Cats: 47
Default

Lifter tick is fairly normal. We can do a shim adjustment procedure on your car. Sometimes you can move existing shims around and achieve good tolerances, when I did mine out of 16 total shims I kept 8 and bought 8. I still have my old shims you can have, they just were not the right size for me but are not broken or defective. Cams do have to be removed to do this. Unless your tolerances are way out of line it's not worth it, I just had the whole head apart so I did it.

I run a product called LC20 from LCD inc. in my DD that mixes with the oil and helps remove carbon and keep oxidation down, over 15k miles I was able to clear up a very noisy valve in my civic and have been using it for a total of 40,000 miles. Been contemplating running it in the MX5 also. They have a lot of trucks on their page so I'm sure it can handle turbo temps.
Mazdaspeeder is offline   Reply With Quote
Old 10-19-2014, 06:44 PM   #516
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by Mazdaspeeder View Post
Lifter tick is fairly normal. We can do a shim adjustment procedure on your car. Sometimes you can move existing shims around and achieve good tolerances, when I did mine out of 16 total shims I kept 8 and bought 8. I still have my old shims you can have, they just were not the right size for me but are not broken or defective. Cams do have to be removed to do this. Unless your tolerances are way out of line it's not worth it, I just had the whole head apart so I did it.

I run a product called LC20 from LCD inc. in my DD that mixes with the oil and helps remove carbon and keep oxidation down, over 15k miles I was able to clear up a very noisy valve in my civic and have been using it for a total of 40,000 miles. Been contemplating running it in the MX5 also. They have a lot of trucks on their page so I'm sure it can handle turbo temps.
Cool thank you sir! I'll have to see what happens once I start driving it.

Anyone know what I could do about that coolant temp sensor? Can I somehow wire that to the stock harness?
BTMiata is offline   Reply With Quote
Old 10-19-2014, 08:46 PM   #517
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,997
Total Cats: 1,463
Default

I believe that the 1.8 sensor is the ECU and temp gauge sensor. Based off this Coolant Temp Sender Question - MX-5 Miata Forum if you put the 1.6 gauge sensor in the head then you should be able to use it as the ECU sensor with some rewiring.
aidandj is offline   Reply With Quote
Old 10-19-2014, 09:17 PM   #518
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

I'll have so take another look tomorrow..

I think I will be able to get the sensor out with a crows foot... I might just switch it out for the 1.6 sensor and call it a day. That'll probably be easier than changing the wiring lol
BTMiata is offline   Reply With Quote
Old 10-19-2014, 09:32 PM   #519
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,709
Total Cats: 319
Default

is your IAT hooked up? did you check base timing?
psyber_0ptix is offline   Reply With Quote
Old 10-19-2014, 09:34 PM   #520
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by psyber_0ptix View Post
is your IAT hooked up? did you check base timing?
IAT is now hooked up. Base timing will be set tomorrow as well as some other initial MS set up steps as per Braineacks gravy train installation manual lol
BTMiata is offline   Reply With Quote
