Old 10-30-2014, 04:45 PM   #701
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 782
Default

Quote:
Originally Posted by 18psi View Post
it also prevents the stupid diaphragm from frying over the years.
I wonder if there are piston style ewg's nowadays
I'm sure someone has done it.

I've never actually had a diaphragm fry, though. Well... i never had any Tials long enough to see if they would fry or not. My used Turbosmart has held up for 5 years though.

Oh, and it's black, and stays black, too. Crazy.
concealer404 is offline   Reply With Quote
Old 10-30-2014, 04:48 PM   #702
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

The discoloration is exactly why I went with silver lol
BTMiata is offline   Reply With Quote
Old 10-30-2014, 08:46 PM   #703
Newb

Join Date: Sep 2010
Location: Minneapolis, MN
Posts: 15
Total Cats: 0
Default

Quote:
Originally Posted by BTMiata View Post

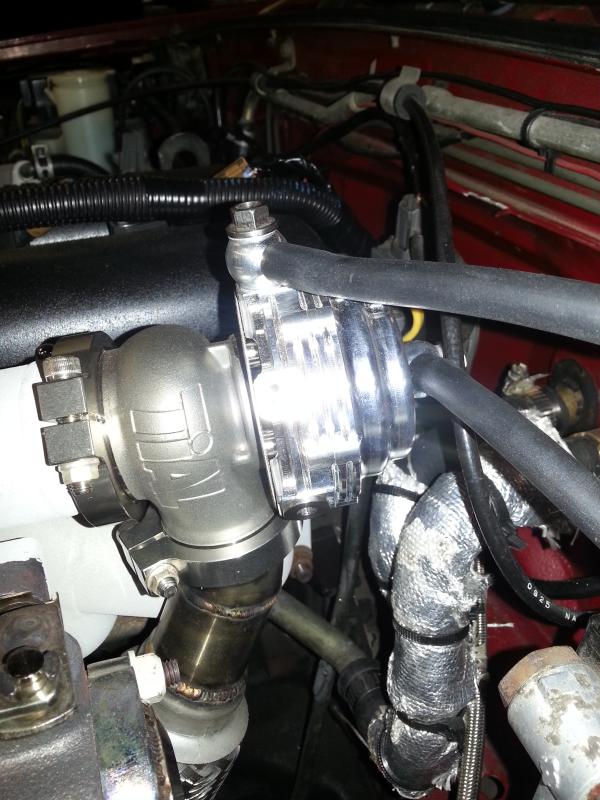

I switched the fitting this morning! Hopefully I have it right now lol

(Hooked back up to the EBC btw... Ready to go to Oracle Tuning in November)

Looks much better ;-), top chamber should vta unless you are running 3 port ebcs and trying to run all of it.
Peodi is offline   Reply With Quote
Old 10-30-2014, 08:49 PM   #704
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by Peodi View Post
Looks much better ;-), top chamber should vta unless you are running 3 port ebcs and trying to run all of it.

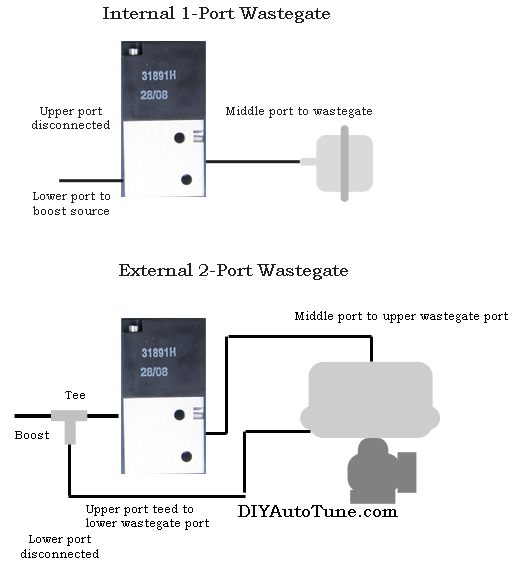

I just routed it per DIYAutotune's diagram...

Attached Thumbnails
Prepping for turbo build-wastegate_control_zpsf45ee94a.png
BTMiata is offline   Reply With Quote
Old 10-30-2014, 09:05 PM   #705
Newb

Join Date: Sep 2010
Location: Minneapolis, MN
Posts: 15
Total Cats: 0
Default

May be missing something but not sure how that's supposed to do anything. Lower chamber to open gate always sees pressure (or vacuum) and top chamber is either fed same signal pressure (basically making it just spring prrssure) or solenoid is nomally closed and keeps air from getting out of top chamber till it opens and drops to spring pressure as above?

Would think with 2 port to run vacuum to solenoid then signal from solenoid to lower chamber on ewg. Then solenoid controls when waste gate sees pressure. I.e opens after boost threshold is reached.
Peodi is offline   Reply With Quote
Old 10-30-2014, 09:11 PM   #706
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by Peodi View Post
May be missing something but not sure how that's supposed to do anything. Lower chamber to open gate always sees pressure (or vacuum) and top chamber is either fed same signal pressure (basically making it just spring prrssure) or solenoid is nomally closed and keeps air from getting out of top chamber till it opens and drops to spring pressure as above?

Would think with 2 port to run vacuum to solenoid then signal from solenoid to lower chamber on ewg. Then solenoid controls when waste gate sees pressure. I.e opens after boost threshold is reached.
Sorry there are 3 ports... On the bottom it says "lower port disconnected"
BTMiata is offline   Reply With Quote
Old 10-30-2014, 09:17 PM   #707
Newb

Join Date: Sep 2010
Location: Minneapolis, MN
Posts: 15
Total Cats: 0
Default

Ah the sense has been made
Peodi is offline   Reply With Quote
Old 10-30-2014, 09:19 PM   #708
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by Peodi View Post
Ah the sense has been made
Sorry thats my bad... I should have brought that up sooner haha
BTMiata is offline   Reply With Quote
Old 10-31-2014, 04:33 PM   #709
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Wow.... Drove it today with the vacuum lines connected to the correct place and everything is 100% perfect! Pulls like a raped ape, holds steady at 10psi which is all I wanted to start out with. AFR's are 11.3 - 11.6 from what I have seen in boost at full throttle. LIFE IS GOOD!
BTMiata is offline   Reply With Quote
Old 10-31-2014, 04:52 PM   #710
Senior Member

Join Date: Feb 2009
Location: Philadelphia
Posts: 815
Total Cats: 47
Default

I don't think you're in danger of really doing much damage, but my caution goes out to you. Remember that a base tune is a base tune. This isn't to knock the person who made it, but just take it easy so your happiness is not short lived. Once you get a date hammered out with Ken let me know. I have class Tuesday and Thursday nights so that won't work for me. I'm thinking on a Monday, Wednesday, or Friday night that I am off of work we can meet at his house, or at a rest area on the Turnpike and caravan from there. Weekends are hard to do for me. IIRC he gets home after 5 weekdays.

Just shoot me a text when u figure a date.
Mazdaspeeder is offline   Reply With Quote
Old 10-31-2014, 05:16 PM   #711
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by Mazdaspeeder View Post
I don't think you're in danger of really doing much damage, but my caution goes out to you. Remember that a base tune is a base tune. This isn't to knock the person who made it, but just take it easy so your happiness is not short lived. Once you get a date hammered out with Ken let me know. I have class Tuesday and Thursday nights so that won't work for me. I'm thinking on a Monday, Wednesday, or Friday night that I am off of work we can meet at his house, or at a rest area on the Turnpike and caravan from there. Weekends are hard to do for me. IIRC he gets home after 5 weekdays.

Just shoot me a text when u figure a date.

I'm not getting too crazy. Not getting into boost for long pulls or anything. I was mostly just doing short pulls and checking my AFR's and making sure I was ~10psi.

Awesome I will let you know the specific date that he would like to shoot for and we will go from there! Wednesdays are perfect for me beings that I have full days off every Wednesday.
BTMiata is offline   Reply With Quote
Old 10-31-2014, 05:59 PM   #712
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Good work Brian, enjoy!
Jeffbucc is offline   Reply With Quote
Old 10-31-2014, 06:48 PM   #713
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by Jeffbucc View Post
Good work Brian, enjoy!
Thanks! I consistently saw 11.3-11.6 arf's in boost throughout the day, while I had autotune connected. I did take a short trip to the tire shop to drop my employee off to pick up a vehicle and saw 12.4 in boost one time, and I did not have my laptop on at the time ... Does that mean I just need to keep autotuning?
BTMiata is offline   Reply With Quote
Old 10-31-2014, 10:42 PM   #714
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 3,050
Total Cats: 5
Default

Congrats on getting it together and getting to finally drive it a bit.

Hopefully you feel like it was worth the effort, money, blood, tears, etc.
Efini~FC3S is offline   Reply With Quote
Old 10-31-2014, 10:48 PM   #715
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Thanks! So far it absolutely was! Still getting used to the power!

I definitely need a torsen asap... My vlsd is a timebomb and I am waiting for it to blow up every time I hit the gas lol. My old rad also is on borrowed time so that's gotta go

Last edited by BTMiata; 10-31-2014 at 11:59 PM.
BTMiata is offline   Reply With Quote
Old 11-01-2014, 12:56 PM   #716
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

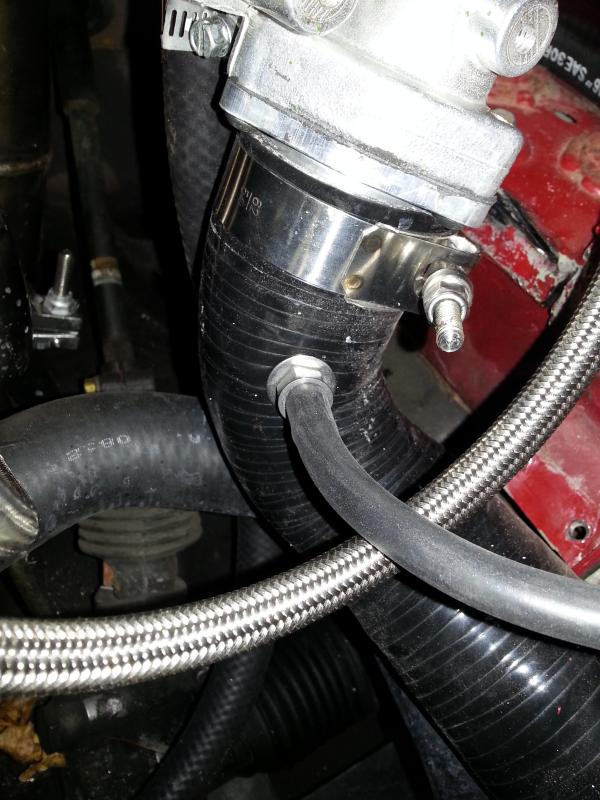

This fitting was pretty cool! Worked absolutely perfectly! Beats tapping the turbo lol...



Re-installed my under-tray after cutting off the sides. I didn't see any other way around it but didn't want to drive without it. This should keep some dirt away and keep airflow somewhat directed properly anyway lol



Keeping it on the lift so I can drill the holes for my rear rollbar mounts tomorrow and install the plates... I've had it 1/2 installed since July ... Whoops (Luckily I've only driven it a handful of times lol
Attached Thumbnails
Prepping for turbo build-20141101_114639_zpssi7rw718.jpg
BTMiata is offline   Reply With Quote
Old 11-03-2014, 09:40 AM   #717
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

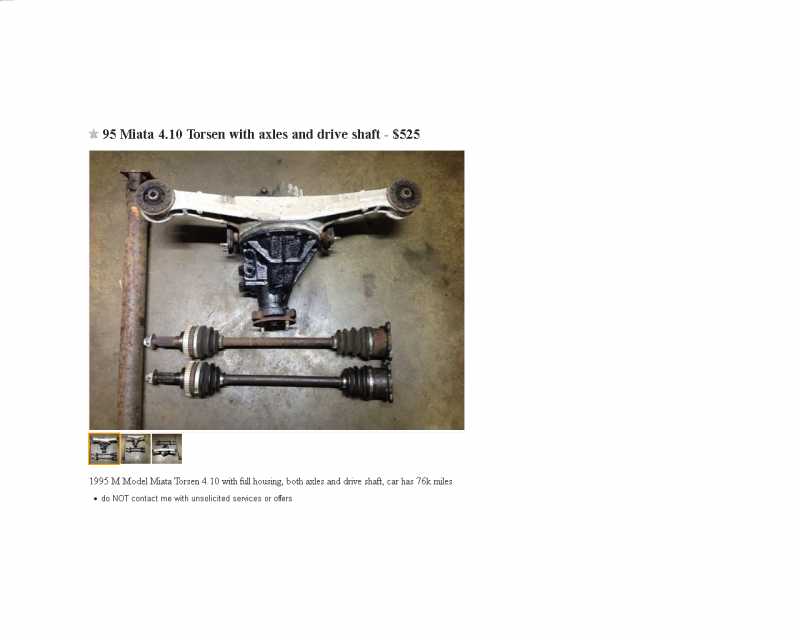

So found a 4.1 Torsen w/ 76K miles not too far away and the guy is only asking $525... If all goes according to plan I'm picking it up on Wednesday afternoon! I might see if he takes $500 even since I have to drive a bit to him.

Attached Thumbnails
Prepping for turbo build-torsen_zps93532630.png
BTMiata is offline   Reply With Quote
Old 11-03-2014, 09:50 AM   #718
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

make sure it's actually a torsen before driving up.


as far as the ebc solenoid, the lower port on the solenoid vents to atmosphere. When left closed the boost goes up, when cycled, the pressure on the top of the EWG is lower than that of the lower port so the piston moves up and exhaust bypasses the turbine.
Braineack is offline   Reply With Quote
Old 11-03-2014, 12:02 PM   #719
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,459
Default

Quote:
Originally Posted by BTMiata View Post
So found a 4.1 Torsen w/ 76K miles not too far away and the guy is only asking $525... If all goes according to plan I'm picking it up on Wednesday afternoon! I might see if he takes $500 even since I have to drive a bit to him.

When I got my torsen I actually pulled the 3rd member from the case to make sure it was a torsen. All the other methods confused me a bit.
aidandj is offline   Reply With Quote
Old 11-03-2014, 12:24 PM   #720
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by aidandj View Post
When I got my torsen I actually pulled the 3rd member from the case to make sure it was a torsen. All the other methods confused me a bit.
Yeah that might be a good idea... I'll bring some tools and hopefully the guy lets me remove it before handing over the cash. I definitely dont want to end up paying $500 for an open diff lol.

Also the 4.10 isn't "Ideal" ... But for $500 the peace of mind knowing that my diff wont (probably) blow up will be worth it.
BTMiata is offline   Reply With Quote
