Old 10-22-2014, 05:52 PM   #541
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by Jeffbucc View Post
Get your Afr table setup and do a week or so of auto tuning before going to the dyno. Its super easy. Plus it will mean less money spent on the dyno.

I've been told by many that you really should only utilize the dyno to get your timing map setup properly. Mostly everything else you can do yourself, and you'll have a better tune running auto tune as much as possible.

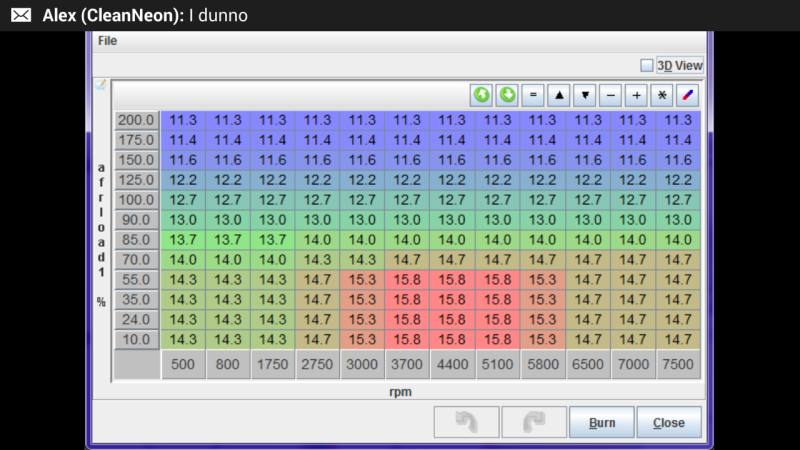

Thoughts on this afr table? I copied it to my tune this morning I plan on driving with ve analyze on as soon as it's not raining outside lol
Attached Thumbnails
Prepping for turbo build-screenshot_2014-10-22-16-45-55_zps6vqgit3q.png
BTMiata is offline   Reply With Quote
Old 10-22-2014, 07:03 PM   #542
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Looks fine to me, any reason your cells around idle aren't stoich?
Jeffbucc is offline   Reply With Quote
Old 10-22-2014, 07:48 PM   #543
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,701
Total Cats: 319
Default

yea what I did was left the Authority Limits whatever tuner studio had by default, started with Easy/Normal and drove around for a while till it started showing some major changes. Drop Cell Change Resistance to Normal/Hard and repeat.

Then decrease Authotity Limits to be a bit tighter so it won't change as rastically, then repeat from Normal to Very Hard.

But lots and lots of driving.
psyber_0ptix is online now   Reply With Quote
Old 10-22-2014, 11:38 PM   #544
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by Jeffbucc View Post
Looks fine to me, any reason your cells around idle aren't stoich?
No idea... I copied this chart from y8s in a thread somewhere on here... Braineack commented that his chart was extremely similar so I assumed it was good/safe to use lol

Quote:
Originally Posted by psyber_0ptix View Post
yea what I did was left the Authority Limits whatever tuner studio had by default, started with Easy/Normal and drove around for a while till it started showing some major changes. Drop Cell Change Resistance to Normal/Hard and repeat.

Then decrease Authotity Limits to be a bit tighter so it won't change as rastically, then repeat from Normal to Very Hard.

But lots and lots of driving.
Ok im going to give it a shot tomorrow weather/time - permitting
BTMiata is offline   Reply With Quote
Old 10-22-2014, 11:56 PM   #545
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Also realize that when autotuning, try to do it at around your normal temperature that you drive the car at. If you autotune in the afternoon when its hot, and then do it again early in the morning, the AIT will really mess with your cells.
Jeffbucc is offline   Reply With Quote
Old 10-23-2014, 12:01 AM   #546
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by Jeffbucc View Post
Also realize that when autotuning, try to do it at around your normal temperature that you drive the car at. If you autotune in the afternoon when its hot, and then do it again early in the morning, the AIT will really mess with your cells.
Noted thanks. Temps should be ~70 here the next few days so that should work... I plan to put the car away for the winter by next month and it will be back out in the spring for a new rad, catch can, torsen, and possibly a brake upgrade... we'll see lol
BTMiata is offline   Reply With Quote
Old 10-23-2014, 01:06 PM   #547
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

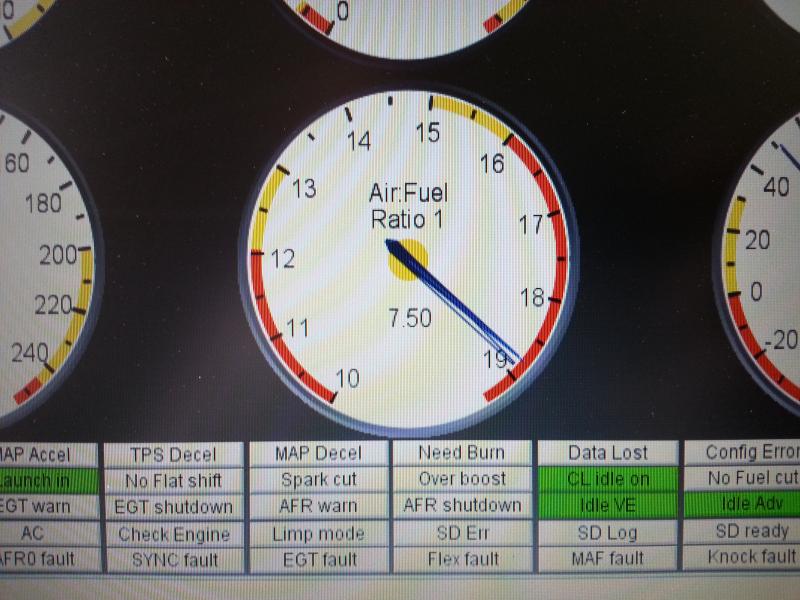

So I noticed there is no AFR reading... I looked in my console where I have my LC-2 controller mounted and the light was blinking green... According to their instructions that means that the sensor is "warming up"... How long should it take to warm up? I had the car running for ~3 minutes...

This is what it was showing...

Attached Thumbnails
Prepping for turbo build-20141023_115630_zpsbjijfmel.jpg
BTMiata is offline   Reply With Quote
Old 10-23-2014, 01:08 PM   #548
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,457
Default

Quote:
Originally Posted by BTMiata View Post
So I noticed there is no AFR reading... I looked in my console where I have my LC-2 controller mounted and the light was blinking green... According to their instructions that means that the sensor is "warming up"... How long should it take to warm up? I had the car running for ~3 minutes...

This is what it was showing...

Mine does that pretty consistently. Normally turning it on and off again fixes it. Might wire up a button to reset it. I've heard this is kind of normal. If you plug in your serial cable to the LC-2 and run the logging software it seems that the sensor gets stuck at warming up. I called Innovate and they said if the voltage drops below 12V at any point during warm up it can happen. Try restarting the car.
aidandj is offline   Reply With Quote
Old 10-23-2014, 01:15 PM   #549
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by aidandj View Post
Mine does that pretty consistently. Normally turning it on and off again fixes it. Might wire up a button to reset it. I've heard this is kind of normal. If you plug in your serial cable to the LC-2 and run the logging software it seems that the sensor gets stuck at warming up. I called Innovate and they said if the voltage drops below 12V at any point during warm up it can happen. Try restarting the car.
Ill give that a shot thanks
BTMiata is offline   Reply With Quote
Old 10-23-2014, 01:16 PM   #550
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,457
Default

Quote:
Originally Posted by BTMiata View Post
Ill give that a shot thanks
I'm going to try running a relay straight from the fuse box and if that doesn't fix it I'll bug innovate some more.
aidandj is offline   Reply With Quote
Old 10-23-2014, 01:22 PM   #551
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

I also had a mishap where I left the plastic protective cap on the sensor while it was plugged in (Sensor was zip tied off to the side) and the plastic melted onto the sensor. I'm wondering if that somehow damaged it...
BTMiata is offline   Reply With Quote
Old 10-23-2014, 01:23 PM   #552
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,457
Default

Quote:
Originally Posted by BTMiata View Post
I also had a mishap where I left the plastic protective cap on the sensor while it was plugged in (Sensor was zip tied off to the side) and the plastic melted onto the sensor. I'm wondering if that somehow damaged it...
I doubt it, mine does this almost every time it starts up.
aidandj is offline   Reply With Quote
Old 10-23-2014, 01:28 PM   #553
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by aidandj View Post
I doubt it, mine does this almost every time it starts up.
I just realized I never re-calibrated the sensor when I re-installed it (I have since scraped off that melted plastic from a few months back) I'll see if I can get a calibration done and see if that changes anything... I re-started the car about 5 times just now and nothing changed
BTMiata is offline   Reply With Quote
Old 10-23-2014, 01:32 PM   #554
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,701
Total Cats: 319
Default

Hopefully the plastic isn't imbeded blocking flow. Absolute worst case scenario, a new sensor is about $60 from parts stores.

Bosch 17014
psyber_0ptix is online now   Reply With Quote
Old 10-23-2014, 01:33 PM   #555
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,457
Default

Can you plug your serial cable into the LC-2?
aidandj is offline   Reply With Quote
Old 10-23-2014, 01:45 PM   #556
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by psyber_0ptix View Post
Hopefully the plastic isn't imbeded blocking flow. Absolute worst case scenario, a new sensor is about $60 from parts stores.

Bosch 17014
I hope not... Thats another $60 I dont want to spend lol

Quote:
Originally Posted by aidandj View Post
Can you plug your serial cable into the LC-2?
Uhhhh I havent before... I dont know if I have a cable for the lc-2
BTMiata is offline   Reply With Quote
Old 10-23-2014, 01:46 PM   #557
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

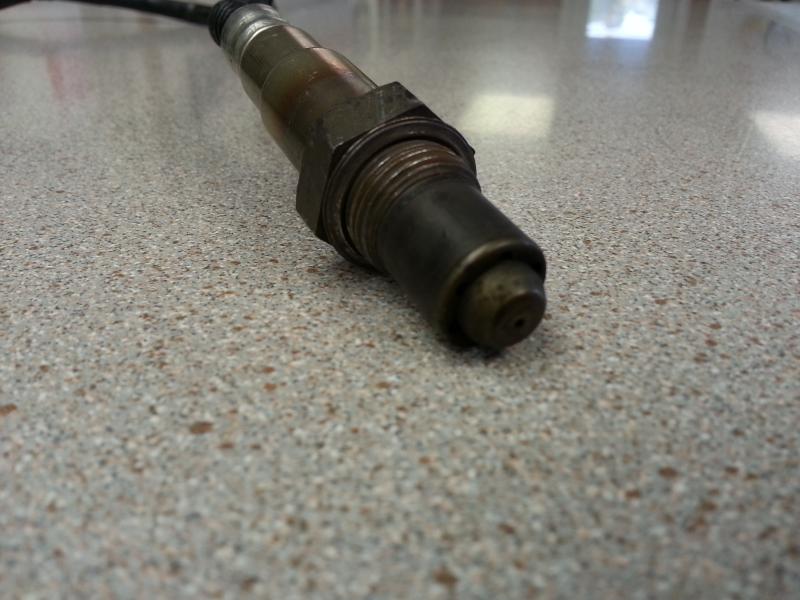

Here is the sensor... Im going to try to free-air calibrate it now

Attached Thumbnails
Prepping for turbo build-20141023_124402_zpsttifaawd.jpg
BTMiata is offline   Reply With Quote
Old 10-23-2014, 01:51 PM   #558
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,457
Default

It should have come with one.
aidandj is offline   Reply With Quote
Old 10-23-2014, 01:51 PM   #559
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,701
Total Cats: 319
Default

bah looks fiiine. Have you calibrated TunerStudio for the sensor? (or just used presets?)
psyber_0ptix is online now   Reply With Quote
Old 10-23-2014, 01:56 PM   #560
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

I think the sensor is dead... Its heating up while I was letting it calibrate, but the calibration mode never completed. The instructions say to let it go for 30-60 seconds... I waited about 3 minutes. Im going to order another sensor and try again

Quote:
Originally Posted by psyber_0ptix View Post
bah looks fiiine. Have you calibrated TunerStudio for the sensor? (or just used presets?)
I just used the pre-set values for lc-1/lc-2
BTMiata is offline   Reply With Quote
