Old 10-24-2014, 08:26 PM   #601
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by Leafy View Post
If your noid doesnt seal in vac like that you probably should get a different one. Like the Mac style rather than the IR one. Its kind of surprising that the valve is that common for this use and doesnt seal in vacuum. You might be able to get some improvement in the seal by putting some air tool oil into one of the ports and cycling the noid a few times while blowing through it.
I just have it routed as diy's diagram shows
BTMiata is offline   Reply With Quote
Old 10-24-2014, 09:57 PM   #602
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Quote:
Originally Posted by DNMakinson View Post
Is the input line coming from the intake manifold? If so I totally don't understand that logic. There are debates on if the source of boost for the valve should come before or after the intercooler, but I can never see why it would be a good thing to have it after the throttle. Perhaps I don't understand your set-up.
Wow yeah I totally missed putting two and two together. the boost controller should not be connected to the intake manifold. With an electric boost controller there's no downside to just taking the source off the compressor cover.
Leafy is offline   Reply With Quote
Old 10-24-2014, 10:20 PM   #603
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

My turbo doesn't have a vacuum port on it.. Will I need to possibly buy a flange with a vacuum line in it or maybe drill/tap into the flange I have or something?
BTMiata is offline   Reply With Quote
Old 10-24-2014, 10:23 PM   #604
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

BTMiata is offline   Reply With Quote
Old 10-24-2014, 10:26 PM   #605
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Or much cheaper option... I think i'm gonna get this

FTG-QuickTap-CompHSG : atpturbo.com
BTMiata is offline   Reply With Quote
Old 10-25-2014, 12:22 AM   #606
Senior Member
iTrader: (8)

Join Date: Feb 2012
Location: Raleigh, NC
Posts: 617
Total Cats: 53
Default

Go buy an NPT vacuum fitting and put it in your IC piping post IC! Cheapest of them all and most effective.
petrolmed is offline   Reply With Quote
Old 10-25-2014, 12:25 AM   #607
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by petrolmed View Post
Go buy an NPT vacuum fitting and put it in your IC piping post IC! Cheapest of them all and most effective.
I have FM silicone one piece hose. I'm going to tap the turbo compressor outlet flange for a 1/8 npt fitting
BTMiata is offline   Reply With Quote
Old 10-25-2014, 12:29 AM   #608
Senior Member
iTrader: (8)

Join Date: Feb 2012
Location: Raleigh, NC
Posts: 617
Total Cats: 53
Default

Sounds like you have your mind made up. Although you could still do it with that interesting looking silicone fitting.

Aren't all these little purchases for the finishing touches so great?!?
petrolmed is offline   Reply With Quote
Old 10-25-2014, 07:13 PM   #609
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

These last minute little purchases are more painful than the big ones :'(
BTMiata is offline   Reply With Quote
Old 10-25-2014, 07:22 PM   #610
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

I know the feeling. At least the big ones you're ready for. The little ones just add up and hit you hard.
aidandj is offline   Reply With Quote
Old 10-25-2014, 07:26 PM   #611
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by aidandj View Post
I know the feeling. At least the big ones you're ready for. The little ones just add up and hit you hard.
It's not even the money so much... It's just that you have to wait for the part to arrive and I need it RIGHT MEOW! lol... Like my car is almost ready to be tuned (after I sort out this last turbo source fitting) and now I have to wait for a replacement wideband :-/

I'm going to make a gopro video of my Artech exhaust and post that tomorrow... I guess that'll keep me busy for an hour or so and then I'll go back to waiting for the UPS guy
BTMiata is offline   Reply With Quote
Old 10-26-2014, 10:51 AM   #612
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

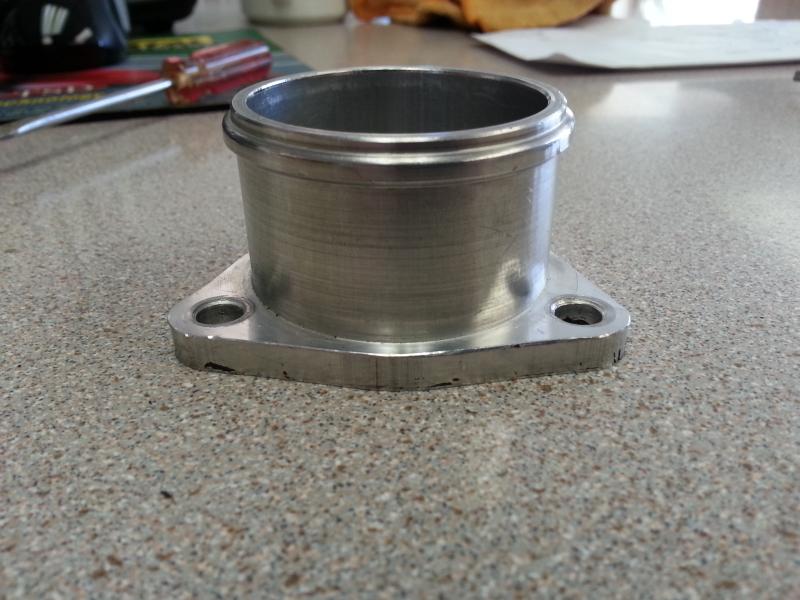

Ugh... So nowhere to tap this flange. I just ordered one of those silicone taps from ATP.. Now I get to wait even longer to tune

Attached Thumbnails
Prepping for turbo build-20141026_094234_zpsvuw2msj5.jpg
BTMiata is offline   Reply With Quote
Old 10-26-2014, 01:59 PM   #613
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Just have some patience and step away from the project for a while. No use stressing over something not in your control. Trust me, when I had to put projects on my car on hold for a couple days it helped me take a little mental break.
Jeffbucc is offline   Reply With Quote
Old 10-26-2014, 02:06 PM   #614
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

<<<@[email protected]>>>

Yeah I will take a little break and concentrate on some work things for a couple days. Once my wideband arrives early this week I can take my time installing that and putting my interior back together. I still have my MS on the passenger floor so I would like to permanently install that and get the rest of my interior back together haha

Made an exhaust clip today (Crappy cell clip because I forgot my GoPro at home)

I think its rattling a little so I will have to put the car in the air to double check that

BTMiata is offline   Reply With Quote
Old 10-26-2014, 04:04 PM   #615
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Something I tried doing lately is just work on it for like 15-30 minutes a day and no more. Keeps me interested and let's me also keep on top of work and school. Saw a really good video the other day about a guy who worked on his saab 15 minutes a day for 20 years and did a full frame off restoration.
aidandj is offline   Reply With Quote
Old 10-27-2014, 11:39 AM   #616
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by aidandj View Post
Something I tried doing lately is just work on it for like 15-30 minutes a day and no more. Keeps me interested and let's me also keep on top of work and school. Saw a really good video the other day about a guy who worked on his saab 15 minutes a day for 20 years and did a full frame off restoration.
Lol its tough to spend so little time working on the car when its so close to completion lol.

Especially when the car is sitting right outside my office door and it gets slow at work... I walk right out into the garage and start tinkering lol

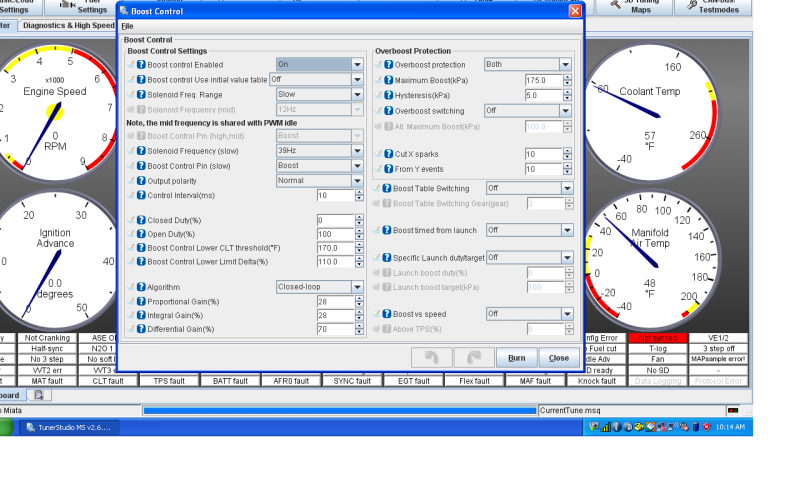

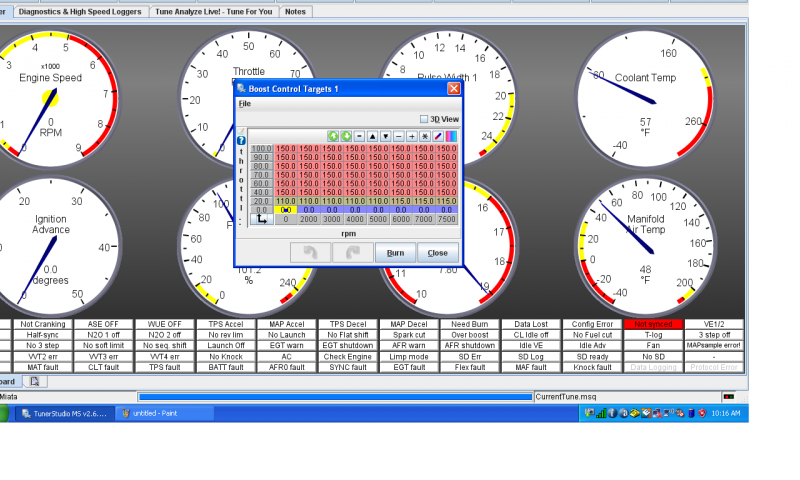

Today I pulled up my boost control settings and table. Can anyone take a look and let me know if I should change anything?!?! I want to start out tuning it for low boost... say <10lbs. Should I change anything?



Attached Thumbnails
Prepping for turbo build-boostcontrol_zpse8703fef.png   Prepping for turbo build-boosttarget_zps58ae4afd.png

Last edited by BTMiata; 10-27-2014 at 12:02 PM.
BTMiata is offline   Reply With Quote
Old 10-27-2014, 11:48 AM   #617
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,713
Total Cats: 320
Default

low boost more than 10lbs?

Sorry if I do not understand this correctly, but is it possible to JUST run wastegate pressure on a dual port? What is your spring rated for?
psyber_0ptix is offline   Reply With Quote
Old 10-27-2014, 12:00 PM   #618
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by psyber_0ptix View Post
low boost more than 10lbs?

Sorry if I do not understand this correctly, but is it possible to JUST run wastegate pressure on a dual port? What is your spring rated for?
I meant Less than 10psi lol whoops!

My current wastegate springs are set for 10.60psi iirc **Edit** Its the red/green springs for 10.15psi
BTMiata is offline   Reply With Quote
Old 10-27-2014, 12:48 PM   #619
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,713
Total Cats: 320
Default

is each port on opposing sides of the plunger/diaphragm in the wastegate?

Maybe just loop the two barbs together, then run whatever spring pressure is. Get tuning a bit, then use EBC for faster ramp up when it's on the dyno?
psyber_0ptix is offline   Reply With Quote
Old 10-27-2014, 12:52 PM   #620
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Quote:
Originally Posted by psyber_0ptix View Post
is each port on opposing sides of the plunger/diaphragm in the wastegate?

Maybe just loop the two barbs together, then run whatever spring pressure is. Get tuning a bit, then use EBC for faster ramp up when it's on the dyno?
If you wanted to run spring pressure you would connect the bottom port of an ebc to the intake tubing. What you described would basically not open until the exhaust gas pressure gets high enough to force the valve open, thats a lot of boost in the intake manifold.
Leafy is offline   Reply With Quote
