Old 10-29-2014, 12:19 PM   #661
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Ok so I see the event in the log... Boost hits 11.2psi before it cuts.... I think this may be the overboost protection (Currently set to 175kps ~10.7 psi?).

Now my next question would be what do I have to change to keep the boost from going over 10.7psi?
BTMiata is offline   Reply With Quote
Old 10-29-2014, 12:20 PM   #662
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,998
Total Cats: 1,465
Default

How have you setup EBC?
aidandj is offline   Reply With Quote
Old 10-29-2014, 12:41 PM   #663
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by aidandj View Post
How have you setup EBC?

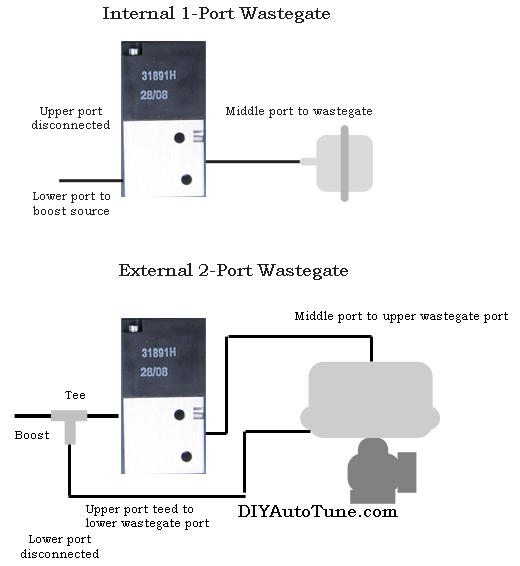

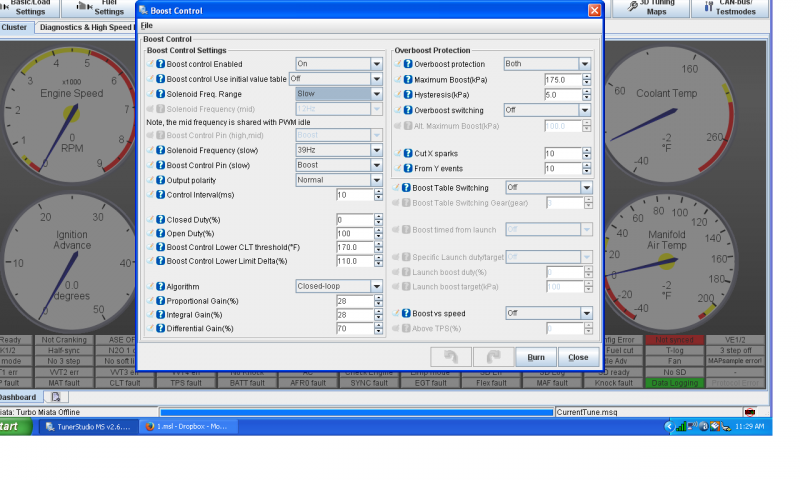

Here's my settings. As far as the lines routing, I just used the 2-port wastegate diagram from DIY as a guide.



Attached Thumbnails
Prepping for turbo build-boostcontrol_zps2a868e29.png   Prepping for turbo build-wastegate_control_zpsf45ee94a.png
BTMiata is offline   Reply With Quote
Old 10-29-2014, 12:44 PM   #664
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

Try running the car with the ebc disconnected and make sure the car will hold boost just on the wastegate.


(pressure line to the bottom of the EWG ports, open to free air on top)
shlammed is offline   Reply With Quote
Old 10-29-2014, 12:47 PM   #665
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

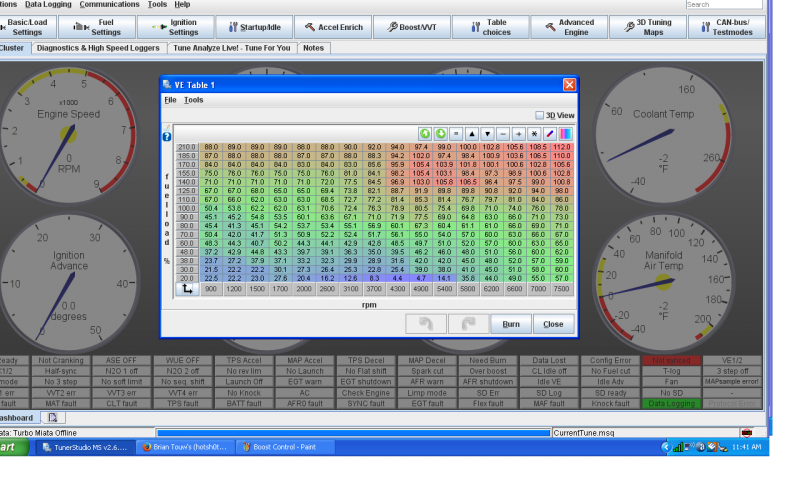

Also for the hell of it... Here's my current fuel map... Maybe I have too much/little fuel somewhere...

Attached Thumbnails
Prepping for turbo build-fuelmap_zpse3b1e676.png
BTMiata is offline   Reply With Quote
Old 10-29-2014, 12:50 PM   #666
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,998
Total Cats: 1,465
Default

I mean in the tune
aidandj is offline   Reply With Quote
Old 10-29-2014, 12:55 PM   #667
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by aidandj View Post
I mean in the tune
I havent done anything with it... Where are those settings?

/Noob
BTMiata is offline   Reply With Quote
Old 10-29-2014, 12:56 PM   #668
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,998
Total Cats: 1,465
Default

Quote:
Originally Posted by BTMiata View Post
I havent done anything with it... Where are those settings?

/Noob
I'm an idiot, didn't see the screenshot above. I'm also a noob, just trying to get more eyes on it.
aidandj is offline   Reply With Quote
Old 10-29-2014, 01:02 PM   #669
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by aidandj View Post
I'm an idiot, didn't see the screenshot above. I'm also a noob, just trying to get more eyes on it.
Ok I thought there were more settings that I was missing lol
BTMiata is offline   Reply With Quote
Old 10-29-2014, 01:04 PM   #670
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by shlammed View Post
Try running the car with the ebc disconnected and make sure the car will hold boost just on the wastegate.


(pressure line to the bottom of the EWG ports, open to free air on top)

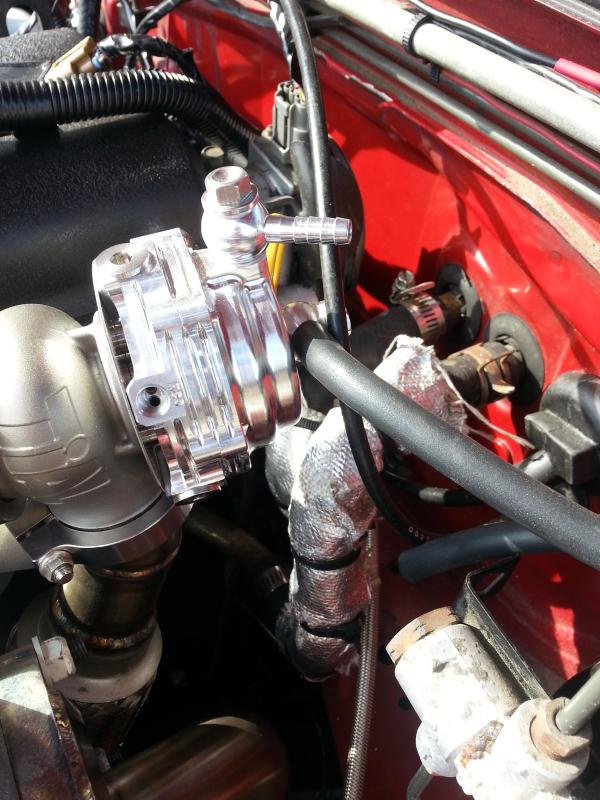

So like this? The line going to the WG is coming from the boost source



Oops just noticed you said bottom... Switching that line to the other port, but you get the idea
Attached Thumbnails
Prepping for turbo build-20141029_115731_zpshe4izhpa.jpg
BTMiata is offline   Reply With Quote
Old 10-29-2014, 01:06 PM   #671
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,998
Total Cats: 1,465
Default

Quote:
Originally Posted by BTMiata View Post
So like this? The line going to the WG is coming from the boost source



Oops just noticed you said bottom... Switching that line to the other port, but you get the idea
Yeah, that should eliminate MegaSquirt boost control from the situation and narrow down the possibilities.
aidandj is offline   Reply With Quote
Old 10-29-2014, 01:27 PM   #672
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Meh no changes on that test drive...
BTMiata is offline   Reply With Quote
Old 10-29-2014, 01:32 PM   #673
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Another log if someone wants to take a look and see if anything jumps out

https://www.dropbox.com/s/kxypryto83gaisq/2.msl?dl=0
BTMiata is offline   Reply With Quote
Old 10-29-2014, 01:49 PM   #674
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Looking at my log and it makes me nervous. I see AFR's in boost a little over 12 (Although I dont have the settings correct in MS for my AEM yet, I have to plug in the voltage that Vlad recently figured out)

I'm not driving this thing in boost again until I get it tuned by someone who knows what they're doing, before I break something. Thanks for trying to help out everyone!

On another note... Has anyone ever heard of Xenocron Tuning? Apparently this guy Matt Ivan tuned for them (Not sure if he still does) and He is the one that said he could tune the car for $200
BTMiata is offline   Reply With Quote
Old 10-29-2014, 02:19 PM   #675
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,711
Total Cats: 319
Default

I heard good things about

J-K-Tuning - Tuning and ECU Services

Supposedly he codes and develops for tuning skylines and has handled a wide variety of cars. Don't know if Carlisle is too far from New Jersey. I was never good at Geology.
psyber_0ptix is offline   Reply With Quote
Old 10-29-2014, 02:46 PM   #676
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Decided i'm taking it to Oracle tuning... 90 Mins from me and he tuned mazdaspeeders car which turned out amazing

Last edited by BTMiata; 10-29-2014 at 03:15 PM.
BTMiata is offline   Reply With Quote
Old 10-29-2014, 06:51 PM   #677
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Fml... I've had my wheels for a year and 1/2 and never damaged one. Today I scrape each passenger side wheel on the curb on two separate occasions. Earlier I pulled to the curb and somehow got the rear wheel. Just grabbed a pizza and when I parked I scraped the front... So dumb. My only thought is that I've been parking the escape for the past 3 months there and I'm just not used to parking the miata.
BTMiata is offline   Reply With Quote
Old 10-29-2014, 07:58 PM   #678
Senior Member

Join Date: Feb 2009
Location: Philadelphia
Posts: 815
Total Cats: 47
Default

Quote:
Originally Posted by BTMiata View Post
Decided i'm taking it to Oracle tuning... 90 Mins from me and he tuned mazdaspeeders car which turned out amazing
I can go out there with you and give you a lift home when u leave the car, just let me know ahead of time and I'll make sure my schedule is free that day. Are you thinking soon or in the spring?

I got my car back fully tuned including all the PITA idle and cruising areas. He really did a great job and I don't know of anyone else within driving distance with more miatas under their belt.
Mazdaspeeder is offline   Reply With Quote
Old 10-29-2014, 09:39 PM   #679
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by Mazdaspeeder View Post
I can go out there with you and give you a lift home when u leave the car, just let me know ahead of time and I'll make sure my schedule is free that day. Are you thinking soon or in the spring?

I got my car back fully tuned including all the PITA idle and cruising areas. He really did a great job and I don't know of anyone else within driving distance with more miatas under their belt.
Man if you could follow me out there that would be amazing! I'll keep you posted.... I'd like to get it done asap but we'll see what ken replies with! Like I said in text if I have to wait, I'll knock out the body work with my pops first. If he can do it sooner, I'll throw the bumperback on in a more permanent way as well as the finisher panel
BTMiata is offline   Reply With Quote
Old 10-29-2014, 09:46 PM   #680
Senior Member

Join Date: Feb 2009
Location: Philadelphia
Posts: 815
Total Cats: 47
Default

Bah, body panels are over-rated. Haven't you learned from all the drifto-tools in NJ?

Seriously though, I'm not trying to ride anyone's dick or take business away from anyone else for that matter, but people have driven way further than you have to to get tuned by him. I'm sure you'll have a response by the weekend. I'm actually going to post a review on the forum if I can because I want to share the good experience and see who else has had one (and so I can be creeping on other local miata owners haha). Another one of his customers who had his car done the weekend before mine made it a point to see Ken before moving to CA permanently. Kind of says something, he's moving to an area where car culture is bigger and I'm sure tuners are more abundant, but he got tuned by Oracle.
Mazdaspeeder is offline   Reply With Quote
