Ahhhhhh . . . Summer welding.
hornetball is offline   Reply With Quote
Old 07-31-2015, 03:08 PM   #522
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,631
Total Cats: 495
Default

Boys, its arts and crafts time.

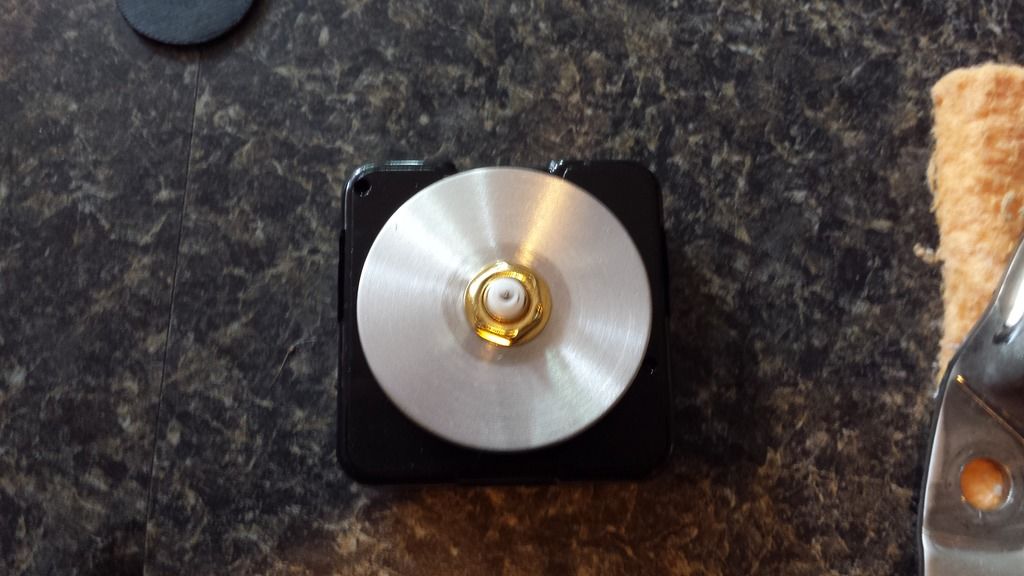

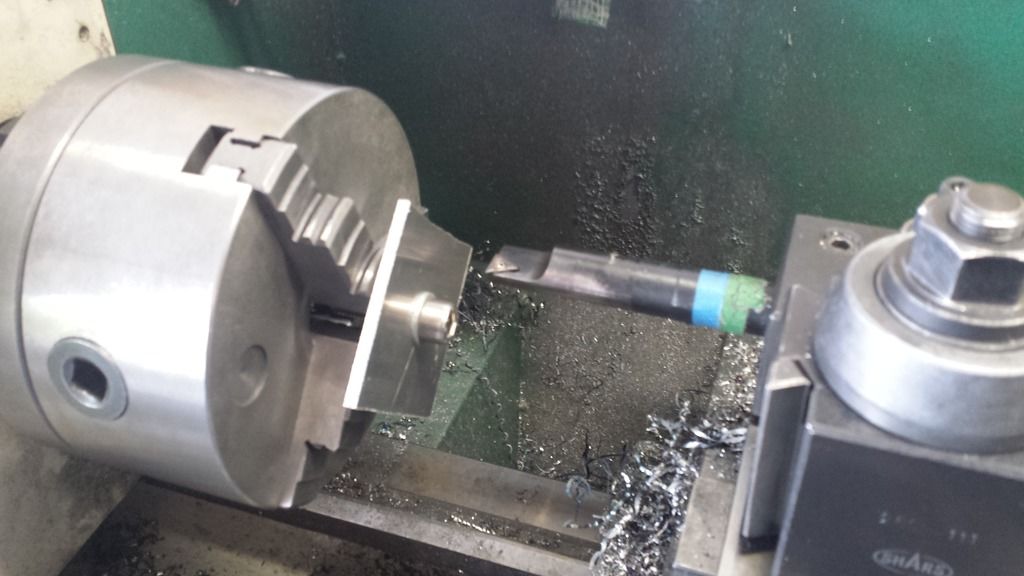

This was funny. I chucked this piece up on the nut so as the bit grabbed the piece, it would tighten. That is of course assuming you cut in front of the spindle centerline. I had that boring bar already mounted and being a left handed tool I had to turn from the back side and run in reverse. Which means the bolt instantly loosened and bent and threw the piece lol.






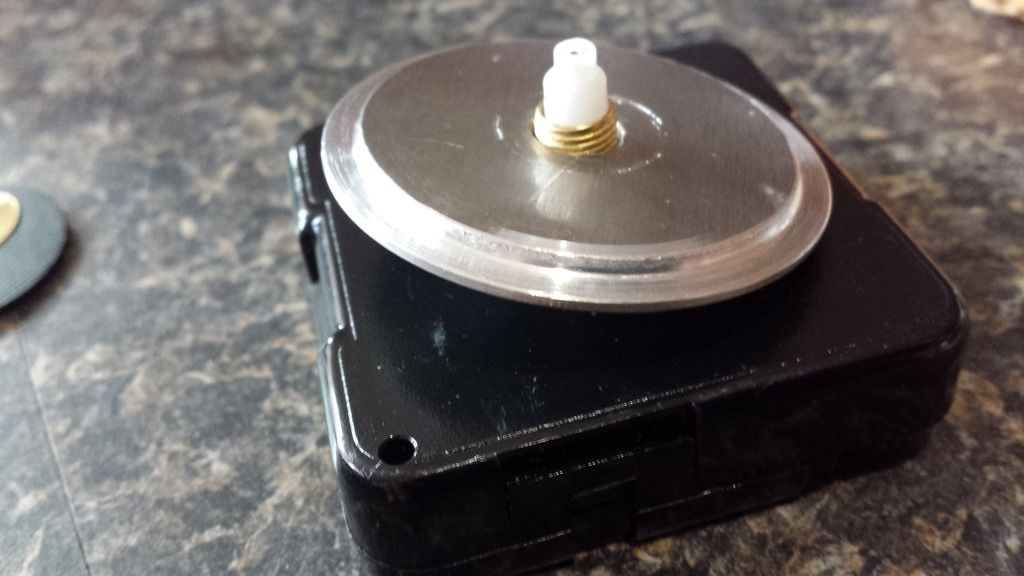

I cut a land in the back side and "brushed" the front.






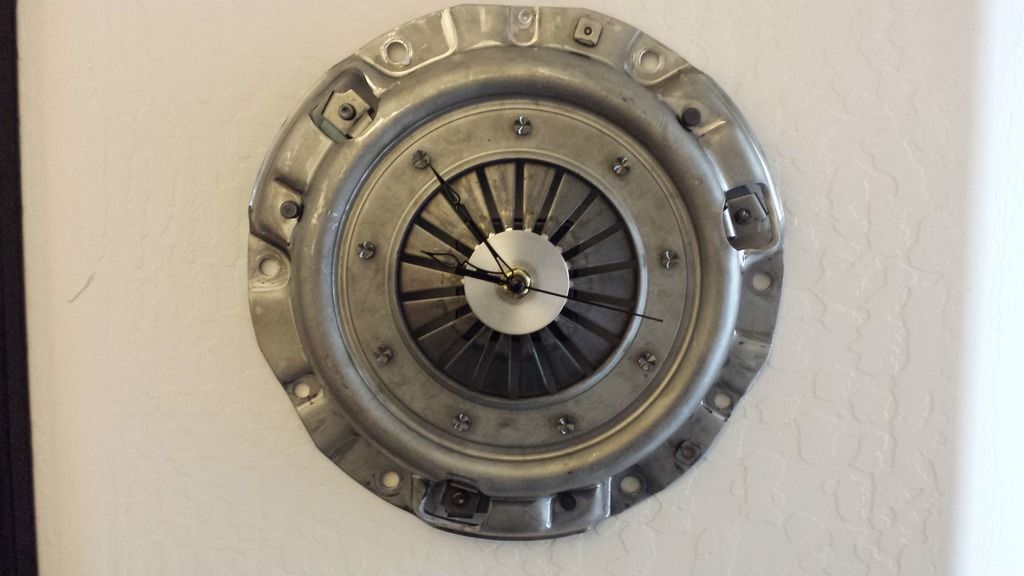

Painted the gold hands black. I hate gold. The color, not the metal. This is the stock replacement exedy that came with the car.

Attached Thumbnails
sean's cheap thrills, 90 1.6 with subaru td04-80-20150731_091842_zps4ksv9czo_39c3b0582092e1f22d5252f962f5937e9c6fee1b.jpg   sean's cheap thrills, 90 1.6 with subaru td04-80-20150731_093414_zpsxflrqail_1dd51ca37c98d33c44a85c17f55b71c7cc55a578.jpg   sean's cheap thrills, 90 1.6 with subaru td04-80-20150731_093349_zpsgobdmmfm_db5a5db2c1bbfc78c82db0c79ab4a698e4df4bc5.jpg   sean's cheap thrills, 90 1.6 with subaru td04-80-20150731_095246_zpswhxcglup_99274867da500888e91fbafd57f850a2678d846c.jpg
hi_im_sean is offline   Reply With Quote
Old 07-31-2015, 03:31 PM   #523
Senior Member

Join Date: Jan 2013
Location: Gilbert, AZ
Posts: 656
Total Cats: 80
Default

Quote:
Originally Posted by hi_im_sean View Post

Does this make aidan, tommy, pat and aaron happy?
Arca_ex is offline   Reply With Quote
Old 07-31-2015, 03:36 PM   #524
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,631
Total Cats: 495
Default

Quote:
Originally Posted by Arca_ex View Post
yay, I have approval from all 4 parties I can install it now!

I removed the friction ring from the PP, because its heavy. Pushpin and drywall is what I was after.

So pics, since I know some of you dont dissect your clutch after replacement

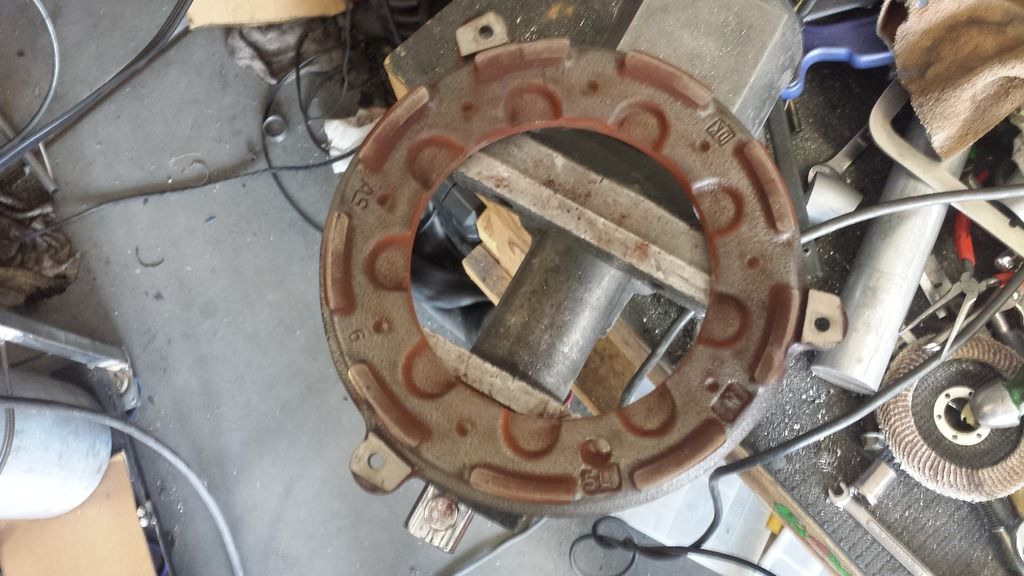

Back side of friction ring. You can see a balancing drill spot right near the "5L" lettering.




Ill pull my F1 apart when it gets removed here soon and see if they get the same treatment.

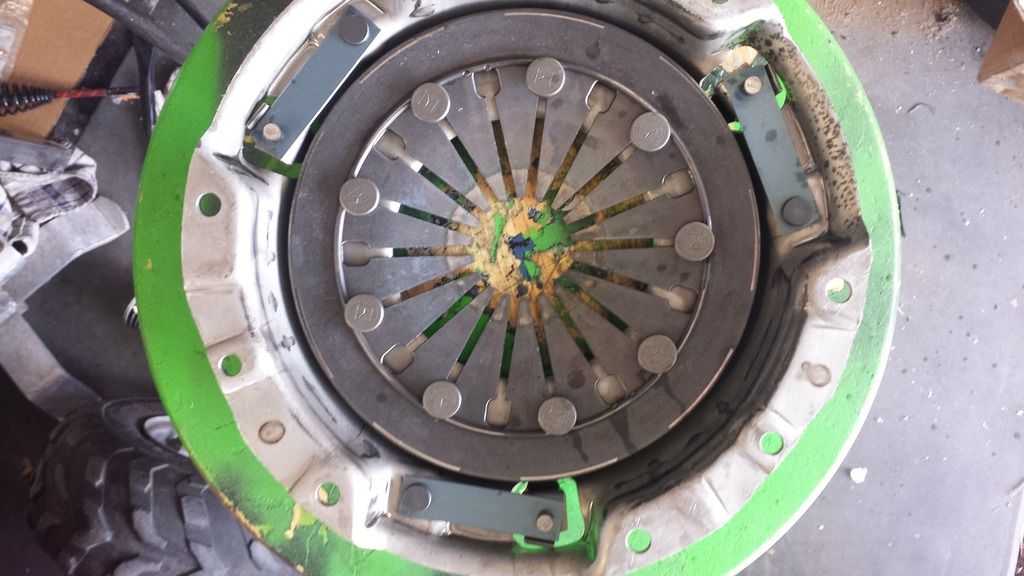

This is interesting construction to me. The spring pivots on that wire hoop held in by the riveted pins.

Attached Thumbnails
sean's cheap thrills, 90 1.6 with subaru td04-80-20150731_090736_zps94ewmbfo_0b653a84df140230676b00af54057d338dffe54b.jpg   sean's cheap thrills, 90 1.6 with subaru td04-80-20150731_090754_zps94duglfd_a28ce5a5e6e8759a9ba2c7f237677f116f608a6e.jpg
hi_im_sean is offline   Reply With Quote
Old 08-04-2015, 11:15 PM   #525
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,631
Total Cats: 495
Default

chinese/ebay v bands FTW!

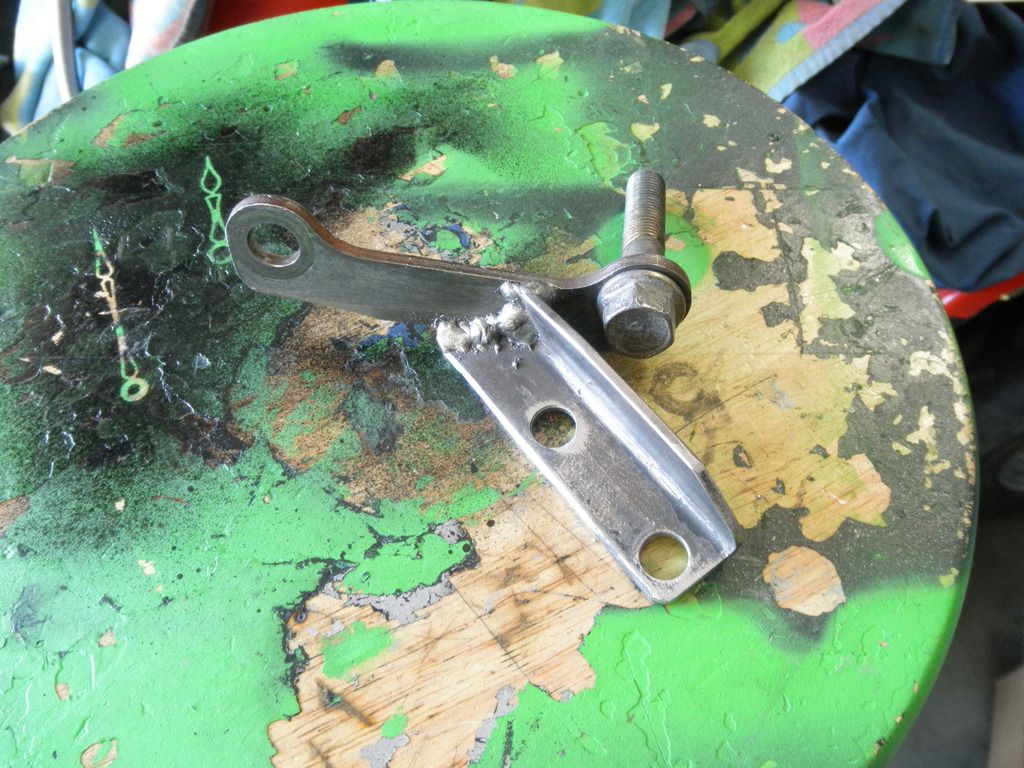

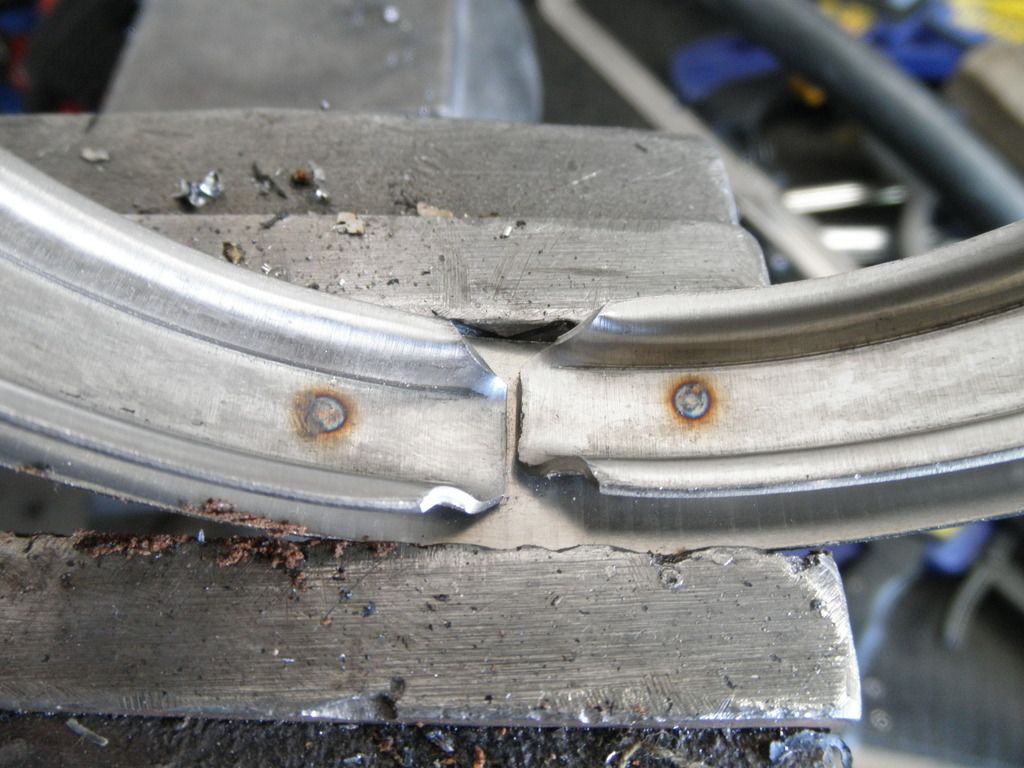

I got the right size band clamp in. I cut down the stock exhaust brace and welded a piece of 1" angle to it, holes, etc.




It works great.



when I go to wrap the dp, should I just stop at the band clamp? or should I clamp over the wrap with a larger clamp?

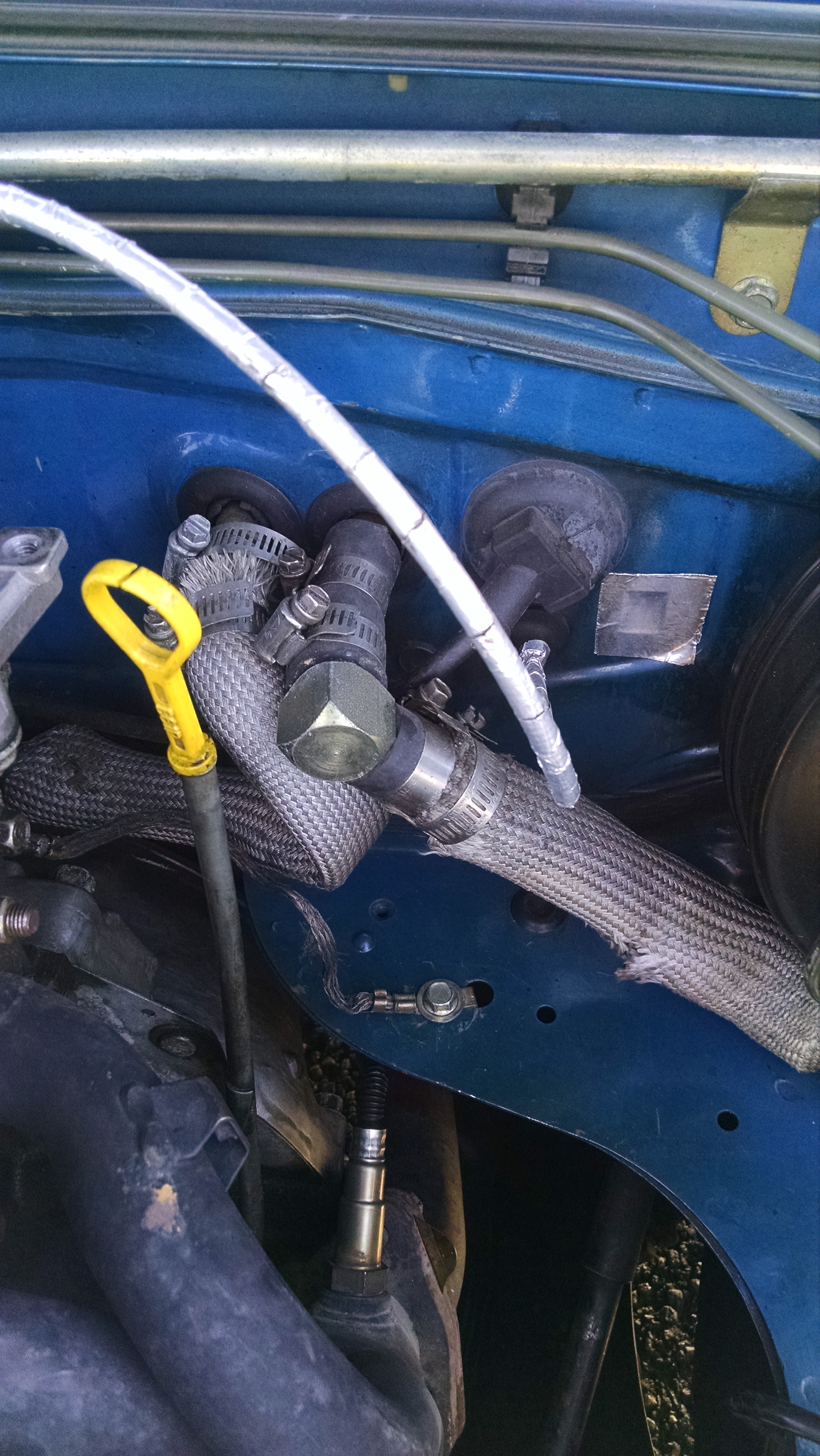

I also got to bend my hood prop back into a straight line! For those just joining us, I had to bend it around the DIY NA intake I had made for it. Its nice to get those few extra "s back.




I wasnt able to fit the IAT into the intercooler end tank. There is just no room the way I have it mounted. So I drilled and tapped the aluminum 45 right after the silicone 90 elbow coming out of the intercooler. The sensor is just outside the flow path of the air exiting the rad, but we will have to see how heat soak does.
Attached Thumbnails
sean's cheap thrills, 90 1.6 with subaru td04-80-p8030137_zpspsygcvte_efd3a3f46f6684a67b242c8c0bd6464de2953aa9.jpg   sean's cheap thrills, 90 1.6 with subaru td04-80-p8040139_zpsbj23t3wg_ab3a090cb8e7504d523f032515a993d1f328e201.jpg   sean's cheap thrills, 90 1.6 with subaru td04-80-p8040141_zpsknbwssuj_60d2a5bb29bbb6438ff194a9eafac50db8229eec.jpg   sean's cheap thrills, 90 1.6 with subaru td04-80-p8040144_zpshswwnhni_9bff1bfec198853000ae7d0ffc2f594576267412.jpg
hi_im_sean is offline   Reply With Quote
Old 08-04-2015, 11:20 PM   #526
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,888
Total Cats: 1,268
Default

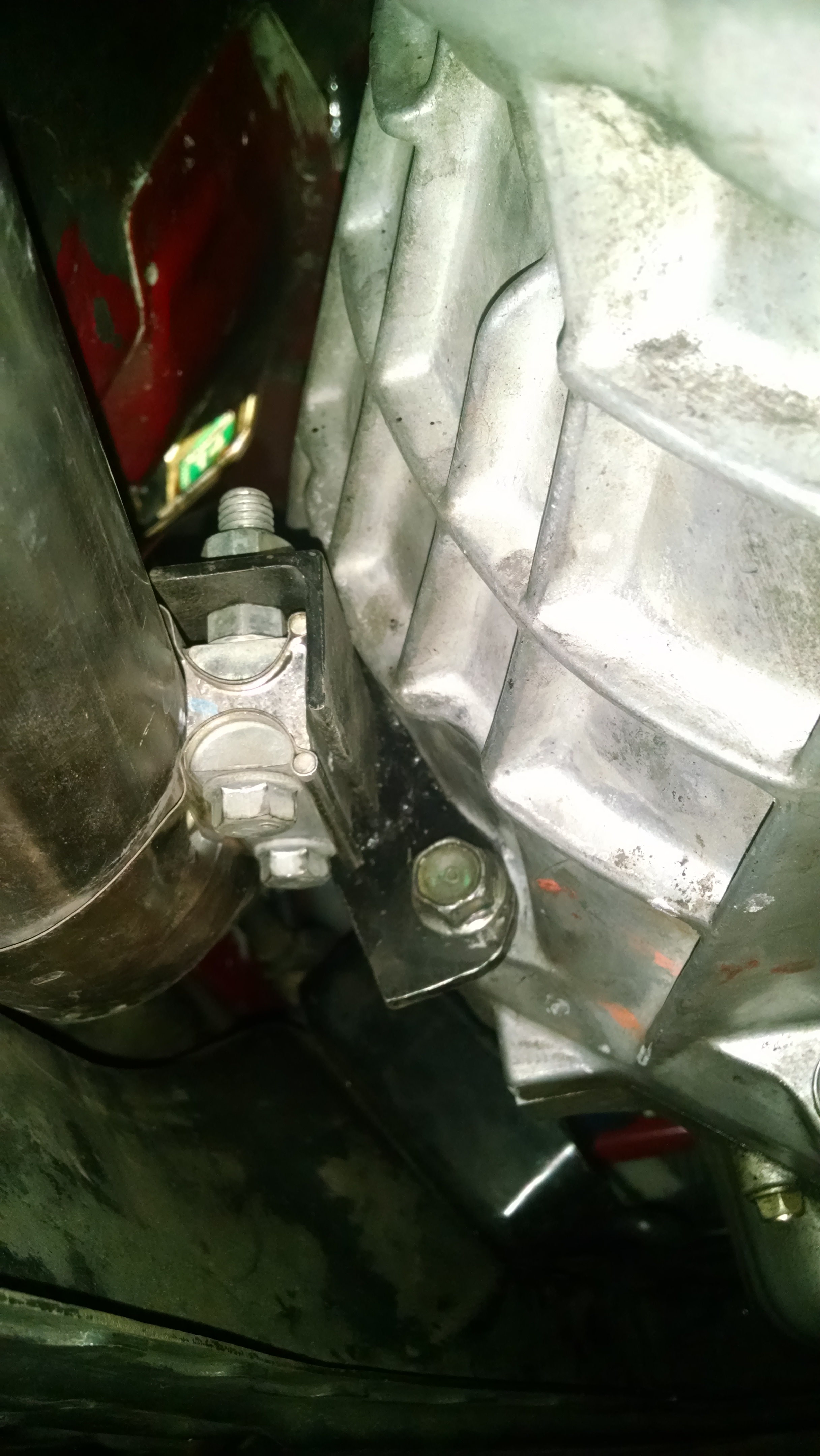

<p>Twinning!</p><p></p>
Attached Thumbnails
sean's cheap thrills, 90 1.6 with subaru td04-ygy8ymc.jpg
aidandj is offline   Reply With Quote
Old 08-04-2015, 11:28 PM   #527
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,631
Total Cats: 495
Default

Quote:
Originally Posted by aidandj View Post
aidans brace
Awesome!

The design of your clamp works better for this. if you dont preload the clamp up against the angle iron with mine, the clamp preloads the pipe when you cinch everything down. Through bolting may help.
hi_im_sean is offline   Reply With Quote
Old 08-04-2015, 11:30 PM   #528
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,888
Total Cats: 1,268
Default

<p>Kind of. Those top bolts are im-*******-possible to reach. So the brace never gets disconnected from the downpipe. The design was good, just not enough room.</p>
aidandj is offline   Reply With Quote
Old 08-04-2015, 11:30 PM   #529
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,888
Total Cats: 1,268
Default

<p>Also, do you just buy kawi green by the gallon?</p>
aidandj is offline   Reply With Quote
Old 08-04-2015, 11:34 PM   #530
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,631
Total Cats: 495
Default

Quote:
Originally Posted by aidandj View Post
<p>Kind of. Those top bolts are im-*******-possible to reach. So the brace never gets disconnected from the downpipe. The design was good, just not enough room.</p>
Mine arent the easiest, but it doesnt take more than a minute. Its now the hardest part of my DP removal/install.

Quote:
Originally Posted by aidandj View Post
<p>Also, do you just buy kawi green by the gallon?</p>
Yes.

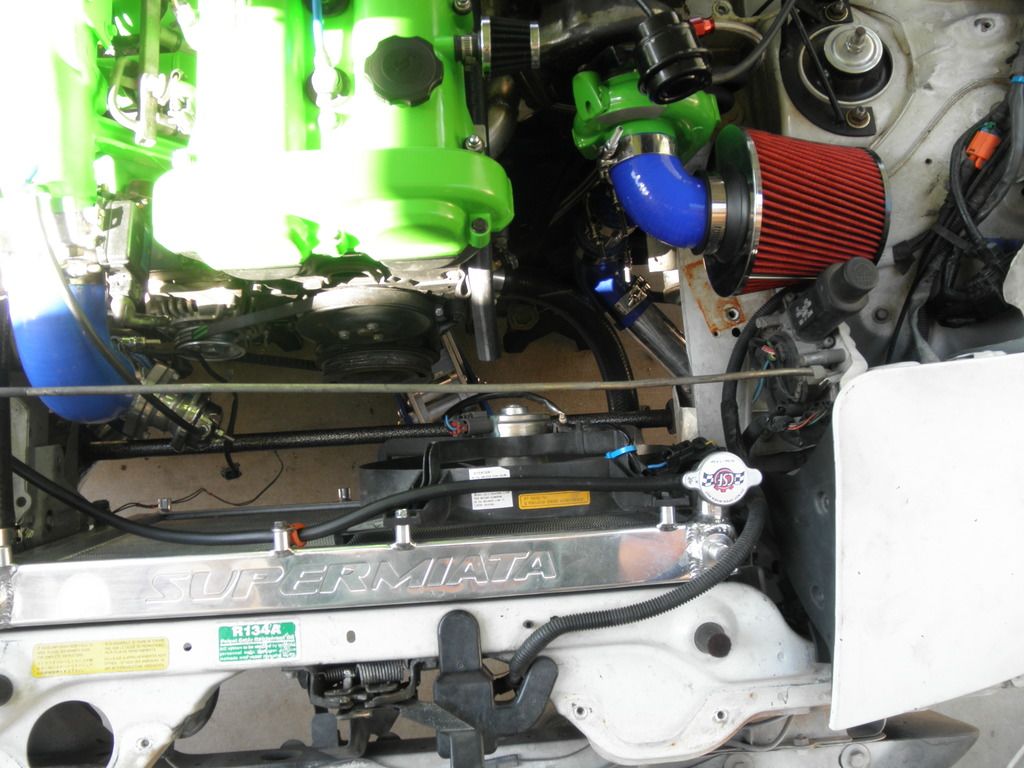

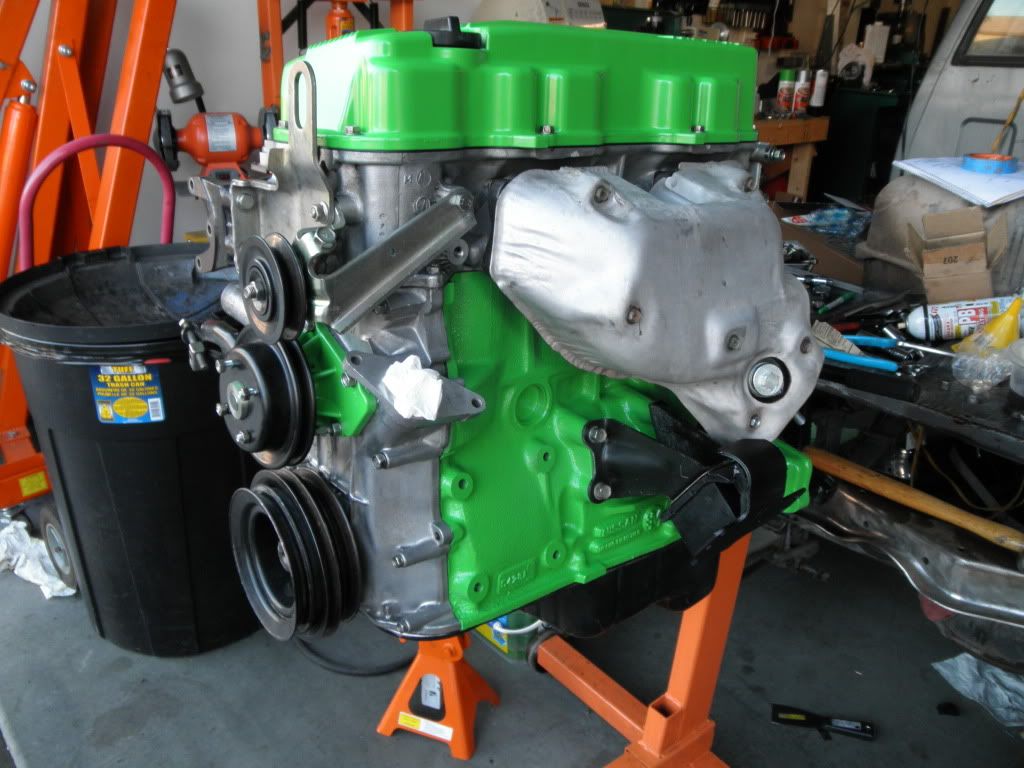

The most recent Nissan I built.

Attached Thumbnails
sean's cheap thrills, 90 1.6 with subaru td04-80-p2030046_3cdb2f9c98532dd134233f34885d4c89408338d0.jpg
hi_im_sean is offline   Reply With Quote
Old 08-05-2015, 01:21 AM   #531
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,888
Total Cats: 1,268
Default

<p>You have a problem.</p>
aidandj is offline   Reply With Quote
Old 08-06-2015, 06:35 PM   #532
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,631
Total Cats: 495
Default

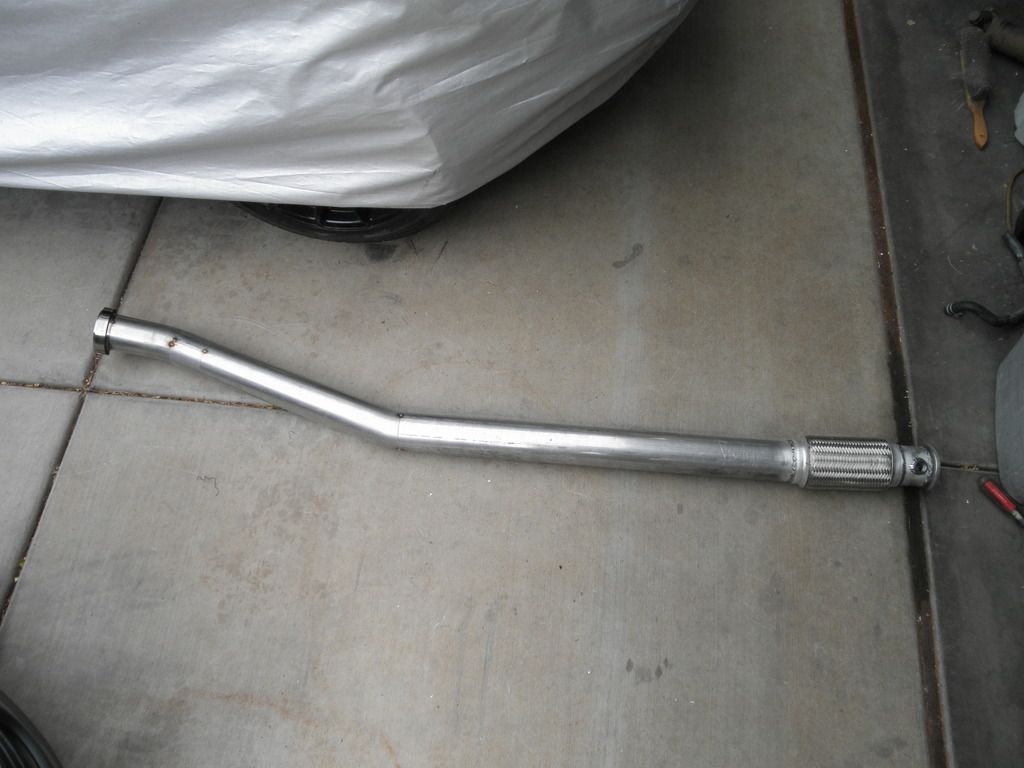

3" mid pipe bitches

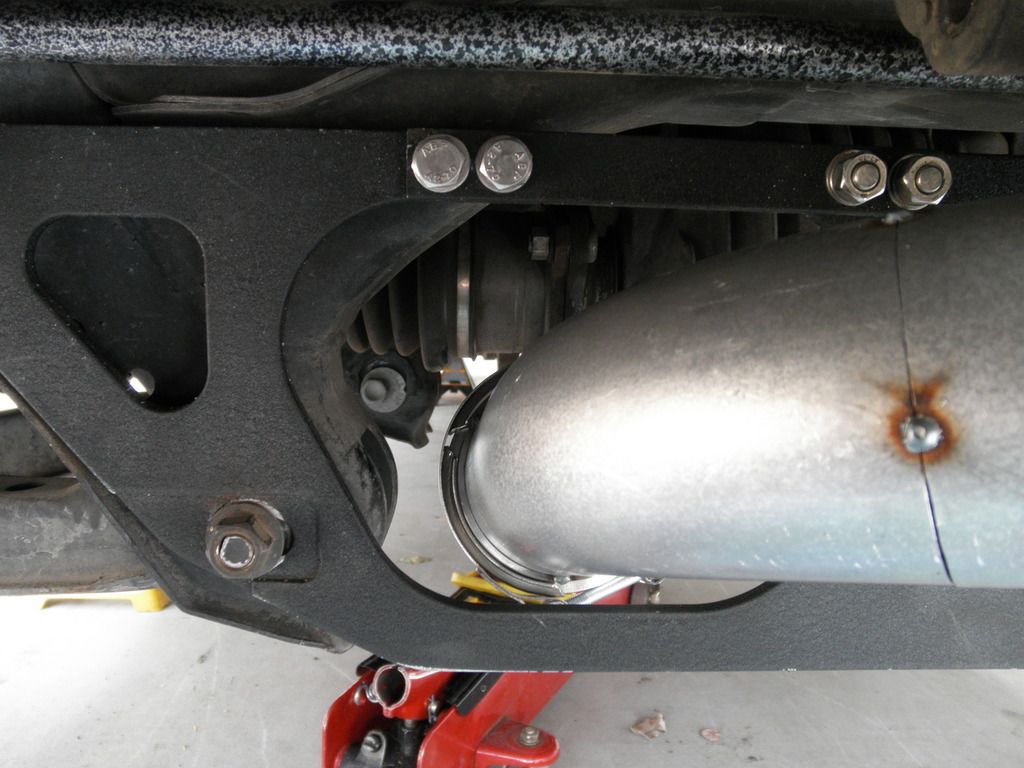

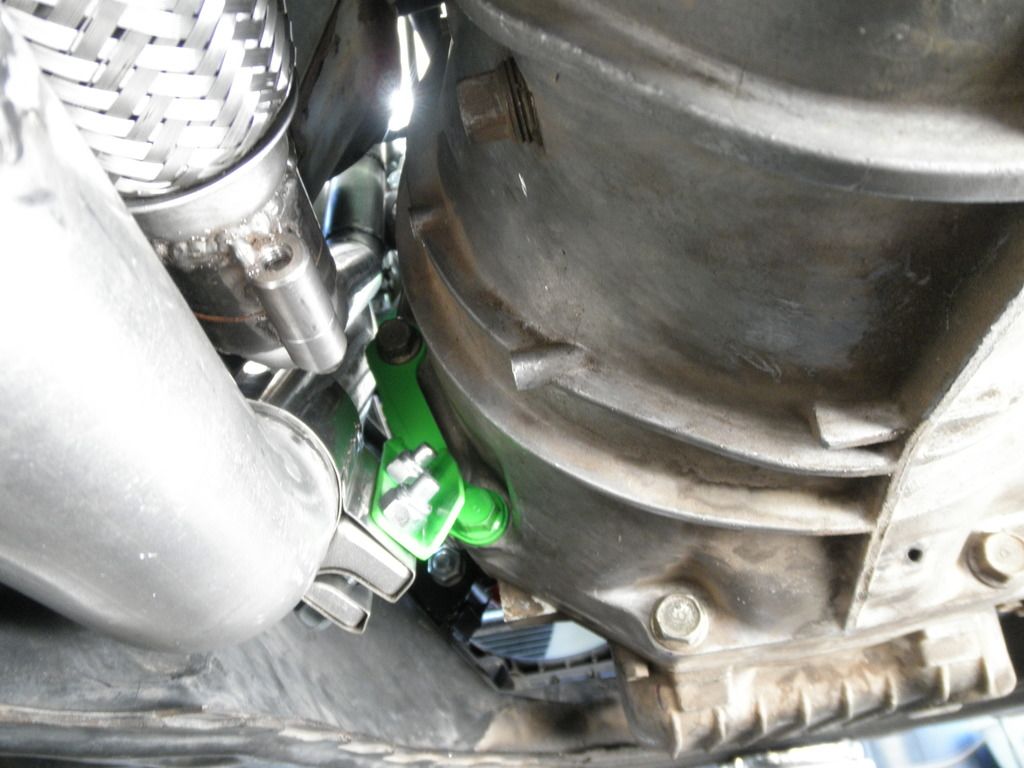

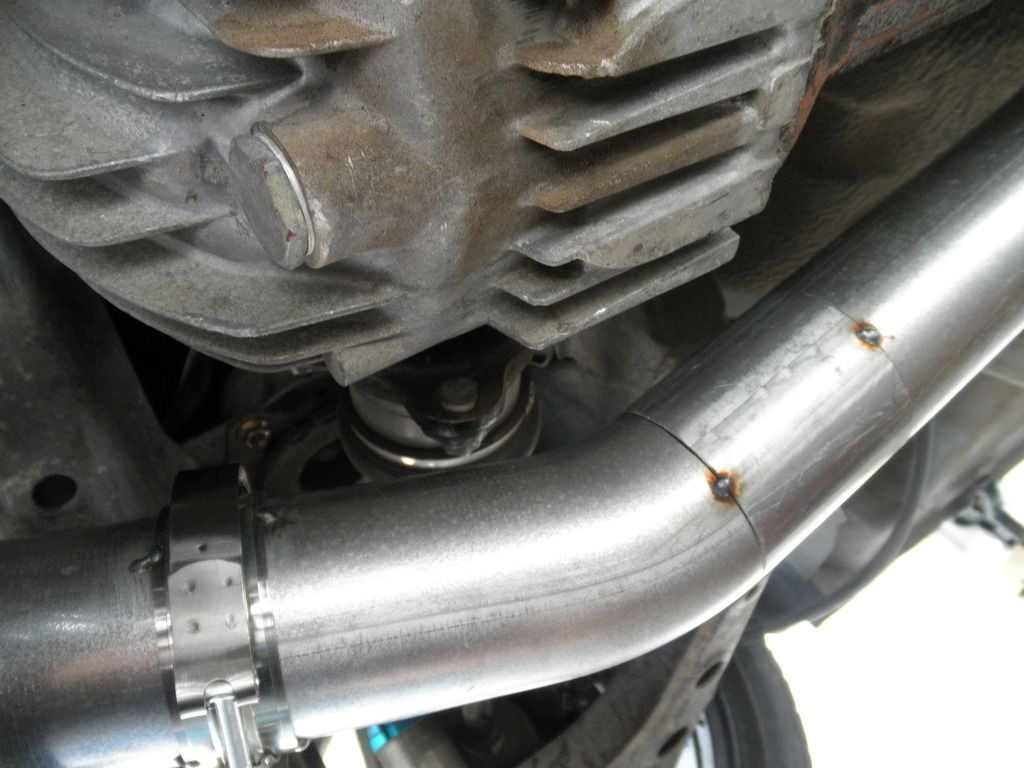

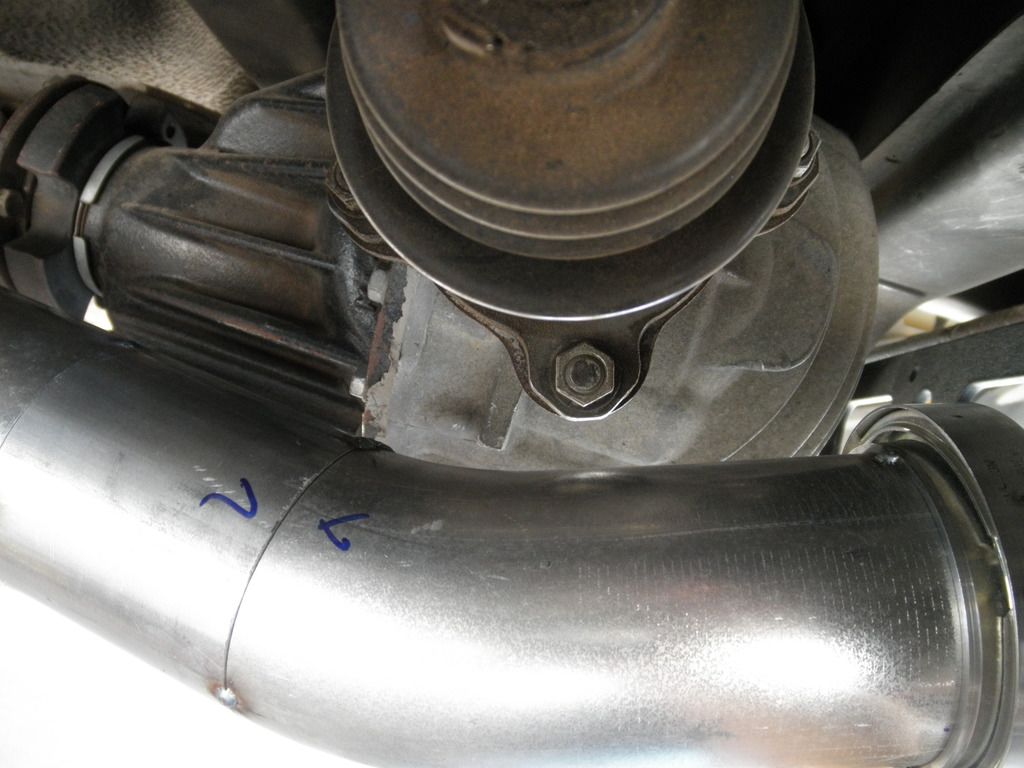

Diff and brace clearance is perfect. I was worried about this part, but it came out really well. The lowest part of the exhaust where it dips down to clear the axle flange is at the same height as the PPF bolts, and just a little above the frame rail plane. Which means very little chance of ever scraping.

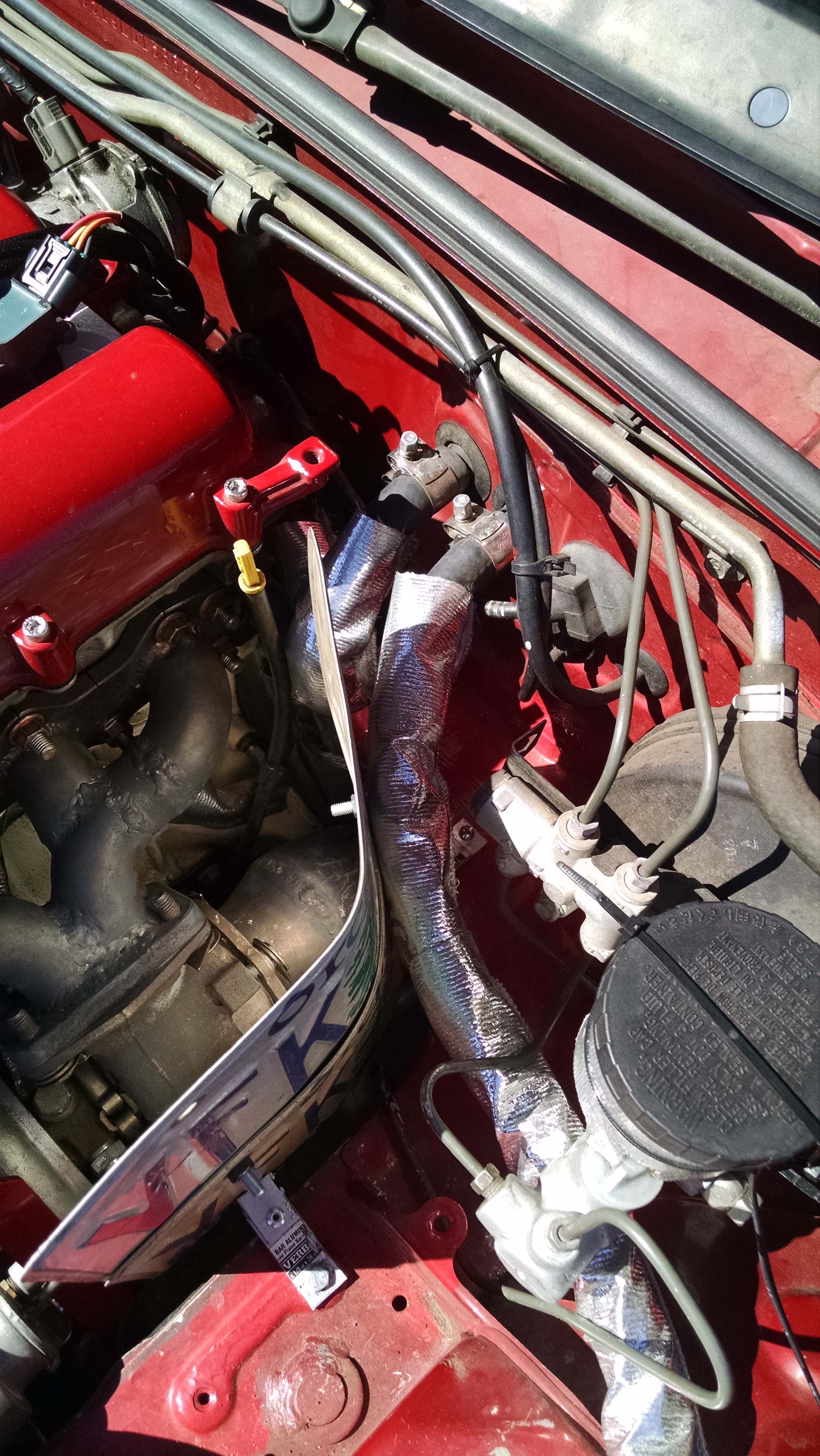

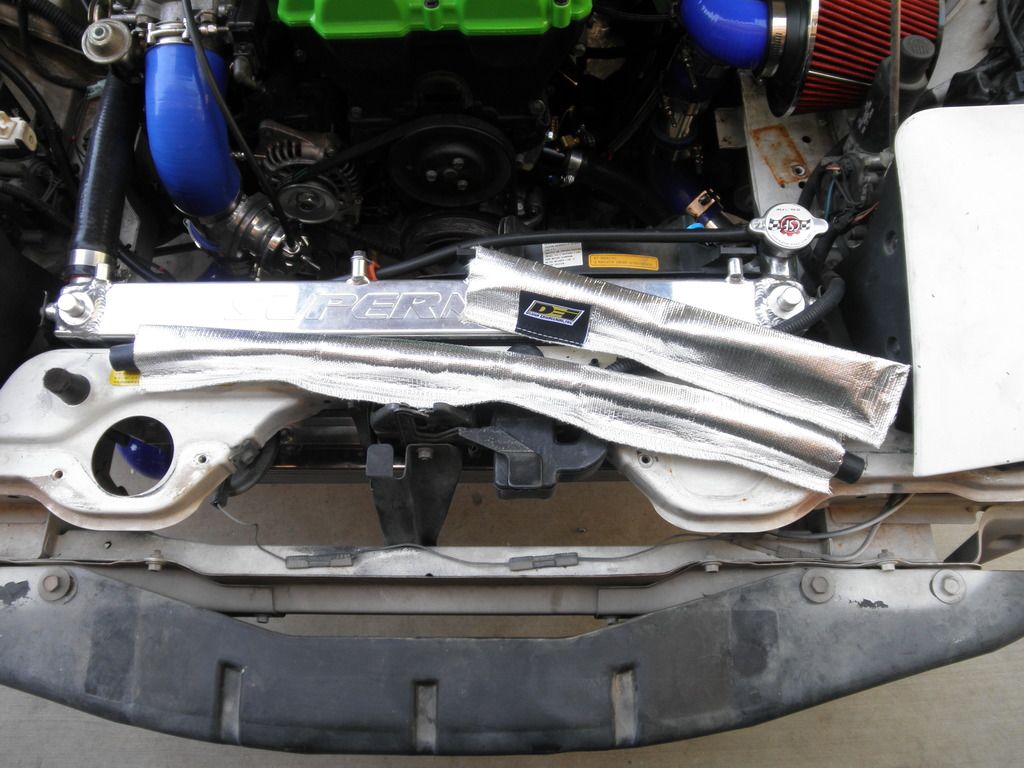

With the heat sleeve on the heater hose, it now kinks coming off the firewall the way I have to make it bend. Routing it around the other side of the turbo near the fenderwell is so unclean to me. I have an elbow im going to try and splice in and see if I can keep the routing I want.




Still need to finish weld everything rear of the flex coupler, weld on hangers using the stock mounts, hopefully, and weld on the muffler and a tip. Then I can rewire the IAT at the boomslang, and tune.

edit- received my 35ft of 2" titanium wrap from ebay, need to do that too.
Attached Thumbnails
sean's cheap thrills, 90 1.6 with subaru td04-80-p8061254_zpsgfbbf7i9_c10d39e5dc2c9bba22ee2347f2878268400ad1a3.jpg   sean's cheap thrills, 90 1.6 with subaru td04-80-p8061257_zps1icwaojf_fb69480dc908ddc235e1d77bd13158605a25cfc3.jpg   sean's cheap thrills, 90 1.6 with subaru td04-80-p8061258_zpsxetf1425_e16efe1e3e8bc3e2dff13f3a05c3c1ca605f8716.jpg   sean's cheap thrills, 90 1.6 with subaru td04-80-p8061260_zpsn4i3qvtb_6537893fa74307851a2ab84e712afb0a2c4d77d2.jpg   sean's cheap thrills, 90 1.6 with subaru td04-80-p8051252_zpsx8tbxev4_6eda9d1678e40fd842a80f1e66dbabac2eba336b.jpg

hi_im_sean is offline   Reply With Quote
Old 08-06-2015, 06:49 PM   #533
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,888
Total Cats: 1,268
Default

Curly's car:
<br />
<br />
<br />My car:
<br />
<br />
Attached Thumbnails
sean's cheap thrills, 90 1.6 with subaru td04-nnwk30p.jpg   sean's cheap thrills, 90 1.6 with subaru td04-3xeu2bf.jpg
aidandj is offline   Reply With Quote
Old 08-06-2015, 07:09 PM   #534
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,631
Total Cats: 495
Default

The way yours is routed is my plan B.
hi_im_sean is offline   Reply With Quote
Old 08-06-2015, 07:24 PM   #535
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,888
Total Cats: 1,268
Default

Remember, mine goes to a T in the lower rad hose. Not the mixing manifold.
aidandj is offline   Reply With Quote
Old 08-06-2015, 08:47 PM   #536
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,631
Total Cats: 495
Default

Ive already mocked it up, it would return right under the turbo and become part of the octopus. I have a few old hoses laying around with 90s in them, ill come up with something. luckily I went way oversize on the heat sheath at 1-1/4" so it should fit over any hose clamps too.
hi_im_sean is offline   Reply With Quote
Old 08-06-2015, 08:54 PM   #537
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,631
Total Cats: 495
Default

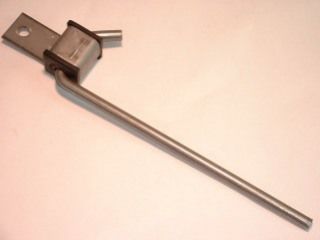

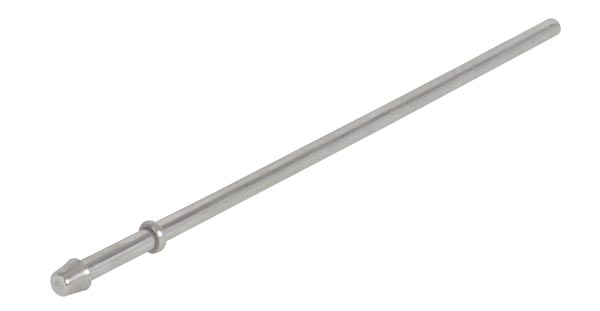

Also, I just got home from driving around for an hour and a half looking for these things:




I thought they would be common, apparently not. Im going to see if one of the exhaust shops around has any they can hook me up with. If not, im going to go buy some 5/16"(or whatever size it is) rod and just bend the ends like this one:


Attached Thumbnails
sean's cheap thrills, 90 1.6 with subaru td04-vib1198_1199_v1.jpg   sean's cheap thrills, 90 1.6 with subaru td04-80-1368588732_universal_rod_exhaust_hanger_57fc0aaca97bda31e20ea3621eb39d7f9208b631.jpg
hi_im_sean is offline   Reply With Quote
Old 08-06-2015, 09:48 PM   #538
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,888
Total Cats: 1,268
Default

Rebar and weld blobs.
<br />Cool trick I saw with artechs stuff was 3 weld blobs on a rod and it makes an end. Looks cool too.
aidandj is offline   Reply With Quote
Old 08-06-2015, 09:51 PM   #539
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,631
Total Cats: 495
Default

Im not down with the western theme, but weld blobs occured to me after I posted, thatll work.
hi_im_sean is offline   Reply With Quote
Old 08-07-2015, 03:15 PM   #540
SadFab CEO
Thread Starter
iTrader: (3)

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,631
Total Cats: 495
Default

This is just for you Aidan.

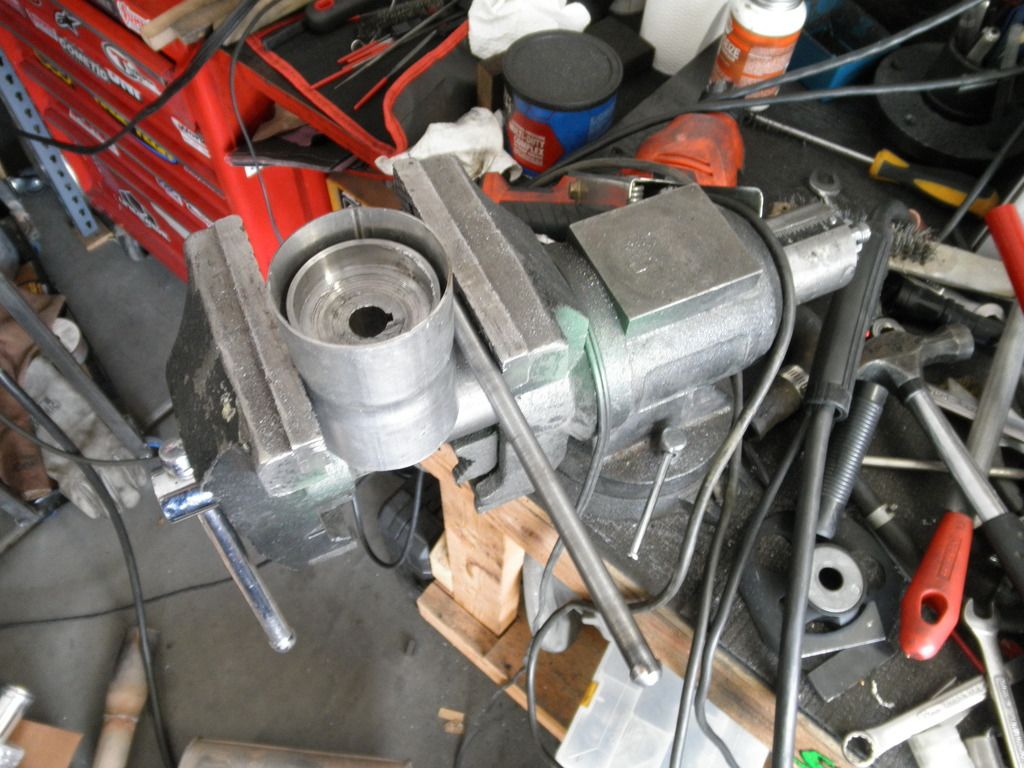

I managed to reuse the stock muffler hanger, and ended up making one more. All I had on hand was some 5/8"" stock laying around, so i turned an 8" length down to 3/8", welded on some blobs, cleaned up and chamfered on the lathe.

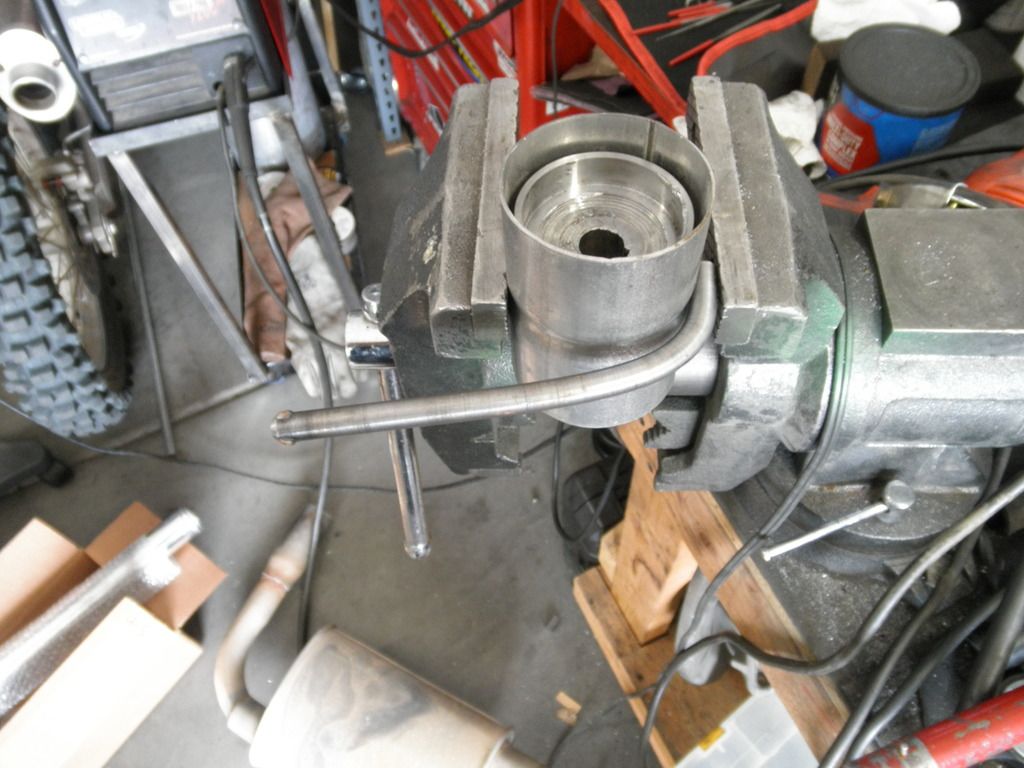

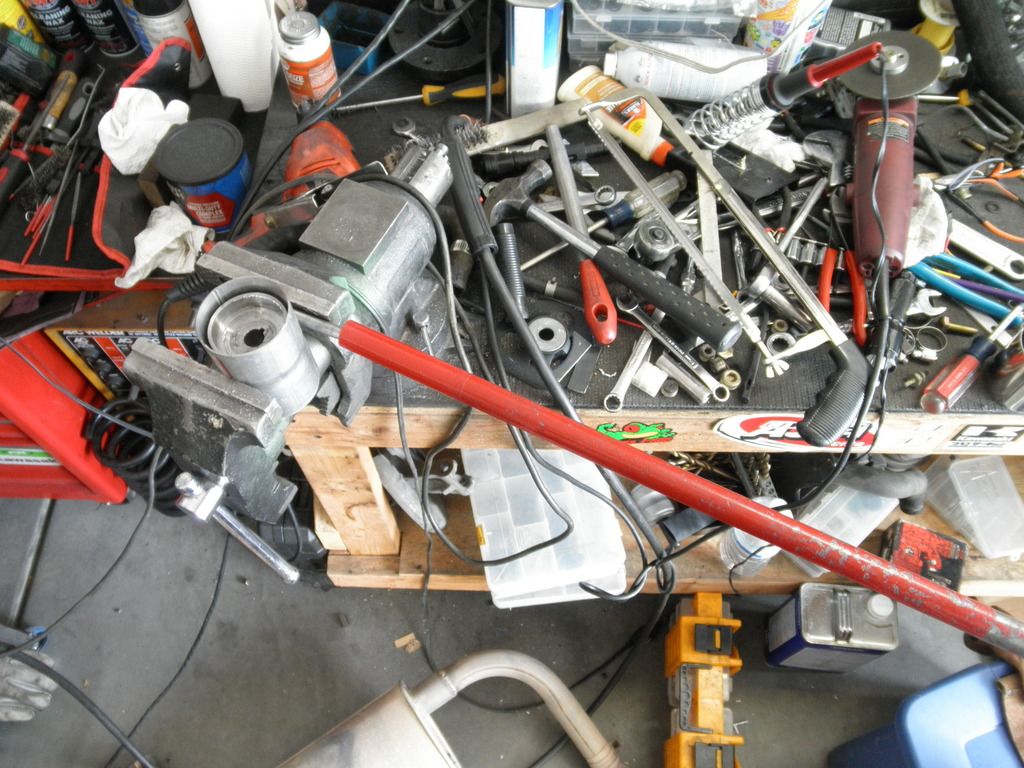

I made a bender die lol










Wrapping the DP next, then im going to "permanently" install everything.
Attached Thumbnails
sean's cheap thrills, 90 1.6 with subaru td04-80-p8071265_zpsdnsvff8o_27d4985e7e2c57147d9193b9e8aa589005fd3281.jpg   sean's cheap thrills, 90 1.6 with subaru td04-80-p8071262_zpswkj0ou4b_8c56d595181244794ea5e11960680cbe1fda0da5.jpg   sean's cheap thrills, 90 1.6 with subaru td04-80-p8071263_zpslde1kmer_61d2b82ff76d21148d5284d0796ae1134dd95d84.jpg   sean's cheap thrills, 90 1.6 with subaru td04-80-p8071264_zpsipybxmsv_86854e6967fe852e3f9cdc7d180ab70fac9eb8bf.jpg
hi_im_sean is offline   Reply With Quote
