I have 2 bolts on the back of the squaretop for grounds, I had ~10 on the 99 plenum.
hustler is offline   Reply With Quote
Old 10-27-2012, 04:41 PM   #602
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Ok, so the sensors should be grounded through the ecu and the ecu sensor ground should go to one of those grounds and things like the injectors and coils should ground to the other stud. Then all the other things that ground offsets arent important, like the radio, can be grounded like normal.
Leafy is offline   Reply With Quote
Old 10-27-2012, 05:42 PM   #603
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

anddddddddddddd my injectors are too long. ****.
hustler is offline   Reply With Quote
Old 10-27-2012, 06:04 PM   #604
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

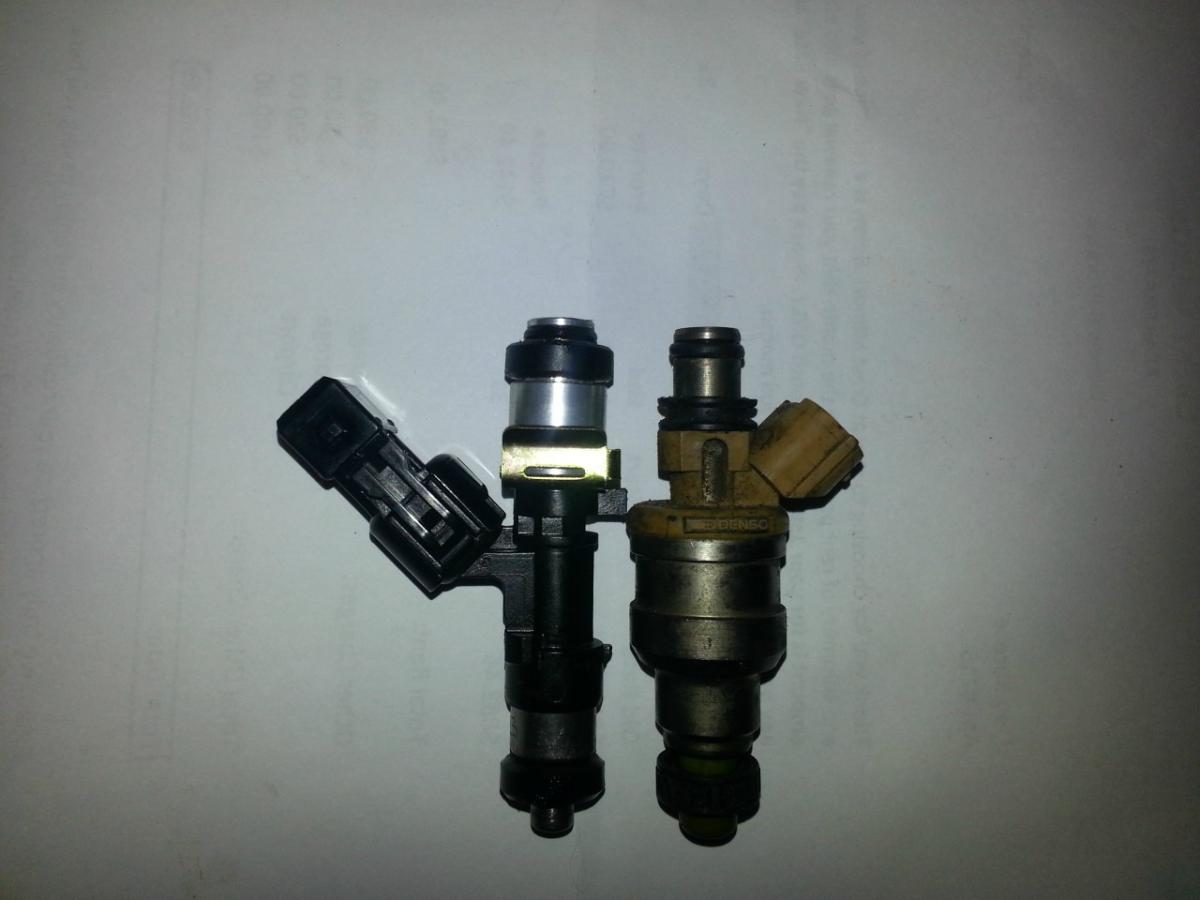

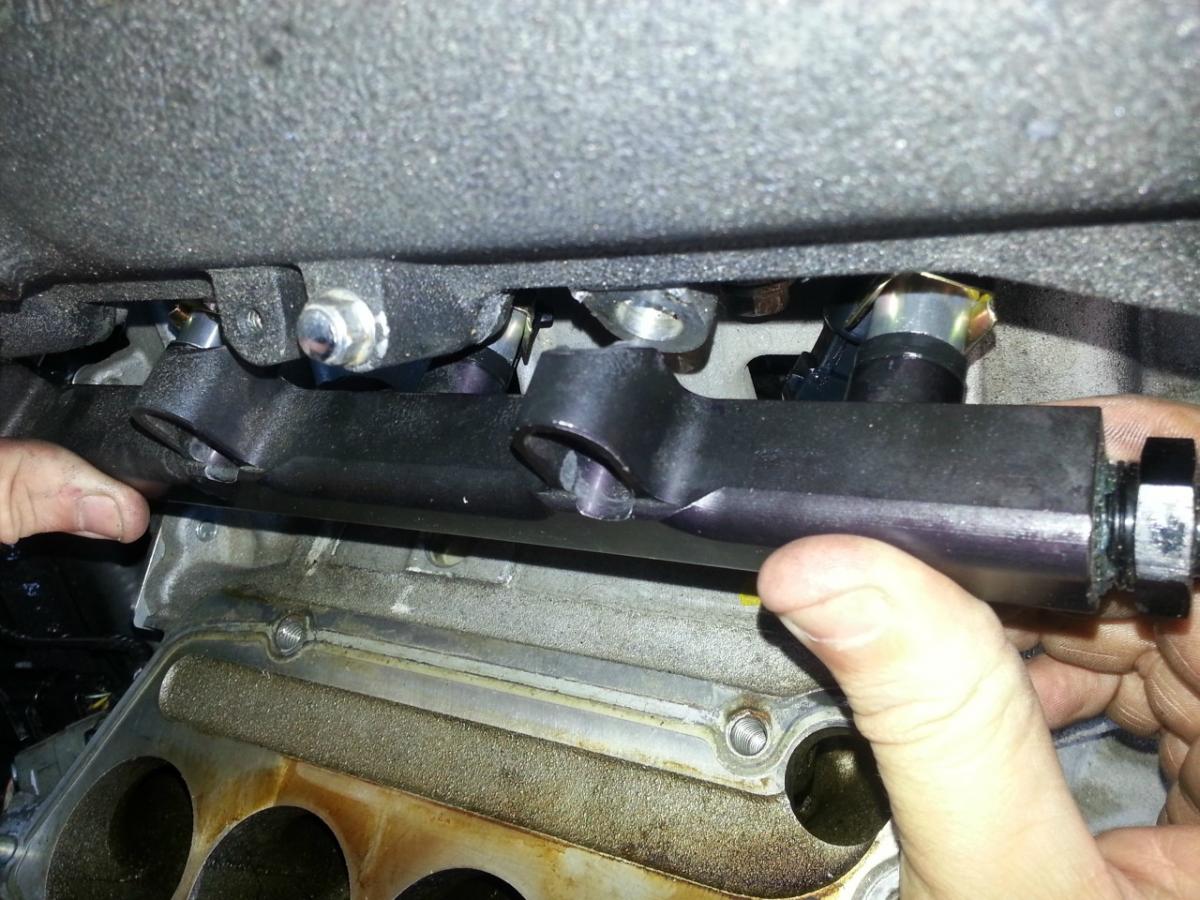

Do I need to use that little rubber isolator at the top or no?

Attached Thumbnails
Hustler's build thread 2.0, the natural aspiration connection-ucq3z.jpg   Hustler's build thread 2.0, the natural aspiration connection-ktu6e.jpg
hustler is offline   Reply With Quote
Old 10-27-2012, 07:15 PM   #605
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Looks like you could take that aluminum spacer off the new injectors and it'd be good to go. Or is that not removable? If it is you could just use the oem isolator on top.
curly is offline   Reply With Quote
Old 10-27-2012, 07:17 PM   #606
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Hmm that fuel rail doesnt have the plastic spacer? Looks like theres just enough room for it.
triple88a is offline   Reply With Quote
Old 10-27-2012, 07:29 PM   #607
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by triple88a View Post
Hmm that fuel rail doesnt have the plastic spacer? Looks like theres just enough room for it.
Even with the spacer, the gap is too large. I did not use the spacer with OEM style injectors.

Without the metal cap/fitting it won't fit in the rail.

If I remove the rubber injector spacer thingy, add the plastic fuel rail/head spacer, the gap is still too large.
hustler is offline   Reply With Quote
Old 10-27-2012, 07:36 PM   #608
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Which EV14 injectors are these?

I might be able to pull my ID1000's and measure them for you tomorrow.

Last edited by shuiend; 10-27-2012 at 07:50 PM.
shuiend is offline   Reply With Quote
Old 10-27-2012, 08:36 PM   #609
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

I took all the fuel **** apart, replaced all rubber and plastic with Mazda stuff...and now it all fits. Fancy that.
hustler is offline   Reply With Quote
Old 10-27-2012, 08:43 PM   #610
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Quote:
Originally Posted by hustler View Post
I took all the fuel **** apart, replaced all rubber and plastic with Mazda stuff...and now it all fits. Fancy that.
That is good. What is left on swapping parts over?
shuiend is offline   Reply With Quote
Old 10-27-2012, 09:18 PM   #611
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by shuiend View Post
That is good. What is left on swapping parts over?
Need to get a cam gear, put on the 4-tooth CKP, wire the CMP, wire the CMP, wire the injectors and water-temp, run two wires for sequential fuel, tune, align, crush.
hustler is offline   Reply With Quote
Old 10-28-2012, 11:48 AM   #612
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 3,049
Total Cats: 4
Default

what weight @ 161whp to stay in D?
Efini~FC3S is offline   Reply With Quote
Old 10-28-2012, 12:03 PM   #613
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

why are there isolators on the top? did you remove those yet?
Braineack is offline   Reply With Quote
Old 10-28-2012, 12:53 PM   #614
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Efini~FC3S View Post
what weight @ 161whp to stay in D?
2380lb
hustler is offline   Reply With Quote
Old 10-28-2012, 04:05 PM   #615
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Injector clippies don't fit, lol.
hustler is offline   Reply With Quote
Old 10-28-2012, 04:05 PM   #616
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Braineack View Post
why are there isolators on the top? did you remove those yet?
Yes, I thought I needed them.
hustler is offline   Reply With Quote
Old 10-28-2012, 04:45 PM   #617
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Anyone care to double-check my work before I finish the sensor wiring?


1991 car---1999 piggies

TPS
red--------grn/blk
blk/grn----grn/red
grn/wht----blk/red

CMP
blk/grn = blk/blu
red/wht = red/wht
yel/blu = gray/blu

CKP
blk/grn = blk/blu
red/wht = red/wht
white = purple (or gray/blu)

CAS Key
blk/grn = ground
red/wht = power
white = CKP
yel/blu = CMP

Last edited by hustler; 11-01-2012 at 03:53 PM.
hustler is offline   Reply With Quote
Old 11-12-2012, 10:32 AM   #618
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

USCAR Ev14 injector clippy...which side gets power? I'm about to build dem connectors.
hustler is offline   Reply With Quote
Old 11-12-2012, 11:34 AM   #619
Junior Member
iTrader: (4)

Join Date: May 2009
Location: Athens GA
Posts: 434
Total Cats: 3
Default

I don't think it matters.

-Raj
redrider706 is offline   Reply With Quote
Old 11-12-2012, 11:55 AM   #620
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by hustler View Post
USCAR Ev14 injector clippy...which side gets power? I'm about to build dem connectors.
Polarity is not important with injectors.
Ben is offline   Reply With Quote
