Old 09-26-2012, 05:00 PM   #461
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by soviet View Post
No, that means you have a 360* window for the CMP.
Just wait a day I'll confirm that my **** works then I'll post a picture of what teeth to cut off.
You had me at "180* window".
hustler is offline   Reply With Quote
Old 09-26-2012, 08:06 PM   #462
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by hustler View Post
How do I check my work without blowing-up the car?
Unplug injectors, have someone crank while you strobe the crank to check timing.
Ben is offline   Reply With Quote
Old 09-26-2012, 10:07 PM   #463
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Ben View Post
Unplug injectors, have someone crank while you strobe the crank to check timing.
Any thoughts on where the single-tooth needs to drop in respect to the crank and tooth spacing?
hustler is offline   Reply With Quote
Old 09-26-2012, 10:19 PM   #464
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

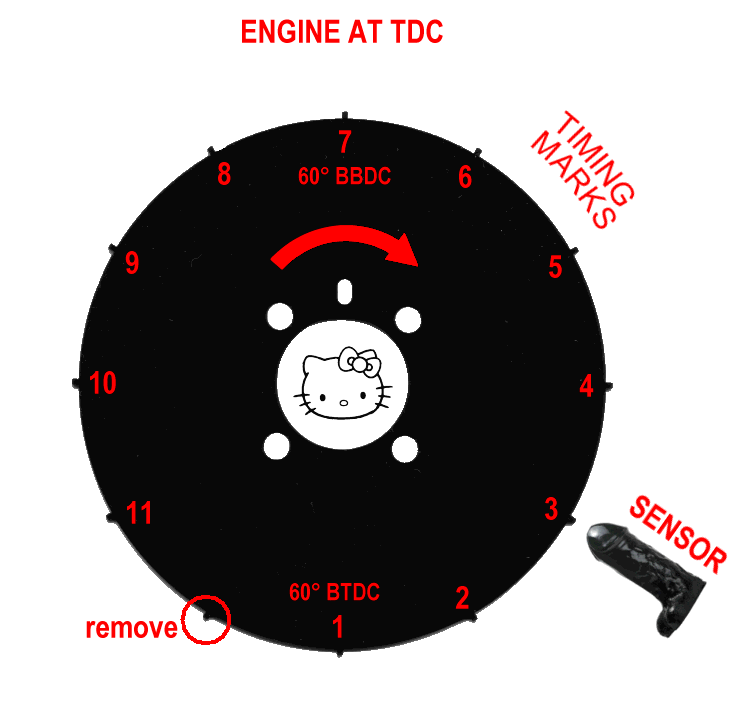

you just need to rotate the CAS so that tooth #1 on your 12-1 wheel is the first tooth to pass the crank sensor after the cam sensor reads the single tooth.
Braineack is offline   Reply With Quote
Old 09-26-2012, 10:38 PM   #465
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Is this the promise land?

then, I just go to the tooth-logger and count the number of teeth and make sure the CMP is dropping just before tooth #1, right? In my case, that's 2-teeth after the space, right?


So the CMP needs to drop between teeth 2 and 3?

Logger should look like:
___________ . __________________.___________________.___________ _______.__________
|_|_|_|_|__|_|_|_|_|_|_|_|_|_|_|__|_|_|_|_|_|_|_|_ |_|_|__|_|_|_|_|_|_|_|_|_|__|_|_|_|_|_|_|_|_|_

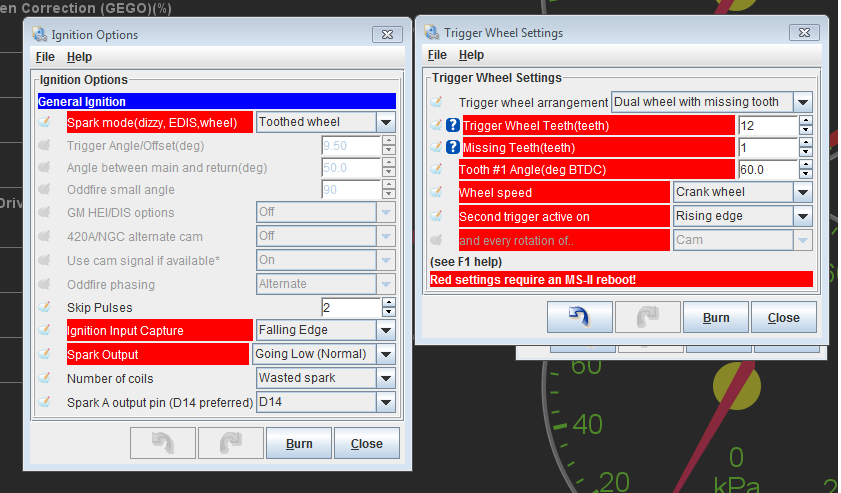

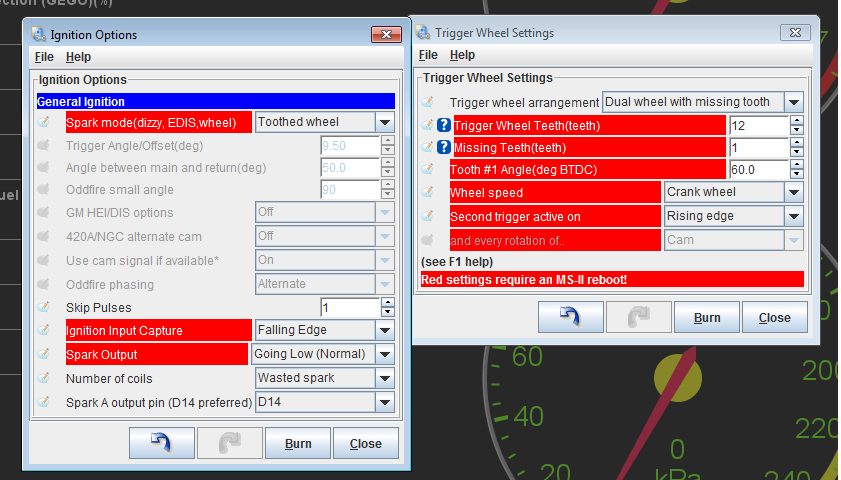

Attached Thumbnails
Hustler's build thread 2.0, the natural aspiration connection-vej62.png   Hustler's build thread 2.0, the natural aspiration connection-lwvc1.png

Last edited by hustler; 09-26-2012 at 10:53 PM.
hustler is offline   Reply With Quote
Old 09-27-2012, 09:16 AM   #466
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by hustler View Post
Any thoughts on where the single-tooth needs to drop in respect to the crank and tooth spacing?
Shown in painful detail in the manual:
MS2-Extra Dual Wheel Manual
Ben is offline   Reply With Quote
Old 09-27-2012, 10:21 AM   #467
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

this might help:





i believe that's correct.

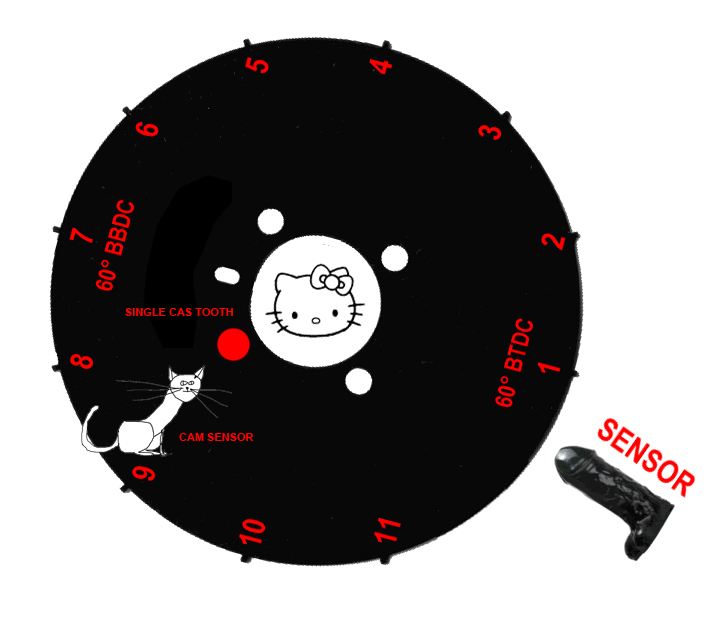

Attached Thumbnails
Hustler's build thread 2.0, the natural aspiration connection-wheel_setup.jpg
Braineack is offline   Reply With Quote
Old 09-27-2012, 11:03 AM   #468
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Ben View Post
Shown in painful detail in the manual:
MS2-Extra Dual Wheel Manual
I've read that, it never speaks to where the CMP sensor should drop on a -1 CKP wheel.

Quote:
Originally Posted by Braineack View Post
this might help:





i believe that's correct.
Meow that is something I can understand.
hustler is offline   Reply With Quote
Old 09-27-2012, 11:11 AM   #469
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

Quote:
Originally Posted by hustler View Post
I've read that, it never speaks to where the CMP sensor should drop on a -1 CKP wheel.
yes it does:

Quote:
Tooth #1 is the first tooth to pass the main sensor after the single tooth has passed the second sensor


edit: aw crap, that's the non-missing tooth chart. let me re-read and update the wheel if needed.


acutally, looks like it doesnt matter as long as they dont overlap:

Quote:
With a missing-tooth main wheel, the missing tooth provides the main position reference to the Megasquirt. The cam signal should occur away (not co-incident with) the missing tooth, the exact angle is irrelevant, so long as they NEVER overlap.
that's even easier.
Braineack is offline   Reply With Quote
Old 09-27-2012, 11:21 AM   #470
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Quote:
Originally Posted by Braineack View Post
that's even easier.
That's what I tried, (quite badly I might add), to say before. The cam position signal can go anywhere really just as long as it doesn't cross the missing tooth.

You basically have almost a full crank revolution to play with.

Hustler, you're making this much harder than it really is
richyvrlimited is offline   Reply With Quote
Old 09-27-2012, 11:25 AM   #471
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Miataturbo built my hot poz rod.

So basically, my process is:
  1. Set engine at TDC
  2. Rotate crank 360*
  3. Make sure CMP/CAS tooth crosses pick-up in the next 300* (missing tooth area reduces CMP window by 60*)
  4. pull the plugs, flood clear, look at the logs, ask MT if it's okay to crank
  5. win at HPDE
hustler is offline   Reply With Quote
Old 09-27-2012, 11:25 AM   #472
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

you have to use a 2nd grader reading level for him. that's why pictures are helpful.
Braineack is offline   Reply With Quote
Old 09-27-2012, 11:33 AM   #473
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Braineack View Post
I sit down to make #1.
We know. Keep this kind of **** out of my thread. I've contacted the internet police, consequences will never be the same.


But seriously, thanks for all the help. I will buy you beers next time I go to the liberal bee-hive of DC.
hustler is offline   Reply With Quote
Old 09-27-2012, 11:35 AM   #474
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

Absoltuely come back and visit, DC is not the same without you, even but for a week.

Last edited by Braineack; 09-27-2012 at 11:48 AM.
Braineack is offline   Reply With Quote
Old 09-27-2012, 11:54 AM   #475
Elite Member
iTrader: (5)

pusha's Avatar

Join Date: Nov 2009
Location: Miami, FL
Posts: 7,363
Total Cats: -32
Default

Treyvon Lmk when you go to DC because I'm trying to plan my trip up there soon.
pusha is offline   Reply With Quote
Old 09-27-2012, 11:56 AM   #476
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,206
Total Cats: 2,587
Default

in for 3way harmonica
18psi is offline   Reply With Quote
Old 09-27-2012, 12:11 PM   #477
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by pusha View Post
Treyvon Lmk when you go to DC because I'm trying to plan my trip up there soon.
Sorry, my phone isn't working that day. lolol
hustler is offline   Reply With Quote
Old 09-27-2012, 12:23 PM   #478
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by hustler View Post
I've read that, it never speaks to where the CMP sensor should drop on a -1 CKP wheel.
For realzies?


Quote:
Originally Posted by teh manual
With a missing-tooth main wheel, the missing tooth provides the main position reference to the Megasquirt. The cam signal should occur away (not co-incident with) the missing tooth, the exact angle is irrelevant, so long as they NEVER overlap.

Quote:
Originally Posted by teh manual

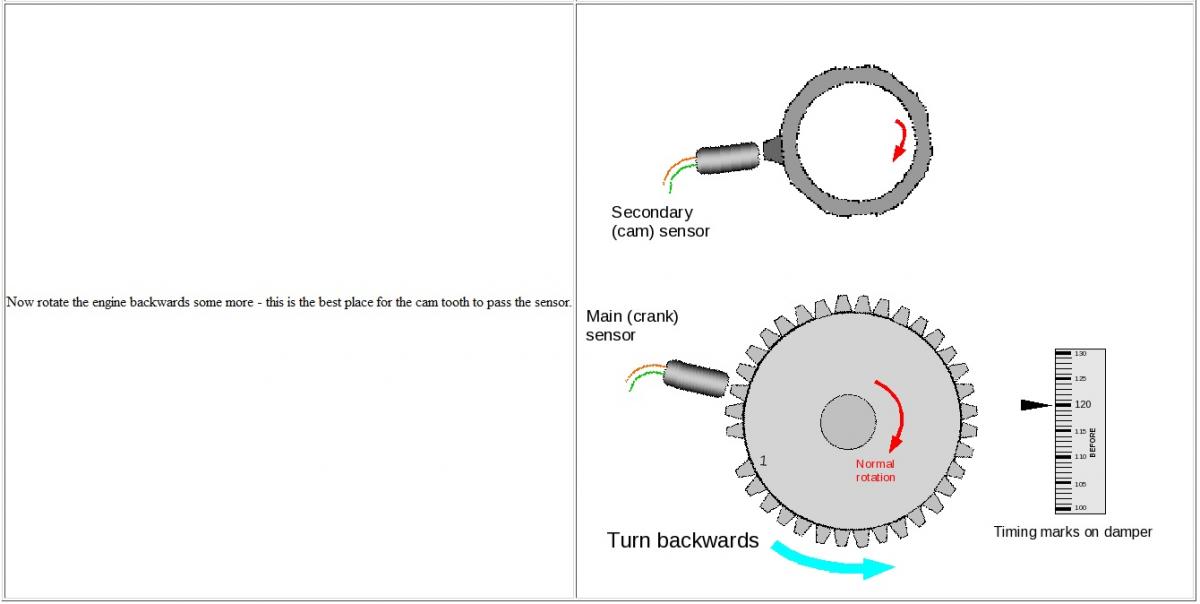

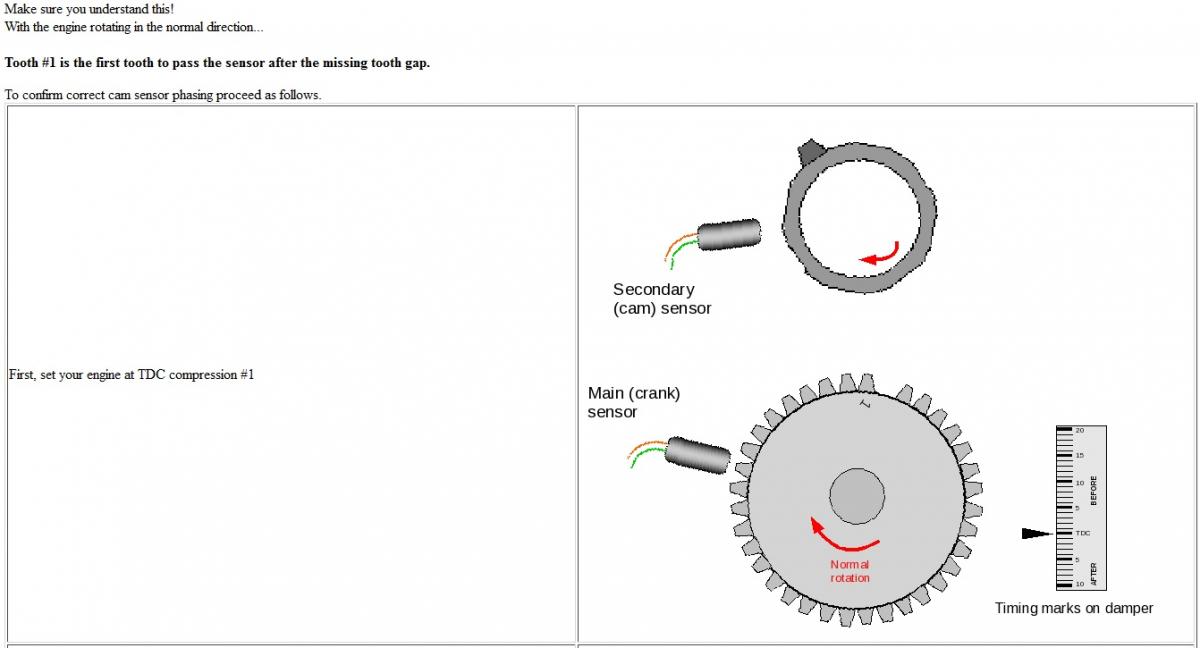

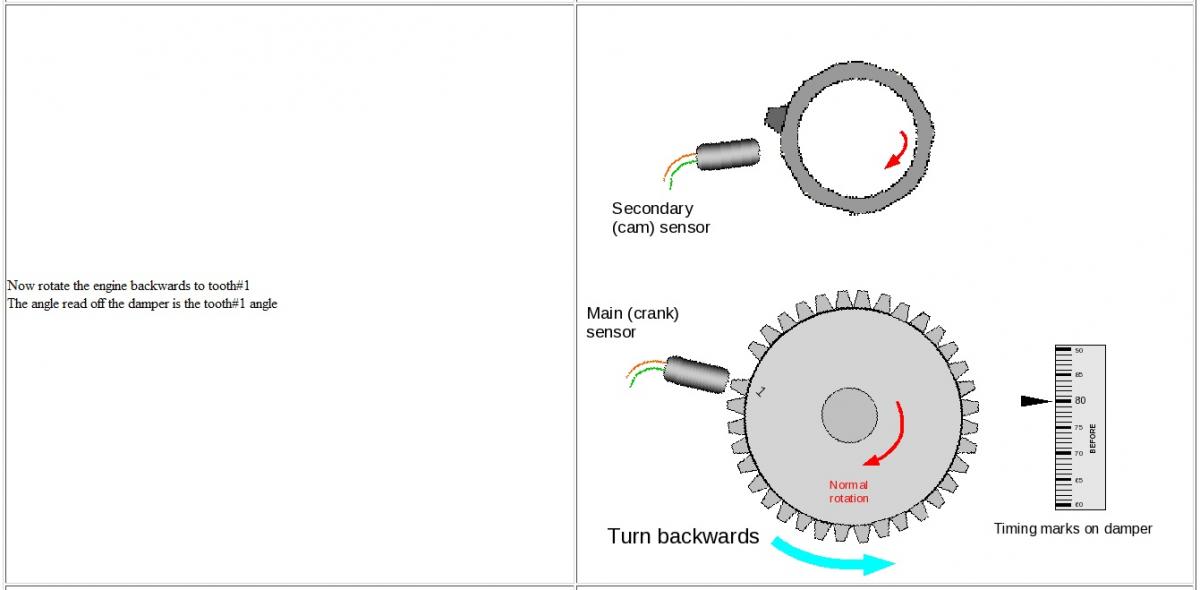

Attached Thumbnails
Hustler's build thread 2.0, the natural aspiration connection-trey-1.jpg   Hustler's build thread 2.0, the natural aspiration connection-trey-2.jpg   Hustler's build thread 2.0, the natural aspiration connection-trey-3.jpg
Ben is offline   Reply With Quote
Old 09-27-2012, 12:43 PM   #479
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Quote:
Originally Posted by Braineack View Post
omfg, three slim spade connectors and one small tube of expoy and this could have been solved a long time agao.
Quote:
Originally Posted by Leafy View Post
Sounds like something Fae would do.

Actually. What I would do is make it my bitch. Witness and learn:


I would dremel off the female plastic surrounding the prongs.

Then I would solder wires onto each prong, and heatshrink each wire.

Then I would heatshrink all three of the prongs together (yes i have big heatshrink 8x shrink too)

Then I would junkyard a nice small 3 prong connector, both male and female.

Then I would solder the connector bitch onto the wires on both sides and fluff my *****.
Faeflora is offline   Reply With Quote
Old 09-27-2012, 12:44 PM   #480
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

This is what I didn't understand from the manual, now I do. I wasn't sure how or where to enter that CMP angle, now I realize that I don't enter it anywhere.
