Old 10-01-2012, 09:09 AM   #521
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,383
Total Cats: 2,909
Default

lolol unwad your manties and install them sumbitches asap you big vagina
18psi is offline   Reply With Quote
Old 10-01-2012, 09:39 AM   #522
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,050
Total Cats: 366
Default

Quote:
Originally Posted by 18psi View Post
lolol unwad your manties and install them sumbitches asap you big vagina
Waiting on MS2.
hustler is offline   Reply With Quote
Old 10-01-2012, 09:41 AM   #523
Junior Member

Join Date: Jan 2009
Location: Sachse, TX
Posts: 103
Total Cats: 3
Default

Quote:
Originally Posted by hustler View Post
Waiting on MS2.
Me too. Then you get to tune it
MINI-P is offline   Reply With Quote
Old 10-01-2012, 10:14 AM   #524
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,383
Total Cats: 2,909
Default

Ms2+ev14= I detect large amounts of win in your future.

You're going seq fuel of course......
18psi is offline   Reply With Quote
Old 10-01-2012, 10:17 AM   #525
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,050
Total Cats: 366
Default

Quote:
Originally Posted by 18psi View Post
Ms2+ev14= I detect large amounts of win in your future.

You're going seq fuel of course......
and 12-1, and TPS. The car is going to drive a lot better and stop blowing so much fire out the back, lol.
hustler is offline   Reply With Quote
Old 10-01-2012, 09:28 PM   #526
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,050
Total Cats: 366
Default

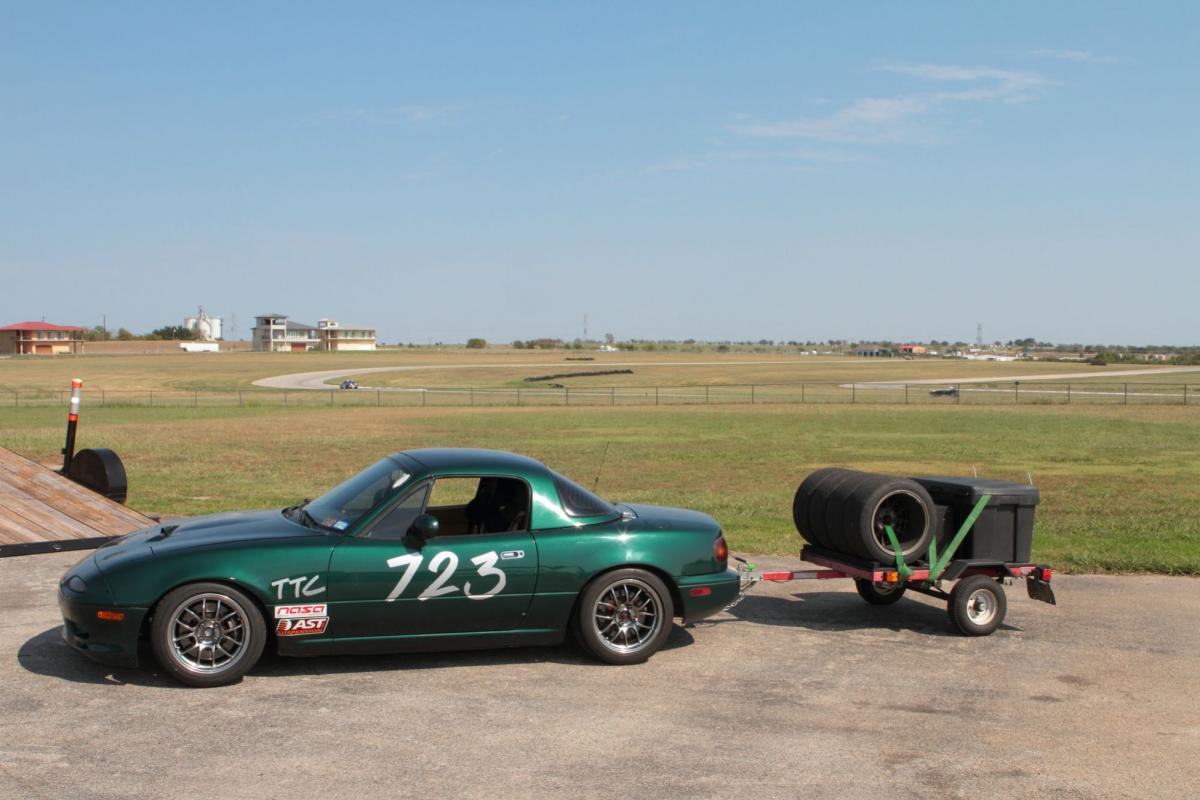

ballin on a budget:

BTW, those are 6UL "Classics".
Attached Thumbnails
Hustler's build thread 2.0, the natural aspiration connection-sn26x.jpg
hustler is offline   Reply With Quote
Old 10-01-2012, 09:55 PM   #527
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,581
Total Cats: 961
Default

With the box on the back, do you ever have trouble with the tongue popping up once the tires are unloaded and the trailer is disconnected?

I have the same chi-comm trailer, but have not committed to a configuration yet.
EO2K is offline   Reply With Quote
Old 10-01-2012, 10:03 PM   #528
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,050
Total Cats: 366
Default

Quote:
Originally Posted by EO2K View Post
With the box on the back, do you ever have trouble with the tongue popping up once the tires are unloaded and the trailer is disconnected?

I have the same chi-comm trailer, but have not committed to a configuration yet.
Yes, put the tires in the rear, box up front. I have just enough room for fuel jugs and my tool box.
hustler is offline   Reply With Quote
Old 10-01-2012, 10:08 PM   #529
Elite Member
iTrader: (24)

Join Date: Jul 2007
Location: Cypress, TX
Posts: 3,760
Total Cats: 35
Default

Quote:
Originally Posted by hustler View Post
Loads up Miata trailer. Proceeds to drive Miata with trailer onto big boss trailer in background and drive home in 1 ton dually.
Bryce is offline   Reply With Quote
Old 10-01-2012, 10:39 PM   #530
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,108
Total Cats: 626
Default

Load up the box right in the middle of the trailer, put 2 wheels on each side facing eachother and loop them around the box.
triple88a is offline   Reply With Quote
Old 10-02-2012, 12:15 AM   #531
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,050
Total Cats: 366
Default

Quote:
Originally Posted by triple88a View Post
Load up the box right in the middle of the trailer, put 2 wheels on each side facing eachother and loop them around the box.
No.
hustler is offline   Reply With Quote
Old 10-03-2012, 10:33 PM
Secint
This message has been deleted by shuiend. Reason: spam
Old 10-17-2012, 09:45 AM   #532
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,050
Total Cats: 366
Default

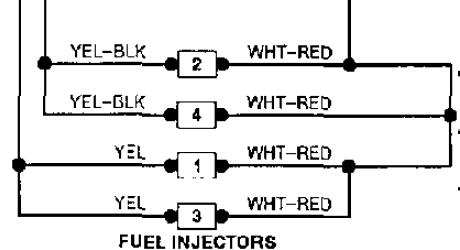

I need help on injector wiring.

Since this is a 1.6 car and I'm running an NB engine with a different firing order, which cylinder is #1 in regard to fuel injection? 4-1-2-3 means I'd rearrange the injectors, right?

I think I'll just cut the wires to #3 and #4, then wire-in the two new wires there.

I'm wiring this in with a 2001 fuel injector harness and pig-tail so it will be more work up front, but clean and simple in the long-run.
Attached Thumbnails
Hustler's build thread 2.0, the natural aspiration connection-rd6cu.png
hustler is offline   Reply With Quote
Old 10-17-2012, 10:41 AM   #533
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 73,892
Total Cats: 1,982
Default

1 3 4 2
a b c d
Braineack is offline   Reply With Quote
Old 10-17-2012, 10:46 AM   #534
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,050
Total Cats: 366
Default

Quote:
Originally Posted by Braineack View Post
1 3 4 2
a b c d
So, injector #2 is the 3rd from the timing belt?
hustler is offline   Reply With Quote
Old 10-17-2012, 10:56 AM   #535
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,447
Total Cats: 211
Default

Its injector output 2.

The MS doesn't know "cylinders", it knows injector outputs, and fires them in order A-B-C-D.

The engine firing order is 1-3-4-2.

So you need to connect output A to cylinder 1, B to 3, C to 4, and D to 2:

1 2 3 4
A D B C
Reverant is offline   Reply With Quote
Old 10-17-2012, 11:05 AM   #536
Junior Member
iTrader: (4)

Join Date: May 2009
Location: Athens GA
Posts: 434
Total Cats: 3
Default

Trey,

I have the wire splicing cheat sheet for splicing a 90 injector harness to a 2001+ injector harness at home. I will post it tonight when I get off work.

-Raj
redrider706 is offline   Reply With Quote
Old 10-17-2012, 11:23 AM   #537
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,050
Total Cats: 366
Default

Thanks. Too many variables for my simple brain right now.
hustler is offline   Reply With Quote
Old 10-17-2012, 12:24 PM   #538
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 73,892
Total Cats: 1,982
Default

wait are you keeping batch fuel?
Braineack is offline   Reply With Quote
Old 10-17-2012, 12:27 PM   #539
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,050
Total Cats: 366
Default

Quote:
Originally Posted by Braineack View Post
wait are you keeping batch fuel?
Hell no. This car barely runs on batch EV1 580cc squirters.
hustler is offline   Reply With Quote
Old 10-17-2012, 12:38 PM   #540
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 73,892
Total Cats: 1,982
Default

MS fires in order from A to D. You have to wire them in order on the engine in the correct firing order, so they fire in 1 3 4 2.

so make:

rad
clyinder 1 - injector A
clyinder 2 - injector D
clyinder 3 - injector B
clyinder 4 - injector C
firewall


I like to keep the INJ B channel on 2U (yellow) and INJ A on 2V (yellow/black) so that if you ever had to revert, or sell the unit it could still run another 90-93 batch fuel.
Braineack is offline   Reply With Quote
