Old 12-04-2012, 10:21 AM   #661
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

The crank is like 60* advanced, lol.
hustler is offline   Reply With Quote
Old 12-04-2012, 10:53 AM   #662
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Is it even worth doing a compression test on this car of should I just start taking it apart?
hustler is offline   Reply With Quote
Old 12-04-2012, 12:03 PM   #663
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Note to self: Always check the balancer for slippage, always. Even after you time the car the first time.

Supermiata damper would have saved me $1000 in head work.
hustler is offline   Reply With Quote
Old 12-04-2012, 12:06 PM   #664
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,865
Total Cats: 1,790
Default

nothing can save you.
Braineack is online now   Reply With Quote
Old 12-04-2012, 12:20 PM   #665
Junior Member
iTrader: (1)

Join Date: May 2012
Location: East Texas
Posts: 230
Total Cats: 11
Default

it sucks that the car broke, but the ***** was probably getting severed anyhow if we are being honest.
shanem is offline   Reply With Quote
Old 12-04-2012, 12:52 PM   #666
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

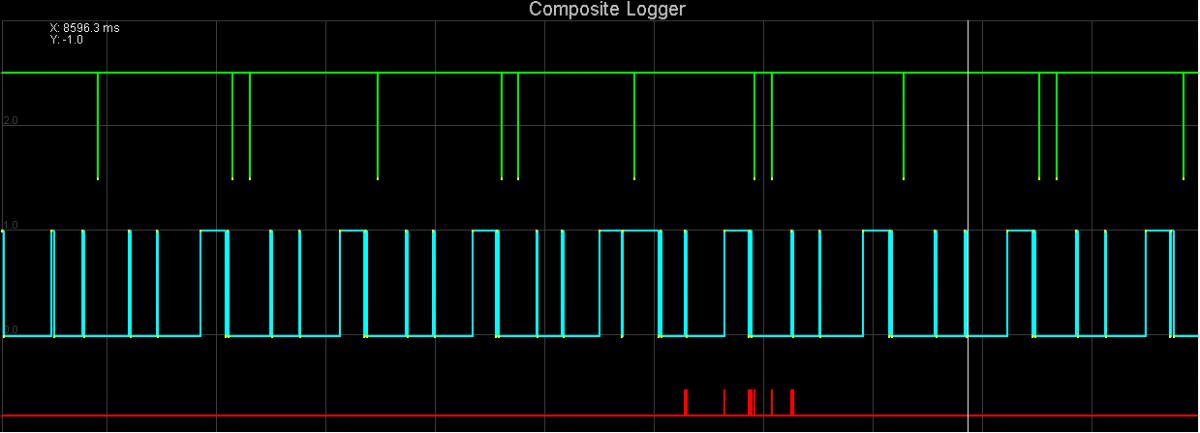

WTF does this mean?
Attached Thumbnails
Hustler's build thread 2.0, the natural aspiration connection-e5kf3.jpg
Attached Files
File Type: msl rpm.msl (94.1 KB, 53 views)
hustler is offline   Reply With Quote
Old 12-04-2012, 12:56 PM   #667
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,865
Total Cats: 1,790
Default

it got a false read on the crank.
Braineack is online now   Reply With Quote
Old 12-04-2012, 01:01 PM   #668
Junior Member
iTrader: (1)

Join Date: May 2012
Location: East Texas
Posts: 230
Total Cats: 11
Default

Quote:
Originally Posted by hustler View Post
WTF does this mean?

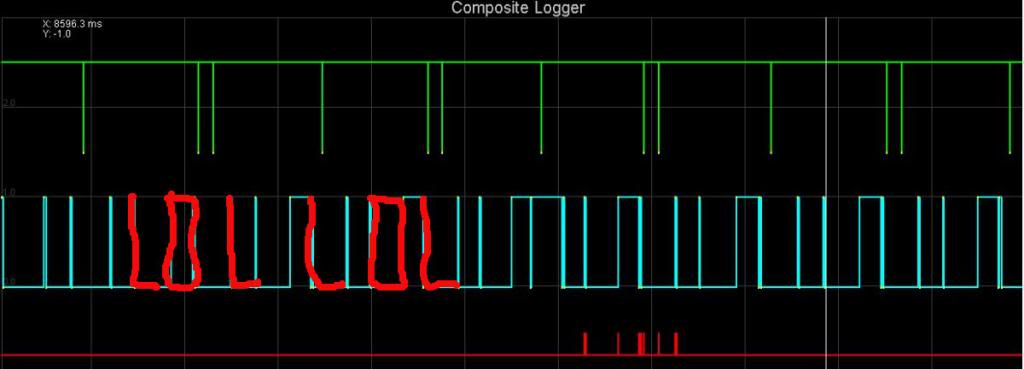

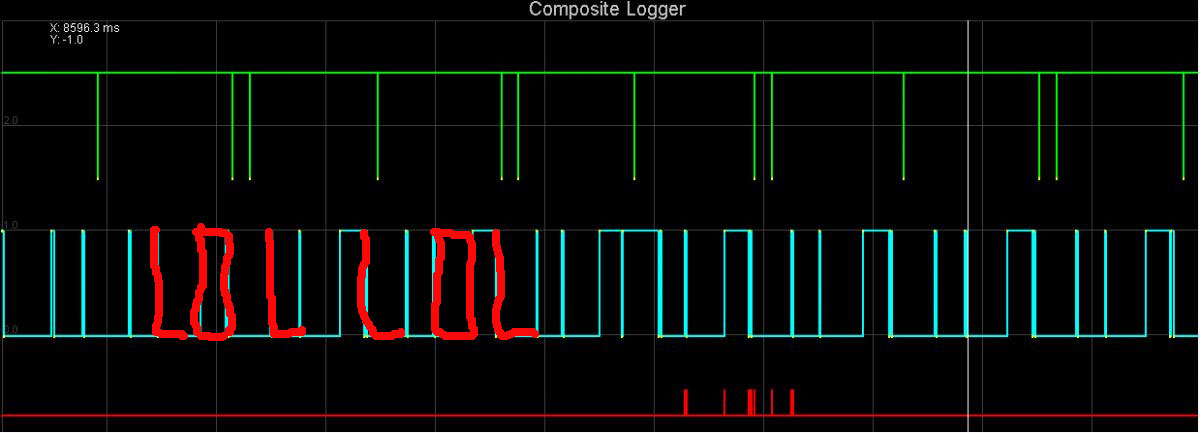

I think the car is trying to tell you something...

Name:  mean-to-hustler.jpg
Views: 6
Size:  32.0 KB

PS: done bustin' bawls now, good luck getting your **** fixed
Attached Thumbnails
Hustler's build thread 2.0, the natural aspiration connection-mean-hustler.jpg
shanem is offline   Reply With Quote
Old 12-04-2012, 01:09 PM   #669
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Braineack View Post
it got a false read on the crank.
A tooth should cross the sensor at TDE on the crank wheel, right? I guess I can play with the gap more but it's in spec.
hustler is offline   Reply With Quote
Old 12-04-2012, 01:42 PM   #670
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

anddddddddddddddddddd the new, OEM CKP sensor I bought from Mazda was bad.

Summary:
I timed the car at least 10-times, hacked my wiring harness, and finally bent all the valves in the head because of a $40 sensor.
hustler is offline   Reply With Quote
Old 12-04-2012, 03:26 PM   #671
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Sad compression #s. 160, 160, 160, 120. #4 goes back to 160psi when I add oil. I will leak it in the next couple weeks.
hustler is offline   Reply With Quote
Old 12-04-2012, 03:38 PM   #672
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,865
Total Cats: 1,790
Default

well, oil ain't going to make valves seal...
Braineack is online now   Reply With Quote
Old 12-04-2012, 04:01 PM   #673
Supporting Vendor
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,311
Total Cats: 1,335
Default

Quote:
Originally Posted by Braineack View Post
well, oil ain't going to make valves seal...
+1

#4 low indicates that engine has a lot of hours on it without a reroute. Standard wear pattern for street driven high mileage Miata with OEM cooling system.
emilio700 is offline   Reply With Quote
Old 12-04-2012, 04:23 PM   #674
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by emilio700 View Post
+1

#4 low indicates that engine has a lot of hours on it without a reroute. Standard wear pattern for street driven high mileage Miata with OEM cooling system.
This engine probably has 6-7 days at the track and 5k miles on it total since built.
hustler is offline   Reply With Quote
Old 12-04-2012, 04:25 PM   #675
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Email me your current .msq.
Reverant is offline   Reply With Quote
Old 12-04-2012, 04:28 PM   #676
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Reverant View Post
Email me your current .msq.
Tach works now. I drove around for about an hour and it started working. Still want the MSQ?
hustler is offline   Reply With Quote
Old 12-04-2012, 04:39 PM   #677
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Yes.
Reverant is offline   Reply With Quote
Old 12-04-2012, 08:25 PM   #678
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Quote:
Originally Posted by hustler View Post
Tach works now. I drove around for about an hour and it started working. Still want the MSQ?
Did the 1k resistor work?
shuiend is offline   Reply With Quote
Old 12-04-2012, 09:01 PM   #679
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

So, right now I'm thinking leak and bore scope the engine next week.

Then, since the rings are bad:
send the bottom to the local machine shop
cut-down pistons down on the exhaust side to get closer to 11.0 and help add some mechanical octane and burn duration
Put MSM cam in the SS valved head
Super(duper)Miata damper
boom
headshot

The other option is a VVT engine with rods

Thoughts on my stupidity?
hustler is offline   Reply With Quote
Old 12-04-2012, 09:01 PM   #680
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by shuiend View Post
Did the 1k resistor work?
Never got one because it started working and I've become ill, probably from huffing exhaust for two days.
hustler is offline   Reply With Quote
