Old 10-17-2012, 01:43 PM   #541
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Is there some way to get MS to help identify each injector? Since I'm using the NB injector harness, this is getting messy. I'm looking at the 1.6 diagram to get the wire colors, the NB diagram to get firing order, and then NB diagram for color. Does the NB diagram identify injectors by cylinder or order?

I have to replace the 1.6 harness. The clippies are all broken and the wire insulation turns to powder when you touch it.

Last edited by hustler; 10-17-2012 at 01:57 PM.
hustler is offline   Reply With Quote
Old 10-17-2012, 02:00 PM   #542
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Quote:
Originally Posted by hustler View Post
Is there some way to get MS to help identify each injector? Since I'm using the NB injector harness, this is getting messy. I'm looking at the 1.6 diagram to get the wire colors, the NB diagram to get firing order, and then NB diagram for color. Does the NB diagram identify injectors by cylinder or order?

I have to replace the 1.6 harness. The clippies are all broken and the wire insulation turns to powder when you touch it.
Does the NB injector harness plug into the NA harness?

For the additional 2 wires you need to run, you can use spare evap wires if you want to run them back to the MS.
shuiend is offline   Reply With Quote
Old 10-17-2012, 02:08 PM   #543
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by shuiend View Post
Does the NB injector harness plug into the NA harness?

For the additional 2 wires you need to run, you can use spare evap wires if you want to run them back to the MS.
No, but I have a pig-tail for that.

I don't know that my car has evap wires. I may have clensed my car of them long ago with wire cutters because I could not find any last night.
hustler is offline   Reply With Quote
Old 10-17-2012, 02:19 PM   #544
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

I mean I can look up the color codes for you and tell you what color goes where on your NB harness....but I mean, you can look at that yourself (in diagram and in the damn harness itself) and figure it out.

you are making this harder than it needs to be, but then again you are:


First, your 1.6L only has 2 injector wires: yellow and yellow/black.

so you'll have to run 2 extra wires regardless...you can do like lars suggested and steal them from unused wires, like the purge.

the NB harness should be the following:

clyinder 1 - yellow/black
clyinder 2 - violet/green
clyinder 3 - yellow/red
clyinder 4 - yellow/green

It should be wired like this:

clyinder 1 - yellow/black - INJ A
clyinder 2 - violet/green - INJ D
clyinder 3 - yellow/red - INJ B
clyinder 4 - yellow/green - INJ C


I suggest you wire your factory ones above, so you're left with:

cly.----------NB---------output-------oem
clyinder 1 - yellow/black - INJ A - yellow/black
clyinder 2 - violet/green - INJ D - ???
clyinder 3 - yellow/red - INJ B - yellow
clyinder 4 - yellow/green - INJ C - ???

You need to run those extra two wires of your color choice, to clyinder 2 and 4.

Last edited by Braineack; 10-17-2012 at 02:40 PM.
Braineack is offline   Reply With Quote
Old 10-17-2012, 02:55 PM   #545
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Quote:
Originally Posted by braineack View Post
but then again you are no longer absurd.
ftfy.
shuiend is offline   Reply With Quote
Old 10-17-2012, 03:04 PM   #546
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

I wasn't asking for you to do all that, but thank you.
hustler is offline   Reply With Quote
Old 10-17-2012, 03:07 PM   #547
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by shuiend View Post
spend all your money, then keep spending money, and more money after that, to the point that you have to either nto track the car or go further into debt...then when something breaks, keep spending more money so you can track the car less and less every year, rather than drive every other weekend at low power and go just as fast.
ftfaids!!!!!
hustler is offline   Reply With Quote
Old 10-17-2012, 03:25 PM   #548
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Quote:
Originally Posted by hustler View Post
ftfaids!!!!!
Raise
A CC limit
Cap
Enourmously

Consume
All
Resrouces
shuiend is offline   Reply With Quote
Old 10-17-2012, 11:47 PM   #549
Junior Member
iTrader: (4)

Join Date: May 2009
Location: Athens GA
Posts: 434
Total Cats: 3
Default

Quote:
Originally Posted by Braineack View Post
I mean I can look up the color codes for you and tell you what color goes where on your NB harness....but I mean, you can look at that yourself (in diagram and in the damn harness itself) and figure it out.

you are making this harder than it needs to be, but then again you are:


First, your 1.6L only has 2 injector wires: yellow and yellow/black.

so you'll have to run 2 extra wires regardless...you can do like lars suggested and steal them from unused wires, like the purge.

the NB harness should be the following:

clyinder 1 - yellow/black
clyinder 2 - violet/green
clyinder 3 - yellow/red
clyinder 4 - yellow/green

It should be wired like this:

clyinder 1 - yellow/black - INJ A
clyinder 2 - violet/green - INJ D
clyinder 3 - yellow/red - INJ B
clyinder 4 - yellow/green - INJ C


I suggest you wire your factory ones above, so you're left with:

cly.----------NB---------output-------oem
clyinder 1 - yellow/black - INJ A - yellow/black
clyinder 2 - violet/green - INJ D - ???
clyinder 3 - yellow/red - INJ B - yellow
clyinder 4 - yellow/green - INJ C - ???

You need to run those extra two wires of your color choice, to clyinder 2 and 4.
This is exactly what I did. I also connected the two water temperature sensors via the 01+ connector. Red/Blue is the sensor output and Black/Red is the sensor ground. The Violet/White is the instrument water temp connection.

On the 90 harness water temp is as follows: Black/Light Green is sensor ground and Blue/White is the sensor output. The instrument water temp is the single remaining wire.

Hope this helps.

-Raj
redrider706 is offline   Reply With Quote
Old 10-20-2012, 03:53 PM   #550
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

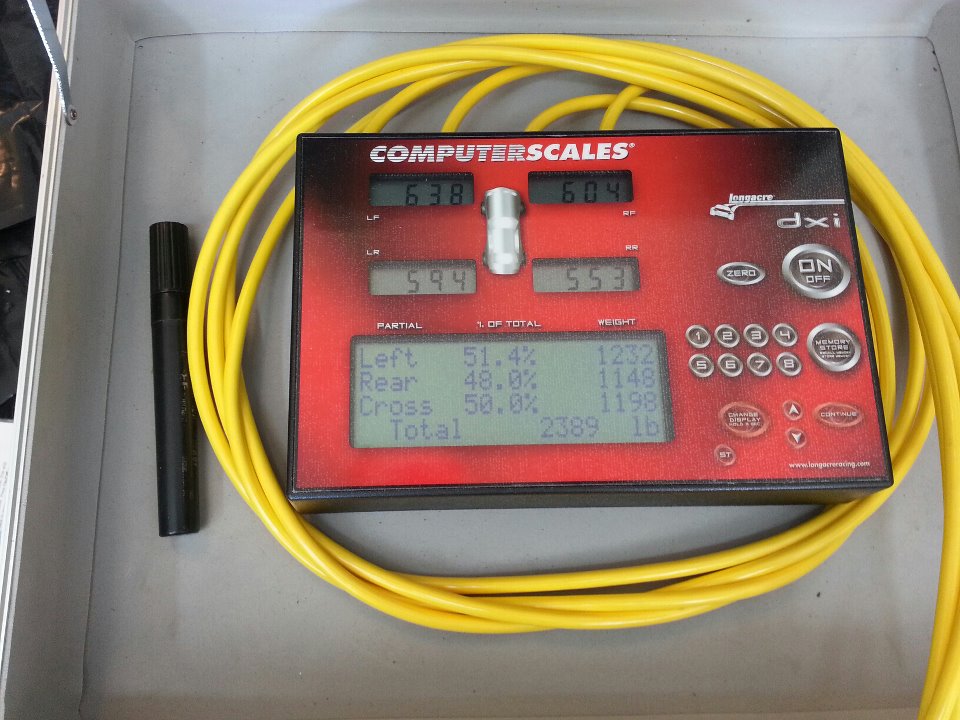

Bause:

Attached Thumbnails
Hustler's build thread 2.0, the natural aspiration connection-46175_10101173492069520_65745074_n.jpg
hustler is offline   Reply With Quote
Old 10-20-2012, 03:58 PM   #551
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Nice cross weighting, but why is it so heavy? Thats with driver and almost a full tank?
Leafy is offline   Reply With Quote
Old 10-20-2012, 04:13 PM   #552
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Leafy View Post
Nice cross weighting, but why is it so heavy? Thats with driver and almost a full tank?
Driver and half carpet + full wire since it's still a street car. I usually drive ~3-6 hours to tracks around here so I like the comfort. I cannot limit power without burning valves so this is where I must stay for a TTD* base-class.
hustler is offline   Reply With Quote
Old 10-21-2012, 11:08 PM   #553
Senior Member
iTrader: (1)

Join Date: Jan 2011
Location: Chattanooga, Tn
Posts: 1,038
Total Cats: 157
Default

Quote:
Originally Posted by Leafy View Post
Nice cross weighting, but why is it so heavy? Thats with driver and almost a full tank?
Do you understand what this question means? Either you don't have a CLUE what you are talking about....or you are accusing Hustler of not having a clue. Why the HELL would you ever corner weight a car WITHOUT the driver or WITHOUT fuel? The car needs to be "as raced" so unless you race the car without the driver or without fuel OF COURSE that weight was with fuel and driver.
TNTUBA is offline   Reply With Quote
Old 10-21-2012, 11:31 PM   #554
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,185
Total Cats: 2,582
Default

I've said this 10000000000000000000000 times now, but will say it again:
Leafy knows exactly ZERO PERCENT of what he posts about.

It blows my mind that he isn't banned yet for spreading mis-information in every single thread and basically dumbing down the content on this site.
18psi is offline   Reply With Quote
Old 10-22-2012, 08:24 AM   #555
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Quote:
Originally Posted by TNTUBA View Post
Do you understand what this question means? Either you don't have a CLUE what you are talking about....or you are accusing Hustler of not having a clue. Why the HELL would you ever corner weight a car WITHOUT the driver or WITHOUT fuel? The car needs to be "as raced" so unless you race the car without the driver or without fuel OF COURSE that weight was with fuel and driver.
That was my nice way of saying why the **** is your car (or you) obese.
Leafy is offline   Reply With Quote
Old 10-22-2012, 11:12 AM   #556
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

LSx coils, I haz some.
hustler is offline   Reply With Quote
Old 10-22-2012, 11:38 AM   #557
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Quote:
Originally Posted by hustler View Post
LSx coils, I haz some.
So next you are going to want directions to wire them in correctly?
shuiend is offline   Reply With Quote
Old 10-22-2012, 11:39 AM   #558
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

Quote:
Originally Posted by shuiend View Post
So next you are going to want directions to wire them in correctly?

rofl. you better believe it.

and not just directions, but Ikea style directions with easy to follow pictures.
Braineack is offline   Reply With Quote
Old 10-22-2012, 11:50 AM   #559
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

OMG, both of you are huge ------s, lol.

Don't give me the answers yet, I will put forth some effort first.
hustler is offline   Reply With Quote
Old 10-22-2012, 11:55 AM   #560
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

I only care because I love.
Braineack is offline   Reply With Quote
