Ughhh. put the mother ******* inductive pickup over the mother ******* wires...it works

Last edited by Braineack; 09-16-2011 at 09:18 PM.
Braineack is offline   Reply With Quote
Old 09-16-2011, 09:18 PM   #1482
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

(Posting from my phone.)

Ughhh. put the mother ******* inductive pickup over the mother ******* wires...
Braineack is offline   Reply With Quote
Old 09-16-2011, 09:55 PM   #1483
I'm a terrible person
iTrader: (19)

FRT_Fun's Avatar

Join Date: Apr 2009
Location: Arizona
Posts: 7,293
Total Cats: 180
Default

Quote:
Originally Posted by Braineack View Post
(Posting from my phone.)

Ughhh. put the mother ******* inductive pickup over the mother ******* wires...
Uggggghhhhhhhh not on all timing lights
FRT_Fun is offline   Reply With Quote
Old 09-16-2011, 11:00 PM   #1484
Junior Member
iTrader: (4)

Join Date: May 2009
Location: Novi, MI
Posts: 308
Total Cats: 1
Default



Must have missed my last post where I said I tried that. And it didn't mother ******* work.
Larimer is offline   Reply With Quote
Old 09-18-2011, 10:07 AM   #1485
Senior Member
iTrader: (1)

Join Date: Jan 2011
Location: Chattanooga, Tn
Posts: 1,038
Total Cats: 157
Default

You don't need to cut the plug wire. Just take the #1 COP out of the hole, plug the end of a plug wire that hooked to the factory coil pack into the COP, and then install the plug wire on the spark plug as you normally would. Now you can put the pick up on the spark plug wire. I keep a plug wire in the tool box on the trailer just for this.
TNTUBA is offline   Reply With Quote
Old 09-18-2011, 10:40 AM   #1486
Junior Member
iTrader: (4)

Join Date: May 2009
Location: Novi, MI
Posts: 308
Total Cats: 1
Default

Perfect. I'll do this today.
Larimer is offline   Reply With Quote
Old 11-21-2011, 10:50 PM   #1487
Junior Member

Join Date: May 2010
Location: Ventura County, CA
Posts: 45
Total Cats: 2
Default

Ive been working on my COP kit for my 94 and I have come to a point where I want to make it easy to go back and forth between COPs and stock(smog check contingency).

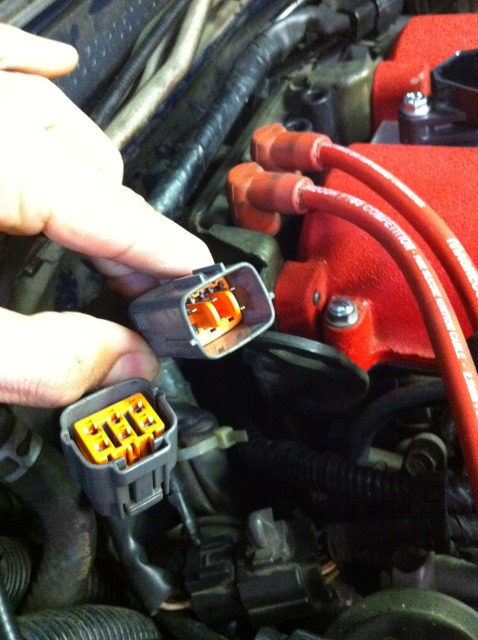

Ive come to the conclusion the female plug in the picture is the key to make it my harness plug and play connector wise, and not have to cut any of the car side harness wires.

Ive been searching but, anyone know where I could buy one, or what car I scavenge one off at a Pick-a-part and re-pin it.

Attached Thumbnails
COP Thread-ignitionconnector-1.jpg
TSR85 is offline   Reply With Quote
Old 11-21-2011, 11:17 PM   #1488
Junior Member

Join Date: Apr 2008
Posts: 350
Total Cats: -2
Default

On the '99, the key connector is right at the front of the engine, but it's similar to that one. Compatible connectors are all over mid-'90s Mazdas at the Pick Your Part. Just print out the photo you posted and take it with you. Grab a few in case there are differences you don't catch until you get home.
SolarYellow510 is offline   Reply With Quote
Old 11-22-2011, 03:28 AM   #1489
Junior Member
iTrader: (20)

Join Date: Apr 2010
Location: Redmond, WA
Posts: 494
Total Cats: 15
Default

You'd need to get a connector from another 94/95. later years have a 4 pin plug there instead of the 6 pin plug. Best bet would be to find a 94/95 at a junk yard and hack out part of the harness. The wires for the coils are just taped in and pretty much don't share any wires. so don't cut any wires, just tape/heatshrink

It probably wouldn't be worth getting anything from the dealer as they'll rape you price wise for a entirely new wiring harness if they can get it
bmxfuel007 is offline   Reply With Quote
Old 11-22-2011, 11:00 AM   #1490
Junior Member

Join Date: May 2010
Location: Ventura County, CA
Posts: 45
Total Cats: 2
Default

Ok, Thanks. I has just hoping I could pick up that connector at a site like Ballenger Motorsports where we order the toyota COP plugs.
TSR85 is offline   Reply With Quote
Old 11-22-2011, 01:18 PM   #1491
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

You can clamp an inductive timing light probe over the + or the - wire that goes to the COP.
Sometimes just opening the clamp, and laying it on top of the COP works.
JasonC SBB is offline   Reply With Quote
Old 11-22-2011, 01:46 PM   #1492
Junior Member
iTrader: (20)

Join Date: Apr 2010
Location: Redmond, WA
Posts: 494
Total Cats: 15
Default

One thing you could do if you want to keep it plug n play in the future is replacing that plug on both the main harness and the coil part of the harness. So you'd buy two 6 or 8 pin female connectors and one male. of course this would require you to splice in the connectors initially but after that it'd be plug and play as long as you kept the original part if the harness that connects directly to the factory coils (the two 4-pin connectors). Not sure if i'm making sense a i'm typing on my phone

Quote:
Originally Posted by tougerenner View Post
Ok, Thanks. I has just hoping I could pick up that connector at a site like Ballenger Motorsports where we order the toyota COP plugs.

Last edited by bmxfuel007; 11-24-2011 at 06:17 AM.
bmxfuel007 is offline   Reply With Quote
Old 11-27-2011, 04:56 AM   #1493
Elite Member
iTrader: (6)

Join Date: May 2011
Location: Lebanon, TN
Posts: 1,668
Total Cats: 63
Default

So I've read this whole thread almost twice. Unless I missed something or my inexperience is obvious. As far as dwell goes 2.5ms at 12v I understand. However what do I do with the rest of the dwell curve in the Hydra ecm. At the moment it's at 5.4ms at 12v. So is as simple as easy math. 5.4ms-2.5=2.9 and then just lower all the other numbers in the curve by 2.9ms? IE; 12v-2.5ms / 11.7v-(5.76-2.9=X)2.86ms / 11.3-(6.2-2.9=X)3.3ms and so on? Also can't find a "cranking dwell" in the Hydra 2.5 software. I am a total noob to this so I'm sorry. Thanks for any help. Wires, capacitors, weatherpacks, and heatshrink are making a baby in the morning.
TorqueZombie is offline   Reply With Quote
Old 11-27-2011, 05:35 AM   #1494
Junior Member
iTrader: (42)

Join Date: Dec 2010
Location: Meridian, ID
Posts: 280
Total Cats: 32
Default

Quote:
Originally Posted by tougerenner View Post
Ive been searching but, anyone know where I could buy one, or what car I scavenge one off at a Pick-a-part and re-pin it.

It looks like a Sumitomo DL Sealed Series 090 (2.3mm) 6-way connector.





Here are sources for the pins:

http://www.bmotorsports.com/shop/ind...pfke95ub6s0sk6

http://www.easternbeaver.com/Main/El...SMDL/smdl.html

Last edited by skou; 11-27-2011 at 05:49 AM. Reason: Added linked images
skou is offline   Reply With Quote
Old 11-27-2011, 04:18 PM   #1495
Elite Member
iTrader: (12)

Join Date: Jan 2007
Location: Hermosa Beach, CA
Posts: 2,575
Total Cats: 11
Default

Quote:
Originally Posted by TorqueZombie View Post
So I've read this whole thread almost twice. Unless I missed something or my inexperience is obvious. As far as dwell goes 2.5ms at 12v I understand. However what do I do with the rest of the dwell curve in the Hydra ecm. At the moment it's at 5.4ms at 12v. So is as simple as easy math. 5.4ms-2.5=2.9 and then just lower all the other numbers in the curve by 2.9ms? IE; 12v-2.5ms / 11.7v-(5.76-2.9=X)2.86ms / 11.3-(6.2-2.9=X)3.3ms and so on? Also can't find a "cranking dwell" in the Hydra 2.5 software. I am a total noob to this so I'm sorry. Thanks for any help. Wires, capacitors, weatherpacks, and heatshrink are making a baby in the morning.
You should be around 2.5-2.9ms at ~13.7v. as voltage drops, you need a longer dwell, I would put ~3-4(max)ms at 12v.

The best was is to test. Lower the dwell until you get misfiring under full boost, then back it back up ~.2ms.
cardriverx is offline   Reply With Quote
Old 12-01-2011, 05:59 PM   #1496
Newb
iTrader: (1)

Join Date: Nov 2010
Posts: 20
Total Cats: 0
Default

Ok I have also read this thread and still have a few questions. first, for my 1995 OBD1, do I need the dwell reducer?
gpzmax is offline   Reply With Quote
Old 12-01-2011, 06:27 PM   #1497
Elite Member
iTrader: (6)

Join Date: May 2011
Location: Lebanon, TN
Posts: 1,668
Total Cats: 63
Default

I guess that sort of answers part of the next question. What if the dwell is too long/short, how would I know. Other than too short the car cuts out do to no spark and too long and the COPs melt. Is slightly to long better than running on the hairy edge of too short. I took your suggestion on ^ and just subtracted 1.8 from everything across the board to keep the same curve as before and it puts me in the middle of your suggestion at 2.72ms at 13.6v and kept that curve up and down the voltage range. 4.88ms at 11v - 3.6ms at 12v - 2.72ms at 13.6v - 2ms at 15v all interpolated in between. I guess for a base line it keeps my FM basemap shape at the lower COPs range.

Other question is why the lower dwell on the COPs? I know coil on plug is a different idea/design than the factory wires and coils, but it's the same amount of cylinders and same rpm range? and if they product more spark, then how do they do it with less juice? or am I thinking too much and just need to shut up, plug the numbers in, and go away? I dwell too much on the mechanics of everything sometimes. (See what I did there? Dwell.....haha)
TorqueZombie is offline   Reply With Quote
Old 12-01-2011, 08:53 PM   #1498
Elite Member
iTrader: (6)

Join Date: May 2011
Location: Lebanon, TN
Posts: 1,668
Total Cats: 63
Default

Got it all on the car. Won't start. With key on I get power (12v) at the COPs connectors and in the right polarity. It's a '99 so the tach wires are sealed off and tucked in the harness in case I want them later. How do I test to make sure I have a "trigger" connection? Pull the COP and put a plug in it, rest it agains the manifold, and turn over the car looking for spark? or unplug it at the COP and turn the key over with a multimeter hooked to it and ground? I know certain cars if you unplug the coil and try to turn over the motor it melts things. I believe it's just GM CDI cars though.

It may be the serious overfueling on cranking just keeping it from firing. My wife can smell fuel from the porch. It would eventually start on the stock coils though.
TorqueZombie is offline   Reply With Quote
Old 12-27-2011, 11:14 AM   #1499
Junior Member

Join Date: Jul 2010
Location: Camp Pendleton, CA
Posts: 93
Total Cats: 2
Default

Quote:
Originally Posted by TorqueZombie View Post
Got it all on the car. Won't start. With key on I get power (12v) at the COPs connectors and in the right polarity. It's a '99 so the tach wires are sealed off and tucked in the harness in case I want them later. How do I test to make sure I have a "trigger" connection? Pull the COP and put a plug in it, rest it agains the manifold, and turn over the car looking for spark? or unplug it at the COP and turn the key over with a multimeter hooked to it and ground? I know certain cars if you unplug the coil and try to turn over the motor it melts things. I believe it's just GM CDI cars though.

It may be the serious overfueling on cranking just keeping it from firing. My wife can smell fuel from the porch. It would eventually start on the stock coils though.
I'm having the same issue. How to troubleshoot....
Darthteddy is offline   Reply With Quote
Old 12-27-2011, 01:28 PM   #1500
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

I have a 2000 and to test, I stuck an extra plug in each one of the COPs and set them so they were grounded to the top of the valve cover. I had an 'assistant' crank the motor so I could watch the light show.

IIRC, you should have 12v on the power connector when in 'RUN' or 'CRANK' and the trigger is just a pulse. Someone will correct me if I'm wrong I'm sure.

Are you running stock ECU or some other management? My stock '00 ECU runs wasted spark from the factory, so two of the COPs fire at the same time. Double and triple check that you have the correct pairs going to the appropriate cylinders.

Edit: Bah! Sorry Torque, didn't read back far enough. Can't help you on the FM ecu stuff, but the rest should still be OK. If worst comes to worst, you can always get a spark tester pretty cheap from any auto parts store.

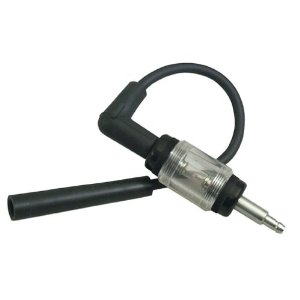

Amazon Amazon
